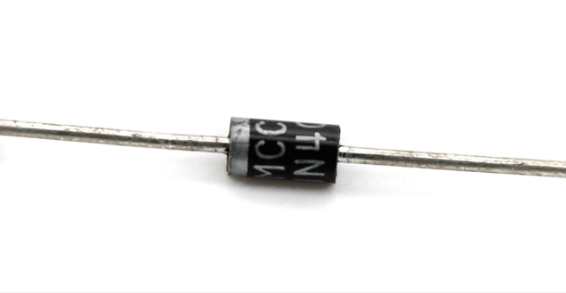

What is the 1N4007 Diode?

The 1N4007 diode is a widely used rectifier diode that is primarily used for converting alternating current (AC) into direct current (DC). It is part of the 1N400x series and is capable of handling higher reverse voltages compared to other diodes in the same family. This makes the 1N4007 a versatile choice for various electronic applications, such as power supplies, battery chargers, and motor drivers.

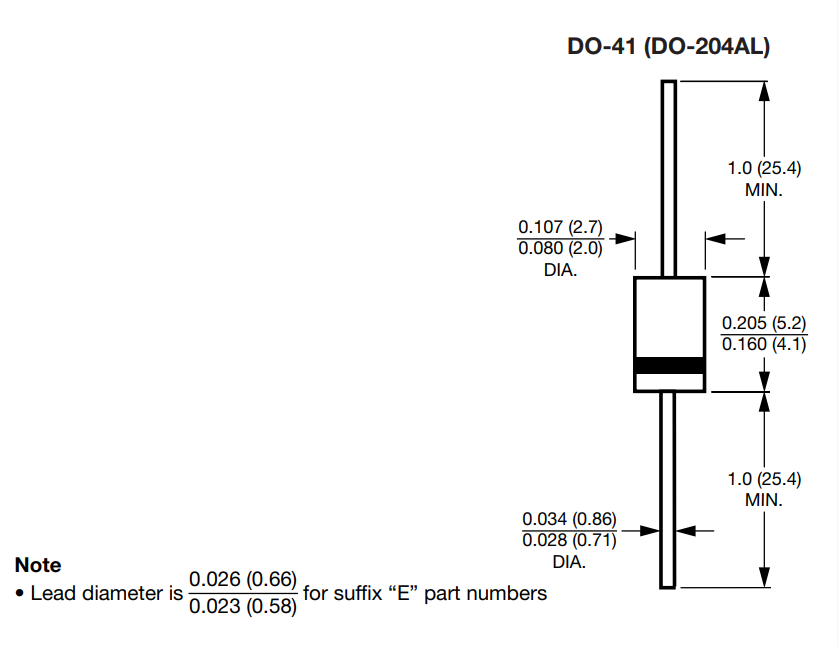

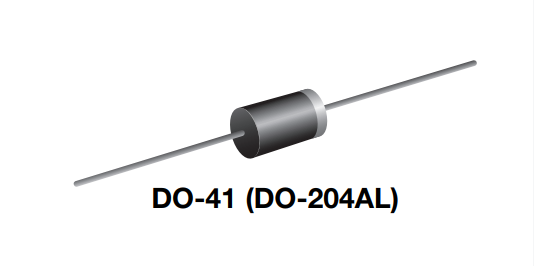

PACKAGE OUTLINE DIMENSIONS in inches (millimeters)

Key Features of the 1N4007 Diode

• High Reverse Voltage Rating: The 1N4007 can handle a maximum reverse voltage of 1000V, making it ideal for high-voltage applications.
• Forward Current Capacity: It can handle up to 1A of continuous forward current.
• Reliable Performance: Known for its stability and durability, even under heavy electrical loads.
• Reverse Recovery Time: Fast recovery time, suitable for efficient AC-to-DC conversion.

Applications of the 1N4007 Diode

The 1N4007 diode is used in various electronic circuits where its high reverse voltage and current handling capabilities are needed. Some of the common applications include:

• Power Supply Circuits: Used for AC-to-DC conversion in power supplies.
• Motor Drivers: Protects circuits from back EMF (electromotive force) in DC motors.
• Bridge Rectifiers: Converts AC into DC in various power devices.
• Flyback Diodes: Used in inductive load protection to prevent voltage spikes.

1N4007 vs 1N4001 Diode

The 1N4007 is part of the 1N400 series, which includes several diodes with different reverse voltage ratings. The key difference between the 1N4007 and 1N4001 is their maximum reverse voltage:

• 1N4001 Diode: Rated for a reverse voltage of 50V, suitable for lower voltage circuits.
• 1N4007 Diode: Rated for a reverse voltage of 1000V, making it ideal for high-voltage applications.

For circuits requiring a higher reverse voltage, the 1N4007 is the better choice. It can provide more robust protection in cases of voltage spikes.

Can I Use a 1N4007 (1A/1000V) Diode for a 3A/9V Circuit?

While the 1N4007 can handle up to 1A of continuous forward current, it would not be suitable for a 3A circuit. Using it in a 3A circuit could lead to overheating and potential failure. If you need to handle 3A of current, consider using a diode from the 1N5400 series, which is rated for higher currents (3A).

Specifications of the 1N4007 Diode

FAQ

Q1: What is the difference between the 1N4007 and the 1N4001 diode?

The main difference lies in their maximum reverse voltage. The 1N4007 is rated for 1000V, whereas the 1N4001 is rated for only 50V. The 1N4007 is suitable for high-voltage applications, while the 1N4001 is better for low-voltage circuits.

Q2: Can the 1N4007 diode be used in automotive circuits?

Yes, the 1N4007 is commonly used in automotive circuits, especially in power supply applications and to protect against voltage spikes in systems like alternators and battery charging circuits.

Q3: What is the maximum operating temperature for the 1N4007 diode?

The 1N4007 can operate in temperatures ranging from -55°C to +150°C, making it suitable for a wide range of environments and applications.

Q4: Can I replace the 1N4007 with a 1N4001 diode?

If your circuit requires handling reverse voltages above 50V, you should use the 1N4007. The 1N4001 is limited to a 50V reverse voltage rating, while the 1N4007 can handle up to 1000V.
