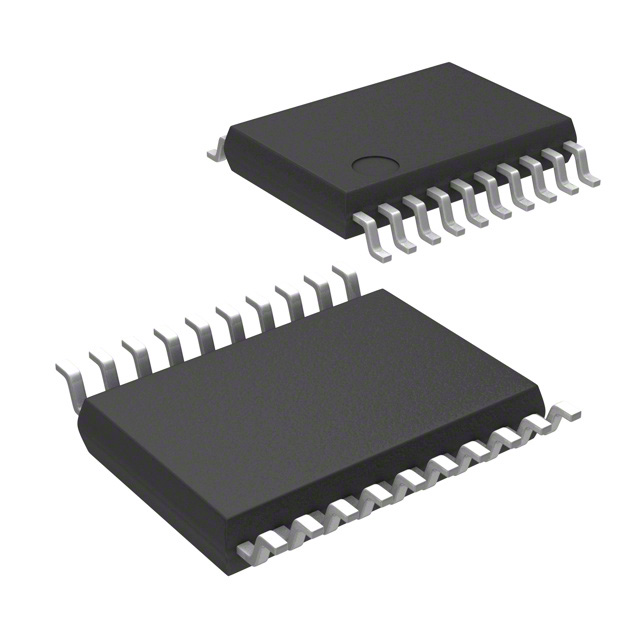

STM8S003F3P6TR

STMicroelectronics STM8S003F3P6TR

Part No.:: STM8S003F3P6TR

Manufacturer:: STMicroelectronics

Package:: 20-TSSOP (0.173", 4.40mm Width)

Datasheet:: STM8S003F3P6TR.pdf

Description:: IC MCU 8BIT 8KB FLASH 20TSSOP

Quantity:: RFQ

Payment:

Shipping:

Product details

1. Core specifications and functional features
Kernel architecture: STM8 8-bit core, up to 16MHz main frequency, support efficient CISC instruction set.

Storage resources: 8KB Flash program memory, 1KB RAM, supporting data EEPROM (128 bytes).

Peripheral interface:

10-bit ADC (5-channel) for analog signal acquisition.

16-bit universal timer (TIM1/TIM2/TIM4), supports PWM output.

UART, SPI, I2C communication interface, easy to connect multiple devices.

Package and power consumption: 20-pin TSSOP package, operating voltage 2.95V~5.5V, low power mode (Halt/Active-Halt) current as low as 350nA.

Temperature range: -40℃~+85℃, to meet the needs of industrial environment.

2. Typical application scenarios
Home appliance control: such as air conditioning, washing machine main control unit, support PWM drive motor and sensor data acquisition.

Industrial automation: Used in PLC modules, sensor nodes, small HMI interface, etc., strong anti-interference ability.

Consumer electronics: LED lighting control, smart chargers, portable devices and other low-cost solutions.

Iot terminal: Combined with low power consumption, it is suitable for remote monitoring devices powered by batteries.

3. Develop support and tools
Development environment: ST official provides STVD (ST Visual Develop) and STVP (ST Visual Programmer), support assembly and C language development.

Debugging tools: ST-LINK programmer, support online debugging and Flash burning.

Ecosystem: Rich library functions and routines (such as STM8 standard peripheral library), shorten the development cycle.

4. Market advantage
High cost performance: Compared with similar 8-bit MCUS, high integration and affordable, suitable for mass production projects.

Reliability: Through industrial certification, long-term supply stability, excellent anti-ESD performance.

STM8S003F3P6TR

Package/Case:
20-TSSOP (0.173", 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT)
Series:
STM8S
ProductStatus:
RoHS
CoreProcessor:
16MHz
CoreSize:
1K x 8
Speed:
8-Bit
Connectivity:
128 x 8
Peripherals:
Active
NumberofI/O:
Brown-out Detect/Reset, POR, PWM, WDT
ProgramMemorySize:
I²C, IrDA, LINbus, SPI, UART/USART
ProgramMemoryType:
Surface Mount
EEPROMSize:
16
RAMSize:
STM8
Voltage-Supply(Vcc/Vdd):
A/D 5x10b
DataConverters:
Internal
OscillatorType:
8KB (8K x 8)
OperatingTemperature:
FLASH
MountingType:
-40°C ~ 85°C (TA)
