STM32F103ZET6

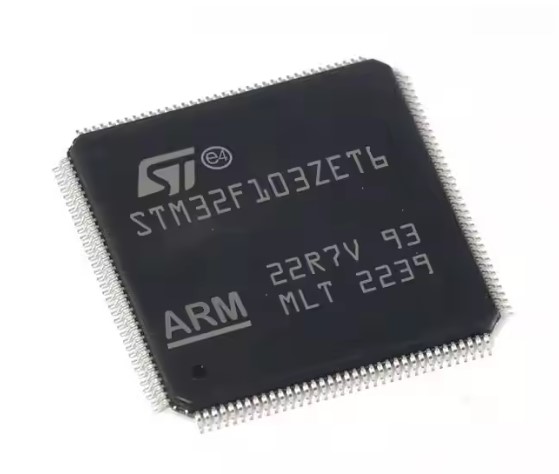

STMicroelectronics STM32F103ZET6

Part No.:: STM32F103ZET6

Manufacturer:: STMicroelectronics

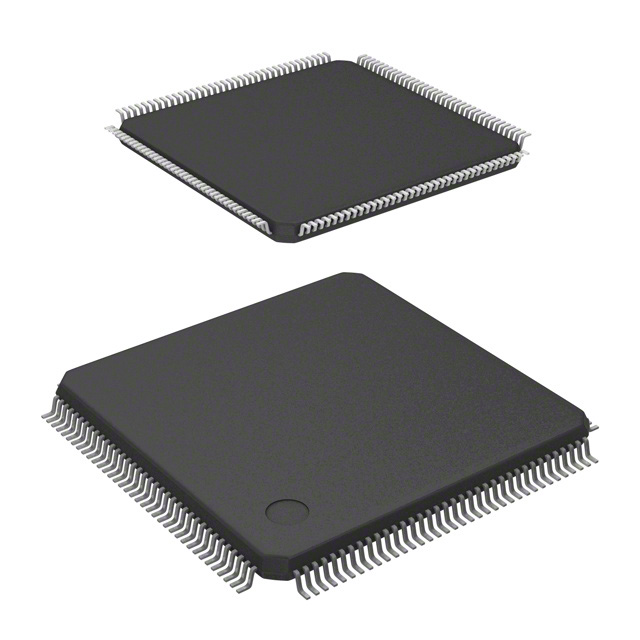

Package:: 144-LQFP

Datasheet:: STM32F103ZET6.pdf

Description:: IC MCU 32BIT 512KB FLASH 144LQFP

Quantity:: RFQ

Payment:

Shipping:

Product details

1. STM32F103ZET6 core features
Processor architecture: Based on ARM Cortex-M3 core, the main frequency is 72MHz, supporting single-cycle multiplication and hardware division instructions, suitable for real-time control scenarios.
Storage resources: 512KB Flash program memory + 64KB SRAM, supports external memory expansion (FSMC interface).
Peripheral interface:
Communication interface: 3 x SPI, 2 x I²C, 5 x UART/USART, 1 x USB 2.0 full speed interface.
Timer: 4×16 bit general purpose timer, 2×PWM advanced control timer, 1×SysTick timer.
Analog functions: 2× 12-bit ADC (21 channels), 2× 12-bit DAC.
Others: 80 GPIO, CAN 2.0B controller, DMA controller.
Power Supply and package: 2.0-3.6V wide voltage supply, 144-pin LQFP package, supports industrial temperature range (-40°C to +85°C).

2. Typical application scenarios

Industrial automation: Multi-node communication via CAN bus, coupled with ADC/PWM control of motors and sensors.
Smart home: Integrates USB and UART interfaces, supports Wi-Fi/ Bluetooth module expansion, and builds iot gateways.
Medical equipment: Precise control of portable monitoring instruments with high-precision timers and low-power modes.

3. Development environment and tools

IDE support: Keil MDK-ARM, STM32CubeIDE, IAR Embedded Workbench.

Firmware library: STM32 standard peripheral library (SPL) or HAL library, with STM32CubeMX to quickly generate initialization code.

Debugging tools: ST-LINK/V2 debugger, J-Link, SWD/JTAG interface.

Reference resources: Official data Manual (Datasheet), Reference Manual, application notes (AN2867, etc.)

4. Development board recommendation
MiniSTM32 Development board: Integrated LCD, keys, EEPROM and other peripherals, suitable for learning.

Wildfire guide developer board: provides rich expansion interface, support CAN, Ethernet and other industrial protocols.

5. Frequently Asked Questions
Q1: How to optimize Flash and RAM usage?
A1: Enable compiler optimization option (-O2/-O3), use DMA to reduce CPU load and manage stack space properly.

Q2: How to suppress ADC sampling noise?
A2: Hardware filtering circuit is added, and mean filtering or sliding window algorithm is used in software end.
STM32F103ZET6

Package/Case:
144-LQFP
Packaging:
Tray
Series:
STM32F1
ProductStatus:
RoHS
CoreProcessor:
72MHz
CoreSize:
64K x 8
Speed:
32-Bit
Connectivity:
-
Peripherals:
Active
NumberofI/O:
DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
ProgramMemorySize:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
ProgramMemoryType:
Surface Mount
EEPROMSize:
112
RAMSize:
ARM® Cortex®-M3
Voltage-Supply(Vcc/Vdd):
A/D 21x12b; D/A 2x12b
DataConverters:
Internal
OscillatorType:
512KB (512K x 8)
OperatingTemperature:
FLASH
MountingType:
-40°C ~ 85°C (TA)
