MAX232DR

Texas Instruments MAX232DR

Part No.:: MAX232DR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX232DR.pdf

Description:: IC TRANSCEIVER FULL 2/2 16SOIC

Quantity:: RFQ

Payment:

Shipping:

Product details

Product overview
The MAX232DR is a dual-channel RS-232 transceiver designed by Texas Instruments (TI) to address the need to convert TTL/CMOS levels to RS-232 standard levels. Its core function is to generate ±10V high voltage through a built-in charge pump, enabling two-way communication without an external power supply, compatible with the industrial temperature range (-40°C to +85°C) and suitable for harsh environments.

2. Core features
Level conversion: Support TTL/CMOS (0-5V) and RS-232 (±15V) bidirectional conversion.

High integration: Built-in charge pump, only 4 external capacitors (0.1μF) to work.

Anti-interference ability: ±15kV ESD protection (IEC 61000-4-2), enhance system reliability.

Low power consumption: Typical static current 8mA, suitable for battery-powered devices.

Data rate: The maximum transmission rate is 120kbps, which meets most serial communication requirements.

3. Technical specifications
Package type: 16-pin SOIC (DR Suffix), compact and easy to weld.

Supply voltage: Single supply 4.5V to 5.5V.

Operating temperature: Industrial grade -40°C to +85°C.

Compatibility: Complies with EIA/TIA-232-F standards and supports full-duplex communication.

3. Technical specifications
Package type: 16-pin SOIC (DR Suffix), compact and easy to weld.

Supply voltage: Single supply 4.5V to 5.5V.

Operating temperature: Industrial grade -40°C to +85°C.

Compatibility: Complies with EIA/TIA-232-F standards and supports full-duplex communication.

4. Typical application scenarios
Industrial control: RS-232 communication interface between PLC, sensor and upper computer.

Embedded system: MCU (such as STM32, Arduino) and PC serial port data transmission.

Medical equipment: Stable communication module in low noise environment.

Consumer electronics: POS machines, printers and other peripheral connections.

5. Design considerations
Capacitor selection: Low ESR ceramic capacitor (0.1μF recommended) should be used.

Wiring optimization: the signal line is as short as possible to avoid parallel high-frequency lines to reduce interference.

Alternative: If you need 3V power or higher, consider the MAX3232 series.
6. Frequently Asked Questions
Q1: Does MAX232DR require external power supply to generate negative voltage?
A: No, the built-in charge pump can generate ±10V voltage through the external capacitor.

Q2: How to solve the communication distance limitation?
A: RS-232 standard theoretical distance of 15 meters, can be installed signal repeater or use RS-485 extension.

7. Conclusion
With high reliability, low cost and ease of use, the MAX232DR is the preferred solution for traditional serial communication. Although high-speed scenarios are gradually shifting to USB or wireless technology, it still plays an important role in industrial control and upgrading of older equipment. The appropriate transceiver type should be selected according to the power supply, speed and environmental requirements.
max232dr

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:

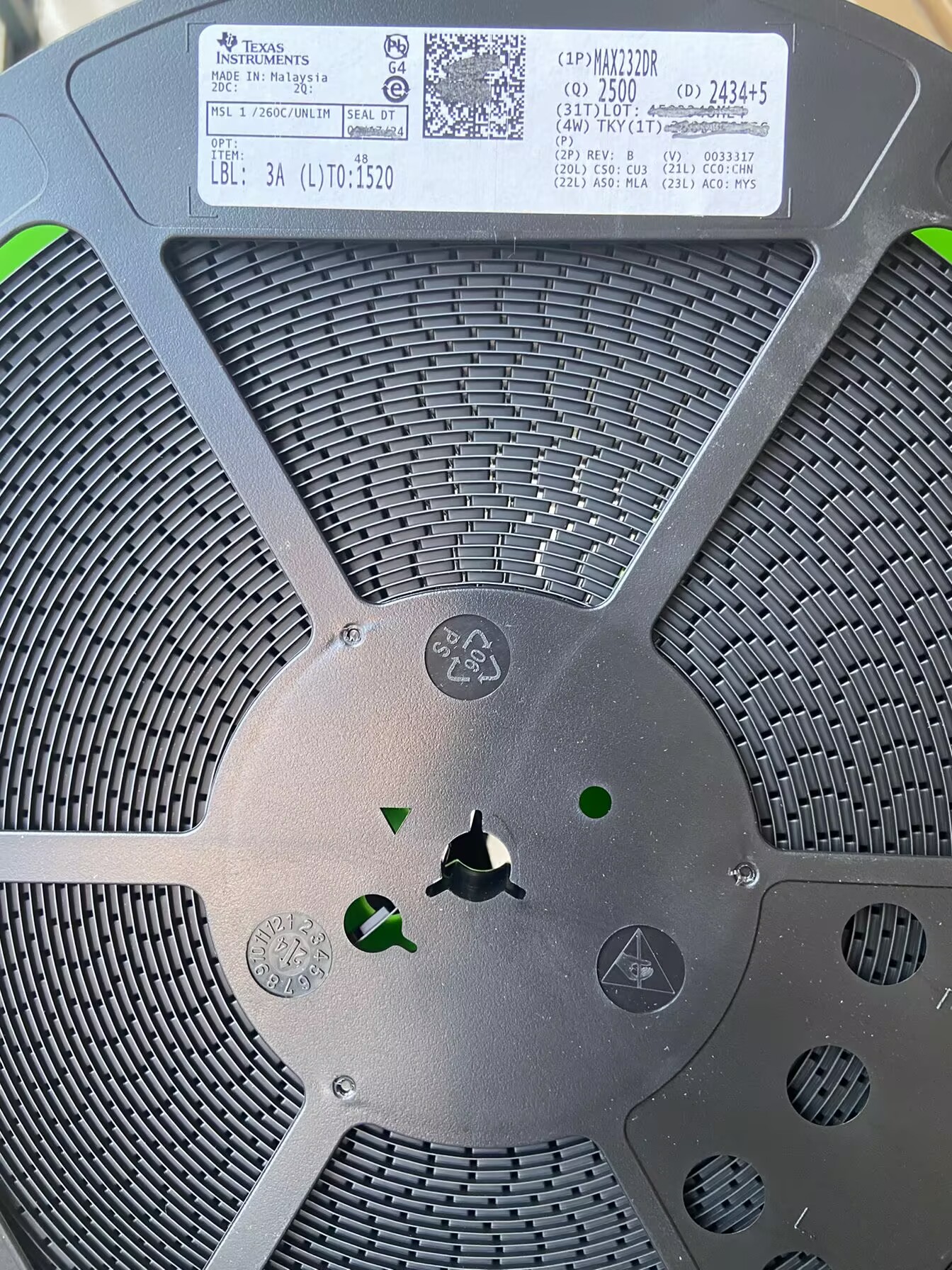

Tape & Reel (TR),Cut Tape (CT),Bulk
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
500 mV
DataRate:
120Kbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount
