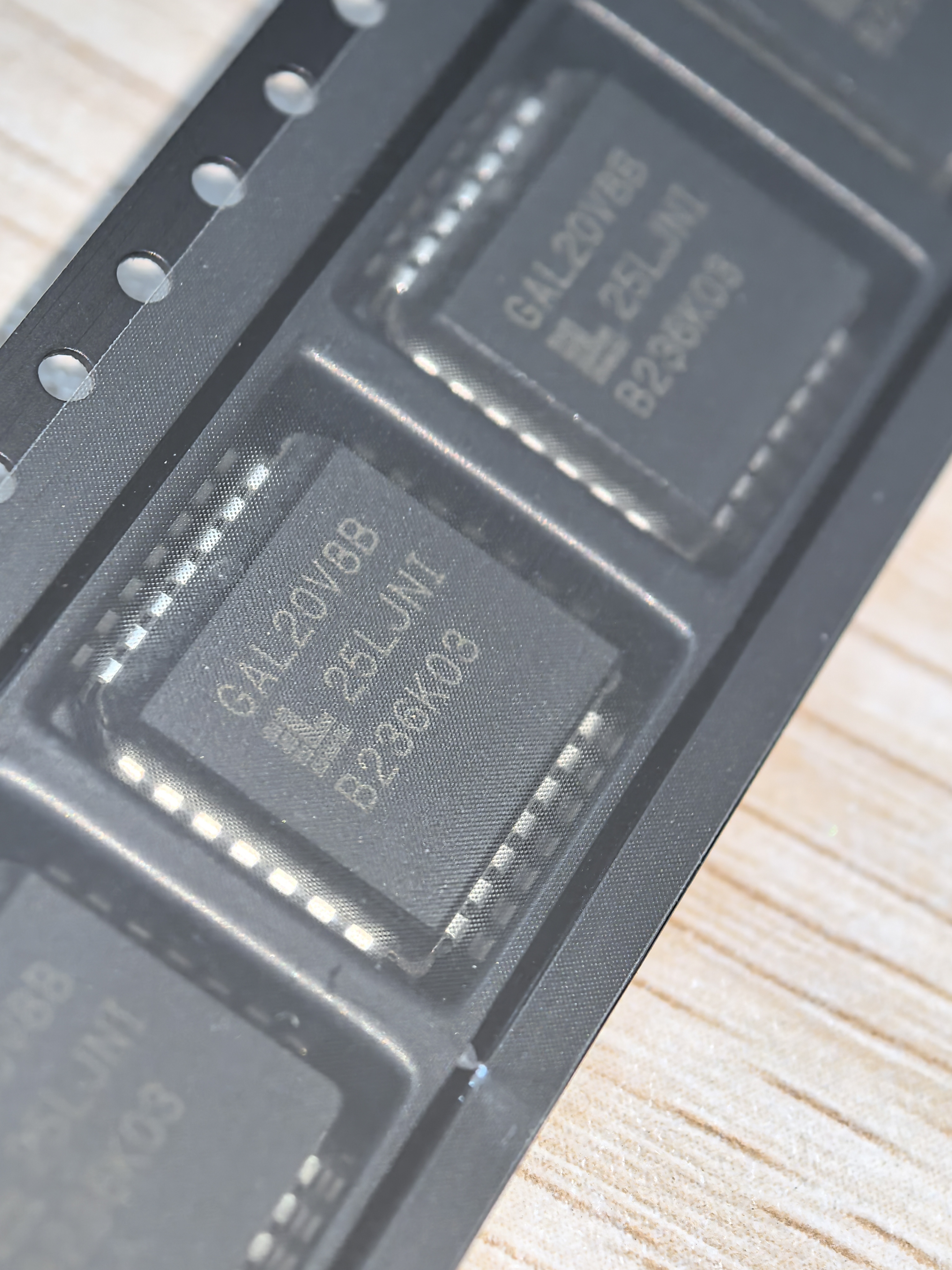

GAL20V8B-25LJN

Lattice Semiconductor Corporation GAL20V8B-25LJNI

Part No.:: GAL20V8B-25LJNI

Manufacturer:: Lattice Semiconductor Corporation

Package:: 28-LCC (J-Lead)

Datasheet:: GAL20V8B-25LJNI.pdf

Description:: IC CPLD 8MC 25NS 28PLCC

Quantity:: RFQ

Payment:

Shipping:

Product details

1. Product overview
GAL20V8B-25LJNI belongs to the Lattice GAL20V8 series of PLD devices, which are designed and optimized for complex logic circuits. Based on electrically erasable (E²CMOS) technology, it supports flexible repetitive programming and is suitable for rapid prototyping and small series production.

2. Key specifications
Logic capacity: 20 input/output pins, 8 macro cells, support medium-scale logic design.

Performance parameters: Maximum propagation delay 25ns, clock frequency up to 40MHz, suitable for high-speed timing control.

Power consumption characteristics: The static current is as low as 10mA (typical value), and the dynamic power consumption is dynamically adjusted with the frequency, which meets the low power design requirements.

Package type: PLCC-28 (J-pin package), compact size (11.5mm x 11.5mm), compatible with automated welding process.

Working environment: Industrial grade temperature range (-40°C to 85°C), strong anti-interference, suitable for industrial control and automotive electronics.

3. Functional features
Programmable architecture: Supports flexible configuration with gate arrays and/or gate arrays to achieve combinational and sequential logic functions.

Output structure: Provide register or combined output options, support two-way I/O control.

4. Typical application scenarios
Industrial control: Used for PLC module, motor drive logic interface.

Communication equipment: protocol conversion, signal routing control.

Consumer electronics: keyboard scanning, LED display driver and other low-complexity logic functions.

Replace the traditional logic chip: replace the 74 series TTL circuit, reduce PCB area and BOM cost.

5. Development support
Programming tools: Compatible with universal PLD programmers (such as Xeltek SuperPro series), support JEDEC file burning.

Design software: Logic design can be done through Lattice ispLEVER Classic or third-party EDA tools such as Proteus.

Debugging suggestion: Use simulation tools to verify the timing logic to avoid the problem of competitive risk.
Based on the above analysis, GAL20V8B-25LJNI is still the preferred solution for small and medium scale digital circuit design due to its high cost performance and reliability, especially suitable for maintaining old systems or cost-sensitive projects.

GAL20V8B-25LJNI

Package/Case:
28-LCC (J-Lead)
Packaging:
Tube
Series:
GAL®20V8
ProductStatus:
Obsolete
ProgrammableType:
EE PLD
DelayTimetpd(1)Max:
25 ns
VoltageSupply-Internal:
4.5V ~ 5.5V
NumberofLogicElements/Blocks:
-
NumberofMacrocells:
8
NumberofGates:
-
NumberofI/O:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount
