5M2210ZF256I5N

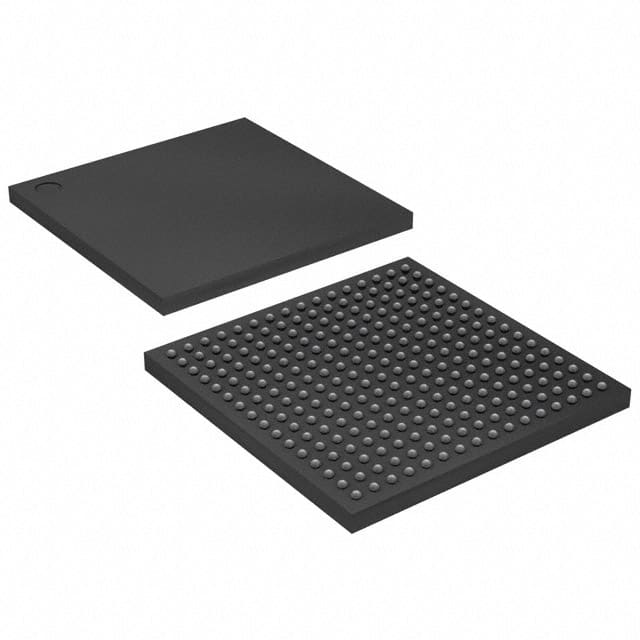

Intel 5M2210ZF256I5N

Part No.:: 5M2210ZF256I5N

Manufacturer:: Intel

Package:: 256-LBGA

Datasheet:: 5M2210ZF256I5N.pdf

Description:: IC CPLD 1700MC 7NS 256FBGA

Quantity:: RFQ

Payment:

Shipping:

Product details

1. Product overview
The 5M2210ZF256I5N is one of the core models of Intel (formerly Altera) MAX V series CPLD, designed for low-power, high-reliability embedded applications. It uses advanced non-volatile storage technology and supports Instant-On functionality, which is suitable for industrial and consumer electronics scenarios that require rapid response.

2. Core specifications and features
Logical resources: 2210 logical units (LE), supporting complex logic functions.

Storage capacity: 80 Kbit User flash memory (UFM) for configuring storage and data retention.

Package and I/O: 256 pin FineLine BGA package, providing 207 user I/O, support for LVCMOS, LVTTL and other level standards.

Power consumption: Static current as low as 25 µA, optimized for dynamic power consumption for battery-powered devices.

Operating environment: Industrial grade temperature range (-40°C to +100°C), meeting the requirements of harsh environments.

Configuration mode: Support JTAG, AS and parallel flash memory configuration, high flexibility.

3. Architectural advantages
Non-volatile storage: No external chip is required and the storage system runs immediately after being powered on, improving system reliability.

High integration: built-in phase locked loop (PLL), clock management module, simplify peripheral circuit design.

Security: Supports Bitstream Encryption to prevent designs from being reverse-engineered.

4. Typical application scenarios
Industrial control: PLC interface, motor control, sensor signal processing.

Communication equipment: protocol conversion, bridge chip (such as UART to SPI/I2C).

Consumer electronics: Smart home control, display drive logic.

Medical equipment: Low power portable instrument control module.

5M2210ZF256I5N

Package/Case:
256-LBGA
Packaging:
Tray
Series:
MAX® V
ProductStatus:
Active
ProgrammableType:
In System Programmable
DelayTimetpd(1)Max:
7 ns
VoltageSupply-Internal:
1.71V ~ 1.89V
NumberofLogicElements/Blocks:
2210
NumberofMacrocells:
1700
NumberofGates:
-
NumberofI/O:
203
OperatingTemperature:
-40°C ~ 100°C (TJ)
MountingType:
Surface Mount
