Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

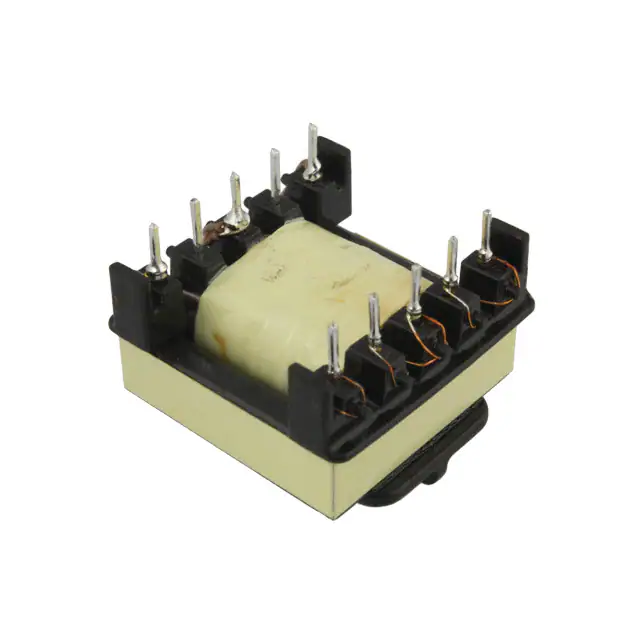

760871632 TRANS FLYBACK NXP TEA1733 4.0MH Würth Elektronik	3,072	7.67	RFQ	Datasheet	Tray	WE-UNIT	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TEA1733	NXP Semiconductors	120 ~ 385V	12V @ 10mA	1500Vrms	4mH @ 10kHz	100kHz	-40°C ~ 125°C	Through Hole	1.150 L x 1.100 W (29.21mm x 27.94mm)	0.850 (21.59mm)	1.150 L x 1.100 W (29.21mm x 27.94mm)

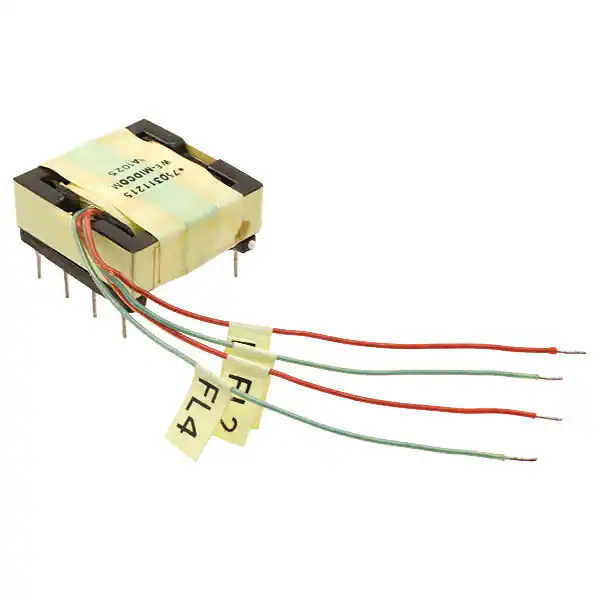

750311215 TRANS FLYBACK NCL30000 870UH Würth Elektronik	3,882	7.67	RFQ	Datasheet	Tray	WE-UNIT, MID-OLON	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCL30000	On Semiconductor	-	-	4500Vrms	870µH @ 10kHz	-	-40°C ~ 125°C	Through Hole	0.850 L x 0.830 W (21.59mm x 21.08mm)	0.430 (10.92mm)	0.850 L x 0.830 W (21.59mm x 21.08mm)

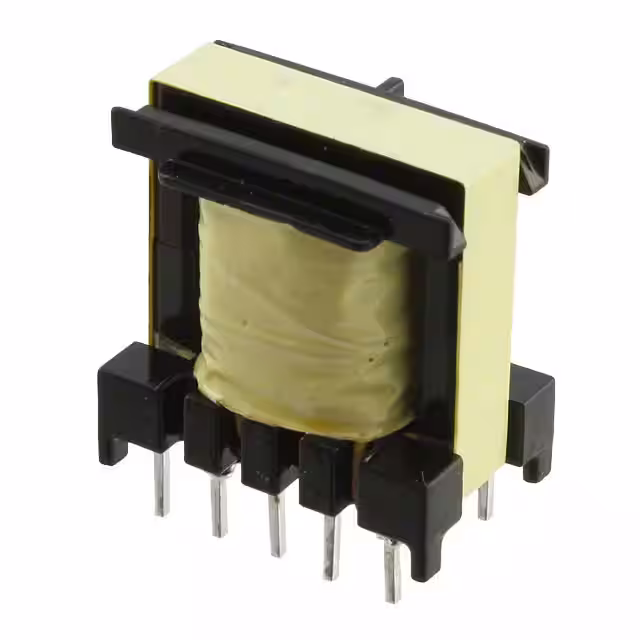

750811145 TRANS FLYBACK TPS92210DR 1.2MH Würth Elektronik	2,193	7.67	RFQ	Datasheet	Tray	WE-UNIT, MID-OLTI	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TPS92210DR	Texas Instruments	88 ~ 269V	-	3750VDC	1.2mH @ 65kHz	130kHz	-40°C ~ 125°C	Through Hole	0.876 L x 0.567 W (22.88mm x 14.40mm)	0.878 (22.30mm)	0.876 L x 0.567 W (22.25mm x 14.40mm)

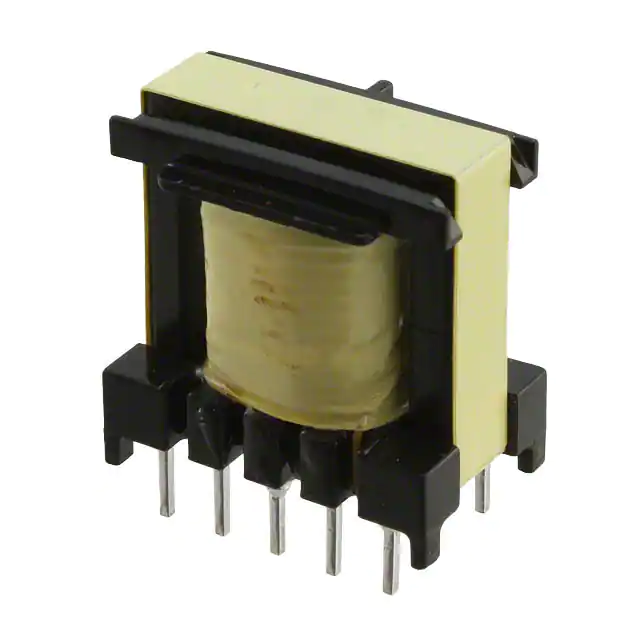

750811148 TRANS FLYBACK TPS92210DR 430UH Würth Elektronik	3,321	7.67	RFQ	Datasheet	Tray	WE-UNIT, MID-OLTI	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TPS92210DR	Texas Instruments	88 ~ 269V	-	3750VDC	430µH @ 65kHz	130kHz	-40°C ~ 125°C	Through Hole	0.876 L x 0.567 W (22.88mm x 14.40mm)	0.878 (22.30mm)	0.876 L x 0.567 W (22.25mm x 14.40mm)

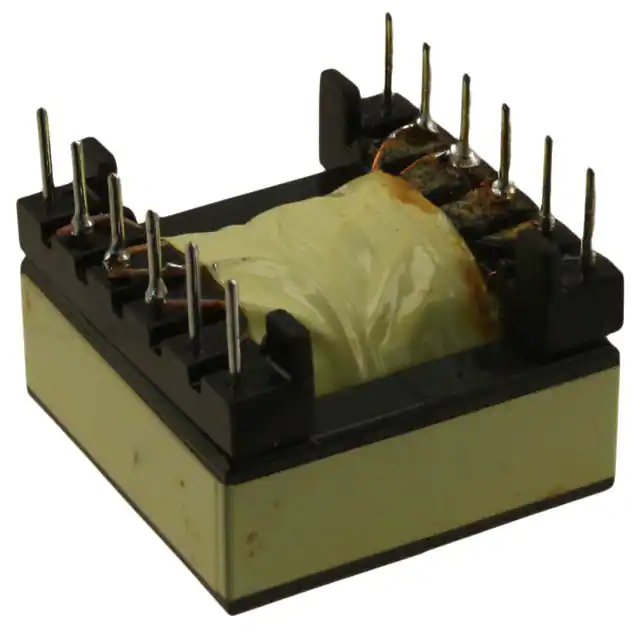

750811291 TRANSFORMER FLYBACK LT3799 Würth Elektronik	2,024	8.06	RFQ	Datasheet	Tray	WE-FB, MID-OLLT	Active	For AC/DC Converters	Flyback Converters	LT3799	Linear Technology	85 ~ 265V	20V @ 10mA	4500Vrms	400µH @ 100kHz	-	-40°C ~ 125°C	Through Hole	1.220 L x 1.220 W (31.00mm x 31.00mm)	0.989 (25.12mm)	1.220 L x 1.220 W (31.00mm x 31.00mm)
749196507 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	2,158	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	87.1µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
749196508 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	2,717	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	196µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
749196517 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	3,114	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	9.9µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
749196528 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	3,416	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	12µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
749196537 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	3,741	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	4.3µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
749196538 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	2,454	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	9.7µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
749196547 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	3,050	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	3.4µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
749196548 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	3,886	9.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	7.6µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.846 W (21.01mm x 21.49mm)	0.472 (11.99mm)	1.161 L x 0.846 W (29.49mm x 21.49mm)
750311589 TRANS FLYBACK LT3748 6UH SMD Würth Elektronik	2,282	10.08	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	10V	1500Vrms	6µH @ 150kHz	150kHz	-40°C ~ 85°C	Surface Mount	-	0.544 (13.82mm)	1.064 L x 1.272 W (27.03mm x 32.31mm)
750845456 FLYBACK TRANSFORMER Würth Elektronik	3,750	10.27	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750845452 FLYBACK TRANSFORMER Würth Elektronik	3,903	10.27	RFQ	Datasheet	Tape & Reel (TR)	-	Active	For DC/DC Converters	Flyback Converters	ISL6745	Renesas Electronics Corporation	110 ~ 380V	14.7V @ 50mA	3000Vrms	470µH @ 10kHz	100kHz	-40°C ~ 125°C	Surface Mount	-	0.472 (12.00mm)	1.634 L x 0.728 W (41.50mm x 18.50mm)
750845450 FLYBACK TRANSFORMER Würth Elektronik	2,267	10.27	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750841140 FLYBACK TRANSFORMER Würth Elektronik	3,624	10.27	RFQ		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750845250 FLYBACK TRANSFORMER Würth Elektronik	3,319	10.27	RFQ		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-

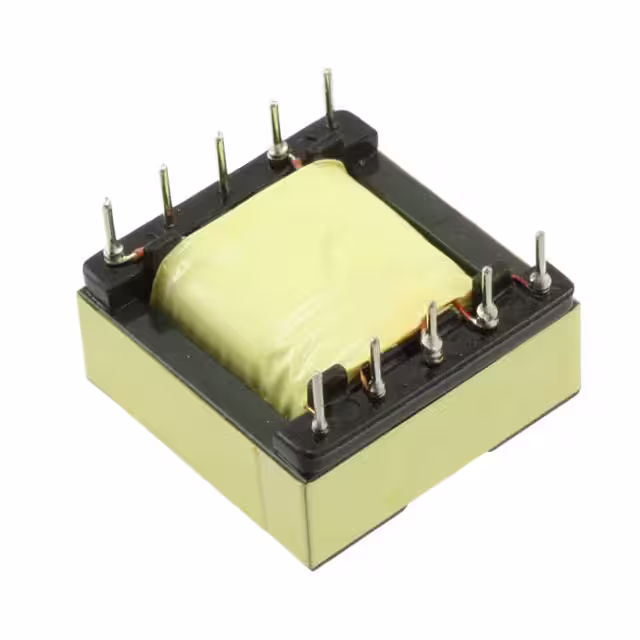

750340505 TRANS FLYBACK NXPSSL2101 SSL2102 Würth Elektronik	3,724	8.70	RFQ	Datasheet	Tray	WE-UNIT, MID-OLNXP	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	SSL2101	NXP Semiconductors	85 ~ 265V	-	4000Vrms	1.08mH @ 10kHz	-	-40°C ~ 125°C	Through Hole	1.025 L x 1.050 W (26.04mm x 26.67mm)	0.540 (13.72mm)	1.025 L x 1.050 W (26.04mm x 26.67mm)
