Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ULPF1553-2 TRANSFORMER PBC iNRCORE, LLC	3,462	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPF1553-3 TRANSFORMER PBC iNRCORE, LLC	2,095	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPF1553-45 TRANSFORMER PBC iNRCORE, LLC	2,090	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPF1553-5 TRANSFORMER PBC iNRCORE, LLC	2,163	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPG1553-1 TRANSFORMER PBC iNRCORE, LLC	2,546	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPG1553-2 TRANSFORMER PBC iNRCORE, LLC	2,241	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPG1553-3 TRANSFORMER PBC iNRCORE, LLC	3,565	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPG1553-45 TRANSFORMER PBC iNRCORE, LLC	3,104	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
ULPG1553-5 TRANSFORMER PBC iNRCORE, LLC	2,826	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-
1000B-5016F MIL-AERO iNRCORE, LLC	2,818	RFQ	Datasheet	Tube	-	Discontinued at Mosen	LAN 10/100/1000 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.173 (4.39mm)
1000B-5016FNL MDL SIN 1GD 1:1 SM TU NPB iNRCORE, LLC	3,611	RFQ	Datasheet	Tube	-	Discontinued at Mosen	LAN 10/100/1000 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.173 (4.39mm)
1000B-5016FNLT MDL SIN 1GD 1:1 SM TR NPB iNRCORE, LLC	3,602	RFQ	Datasheet	Tape & Reel (TR)	-	Discontinued at Mosen	LAN 10/100/1000 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.173 (4.39mm)
1000B-5016FT MIL-AERO iNRCORE, LLC	3,178	RFQ	Datasheet	Tape & Reel (TR)	-	Discontinued at Mosen	LAN 10/100/1000 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.173 (4.39mm)
DMG1553-1 TRANSFORMER PBC iNRCORE, LLC	3,082	RFQ		Tube	*	Active	-	-	-	-	-	-	-
DMG1553-2 TRANSFORMER PBC iNRCORE, LLC	3,875	RFQ		Tube	*	Active	-	-	-	-	-	-	-
DMG1553-3 TRANSFORMER PBC iNRCORE, LLC	2,128	RFQ		Tube	*	Active	-	-	-	-	-	-	-
DMG1553-45 TRANSFORMER PBC iNRCORE, LLC	3,019	RFQ		Tube	*	Active	-	-	-	-	-	-	-
DMG1553-5 TRANSFORMER PBC iNRCORE, LLC	2,707	RFQ		Tube	*	Active	-	-	-	-	-	-	-

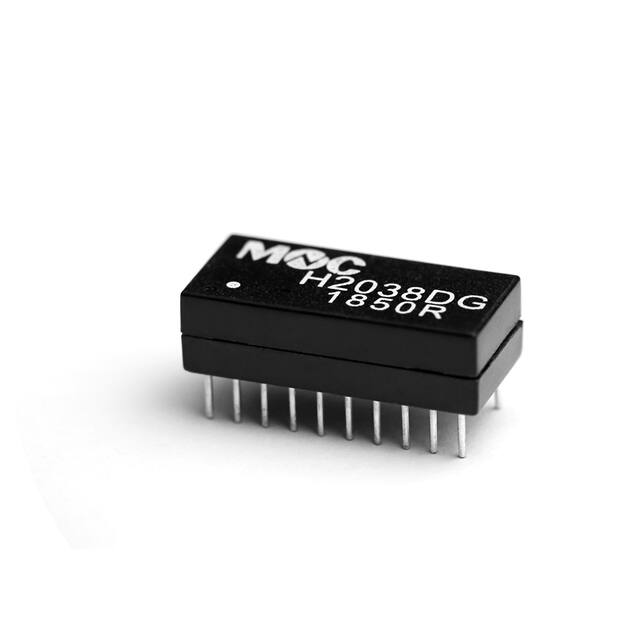

H2038DG LAN XFMR 10/100 BASE,THT Mentech Technology USA Inc.	2,481	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Through Hole	0.834 L x 0.394 W (21.20mm x 10.00mm)	0.266 (6.75mm)

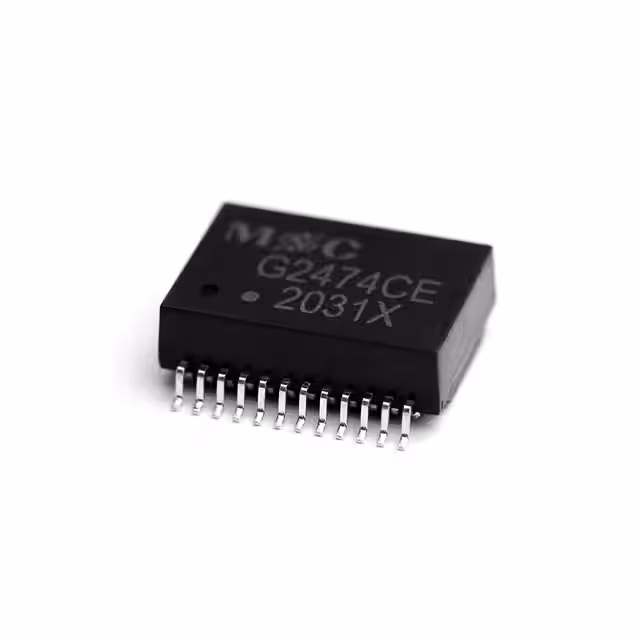

G2474CE LAN XFMR 10/100/1000 BASE Mentech Technology USA Inc.	2,285	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.689 L x 0.630 W (17.50mm x 16.00mm)	0.244 (6.20mm)
