Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

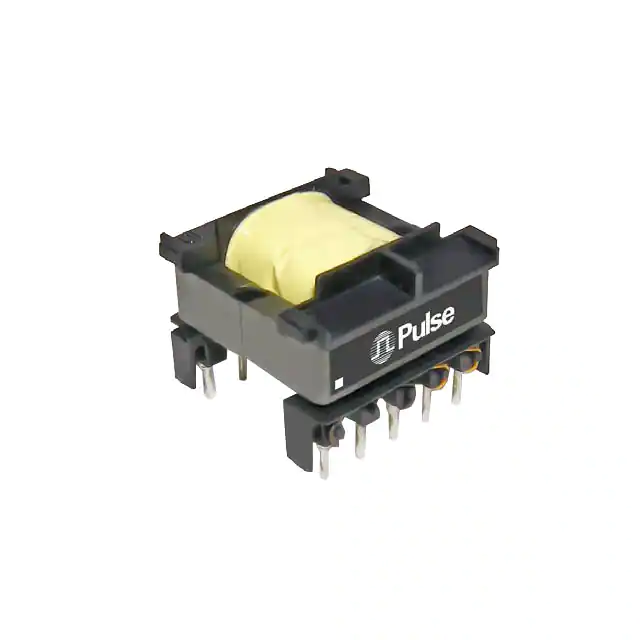

PA1297NL PULSE XFMR 380UH Pulse Electronics Power	567	0.00	RFQ	Datasheet	Tray	-	Active	-	380µH	-	-	Through Hole	1.100 L x 1.150 W (27.94mm x 29.21mm)	0.820 (20.82mm)

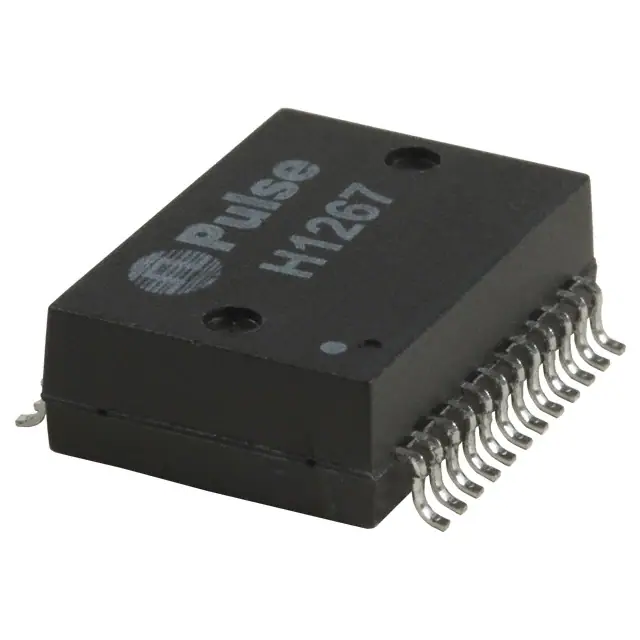

H1267NLT XFRMR 1PORT 1:1 10/100 SMD Pulse Electronics Network	850	5.71	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)
TX1287T PULSE XFMR 1CT:2.42CT TX/RX Pulse Electronics Network	142	5.71	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	1CT:2.42CT Transmitter, 1CT:2.42CT Receiver	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
H1263NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	583	5.74	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.380 W (12.70mm x 9.65mm)	0.236 (5.99mm)
E4001NLT XFRMR LAN ISOL 10BASE-T 1:2 SMD Pulse Electronics Network	575	5.85	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	112µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.210 (5.33mm)
B82806D0060A050 P300869 EFD20 POE TRANSFORMER EPCOS - TDK Electronics	138	6.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82806D	Active	-	-	-	-	Surface Mount	0.866 L x 1.181 W (22.00mm x 30.00mm)	-
ALAN1100X1-2F00DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	239	6.20	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

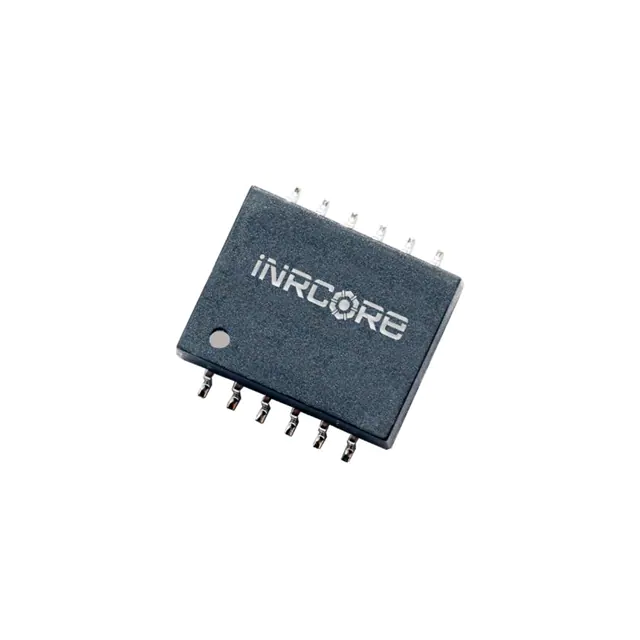

R1001NL XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	258	6.21	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.192 (4.88mm)
2337822-2 DISCRETE ETHERNET MAGNETICS SING TE Connectivity AMP Connectors	181	6.26	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	-

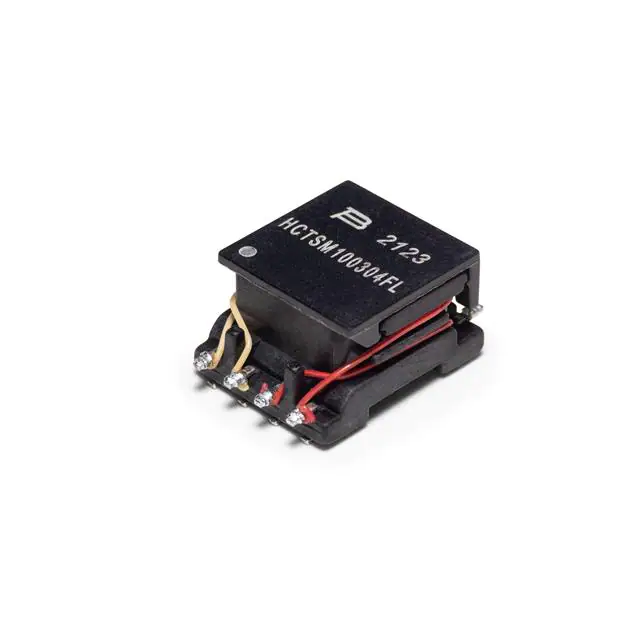

HCTSM100304FL-E TRANSF HIGH VOLTAGE ISOLATION Bourns Inc.	250	6.31	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HCT	Active	Isolation and Data Interface (Encapsulated)	400µH	11.0VµS	1:1.33	Surface Mount	0.620 L x 0.425 W (15.70mm x 10.08mm)	0.295 (7.50mm)

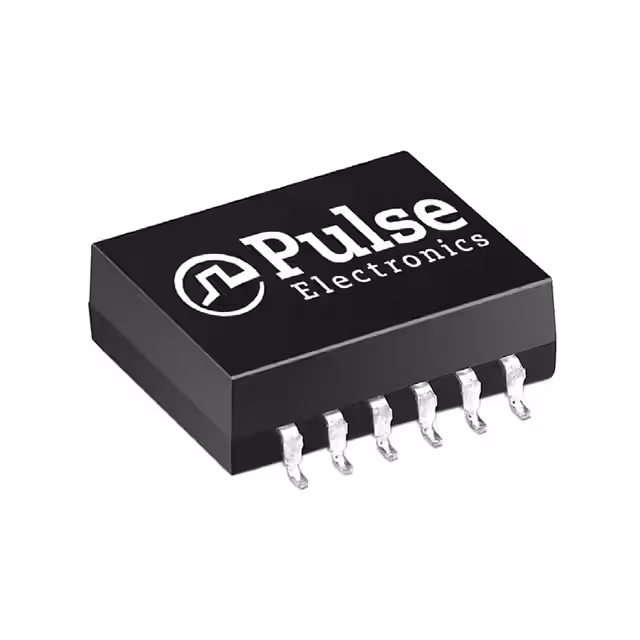

H1126NL XFRMR MODULE 1PORT 1:2 10/100 Pulse Electronics Network	270	6.44	RFQ	Datasheet	Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:2CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.202 (5.13mm)

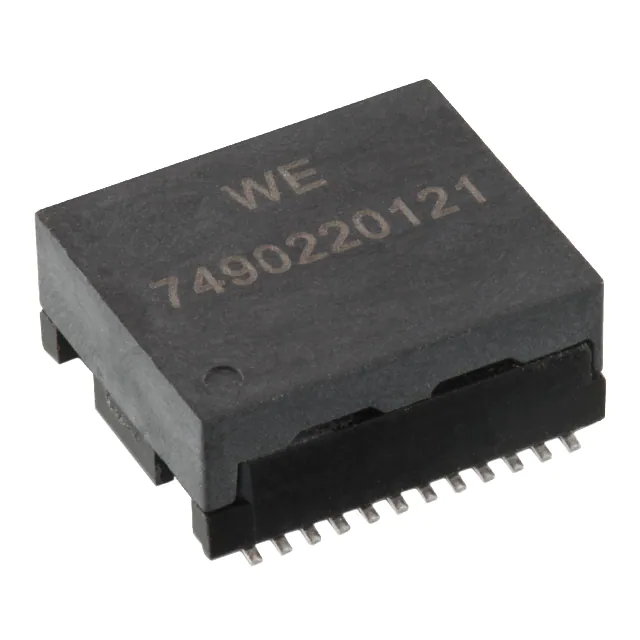

7490220121 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	2,857	6.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720 L x 0.579 W (18.29mm x 14.70mm)	0.283 (7.20mm)

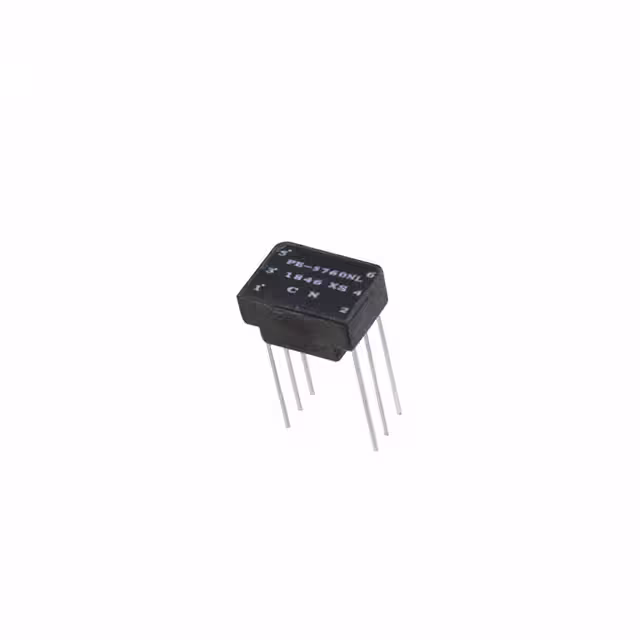

PE-5760NL TRANSFORMER 1:1:1 500VRMS Pulse Electronics Network	136	6.51	RFQ	Datasheet	Tube	-	Active	-	5mH	25VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

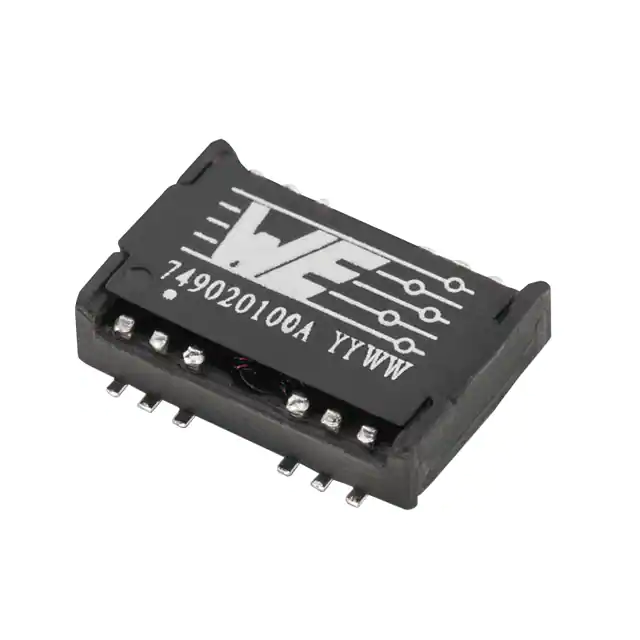

749020100A WE-LAN 10/100/1000 BASE-T SMD Würth Elektronik	2,823	6.56	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.339 W (12.70mm x 8.60mm)	0.128 (3.25mm)

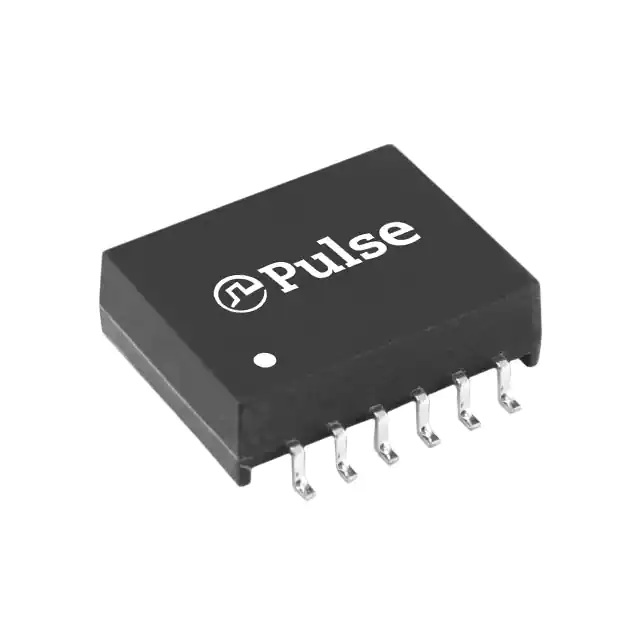

HX1112QNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	458	7.01	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.192 (4.88mm)

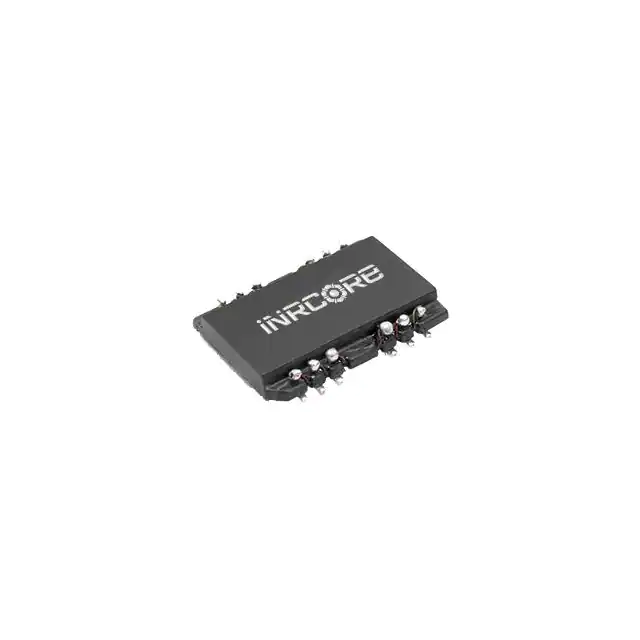

R1035NL XFRMR ETHERNET MOD IND 10/100BTX iNRCORE, LLC	632	7.02	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	0.510 L x 0.380 W (12.95mm x 9.65mm)	0.088 (2.24mm)

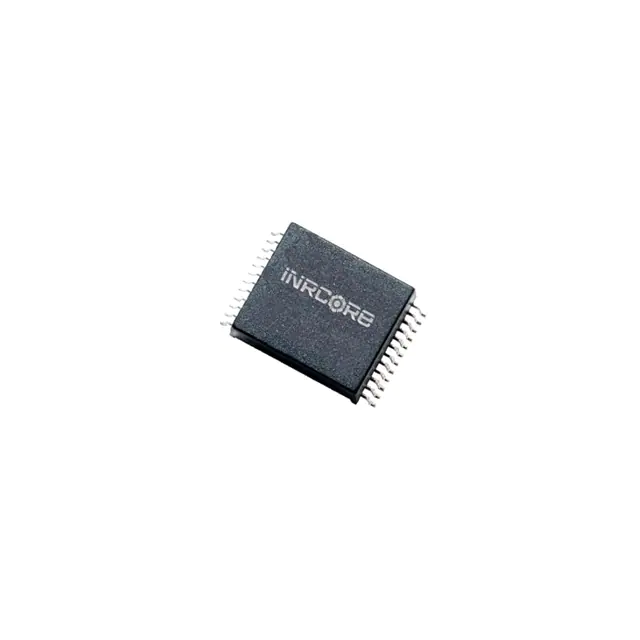

R5012NL XFRMR ETHERNET MOD IND 1000B-T iNRCORE, LLC	210	7.24	RFQ	Datasheet	Tube	-	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.605 L x 0.528 W (15.37mm x 13.41mm)	0.251 (6.38mm)

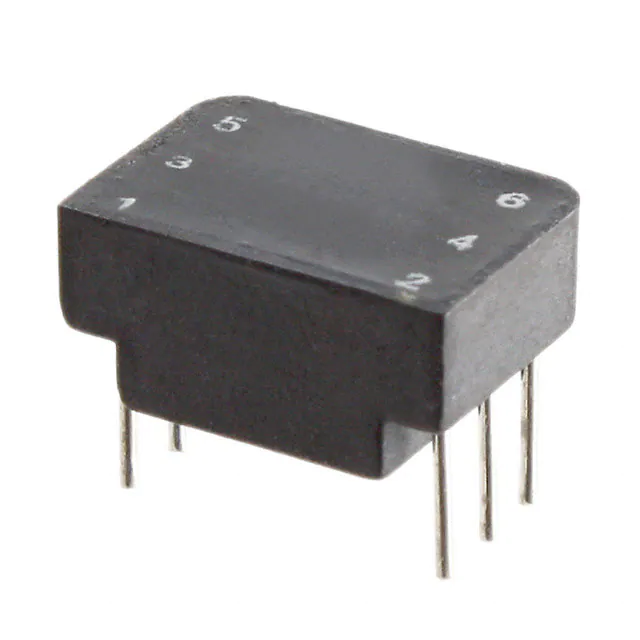

PE-65948NL XFRMR 1CT:1CT FOR ECHELON/NEURON Pulse Electronics Network	341	7.31	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	3.5mH, 6.5mH	-	1CT:1CT	Through Hole	0.510 L x 0.360 W (12.95mm x 9.15mm)	0.250 (6.35mm)
H6062NLT XFRMR MODUL GIGABT 1PORT POE 1:1 Pulse Electronics Network	863	7.38	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Star Magnetics™	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)
T60403D4721X002 GATE DRIVE TRANSFORMER PTH 1:1 5 VACUUMSCHMELZE	753	7.45	RFQ	Datasheet	Box	-	Obsolete	Gate Drive	3.6mH	500VµS	1:1	Through Hole	0.701 L x 0.669 W (17.80mm x 17.00mm)	0.531 (13.50mm)
