Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

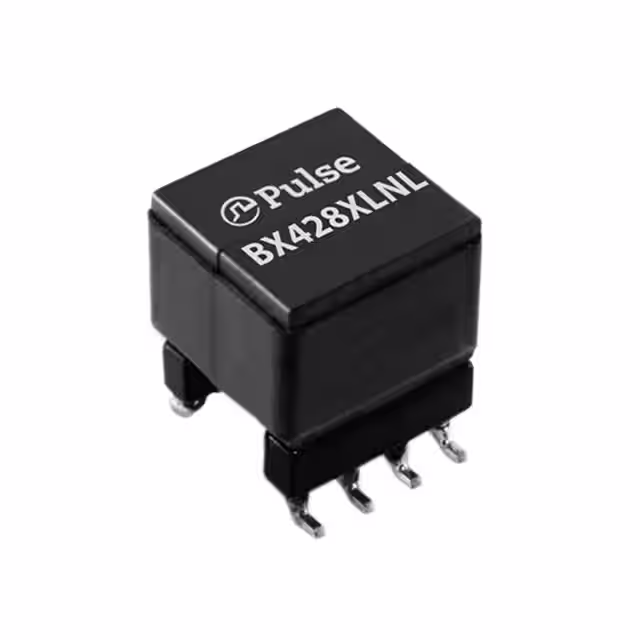

BX4286LNL PULSE XFMR 1.4:1 100UH Pulse Electronics Network	3,942	RFQ	Datasheet	Tray	-	Obsolete	VDSL	100µH	-	1.4:1	Surface Mount	0.315 L x 0.315 W (8.00mm x 8.00mm)	0.388 (9.86mm)

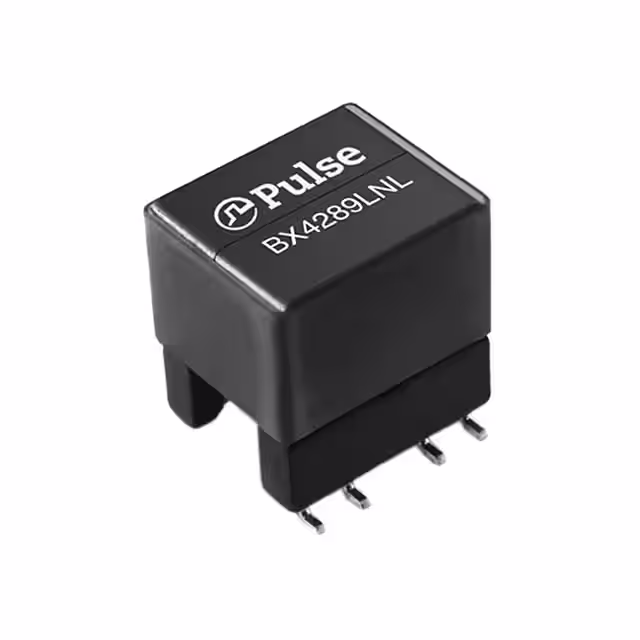

BX4289LNL PULSE XFMR 1.4:1 100UH Pulse Electronics Network	3,973	RFQ	Datasheet	Tray	-	Obsolete	VDSL	100µH	-	1.4:1	Surface Mount	0.386 L x 0.354 W (9.80mm x 9.00mm)	0.425 (10.80mm)

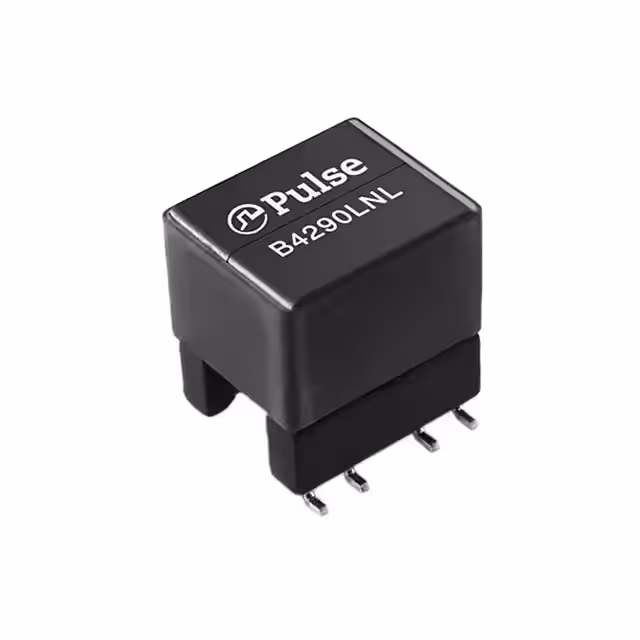

BX4290LNL PULSE XFMR 1.25:1 100UH Pulse Electronics Network	2,039	RFQ		Tray	-	Obsolete	VDSL	100µH	-	1.25:1	Surface Mount	0.315 L x 0.315 W (8.00mm x 8.00mm)	0.388 (9.86mm)

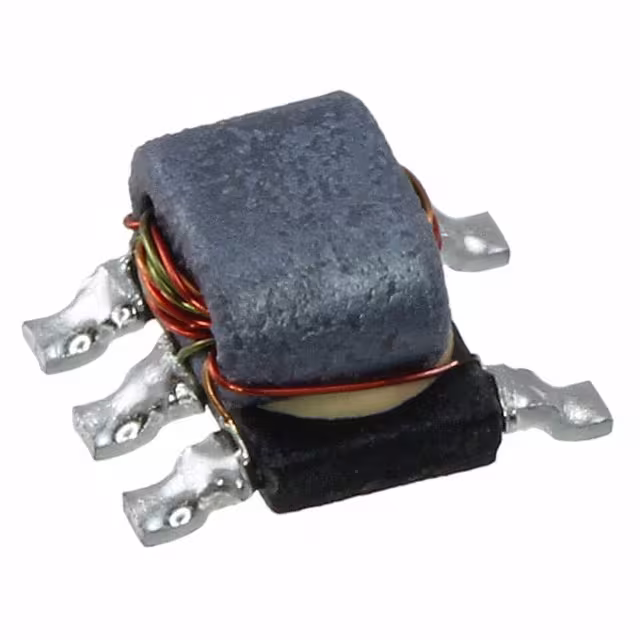

C2567NL PULSE XFMR 1:1.7CT Pulse Electronics Network	2,278	RFQ		Tray	-	Obsolete	-	-	-	1:1.7CT	Surface Mount	0.169 L x 0.106 W (4.30mm x 2.70mm)	0.118 (3.00mm)

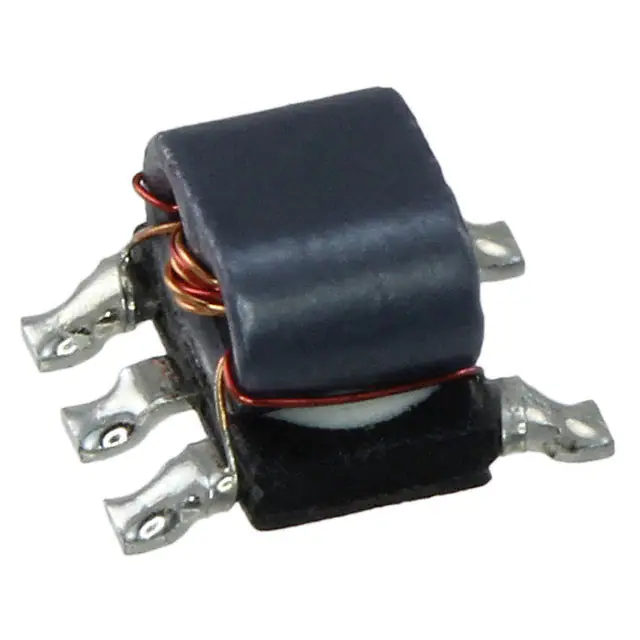

C2580NL PULSE XFMR 1:1 Pulse Electronics Network	3,271	RFQ		Tray	-	Obsolete	-	-	-	1:1	Surface Mount	0.169 L x 0.106 W (4.30mm x 2.70mm)	0.118 (3.00mm)

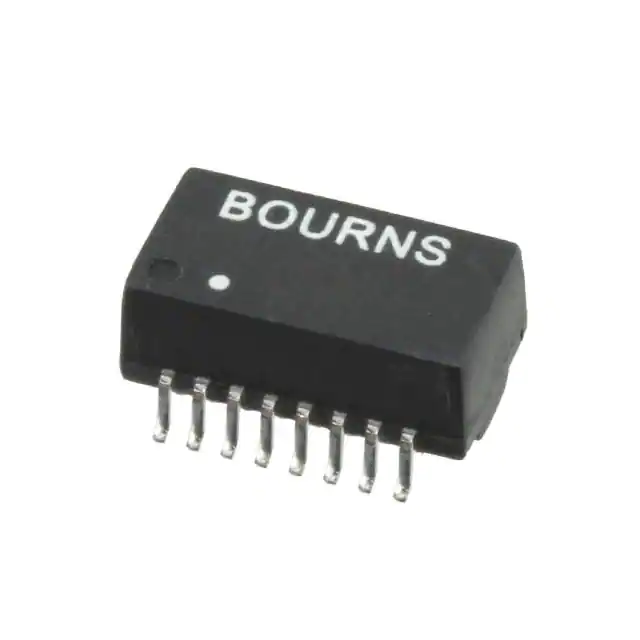

SM51108PEL PULSE XFMR 1CT:1CT 350UH Bourns Inc.	3,522	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

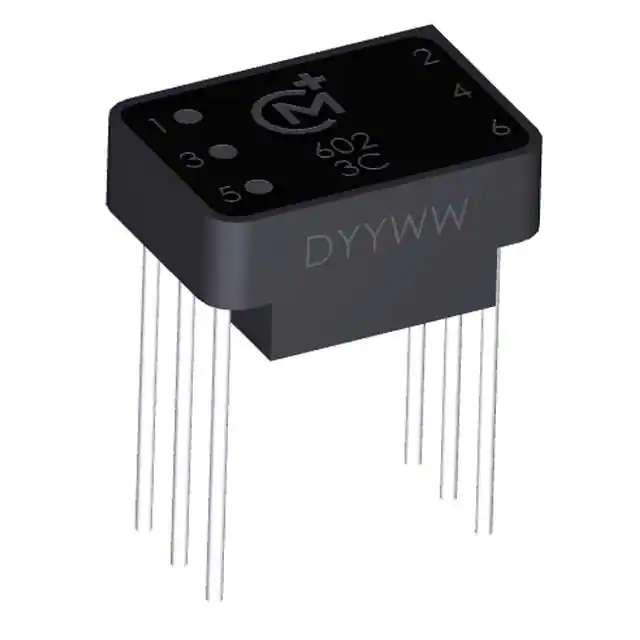

76600/2C PULSE XFMR 1:1 492UH Murata Power Solutions Inc.	3,796	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	492µH	8.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
76600/3C PULSE XFMR 1:1 219UH Murata Power Solutions Inc.	2,416	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	219µH	5.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
76600/4C PULSE XFMR 1:1 50UH Murata Power Solutions Inc.	2,689	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	50µH	4VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
76601/20C PULSE XFMR 1:1 20.1UH Murata Power Solutions Inc.	2,199	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	20.1µH	2.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
76601/23C PULSE XFMR 1:1 700UH Murata Power Solutions Inc.	2,928	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	700µH	10.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
76601/24C PULSE XFMR 1:1 11.7MH Murata Power Solutions Inc.	2,044	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	11.7mH	50.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
76615/1HVC PULSE XFMR 1CT:1CT 3.2MH Murata Power Solutions Inc.	3,434	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	3.2mH	45VµS	1CT:1CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
76616/3C PULSE XFMR 2CT:1CT 4.35MH Murata Power Solutions Inc.	3,038	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	4.35mH	23VµS	2CT:1CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
77203C PULSE XFMR 2:1:1 1MH Murata Power Solutions Inc.	2,887	RFQ	Datasheet	Tube	-	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	120VµS	2:1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)

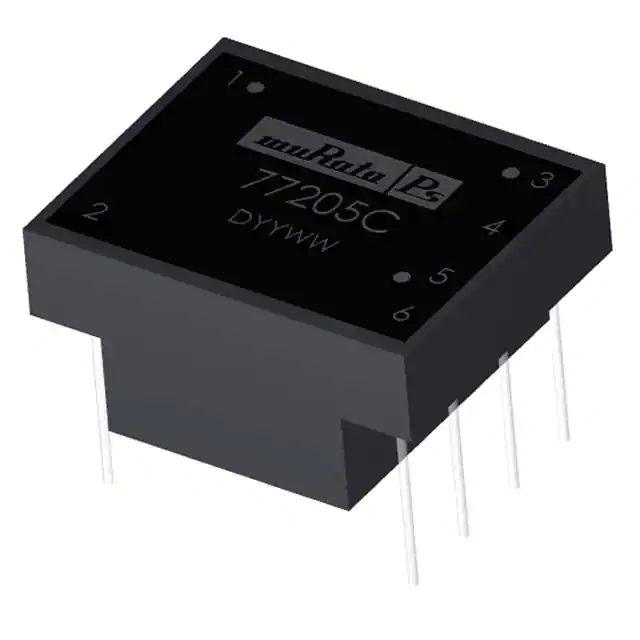

77205SC PULSE XFMR 1:1:1 4MH Murata Power Solutions Inc.	3,322	RFQ	Datasheet	Tube	-	Obsolete	SCR and Triac Trigger (Encapsulated)	4mH	240VµS	1:1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)
77206C PULSE XFMR 2:1:1 4MH Murata Power Solutions Inc.	3,947	RFQ	Datasheet	Tube	-	Obsolete	SCR and Triac Trigger (Encapsulated)	4mH	240VµS	2:1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)
77207C PULSE XFMR 1:1 16.3MH Murata Power Solutions Inc.	3,770	RFQ	Datasheet	Tube	-	Obsolete	SCR and Triac Trigger (Encapsulated)	16.3mH	482VµS	1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)

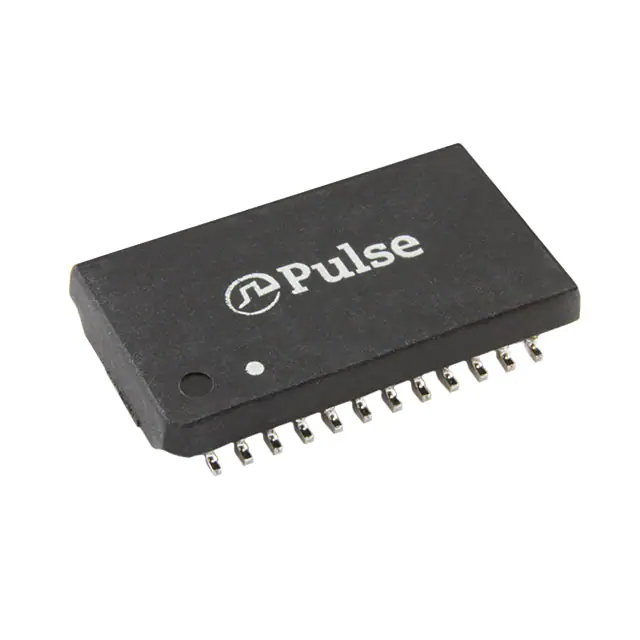

HM5149NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,010	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	360µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.700 L x 0.410 W (17.78mm x 10.41mm)	0.126 (3.20mm)

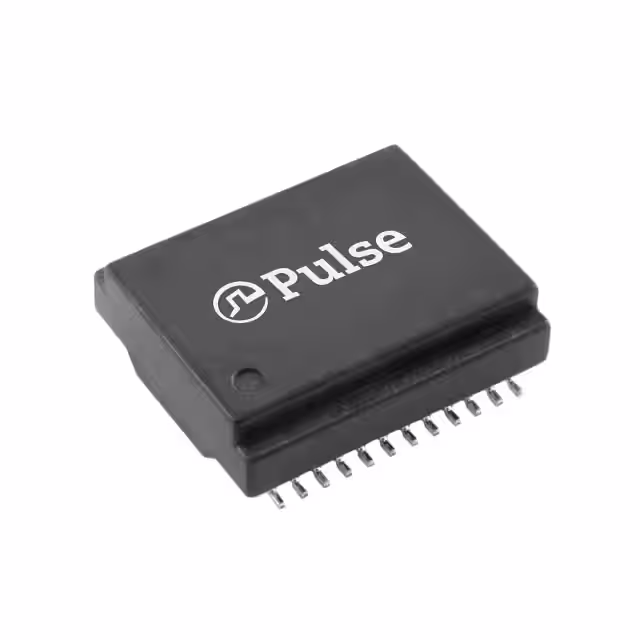

HM5004EFNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,738	RFQ		Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.600 W (17.53mm x 15.24mm)	0.225 (5.72mm)
