Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
HX1305FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2,830	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.518 L x 0.703 W (13.16mm x 17.86mm)	0.241 (6.12mm)
HX2305FNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	2,494	RFQ	Datasheet	Tube	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.703 L x 0.518 W (17.86mm x 13.16mm)	0.241 (6.12mm)
HX2305FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	3,982	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.703 L x 0.518 W (17.86mm x 13.16mm)	0.241 (6.12mm)
HX6015FNL PULSE XFMR 1:1 350UH Pulse Electronics Network	2,426	RFQ		Tube	-	Obsolete	-	350µH	-	1:1	Surface Mount	0.517 L x 0.595 W (13.13mm x 15.11mm)	0.260 (6.60mm)

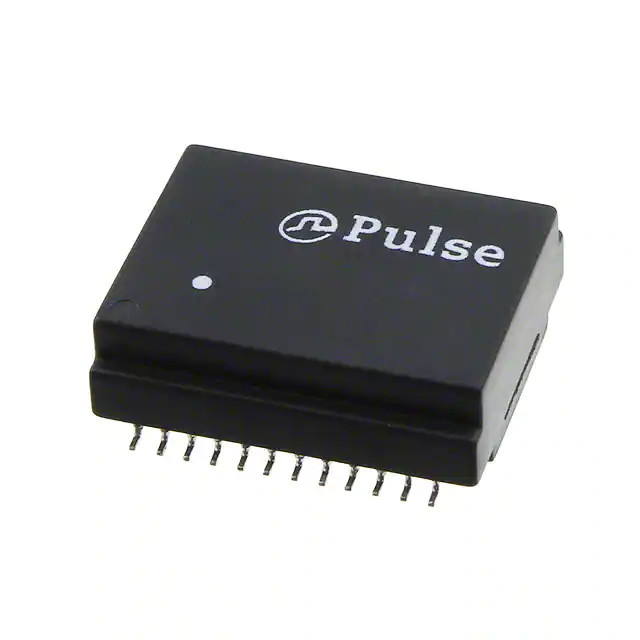

HX6096FNL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics Network	2,183	RFQ	Datasheet	Tube	-	Obsolete	Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715 L x 0.595 W (18.16mm x 15.11mm)	0.260 (6.60mm)
ST6200FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,637	RFQ	Datasheet	Tube	-	Obsolete	T3/E3 (Single)	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST6200FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,637	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	T3/E3 (Single)	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7010FNL PULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics Network	3,275	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	18µH, 60µH, 80µH, 175µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7010FNLT PULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics Network	3,464	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10G Base-T	18µH, 60µH, 80µH, 175µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7011FNL PULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics Network	3,497	RFQ	Datasheet	Tube	-	Obsolete	LAN 10G Base-T	175µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7011FNLT PULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics Network	3,090	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10G Base-T	175µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7032FNL PULSE XFMR 1:1 TX 1:1 RX 67UH Pulse Electronics Network	2,958	RFQ	Datasheet	Tube	-	Obsolete	LAN 10G Base-T	67µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7032FNLT PULSE XFMR 1:1 TX 1:1 RX 67UH Pulse Electronics Network	3,522	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10G Base-T	67µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7033FNL PULSE XFMR 1:1 TX 1:1 RX 90UH Pulse Electronics Network	2,734	RFQ	Datasheet	Tube	-	Obsolete	LAN 10G Base-T	90µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
ST7033FNLT PULSE XFMR 1:1 TX 1:1 RX 90UH Pulse Electronics Network	3,107	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10G Base-T	90µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.455 L x 0.344 W (11.56mm x 8.74mm)	0.225 (5.72mm)
0553-0013-AC-F PULSE TRANSFORMER 1:1 1.2MH Bel Fuse Inc.	3,331	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Single)	1.2mH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
0553-0013-DC-F PULSE TRANSFORMER 1CT:1CT 1.0MH Bel Fuse Inc.	3,334	RFQ	Datasheet	Bulk	-	Obsolete	LAN	1.0mH	11.0VµS	1CT:1CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
0553-0013-HC-F PULSE TRANSFORMER 1CT:2CT 1.2MH Bel Fuse Inc.	2,677	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Single)	1.2mH	-	1CT:2CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
0560-6100-A2-F PULSE TRANSFORMER 1:1 10MH/10MH Bel Fuse Inc.	3,384	RFQ	Datasheet	Bulk	-	Active	ADSL	10mH, 10mH	-	1:1	Through Hole	0.550 L x 0.525 W (13.97mm x 13.34mm)	0.500 (12.70mm)
S553-0716-00-F PULSE XFMR 1:1 TX/1:1 RX 140UH Bel Fuse Inc.	2,890	RFQ	Datasheet	Bulk	-	Obsolete	LAN 10G Base-T	140µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.800 L x 0.285 W (20.32mm x 7.24mm)	0.230 (5.84mm)
