Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
B4034NLT XFRMR FOR METALINK CHIPSET ETSI Pulse Electronics Network	3,787	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	VDSL	1.6mH	-	1:3.5 Transmitter, 2:3.5 Receiver	Surface Mount	0.530 L x 0.516 W (13.46mm x 13.11mm)	0.485 (12.32mm)
B4033NLT XFRMR FOR METALINK CHIPSET ANSI Pulse Electronics Network	3,657	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	VDSL	1mH	-	1:3 Transmitter, 2:3 Receiver	Surface Mount	0.530 L x 0.516 W (13.46mm x 13.11mm)	0.485 (12.32mm)
E2454NLT XFRMR ISOL 10BASE-T 1:2 SMD Pulse Electronics Network	2,920	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Isolation and Data Interface (Encapsulated)	50µH, 200µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
H1141NLT XFRMR MODUL AUTO MDI/MDIX 10/100 Pulse Electronics Network	3,632	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	-	Surface Mount	0.495 L x 0.475 W (12.57mm x 12.07mm)	0.230 (5.84mm)
H2305NLT XFRMR MODUL 2PORT POE 1:1 10/100 Pulse Electronics Network	3,400	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
PA2008NLT PULSE XFMR 2:1:1 1.43MH Pulse Electronics Power	2,102	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	1.43mH	52VµS	2:1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)
TX1467NLT XFRMR 1CT:1:1/1CT:1:1 SMD Pulse Electronics Network	2,313	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1:1, 1CT:1:1	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1063NLT XFRMR 4PORT 1:1.36 1.2MH SMD Pulse Electronics Network	3,257	RFQ		Tape & Reel (TR)	-	Obsolete	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:1.36 Transmitter, 1:1.36CT Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
T1064NLT XFRMR 4PORT 1:1.14 1.2MH SMD Pulse Electronics Network	3,345	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:1.14 Transmitter, 1:1.14CT Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
T1129NLT XFRMR 4PORT 1:1.36CT 1.2MH SMD Pulse Electronics Network	2,956	RFQ		Tape & Reel (TR)	-	Obsolete	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:1.36CT Transmitter, 1:1CT Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
H1187NLT XFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics Network	2,743	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	-	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.260 (6.60mm)
E2466NLT XFRMR ISOL 10BASE-T 1:2 SMD Pulse Electronics Network	2,847	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	20µH, 100µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

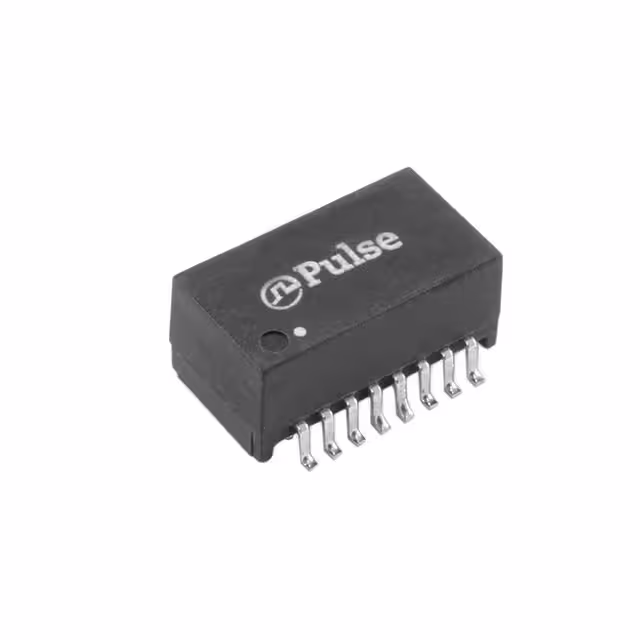

E2457NLT XFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics Network	2,006	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	140µH, 140µH	-	1CT:1.41CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)
H2008NLT XFRMR MAGNT MOD 2PORT POE 10/100 Pulse Electronics Network	3,488	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.537 L x 0.470 W (13.64mm x 11.94mm)	0.254 (6.45mm)
T1073NLT XFRMR 4PORT 1:2 1.2MH SMD Pulse Electronics Network	3,423	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2 Transmitter, 1:2 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
TX1262NLT XFRMR 4PORT 1:2 1.2MH SMD Pulse Electronics Network	2,652	RFQ	Datasheet	Tape & Reel (TR)	-	Active	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2 Transmitter, 1:2 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
T1105NLT XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT Pulse Electronics Network	2,989	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2CT Transmitter, 1:2CT Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
T1065NLT XFRMR 4PORT 1:2CT 1.2MH SMD Pulse Electronics Network	2,991	RFQ	Datasheet	Tape & Reel (TR)	-	Active	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2CT Transmitter, 1:2CT Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
TX1295NLT XFRMR 4PORT 1:1.26CT 1.2MH SMD Pulse Electronics Network	3,986	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:1.26CT Transmitter, 1:1.26CT Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
TX1264NLT XFRMR 4PORT 1:2CT 1.2MH SMD Pulse Electronics Network	2,956	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2CT Transmitter, 1CT:1 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
