Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
630B TRANSFORMER PULSE 1MH .25DCR Hammond Manufacturing	2,933	RFQ	Datasheet	Bulk	630	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	-	1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)
612H TRANSFORMER PULSE 1.5MH .45DCR Hammond Manufacturing	2,030	RFQ	Datasheet	Bulk	612	Obsolete	SCR and Triac Trigger (Encapsulated)	1.5mH	-	1:1:1	Chassis Mount	2.060 L x 1.250 W (52.32mm x 31.75mm)	1.190 (30.23mm)
632C TRANSFORMER PULSE 4MH .84DCR Hammond Manufacturing	3,352	RFQ	Datasheet	Bulk	632	Obsolete	SCR and Triac Trigger (Encapsulated)	4mH	-	2:1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)
632B TRANSFORMER PULSE 1MH .24DCR Hammond Manufacturing	2,670	RFQ	Datasheet	Bulk	632	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	-	2:1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)

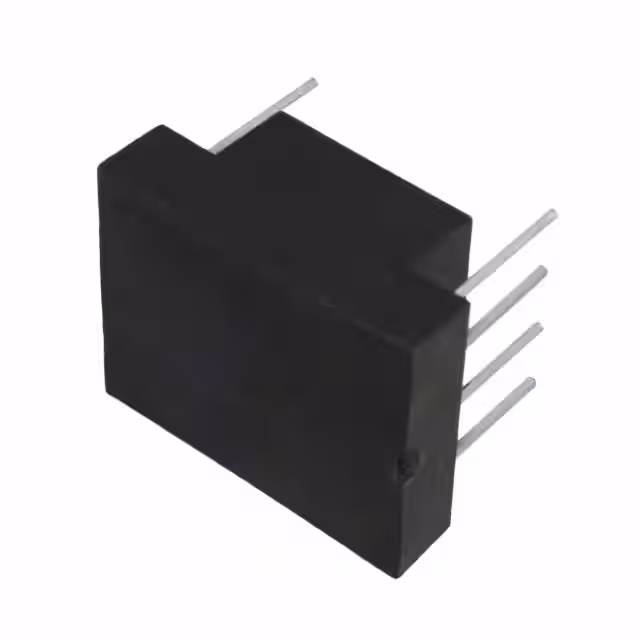

631C TRANSFORMER PULSE 4MH .9DCR Hammond Manufacturing	3,294	RFQ	Datasheet	Bulk	631	Obsolete	SCR and Triac Trigger (Encapsulated)	4mH	-	1:1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)
630C TRANSFORMER PULSE 4MH .86DCR Hammond Manufacturing	2,459	RFQ	Datasheet	Bulk	630	Obsolete	SCR and Triac Trigger (Encapsulated)	4mH	-	1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)
612G TRANSFORMER PULSE 6.6MH .87DCR Hammond Manufacturing	2,414	RFQ	Datasheet	Bulk	612	Obsolete	SCR and Triac Trigger (Encapsulated)	6.6mH	-	1:1	Chassis Mount	2.060 L x 1.250 W (52.32mm x 31.75mm)	1.190 (30.23mm)
630D TRANSFORMER PULSE 16.3MH 3.5DCR Hammond Manufacturing	2,692	RFQ	Datasheet	Bulk	630	Obsolete	SCR and Triac Trigger (Encapsulated)	16.3mH	-	1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)
G501 TRANSFORMER 2.0MH 1:1:1 PULSE Tamura	2,218	RFQ		Tube	G5	Obsolete	Isolation and Data Interface (Encapsulated)	2mH	16VµS	1:1:1 Ter	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)
STT-101 TRANSFORMER TRIGGER 1.0MH 1:1 Tamura	3,015	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	90VµS	1:1	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-102 TRANSFORMER TRIGGER 5.0MH 1:1 Tamura	2,421	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	5mH	200VµS	1:1	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-103 TRANSFORMER TRIGGER 10.0MH 1:1 Tamura	3,058	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	10mH	280VµS	1:1	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-104 TRANSFORMER TRIGGER 1.0MH 1:1:1 Tamura	2,030	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	90VµS	1:1:1 Ter	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-105 TRANSFORMER TRIGGER 5.0MH 1:1:1 Tamura	2,975	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	5mH	200VµS	1:1:1 Ter	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-106 TRANSFORMER TRIGGER 10.0MH 1:1:1 Tamura	2,787	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	10mH	280VµS	1:1:1 Ter	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-107 TRANSFORMER TRIGGER 1.0MH 2:1 Tamura	3,007	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	90VµS	2:1	Through Hole	-	-
STT-108 TRANSFORMER TRIGGER 5.0MH 2:1 Tamura	2,676	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	5mH	200VµS	2:1	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-109 TRANSFORMER TRIGGER 10.0MH 2:1 Tamura	2,357	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	10mH	280VµS	2:1	Through Hole	0.969 L x 0.776 W (24.60mm x 19.70mm)	0.827 (21.00mm)
STT-110 TRANSFORMER TRIGGER 1.0MH 2:1:1 Tamura	3,758	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	90VµS	2:1:1 Ter	Through Hole	-	-
STT-111 TRANSFORMER TRIGGER 5.0MH 2:1:1 Tamura	3,717	RFQ	Datasheet	Bulk	-	Obsolete	SCR and Triac Trigger (Encapsulated)	5mH	200VµS	2:1:1 Ter	Through Hole	-	-
