Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
100B-1001XNLT EXTMP XFMR 100BT SMG COM RPB iNRCORE, LLC	3,705	12.75	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.583 L x 0.470 W (14.81mm x 11.94mm)	0.202 (5.13mm)
100B-1001XT EXTMP XFMR 100BT SMG COM PBC iNRCORE, LLC	3,169	12.84	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.583 L x 0.470 W (14.81mm x 11.94mm)	0.202 (5.13mm)

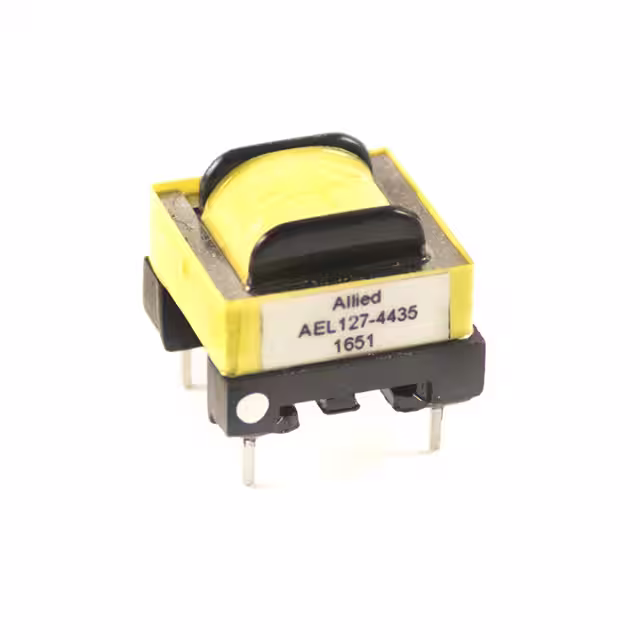

AEL127-4435 600 OHM, EL12.7 TRANSFORMER Allied Components International	3,155	13.50	RFQ	Datasheet	Tray	-	Active	-	-	-	1:1	Through Hole	0.591 L x 0.571 W (15.00mm x 14.50mm)	0.472 (12.00mm)
100B-2002NLT MDL DUAL 100D 1:1 SMT TR PBC iNRCORE, LLC	2,732	13.55	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-2002T MDL DUAL 100D 1:1 SMT TR PBC iNRCORE, LLC	2,154	13.55	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-1001NL EXTMP XFMR 100BT SMG COM RPB iNRCORE, LLC	2,574	13.77	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.583 L x 0.470 W (14.81mm x 11.94mm)	0.202 (5.13mm)
1000B-5016T MDL SIN 1GD 1:1 SM TR PBC iNRCORE, LLC	2,405	13.98	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.163 (4.14mm)
100B-2002FNLT MDL DUAL 100D 1:1 SMT TR RPB iNRCORE, LLC	2,304	14.09	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-1027FXT MDL SIN 100D 1:1 SMT TU PBC iNRCORE, LLC	2,307	14.30	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	1.000 L x 0.505 W (25.40mm x 12.83mm)	0.304 (7.73mm)
100B-1027XT MDL SIN 100D 1:1 SMT TU PBC iNRCORE, LLC	2,621	14.30	RFQ	Datasheet	Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-
100B-2002FT MDL DUAL 100D 1:1 SMT TR PBC iNRCORE, LLC	2,183	14.53	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
R6001NLT XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	3,051	14.58	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10G Base-T	120µH	-	-	Surface Mount	0.700 L x 0.490 W (17.78mm x 12.45mm)	0.235 (5.97mm)
100B-2002FNL MDL DUAL 100D 1:1 SMT TU RPB iNRCORE, LLC	2,707	14.67	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-2002XNLT MDL DUAL 100D 1:1 SMT TR RPB iNRCORE, LLC	2,384	15.04	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-2002XT MDL DUAL 100D 1:1 SMT TR PBC iNRCORE, LLC	3,800	15.04	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-2002 MDL DUAL 100D 1:1 SMT TU PBC iNRCORE, LLC	3,846	15.13	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-2002F MDL DUAL 100D 1:1 SMT TU PBC iNRCORE, LLC	3,829	15.13	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)
100B-2002NL MDL DUAL 100D 1:1 SMT TR PBC iNRCORE, LLC	3,609	15.13	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.37mm)

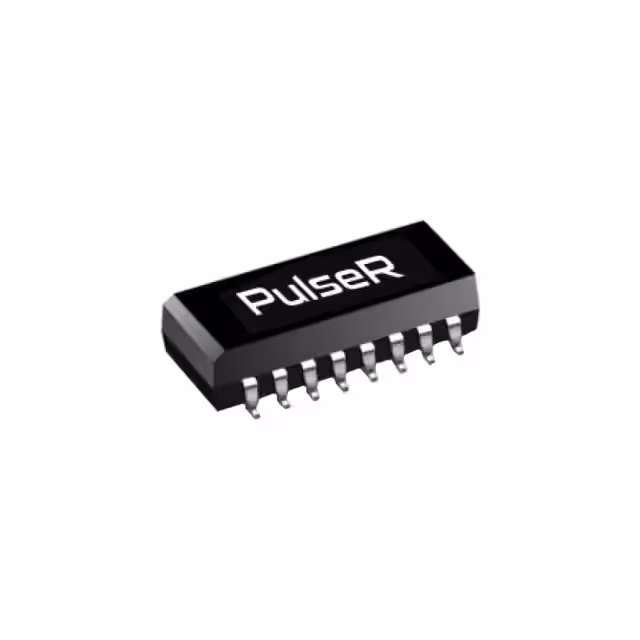

100B-1027FX XFMR MODULE 100B 1:1 SMT TU PBC iNRCORE, LLC	2,558	15.19	RFQ	Datasheet	Bulk	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.90mm)	0.235 (5.97mm)
100B-1027X MDL SIN 100D 1:1 SMT TU PBC iNRCORE, LLC	3,963	15.27	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	1.000 L x 0.505 W (25.40mm x 12.83mm)	0.245 (6.22mm)
