| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U2823V16CAP FILM 0.082UF 5% 250VDC 2420 |
1,486 | 2.09 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.082 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.138 (3.50mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2563JC9CAP FILM 0.056UF 5% 250VDC 2416 |
1,854 | 2.10 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.056 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
BFC247076224CAP FILM 0.22UF 5% 63VDC RADIAL |
1,429 | 2.21 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | MKT470 | Active | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.728 (18.50mm) | PC Pins | 0.500 (12.70mm) | General Purpose | - |
|
ECW-U1274KC9CAP FILM 0.27UF 10% 100VDC 2820 |
1,532 | 2.22 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.27 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.122 (3.10mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1224KC9CAP FILM 0.22UF 10% 100VDC 2820 |
1,275 | 2.24 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.22 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.102 (2.60mm) | Solder Pads | - | General Purpose | - |
|

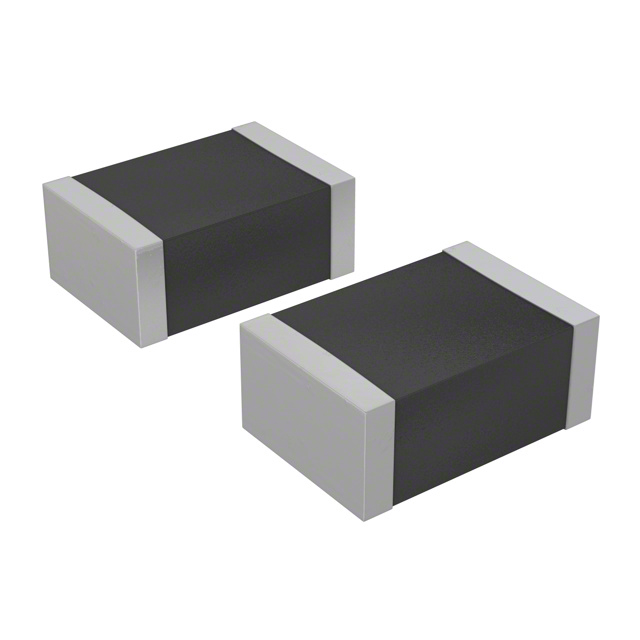

FCP2416H224G-D4CAP FILM 0.22UF 2% 50VDC 2416 |
1,460 | 3.04 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 0.22 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.110 (2.80mm) | Solder Pads | - | High Frequency, Switching | - |
|

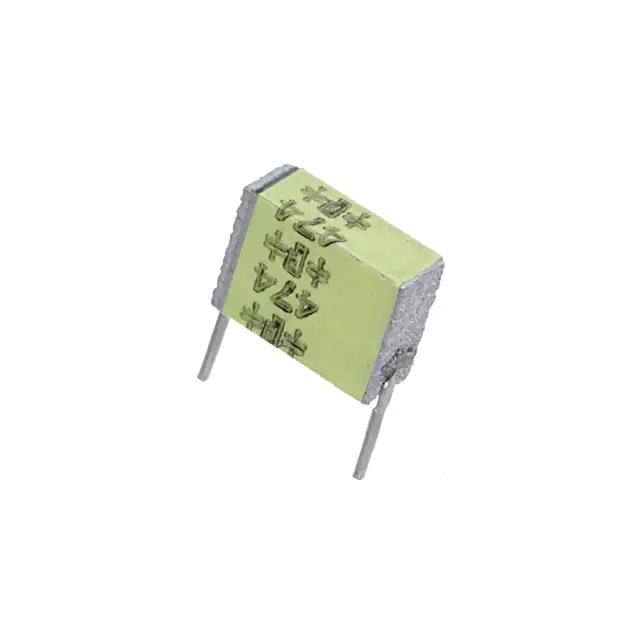

RA4474K250-FACAP FILM 0.47UF 10% 250VDC RAD |
3,284 | 3.13 |
RFQ |
Datasheet |
Radial | Bulk | Angstor® RA | Active | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.449 L x 0.209 W (11.40mm x 5.30mm) | 0.303 (7.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - |
|
SMDTC04470XA00MT00CAP FILM 4.7UF 20% 63VDC 5040 |
1,207 | 3.22 |
RFQ |
Datasheet |
5040 (127102 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 4.7 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.500 L x 0.402 W (12.70mm x 10.20mm) | 0.248 (6.30mm) | Solder Pads | - | General Purpose | - |
|
ECW-U2184KCVCAP FILM 0.18UF 10% 250VDC 2825 |
1,143 | 3.24 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.18 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.169 (4.30mm) | Solder Pads | - | General Purpose | - |
|
200MU101KA13216CAP FILM 100PF 10% 200VDC 1206 |
1,281 | 3.26 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 100 pF | ±10% | - | 200V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.047 (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
SMC12.7474J100B31TR24CAP FILM 0.47UF 5% 100VDC SMD |
367 | 10.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SMC | Active | 0.47 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500 L x 0.453 W (12.70mm x 11.50mm) | 0.264 (6.70mm) | Solder Pads | - | General Purpose | - |
|
|
16MU156MD15750CAP FILM 15UF 20% 16VDC 2220 |
652 | 11.27 |
RFQ |
Datasheet |
2220 (5750 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 15 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224 L x 0.197 W (5.70mm x 5.00mm) | 0.079 (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
25MU106MD15750CAP FILM 10UF 20% 25VDC 2220 |
228 | 11.27 |
RFQ |
Datasheet |
2220 (5750 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 10 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224 L x 0.197 W (5.70mm x 5.00mm) | 0.079 (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
SMC12.7105J50B31TR24CAP FILM 1UF 5% 50VDC SMD |
135 | 17.86 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SMC | Active | 1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500 L x 0.453 W (12.70mm x 11.50mm) | 0.256 (6.50mm) | Solder Pads | - | General Purpose | - |
|
JSNEK5250KB6L0CAP FILM 25UF 10% 100VDC SMD |
184 | 22.81 |
RFQ |
Datasheet |
SMD, J-Lead | Bulk | JSN | Active | 25 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681 L x 0.846 W (17.30mm x 21.50mm) | 0.606 (15.40mm) | - | - | DC Link, DC Filtering | - |
|
205PSB122K4RCAP FILM 2UF 10% 1.2KVDC RADIAL |
862 | 25.88 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | PSB | Active | 2 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 100°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

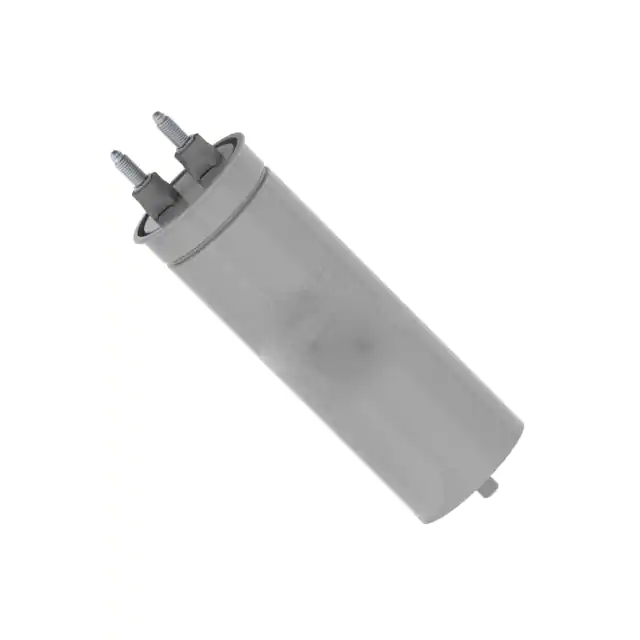

C44PLGR6400ZASJCAP FILM 400UF 5% 700VDC RADIAL |
108 | 123.02 |
RFQ |
Datasheet |
Radial, Can | Box | C44P | Obsolete | 400 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | 2 mOhms | -25°C ~ 70°C | Chassis Mount | 2.559 Dia (65.00mm) | 9.803 (249.00mm) | Threaded, Male | 1.102 (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - |
|

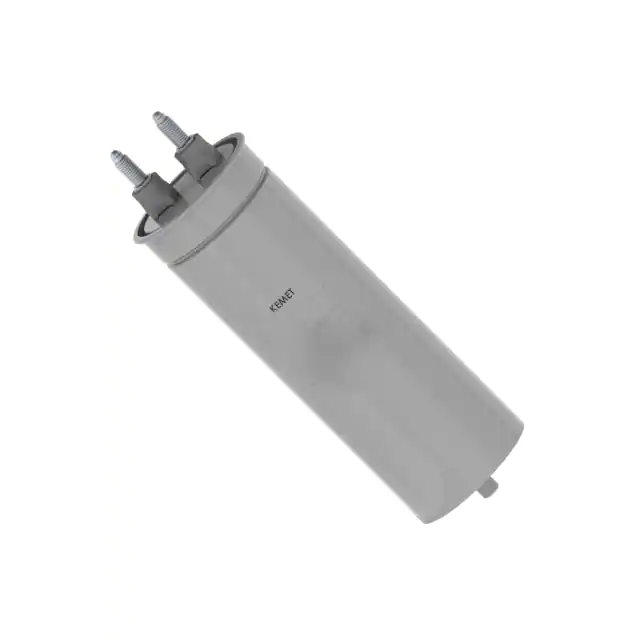

C20ALGR5330AASKCAP FILM 33UF 10% 1.4KVDC RAD |
3,204 | 125.14 |
RFQ |
Datasheet |
Radial, Can | Box | C20A | Obsolete | 33 µF | ±10% | 640V | 1400V (1.4kV) | Polypropylene (PP), Metallized | 2.2 mOhms | -25°C ~ 70°C | Chassis Mount | 2.953 Dia (75.00mm) | 5.866 (149.00mm) | Threaded, Male | 1.378 (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - |
|

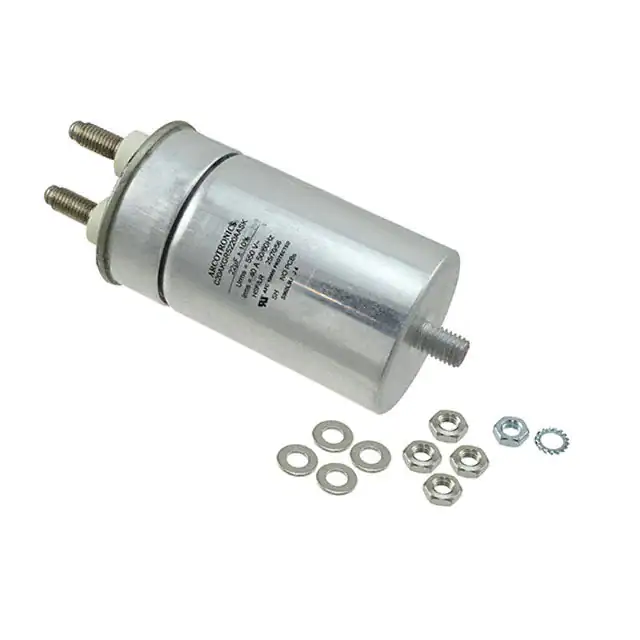

C20AZGR5220AASKCAP FILM 22UF 10% 2.3KVDC RADIAL |
3,974 | 160.89 |
RFQ |
Datasheet |
Radial, Can | Bulk | C20A | Obsolete | 22 µF | ±10% | 1000V (1kV) | 2300V (2.3kV) | Polypropylene (PP), Metallized | 2 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.953 Dia (75.00mm) | 4.685 (119.00mm) | Threaded, Male | 1.378 (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - |
|
R82DC3180JC60JFILM CAP |
5,325 | 0.05 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
