Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65879A0000R095 FERRITE CORE PQ 7.6UH N95 2PCS EPCOS - TDK Electronics	3,706	10.58	RFQ	Datasheet	Box	PQ32/20	Active	PQ	PQ 32 x 20	N95	-	7.6 µH	-20%, +30%	Ungapped	1895	2000	0.314	48.4	154.2	127.5	7460	Uncoated	0.404 (10.25mm)

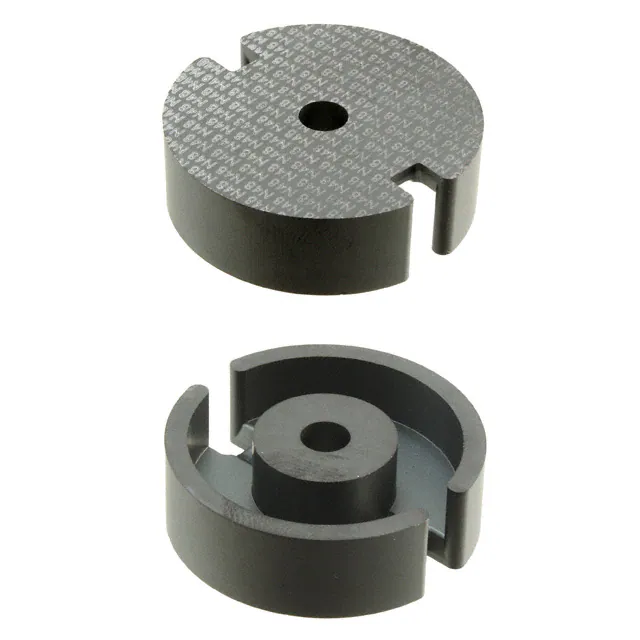

B65611D0000R048 FERRITE CORE P 7.6UH N48 2PCS EPCOS - TDK Electronics	3,369	10.79	RFQ	Datasheet	Tray	P36/22	Active	P (Pot Core)	P 36 x 22	N48	1.417 (36.00mm)	7.6 µH	-20%, +30%	Ungapped	1560	-	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
PC95PQ32/20Z-12 FERRITE CORE PQ 9.12UH 2PC SET TDK Corporation	3,728	11.28	RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 32 x 20	PC95	-	9.12 µH	±25%	Ungapped	-	-	0.33	55.5	170	-	9420	Uncoated	0.809 (20.55mm)
PC95PQ32/30Z-12 FERRITE CORE PQ 7UH 2PC SET TDK Corporation	2,535	11.28	RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 32 x 30	PC95	-	7 µH	±25%	Ungapped	-	-	0.46	74.6	161	-	12000	Uncoated	1.195 (30.35mm)

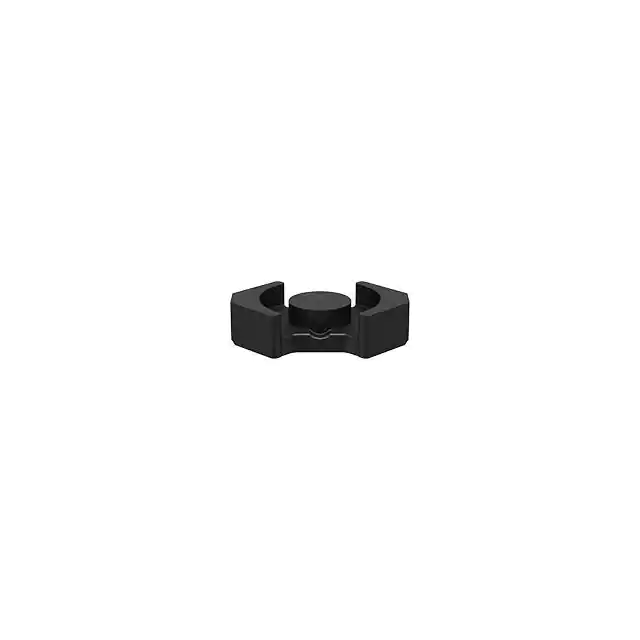

B65887P0000R087 FERRITE CORE EPCOS - TDK Electronics	3,488	11.31	RFQ	Datasheet	Box	RM14/LP	Active	RM	-	N87	-	7.1 µH	-20%, +30%	Ungapped	1430	2200	0.25	50.9	201	170	10230	Uncoated	-

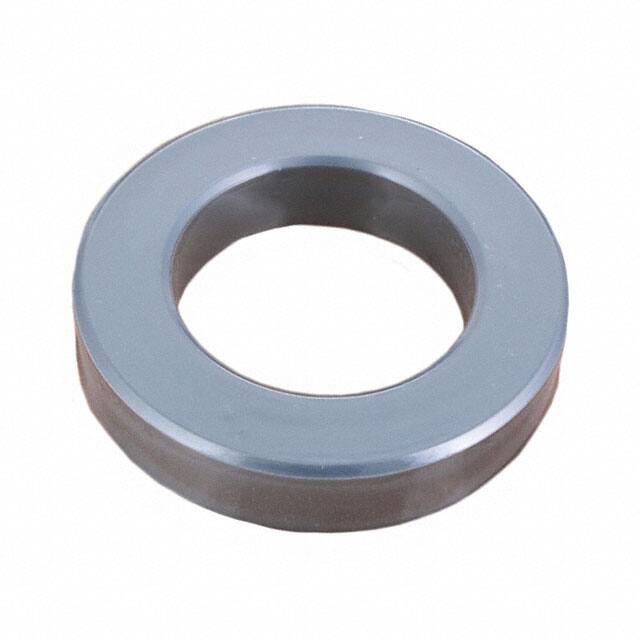

HF90T62X13X39 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	3,838	11.54	RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)

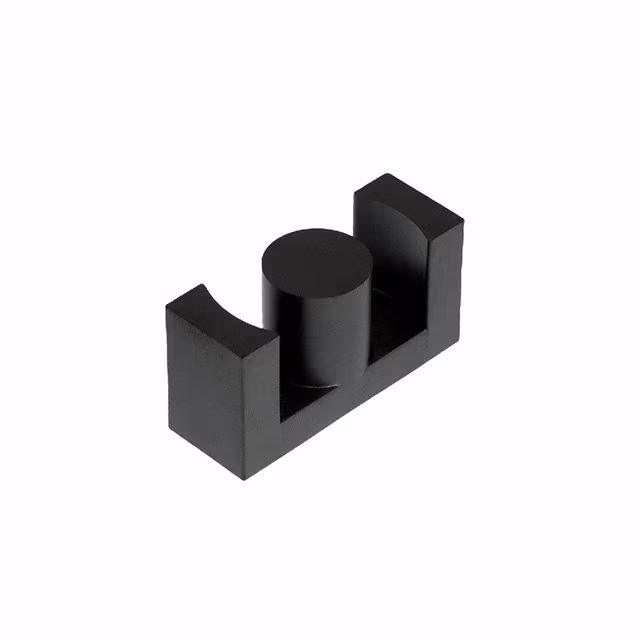

B66397G0200X187 FERRITE CORE EPCOS - TDK Electronics	2,723	12.49	RFQ	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	-	-	Gapped	-	2200	0.38	139	368	368	51200	Uncoated	1.228 (31.20mm)
TX58/41/18-3C94 FERRITE CORES ROUND Ferroxcube	2,844	12.65	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 58 x 41 x 18	3C94	2.354 (59.80mm)	-	±25%	Ungapped	2300	-	1	152	152	-	23200	Epoxy	0.729 (18.60mm)
HF60T62X13X39 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2,101	12.70	RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512 (13.00mm)
PC95PQ35/35Z-12 FERRITE CORE PQ 7.32UH 2PC SET TDK Corporation	2,338	13.13	RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 35 x 35	PC95	-	7.32 µH	±25%	Ungapped	-	-	0.45	87.9	196	-	17300	Uncoated	1.368 (34.75mm)

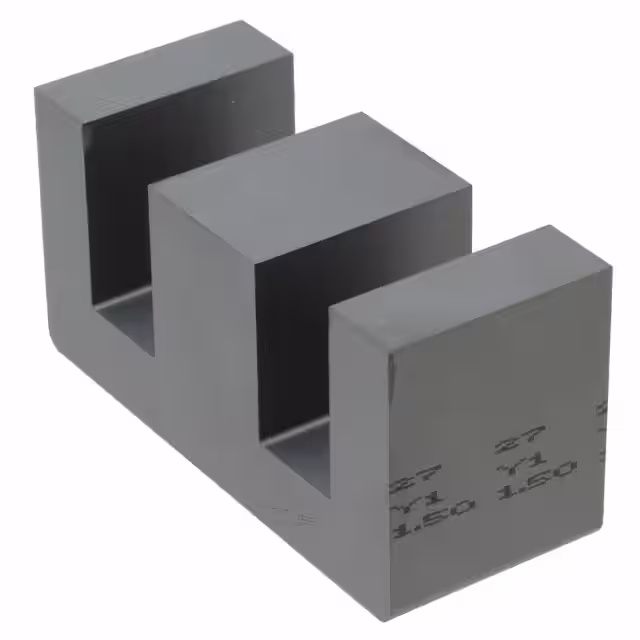

B66387G1500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,010	13.56	RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)

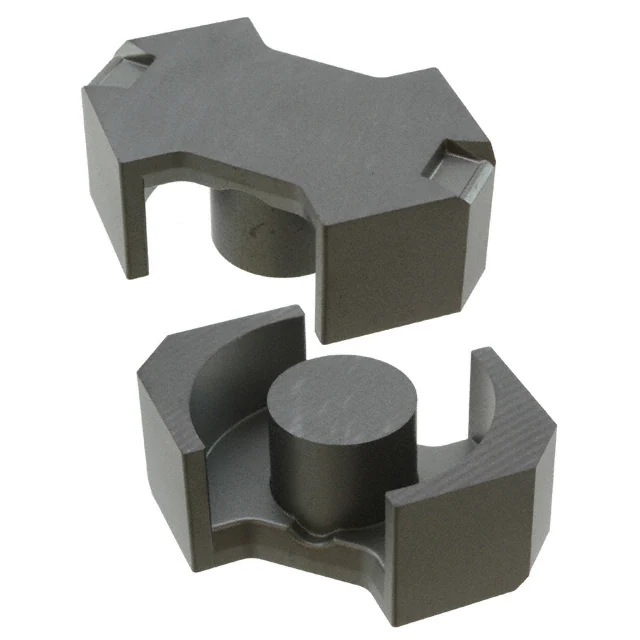

B65887E0250A041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	2,959	13.61	RFQ	Datasheet	Tray	RM14	Active	RM	RM 14	N41	-	250 nH	±3%	Gapped	70	2800	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
B65881A0000R095 FERRITE CORE PQ 5.7UH N95 2PCS EPCOS - TDK Electronics	3,959	14.55	RFQ	Datasheet	Box	PQ35/35	Active	PQ	PQ 35 x 35	N95	-	5.7 µH	-20%, +30%	Ungapped	2120	2000	0.467	79.2	169.7	146.5	13440	Uncoated	0.685 (17.40mm)

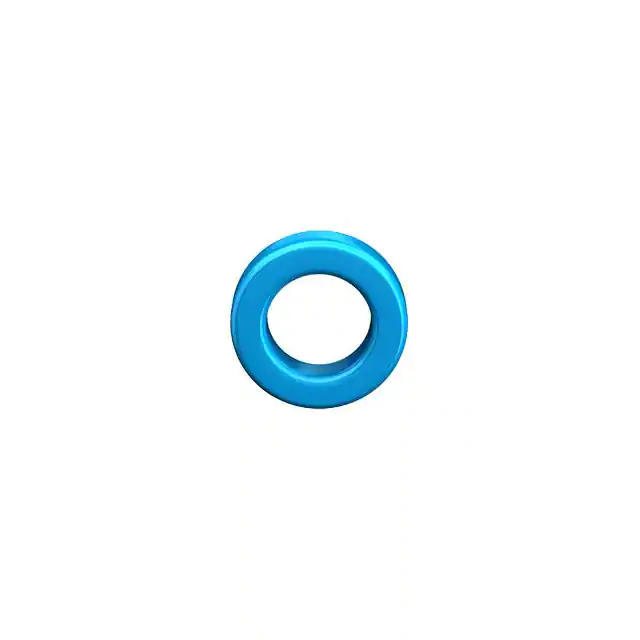

B64290L0042X037 FERRITE CORE TOROID 8UH T37 EPCOS - TDK Electronics	3,447	19.76	RFQ	Datasheet	Box	TX58.3/40.8/20.2	Active	Toroid	-	T37	2.366 (60.10mm)	8 µH	±25%	Ungapped	-	5600	0.87	152.4	174.9	-	26660	Epoxy	0.846 (21.50mm)

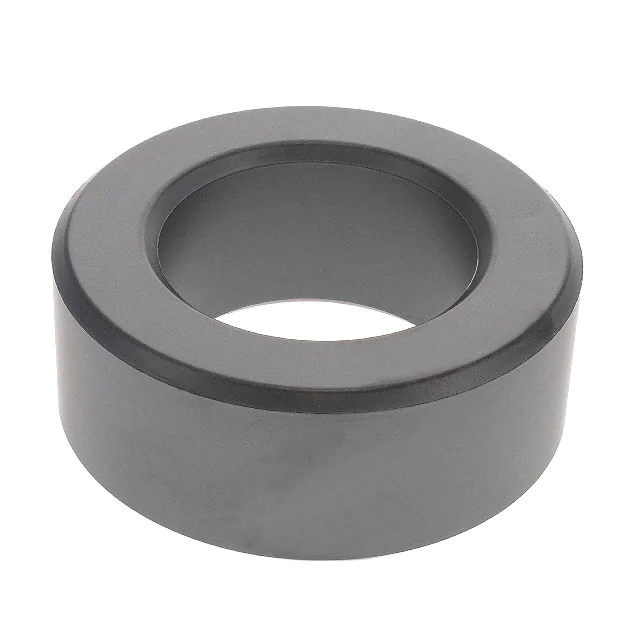

B64290A0699X830 FERRITE CORE TOROID 10.8UH N30 EPCOS - TDK Electronics	3,719	26.07	RFQ	Datasheet	Box	T63/38/25	Active	Toroid	R 63 x 38 x 25	N30	2.480 (63.00mm)	10.8 µH	±25%	Ungapped	-	4300	0.5	152.1	305.9	-	46530	Uncoated	0.984 (25.00mm)
PC95SP100X100X5 FERRITE CORE SP 1PCS TDK Corporation	3,388	27.71	RFQ	Datasheet	Tray	SP	Active	SP	SP 100 x 100 x 5	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)
PC95PQ50/50Z-12 FERRITE CORE PQ 9.7UH 2PC SET TDK Corporation	3,924	34.64	RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 50 x 50	PC95	-	9.7 µH	±25%	Ungapped	-	-	0.35	113	328	-	37200	Uncoated	1.967 (49.95mm)
HF90T80X20X50 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	3,458	42.72	RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.787 (20.00mm)

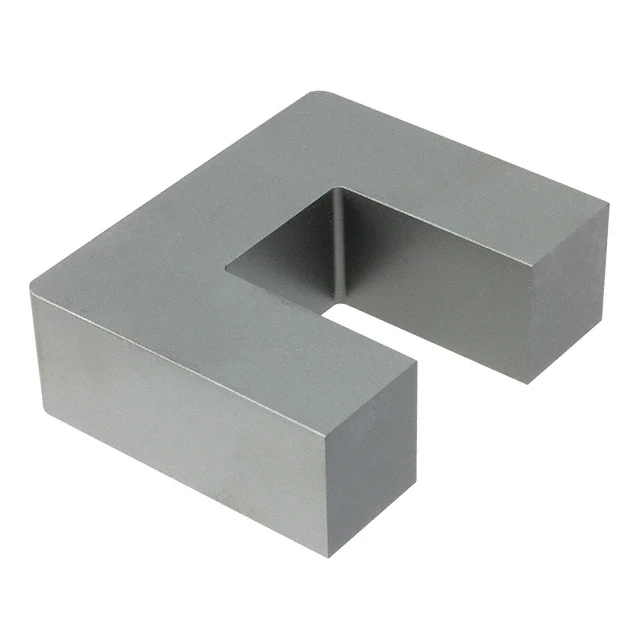

B67345B0001X087 FERRITE CORE U N87 1PC EPCOS - TDK Electronics	2,354	66.18	RFQ	Datasheet	Box	U93/76/30	Active	U	U 93 x 76 x 30	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B64290A0084X010 R102/65,8/15 EPCOS - TDK Electronics	2,763	67.17	RFQ	Datasheet	Box	T102/66/15	Active	Toroid	R 102 x 65.8 x 15	K10	4.016 (102.00mm)	900 nH	±25%	Ungapped	-	700	0.96	255.3	267.3	-	68220	Uncoated	0.591 (15.00mm)
