Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
8998252521 98 EFD CORE SET Fair-Rite Products Corp.	576	1.22	RFQ	Datasheet	Bulk	-	Active	EFD	-	-	-	-	±25%	Ungapped	-	2400	104	58.8	58	55	3320	Uncoated	0.492 (12.50mm)

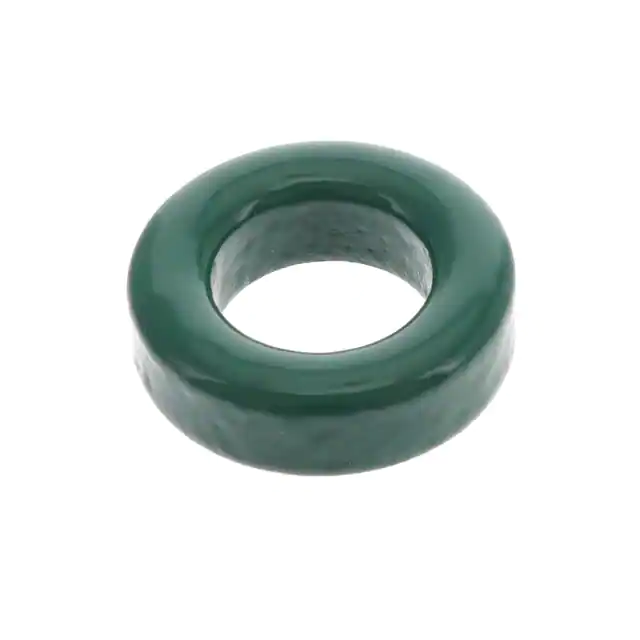

5975005121 75 TOROID PLASTIC COATED Fair-Rite Products Corp.	128	1.23	RFQ	Datasheet	Bulk	-	Active	Toroid	-	75	0.665 (16.90mm)	2.35 µH	-25%, +20%	Ungapped	-	5000	2.6	38.5	14.5	-	560	Plastic	0.207 (5.25mm)
5977000501 77 TOROID Fair-Rite Products Corp.	509	1.49	RFQ	Datasheet	Bulk	-	Active	Toroid	-	77	0.825 (20.96mm)	-	±25%	Ungapped	-	2000	-	52	46	-	2360	Uncoated	0.468 (11.89mm)
6295230121 95 RM CORE SET Fair-Rite Products Corp.	334	1.51	RFQ	Datasheet	Bulk	-	Active	RM	-	95	-	-	±25%	Ungapped	-	3000	67	40.3	60	55.4	2419	Uncoated	0.323 (8.20mm)
9277002002 77 U CORE Fair-Rite Products Corp.	576	1.57	RFQ	Datasheet	Box	-	Active	U	-	77	-	-	-	Ungapped	-	2000	139	95	68	-	6500	Uncoated	-

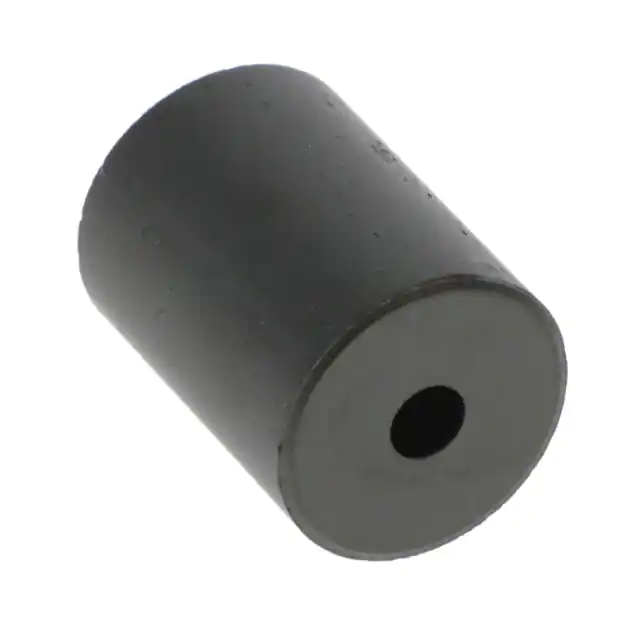

4277242409 77 SLEEVE Fair-Rite Products Corp.	2,494	1.53	RFQ	Datasheet	Bulk	-	Active	ROD	-	77	0.512 (13.00mm)	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
B65525J0000R608 ER11/5-PC200 EPCOS - TDK Electronics	3,409	1.55	RFQ	Datasheet	Bulk	EER11/5/6	Active	ER	ER 11 x 5	PC200	-	-	-20%, +30%	Ungapped	580	800	1.1	14.1	12.4	10.3	174	Uncoated	0.197 (5.00mm)
EFD30/15/9-3F36 FERRITE CORE Ferroxcube	3,563	1.55	RFQ	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)

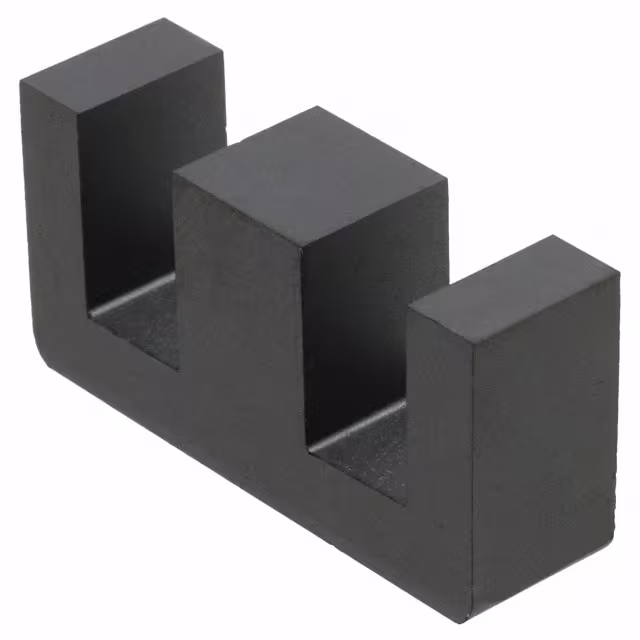

B66229G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,588	1.56	RFQ	Datasheet	Box	E32/16/9	Active	E	E 32 x 16 x 9	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)

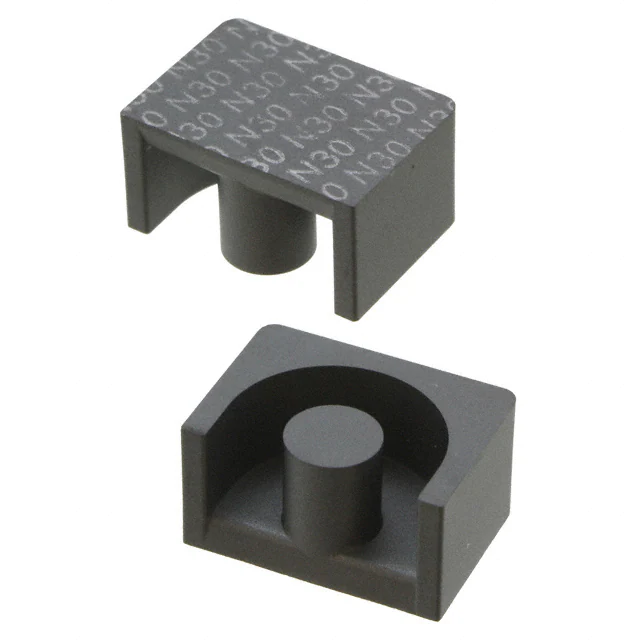

B65843A0000R030 FERRITE CORE EP 2.8UH N30 2PCS EPCOS - TDK Electronics	3,252	1.57	RFQ	Datasheet	Box	EP13	Active	EP	EP 13	N30	-	2.8 µH	-20%, +30%	Ungapped	2765	4300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)

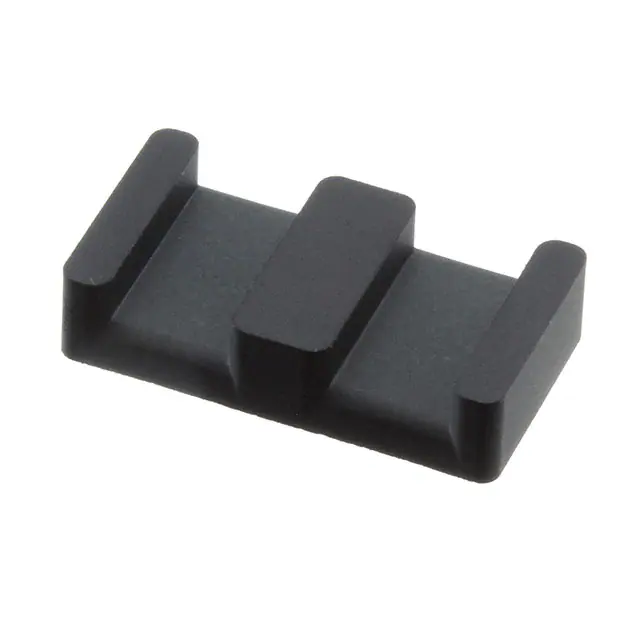

B66453G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	3,494	1.66	RFQ	Datasheet	Box	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B66455G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	3,717	1.67	RFQ	Datasheet	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
B66453K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	2,100	1.72	RFQ	Datasheet	Tray	I18/2/10	Active	I	I 18 x 2 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)

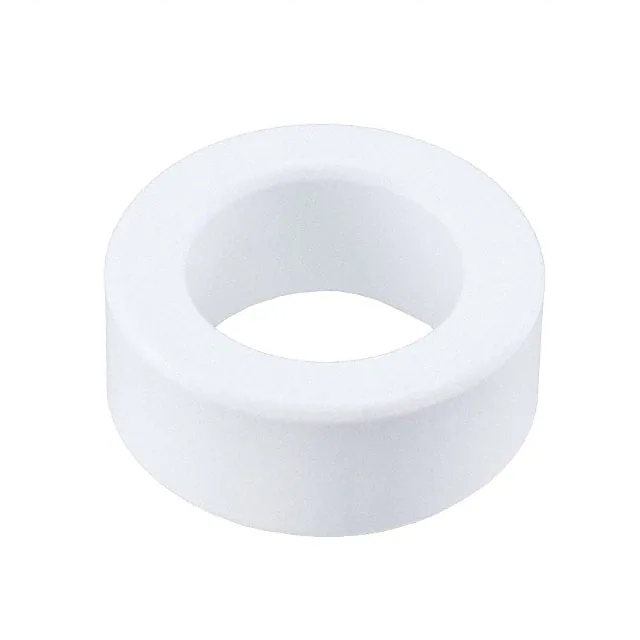

TX25/15/10-3C90 FERRITE CORES ROUND Ferroxcube	3,350	1.73	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 10	3C90	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
TX25/15/10-3C94 FERRITE CORES ROUND Ferroxcube	2,448	1.73	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 10	3C94	1.007 (25.95mm)	-	±25%	Ungapped	2300	-	1.23	60.2	48.9	-	2944	Epoxy	0.429 (10.90mm)
P18/11/I-3C91 FERRITE CORE 2PC SET Ferroxcube	2,192	1.76	RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 18 x 11	3C91	0.701 (17.90mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.417 (10.60mm)
B66480G0000X192 FERRITE CORE ER N92 1PC EPCOS - TDK Electronics	3,614	1.76	RFQ	Datasheet	Box	ER18/3/10	Active	ER	ER 18 x 3 x 10	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
2867006802 67 MULTI-APERTURE CORE Fair-Rite Products Corp.	3,495	1.78	RFQ	Datasheet	Tray	-	Active	Multi-Hole (2)	-	67	-	180 nH	-	Ungapped	-	40	-	-	-	-	-	Uncoated	1.062 (26.97mm)
5695181221 95 POT CORE SET Fair-Rite Products Corp.	2,634	1.79	RFQ	Datasheet	Tray	-	Active	P (Pot Core)	-	95	0.030 (0.76mm)	-	±25%	Ungapped	-	3000	60	25.9	43	36	1120	Uncoated	0.211 (5.36mm)
B66479G0000X192 FERRITE CORE EQ N92 1PC EPCOS - TDK Electronics	2,684	1.81	RFQ	Datasheet	Box	EQ13/9/3	Active	EQ	EQ 13 x 3	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.112 (2.85mm)
