Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65701D0000R087 FERRITE CORE P 6.4UH N87 2PCS EPCOS - TDK Electronics	2,812	3.73	RFQ	Datasheet	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N87	1.200 (30.50mm)	6.4 µH	-20%, +30%	Ungapped	1620	2200	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)
UR48/39/17-3C90 UR CORES Ferroxcube	2,847	3.77	RFQ	Datasheet	Bulk	-	Active	UR	UR 48 x 39 x 17	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.551 (39.40mm)
B65815ER95 FERRITE CORES EPCOS - TDK Electronics	3,798	3.78	RFQ	Datasheet	Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ER51/10/38-3C96 PLANAR ER CORES Ferroxcube	2,448	3.78	RFQ	Datasheet	Bulk	-	Active	ER	ER 51 x 10 x 38	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.400 (10.16mm)
ER51/10/38-3F4 PLANAR ER CORES Ferroxcube	2,846	3.78	RFQ	Datasheet	Bulk	-	Active	ER	ER 51 x 10 x 38	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.400 (10.16mm)
E58/11/38-3C97-A1000-E PLANAR E CORES Ferroxcube	2,886	3.79	RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
E58/11/38-3C97-A1000-P PLANAR E CORES Ferroxcube	3,894	3.79	RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
E58/11/38-3F36-A1000-E PLANAR E CORES Ferroxcube	2,809	3.79	RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
E58/11/38-3F36-A1000-P PLANAR E CORES Ferroxcube	2,364	3.79	RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
ETD59/31/22-3C90-G1500 ER AND ETD CORES Ferroxcube	3,391	3.81	RFQ		Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
PQ40/40-3F4 PQ CORES 2PC SET Ferroxcube	3,867	3.81	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 40	3F4	-	-	±25%	Ungapped	-	-	0.507	102	201	175	20500	Uncoated	1.567 (39.80mm)

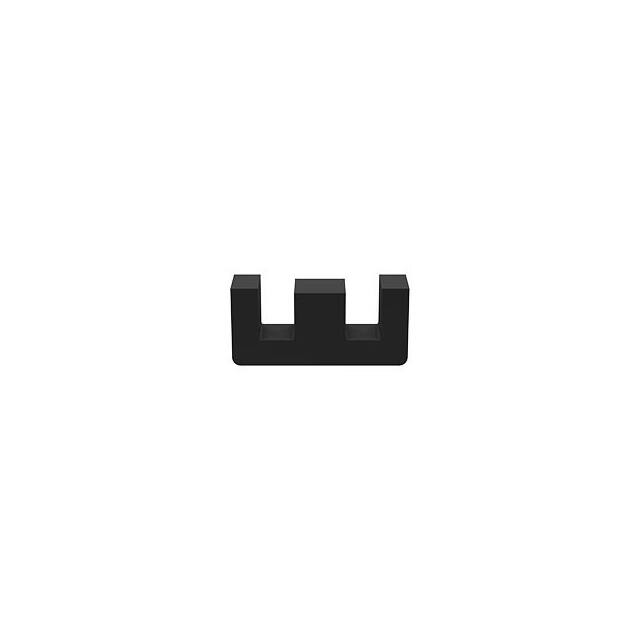

B66329G0000X195 FERRITE CORE E N95 1PC EPCOS - TDK Electronics	3,159	3.82	RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
ETD59/31/22-3C94-G1000 ER AND ETD CORES Ferroxcube	2,194	3.82	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
ETD59/31/22-3C94-G500 ER AND ETD CORES Ferroxcube	3,493	3.82	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
B65671D1000J048 FERRITE CORE P 1UH N48 2PCS EPCOS - TDK Electronics	2,882	3.83	RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	1 µH	±5%	Gapped	318	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65671D0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	3,933	3.83	RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	630 nH	±3%	Gapped	201	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65671W0840A048 FERRITE CORE EPCOS - TDK Electronics	3,017	3.83	RFQ	Datasheet	Box	P26/16	Active	-	P 26 x 16	N48	1.024 (26.00mm)	-	-	Gapped	-	2300	0.37	40	108	87	4320	Uncoated	0.321 (8.15mm)
RM12/I-3F4-A400 RM CORES 2PC SET Ferroxcube	3,286	3.84	RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3F4	-	400 nH	±3%	Gapped	123	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
RM12/I-3F4-A630 RM CORES 2PC SET Ferroxcube	3,379	3.84	RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3F4	-	630 nH	±3%	Gapped	194	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
B66335G0125X187 FERRITE CORE EPCOS - TDK Electronics	3,037	3.84	RFQ	Datasheet	Box	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	-	-	Gapped	-	2200	0.35	124	354	351	43900	Uncoated	1.094 (27.80mm)
