Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B62110A3069X022 FERRITE CORES EPCOS - TDK Electronics	2,669	0.28	RFQ		Box	TUB3.85/1.5/5	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TX10/6/4-3E10-M FERRITE CORES ROUND Ferroxcube	2,950	0.28	RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	-	-	-	Ungapped	-	-	3.07	24.1	7.8	-	3.07	Epoxy	0.167 (4.25mm)
E19/8/9-3F36-G100 E CORES Ferroxcube	2,745	0.28	RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.317 (8.05mm)
E19/8/9-3F36-G200 E CORES Ferroxcube	2,874	0.28	RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.317 (8.05mm)

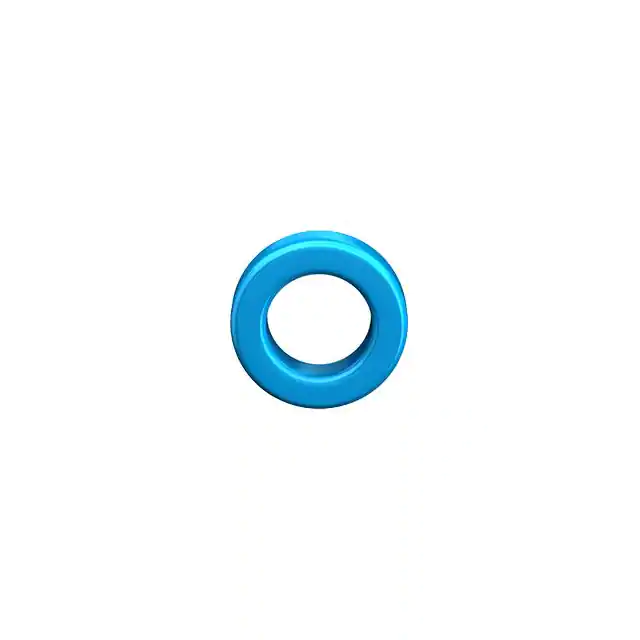

B64290L0062X035 FERRITE CORE TOROID 2.65UH T35 EPCOS - TDK Electronics	2,134	0.29	RFQ	Datasheet	Box	TX9.5/4.8/3.2	Active	Toroid	-	T35	0.413 (10.50mm)	2.65 µH	±25%	Ungapped	-	6000	2.85	20.72	7.28	-	151	Epoxy	0.161 (4.10mm)
ROD8/25-3C90 FERRITE ROD Ferroxcube	2,048	0.29	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 8 x 25	3C90	0.315 (8.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
B64290P0036X001 FERRITE CORE EPCOS - TDK Electronics	3,840	0.29	RFQ	Datasheet	Box	TC4.0/2.4/1.6	Active	Toroid	-	K1	-	-	-	Gapped	-	80	-	-	-	-	-	Parylene	-
B64290P0681X046 FERRITE CORE EPCOS - TDK Electronics	3,053	0.29	RFQ	Datasheet	Box	TC9.53/4.75/2.0	Active	Toroid	-	T46	-	-	-	Gapped	-	15000	-	-	-	-	-	Parylene	-
B64290P0687X830 FERRITE CORE TOROID 1.68UH N30 EPCOS - TDK Electronics	3,746	0.29	RFQ	Datasheet	Box	TC5.8/3/3	Active	Toroid	-	N30	0.231 (5.87mm)	1.68 µH	±25%	Ungapped	-	4300	3.22	13.03	4.04	-	52.6	Parylene	0.119 (3.02mm)
B65843A0040A087 FERRITE CORE EPCOS - TDK Electronics	3,569	0.29	RFQ	Datasheet	Box	-	Not For New Designs	EP	EP 13	N87	-	-	-	-	-	2200	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
7895400121 95 PLANAR EI CORE SET Fair-Rite Products Corp.	2,610	0.29	RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	109	16.6	15.2	15	252	Uncoated	-
I25/6/6-3C91 U AND UR CORES Ferroxcube	2,341	0.29	RFQ	Datasheet	Bulk	-	Active	I	I 25 x 6 x 6	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.252 (6.40mm)
I25/6/6-3C94 U AND UR CORES Ferroxcube	3,877	0.29	RFQ	Datasheet	Bulk	-	Active	I	I 25 x 6 x 6	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.252 (6.40mm)
TX10/6/4-3E27-M7 FERRITE CORES ROUND Ferroxcube	2,363	0.30	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	-	-	-	Ungapped	-	-	3.07	24.1	7.8	-	3.07	Epoxy	0.167 (4.25mm)
B62110A4071X022 FERRITE CORES EPCOS - TDK Electronics	2,183	0.30	RFQ		Box	TUB4.1/1.5/4	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PLT14/5/1.5/S-3C92 PLANAR E CORES Ferroxcube	3,826	0.30	RFQ	Datasheet	Bulk	-	Active	E	PLT 14 x 5 x 1.5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
7898400221 98 PLANAR EI CORE SET Fair-Rite Products Corp.	2,579	0.30	RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	49	20.5	42.1	40	863	Uncoated	-
PLT14/5/1.5-3C97 PLANAR E CORES Ferroxcube	3,417	0.30	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
PLT14/5/1.5-3F36 PLANAR E CORES Ferroxcube	3,350	0.30	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
PLT14/5/1.5-3F46 PLANAR E CORES Ferroxcube	2,500	0.30	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
