Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
5082-3081 RF DIODE PIN 100V 250MW AXIAL Broadcom Limited	2,736	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	100V	100 mA	0.4pF @ 50V, 1MHz	3.5Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)
5082-2810 DIODE SCHOTTKY 20V 250MW AXIAL Broadcom Limited	2,649	RFQ	Datasheet	Bulk	-	Obsolete	Schottky - Single	20V	35 mA	1.2pF @ 0V, 1MHz	-	250 mW	-65°C ~ 200°C (TJ)
5082-3080 RF DIODE PIN 100V 250MW AXIAL Broadcom Limited	3,036	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	100V	100 mA	0.4pF @ 50V, 1MHz	2.5Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)
1N5712 RF DIODE SCHOTTKY 20V 250MW Broadcom Limited	3,231	RFQ	Datasheet	Bulk	-	Obsolete	Schottky - Single	20V	35 mA	1.2pF @ 0V, 1MHz	-	250 mW	-65°C ~ 200°C (TJ)
HSMS-282E-TR1G RF DIODE SCHOTTKY 15V SOT323 Broadcom Limited	3,050	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Schottky - 1 Pair Common Anode	15V	1 A	1pF @ 0V, 1MHz	12Ohm @ 5mA, 1MHz	-	150°C (TJ)
5082-3039 RF DIODE PIN 150V 250MW AXIAL Broadcom Limited	3,556	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	150V	100 mA	0.25pF @ 50V, 1MHz	1.25Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)
5082-3077 RF DIODE PIN 200V 250MW AXIAL Broadcom Limited	2,631	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	200V	100 mA	0.3pF @ 50V, 1MHz	1.5Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)
1N5719 RF DIODE PIN 150V 250MW Broadcom Limited	2,486	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	150V	100 mA	0.3pF @ 100V, 1MHz	1.25Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)

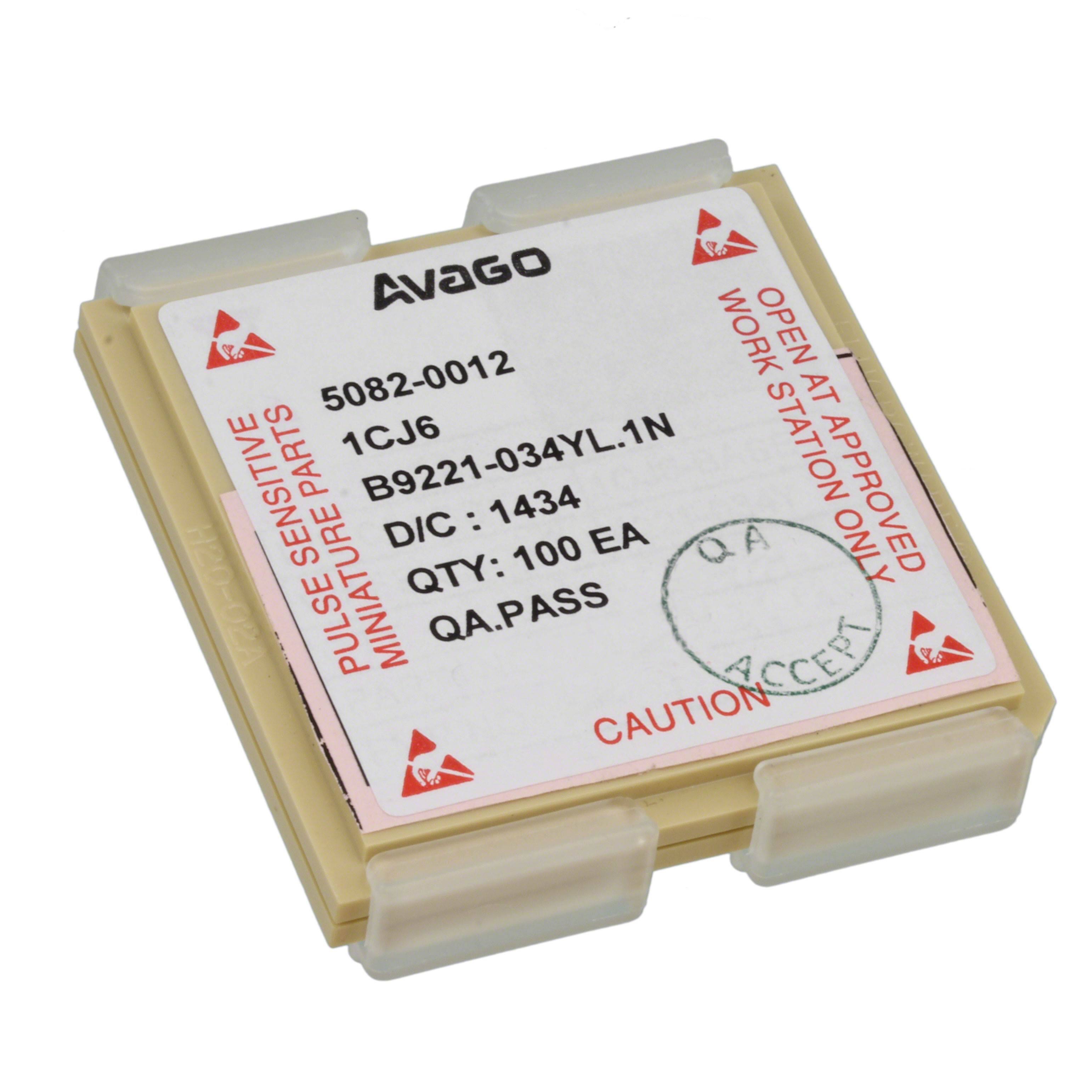

5082-0012 RF DIODE PIN 150V Broadcom Limited	2,538	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	150V	-	0.12pF @ 50V, 1MHz	1Ohm @ 100mA, 100MHz	-	-65°C ~ 150°C (TJ)
1N5767 RF DIODE PIN 100V 250MW Broadcom Limited	3,231	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	100V	100 mA	0.4pF @ 50V, 1MHz	2.5Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)
5082-3379 RF DIODE PIN 50V 250MW AXIAL Broadcom Limited	2,541	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	50V	50 mA	0.4pF @ 50V, 1MHz	-	250 mW	-65°C ~ 150°C (TJ)
HSMS-285P-BLKG RF DIODE SCHOTTKY 2V SOT363 Broadcom Limited	3,012	RFQ	Datasheet	Bulk	-	Obsolete	Schottky - 2 Pair Series Connection	2V	-	0.3pF @ 1V, 1MHz	-	-	150°C (TJ)
HSMS-8209-BLKG DIODE SCHOTTKY 4V 75MW SOT143-4 Broadcom Limited	3,435	RFQ	Datasheet	Bulk	-	Obsolete	Schottky - Cross Over	4V	-	0.26pF @ 0V, 1MHz	14Ohm @ 5mA, 1MHz	75 mW	150°C (TJ)
HSMS-8207-BLKG DIODE SCHOTTKY 4V 75MW SOT143-4 Broadcom Limited	2,142	RFQ	Datasheet	Bulk	-	Obsolete	Schottky - 2 Pair Series Connection	4V	-	0.26pF @ 0V, 1MHz	14Ohm @ 5mA, 1MHz	75 mW	150°C (TJ)
HSMP-3824-BLKG RF DIODE PIN 50V SOT23-3 Broadcom Limited	2,403	RFQ	Datasheet	Strip	-	Obsolete	PIN - 1 Pair Common Cathode	50V	1 A	0.8pF @ 20V, 1MHz	600mOhm @ 10mA, 100MHz	-	150°C (TJ)
HSMP-3822-BLKG RF DIODE PIN 50V SOT23-3 Broadcom Limited	3,592	RFQ	Datasheet	Strip	-	Obsolete	PIN - 1 Pair Series Connection	50V	1 A	0.8pF @ 20V, 1MHz	600mOhm @ 10mA, 100MHz	-	150°C (TJ)
HSMP-3823-BLKG RF DIODE PIN 50V SOT23-3 Broadcom Limited	2,748	RFQ	Datasheet	Strip	-	Obsolete	PIN - 1 Pair Common Anode	50V	1 A	0.8pF @ 20V, 1MHz	600mOhm @ 10mA, 100MHz	-	150°C (TJ)
HSMP-389B-BLKG RF DIODE PIN 100V SOT323 Broadcom Limited	2,964	RFQ	Datasheet	Bulk	-	Obsolete	PIN - Single	100V	1 A	0.3pF @ 5V, 1MHz	2.5Ohm @ 5mA, 100MHz	-	150°C (TJ)
HMPS-2820-BLK RF DIODE SCHOTTKY 15V MINIPAK Broadcom Limited	2,579	RFQ	Datasheet	Bulk	-	Obsolete	Schottky - Single	15V	1 A	1pF @ 0V, 1MHz	12Ohm @ 5mA, 1MHz	-	150°C (TJ)
HSMS-285Y-BLKG RF DIODE SCHOTTKY 2V SOD323 Broadcom Limited	3,999	RFQ	Datasheet	Bulk	-	Obsolete	Schottky - Single	2V	-	0.3pF @ 1V, 1MHz	-	-	150°C (TJ)
