Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
AS-202 XFRMR CURR 15A 1:200 VRT Amgis, LLC	3,396	3.49	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.571 L x 0.772 W (14.50mm x 19.60mm)	0.709 (18.00mm)
AS-300 XFRMR CURR 15A 1:50 VRT Amgis, LLC	2,070	3.51	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.701 L x 0.902 W (17.80mm x 22.90mm)	0.701 (17.80mm)
AS-301 XFRMR CURR 15A 1:100 VRT Amgis, LLC	2,162	3.56	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.701 L x 0.902 W (17.80mm x 22.90mm)	0.701 (17.80mm)
AS-302 XFRMR CURR 15A 1:200 VRT Amgis, LLC	2,602	3.56	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.701 L x 0.902 W (17.80mm x 22.90mm)	0.701 (17.80mm)
AS-210 XFRMR CURR 15A 1:50CT VRT Amgis, LLC	2,525	3.57	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.571 L x 0.772 W (14.50mm x 19.60mm)	0.709 (18.00mm)
AS-406 XFRMR CURR 65A 1:500 VRT Amgis, LLC	2,817	3.59	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	1.063 L x 0.709 W (27.00mm x 18.00mm)	1.181 (30.00mm)
ASM-020 XFMR PCB +/-10% 50/60HZ 20A Talema Group LLC	2,511	3.59	RFQ	Datasheet	Tray	ASM	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	-	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)

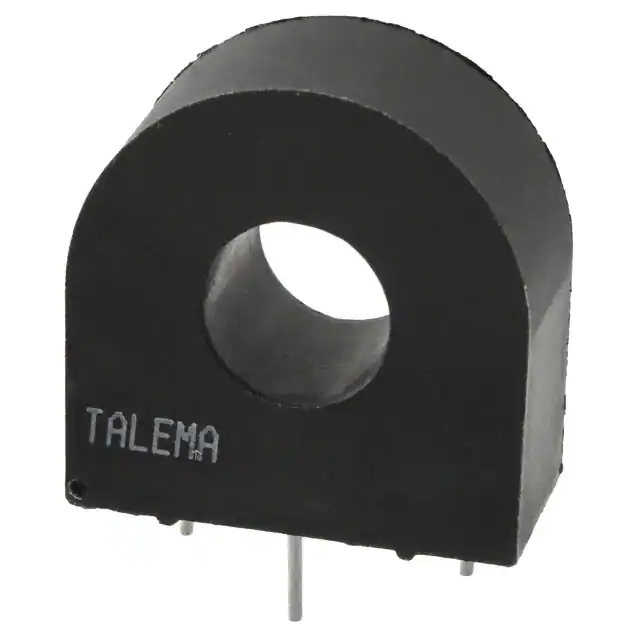

ACX-1050 CURR SENSE XFMR 2500:1 50A T/H Talema Group LLC	2,105	3.60	RFQ	Datasheet	Tray	ACX	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	50 A	-	-	2500:1	-	-	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)
AS-211 XFRMR CURR 15A 1:100CT VRT Amgis, LLC	2,993	3.62	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.571 L x 0.772 W (14.50mm x 19.60mm)	0.709 (18.00mm)

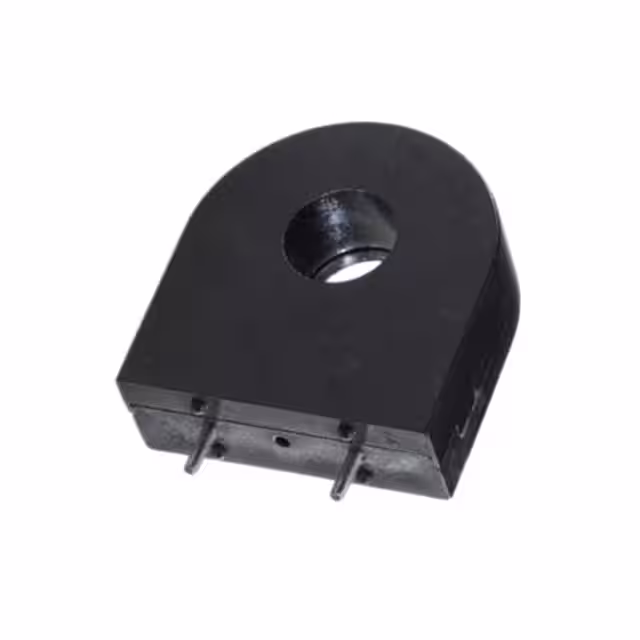

CST306-1A-B CURR SENSE XFMR 35A T/H Triad Magnetics	2,648	3.63	RFQ	Datasheet	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50:1	340mOhm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)

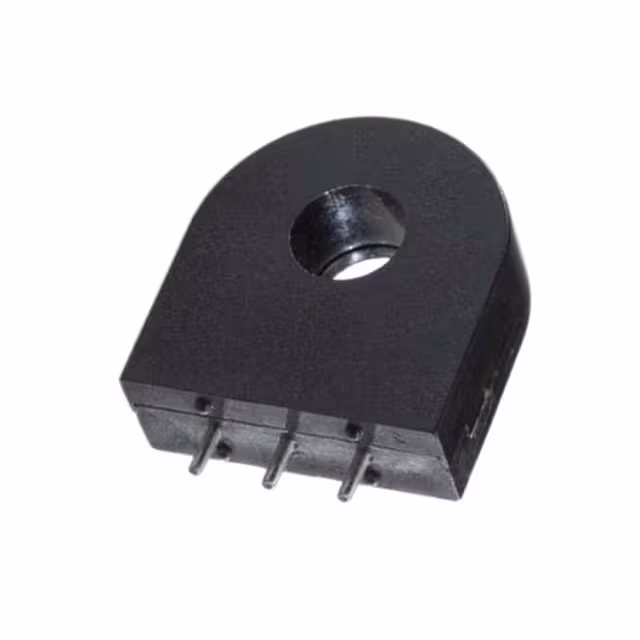

CST306-1T-B CURR SENSE XFMR 35A T/H Triad Magnetics	2,262	3.63	RFQ	Datasheet	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50CT:1	340mOhm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-2T-B CURR SENSE XFMR 25A T/H Triad Magnetics	3,367	3.63	RFQ	Datasheet	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	14 mH	1000VµS	-	100CT:1	1.55Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-3A-B CURR SENSE XFMR 25A T/H Triad Magnetics	2,046	3.63	RFQ	Datasheet	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200:1	3.75Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-3T-B CURR SENSE XFMR 25A T/H Triad Magnetics	2,131	3.63	RFQ	Datasheet	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200CT:1	3.75Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
AS-212 XFRMR CURR 15A 1:200CT VRT Amgis, LLC	2,515	3.68	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.571 L x 0.772 W (14.50mm x 19.60mm)	0.709 (18.00mm)
ASM-030 XFRMR CURR SENSE 1-30A T/H Amgis, LLC	2,185	3.71	RFQ	Datasheet	Bulk	ASM	Active	-	-	-	-	-	-	-	-	-	-	0.990 L x 0.440 W (25.15mm x 11.18mm)	1.000 (25.40mm)
AS-310 XFRMR CURR 15A 1:50CT VRT Amgis, LLC	3,378	3.73	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.701 L x 0.902 W (17.80mm x 22.90mm)	0.701 (17.80mm)
ASM-020 XFRMR CURR SENSE 1-20A T/H Amgis, LLC	2,334	3.80	RFQ	Datasheet	Bulk	ASM	Active	-	-	-	-	-	-	-	-	-	-	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)
AS-311 XFRMR CURR 15A 1:100CT VRT Amgis, LLC	3,539	3.81	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.701 L x 0.902 W (17.80mm x 22.90mm)	0.701 (17.80mm)
AS-312 XFRMR CURR 15A 1:200CT VRT Amgis, LLC	2,692	3.81	RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.701 L x 0.902 W (17.80mm x 22.90mm)	0.701 (17.80mm)
