Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
VST10/9EE-200S1C2 CURRENT SENSE TRANSFORMERS, WOUN TDK Corporation	208	9.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VST	Active	-	-	-	-	-	1:100	-	-	-	Surface Mount	0.476 L x 0.425 W (12.10mm x 10.80mm)	0.394 (10.00mm)
AC1150 CURR SENSE XFMR 150A T/H Talema Group LLC	102	13.25	RFQ	Datasheet	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	150 A	-	-	-	1000:1	11Ohm	-	Through Hole	2.189 L x 0.811 W (55.60mm x 20.60mm)	2.189 (55.60mm)
AP-2000-10-0-36MM AP-2000-10-0-36MM TE Connectivity	2,199	0.00	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
2RL-401 XFMR,CURRENT,400:5,10.0VA,1.05 Crompton Instruments	412	412.00	RFQ	Datasheet	Box	-	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	400:5	-	-	-	1.050 Dia (26.67mm)
ACTL-0750-200 OPT C0.6 200A Split-Core Transformer Aim Dynamics	2,674	82.14	RFQ	Datasheet	Bag	Accu-CT®	Active	50/60Hz	Non-Invasive (Split Core)	200 A	-	-	100:1	-	-	-	Free Hanging (In-Line)	2.378 L x 0.902 W (60.40mm x 22.90mm)	2.402 (61.00mm)
ACTL-0750-250 OPT C0.6 250A Split-Core Transformer Aim Dynamics	3,204	82.14	RFQ	Datasheet	Bag	Accu-CT®	Active	50/60Hz	Non-Invasive (Split Core)	250 A	-	-	100:1	-	-	-	Free Hanging (In-Line)	2.378 L x 0.902 W (60.40mm x 22.90mm)	2.402 (61.00mm)
ACTL-0750-150 OPT C0.6 150A Split-Core Transformer Aim Dynamics	2,336	82.14	RFQ	Datasheet	Bag	Accu-CT®	Active	50/60Hz	Non-Invasive (Split Core)	150 A	-	-	100:1	-	-	-	Free Hanging (In-Line)	2.378 L x 0.902 W (60.40mm x 22.90mm)	2.402 (61.00mm)
ACTL-0750-050 OPT C0.6 50A Split-Core Transformer Aim Dynamics	3,640	82.14	RFQ	Datasheet	Bag	Accu-CT®	Active	50/60Hz	Non-Invasive (Split Core)	50 A	-	-	100:1	-	-	-	Free Hanging (In-Line)	2.378 L x 0.902 W (60.40mm x 22.90mm)	2.402 (61.00mm)
ACTL-0750-100 OPT C0.6 100A Split-Core Transformer Aim Dynamics	2,174	82.14	RFQ	Datasheet	Bag	Accu-CT®	Active	50/60Hz	Non-Invasive (Split Core)	100 A	-	-	100:1	-	-	-	Free Hanging (In-Line)	2.378 L x 0.902 W (60.40mm x 22.90mm)	2.402 (61.00mm)
ACTL-1250-600 OPT C0.6 600A Split-Core Transformer Aim Dynamics	2,221	115.71	RFQ	Datasheet	Bag	Accu-CT®	Active	50/60Hz	Non-Invasive (Split Core)	600 A	-	-	100:1	-	-	-	Free Hanging (In-Line)	4.488 L x 1.583 W (114.00mm x 40.20mm)	3.283 (83.40mm)
ACTL-1250-250 OPT C0.6 250A Split-Core Transformer Aim Dynamics	2,663	115.71	RFQ	Datasheet	Bag	Accu-CT®	Active	50/60Hz	Non-Invasive (Split Core)	250 A	-	-	100:1	-	-	-	Free Hanging (In-Line)	4.488 L x 1.583 W (114.00mm x 40.20mm)	3.283 (83.40mm)
DN-843I-CT-10 3-CHANNEL 10 A CURRENT TRANSFORM ICP DAS USA INC	2,219	259.00	RFQ	Datasheet	Box	-	Active	-	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	DIN Rail	5.827 L x 2.980 W (148.00mm x 75.70mm)	1.535 (39.00mm)
DN-843I-CT-20 3-CHANNEL 20 A CURRENT TRANSFORM ICP DAS USA INC	3,648	279.00	RFQ	Datasheet	Box	-	Active	-	Non-Invasive (Solid Core)	20 A	-	-	-	-	-	-	DIN Rail	5.827 L x 2.980 W (148.00mm x 75.70mm)	1.535 (39.00mm)
DN-843I-CT-1 3-CHANNEL 1 A CURRENT TRANSFORME ICP DAS USA INC	2,045	349.00	RFQ	Datasheet	Box	-	Active	-	Non-Invasive (Solid Core)	1 A	-	-	-	-	-	-	DIN Rail	5.827 L x 2.980 W (148.00mm x 75.70mm)	1.535 (39.00mm)
PA1005.100NLT CURR SENSE XFMR 1:100 20A SMD Pulse Electronics Power	3,277	2.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA1005.XXXNL	Active	50kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
B82801B0205A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	670	2.80	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	2 mH	-	1:100	-	0.8mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
56300C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	406	1.62	RFQ	Datasheet	Box	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	300:1	5.73mOhm Primary, 8.59mOhm Secondary	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.19mm)
PA1005.100NL CURR SENSE XFMR 1:100 20A SMD Pulse Electronics Power	165	2.27	RFQ	Datasheet	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

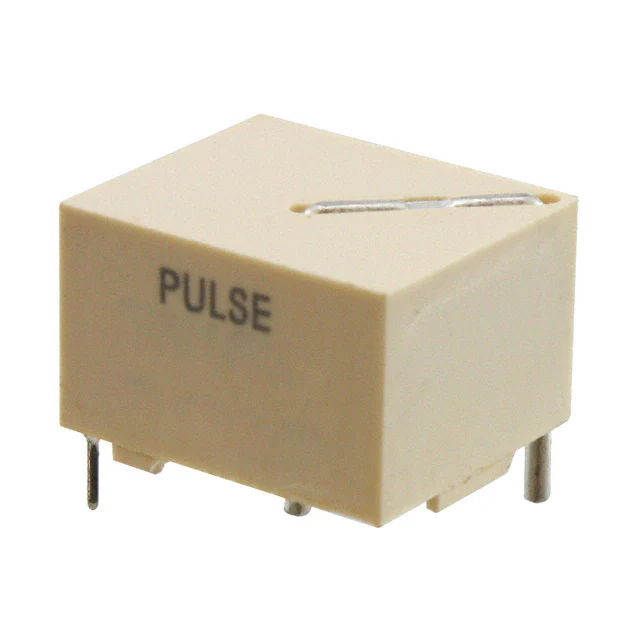

FIS115NL CURR SENSE XFMR 1:100 25A T/H Pulse Electronics Power	3,788	2.48	RFQ	Datasheet	Tube	FIS 1X5	Active	500kHz Max	Invasive	-	18 mH	350VµS	1:100	-	2Ohm Max	-	Through Hole	0.693 L x 0.591 W (17.60mm x 15.00mm)	0.492 (12.50mm)
PB0025NL CURR SENSE XFMR 50:1 35A SMD Pulse Electronics Power	3,109	3.69	RFQ	Datasheet	Tray	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	1.4 mH	-	50:1	-	0.42mOhm Primary, 700mOhm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
