Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

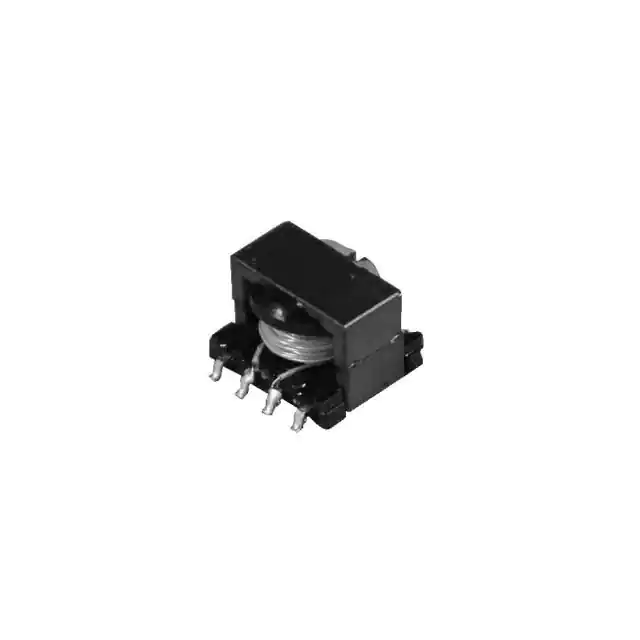

	CEER117-AX05-13-048 FLYBACK TRANSFORMER Sumida America Components Inc.	659	4.83	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV	Broadcom, ROHM	12V	-	2500Vrms	59µH @ 100kHz, 240µH @ 100kHz	120kHz	-40°C ~ 125°C	Surface Mount	0.449 L x 0.390 W (11.40mm x 9.90mm)	0.331 (8.40mm)	0.508 L x 0.449 W (12.90mm x 11.40mm)

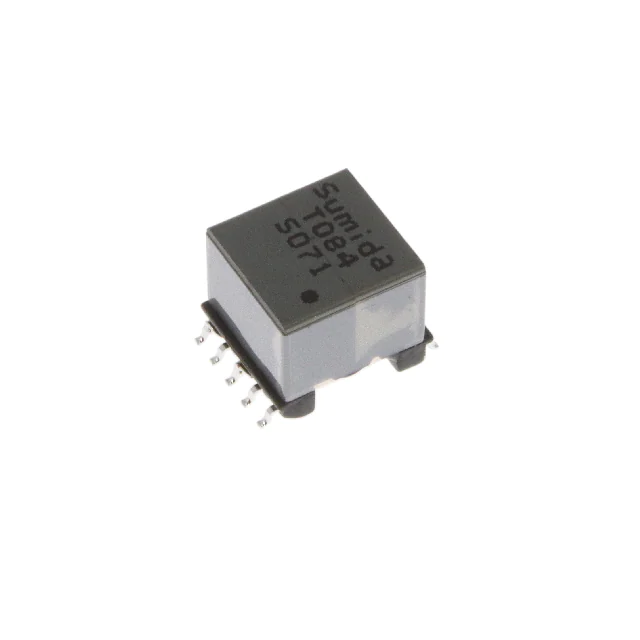

	13324-T084 XFRMR Sumida America Components Inc.	3,830	4.66	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	36 ~ 75V	-	1500Vrms	40µH @ 100kHz	-	-40°C ~ 85°C	Surface Mount	0.591 L x 0.531 W (15.00mm x 13.50mm)	0.492 (12.50mm)	0.709 L x 0.531 W (18.00mm x 13.50mm)
	13324-T083 XFRMR Sumida America Components Inc.	600	4.66	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	36 ~ 75V	-	1500Vrms	40µH @ 100kHz	-	-40°C ~ 85°C	Surface Mount	0.591 L x 0.531 W (15.00mm x 13.50mm)	0.492 (12.50mm)	0.709 L x 0.531 W (18.00mm x 13.50mm)

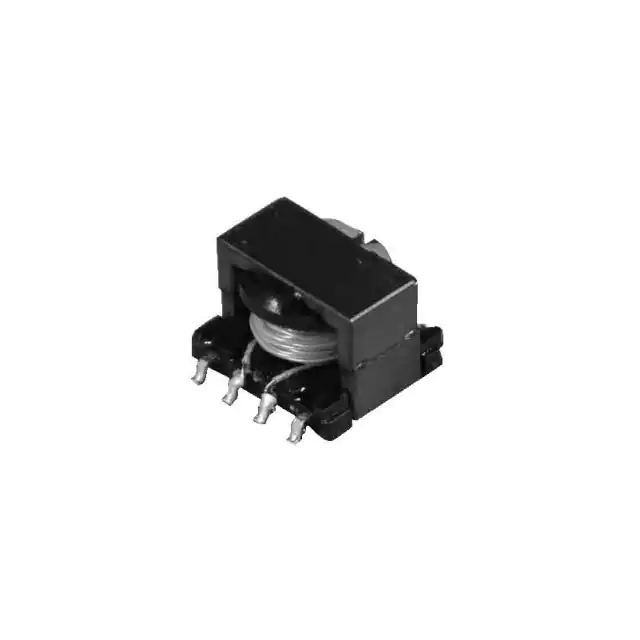

	CEER117-AX05-15-007 FLYBACK TRANSFORMER Sumida America Components Inc.	510	5.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV	Broadcom, ROHM	12V	5V @ 50mA	2500Vrms	7.2µH @ 100kHz, 13.8µH @ 100kHz, 120µH @ 100kHz	400kHz	-40°C ~ 125°C	Surface Mount	0.449 L x 0.390 W (11.40mm x 9.90mm)	0.331 (8.40mm)	0.508 L x 0.449 W (12.90mm x 11.40mm)

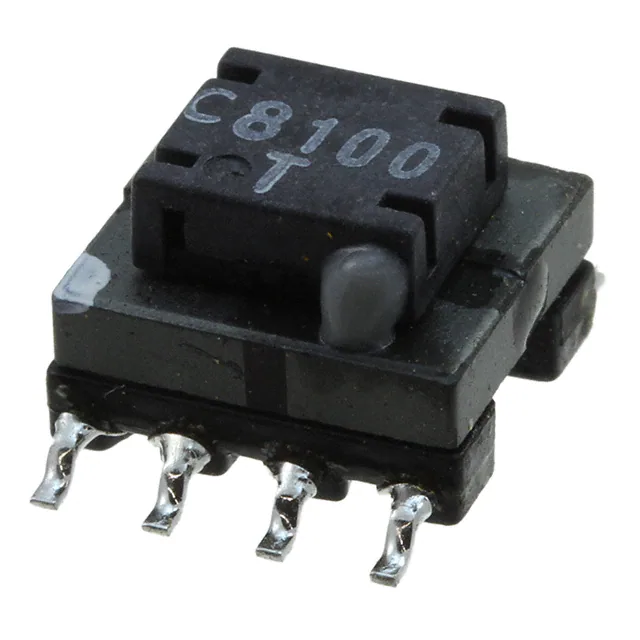

	C8100 VOIP FLYBACK XFORMER Sumida America Components Inc.	786	2.61	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CEEH	Active	-	Flyback Converters	-	-	-	-	-	3.38µH @ 100kHz	-	-40°C ~ 85°C	Surface Mount	0.386 L x 0.343 W (9.80mm x 8.70mm)	0.270 (6.85mm)	0.386 L x 0.480 W (9.80mm x 12.20mm)

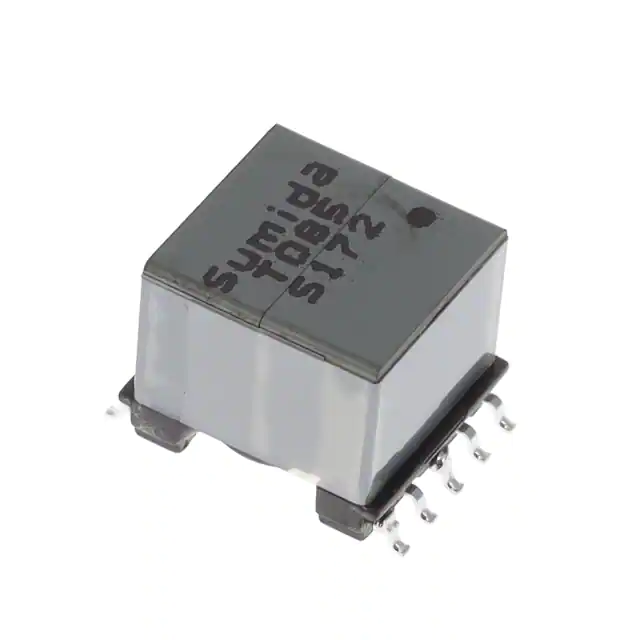

	13324-T085 XFRMR Sumida America Components Inc.	168	4.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	36 ~ 75V	-	1500Vrms	40µH @ 100kHz	-	-40°C ~ 85°C	Surface Mount	0.591 L x 0.531 W (15.00mm x 13.50mm)	0.492 (12.50mm)	0.709 L x 0.531 W (18.00mm x 13.50mm)

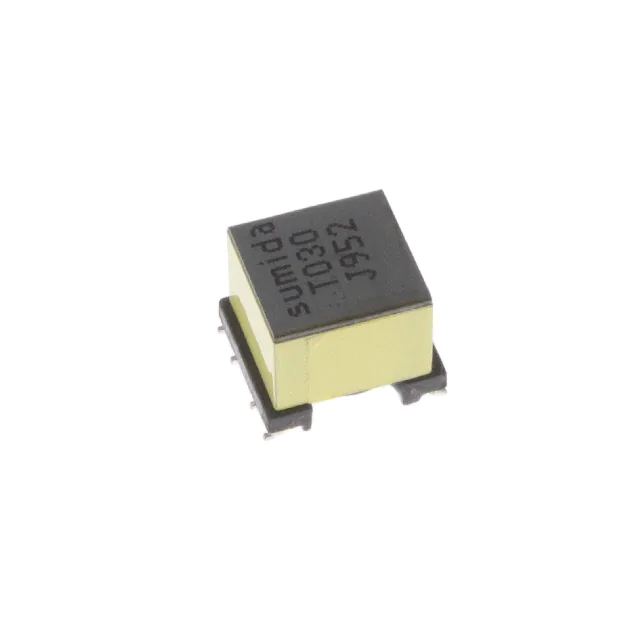

	10380-T030 LINEAR TECH REFERENCE DESIGN LT8 Sumida America Components Inc.	3,064	4.57	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	Flyback Converters	-	-	-	-	-	40µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	-	0.504 (12.80mm)	-
	13324-T086 XFRMR Sumida America Components Inc.	560	4.66	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	4 ~ 36V	-	1500Vrms	40µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.591 L x 0.531 W (15.00mm x 13.50mm)	0.492 (12.50mm)	0.709 L x 0.531 W (18.00mm x 13.50mm)

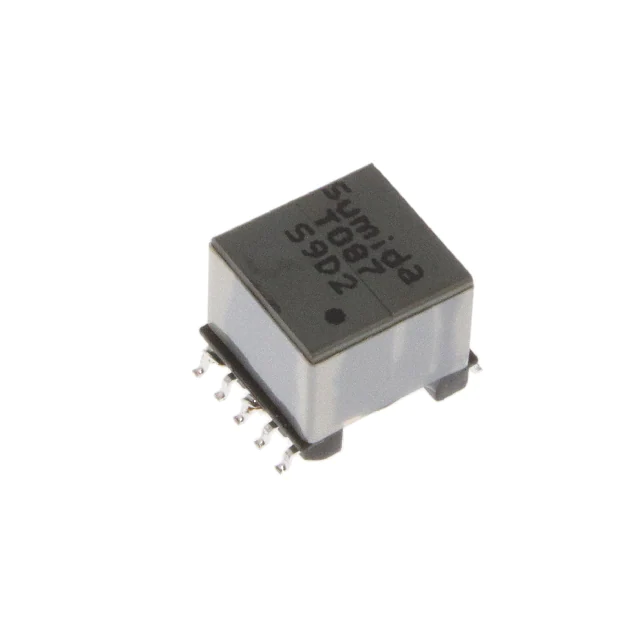

	13324-T087 XFRMR Sumida America Components Inc.	2,295	4.66	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	4 ~ 18V	-	1500Vrms	40µH @ 100kHz	-	-40°C ~ 85°C	Surface Mount	0.591 L x 0.531 W (15.00mm x 13.50mm)	0.492 (12.50mm)	0.709 L x 0.531 W (18.00mm x 13.50mm)
	0399-T208 LINEAR TECH REFERENCE DESIGN LT8 Sumida America Components Inc.	2,129	5.29	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	Flyback Converters	-	-	-	-	-	40µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	1.150 L x 0.827 W (29.20mm x 21.00mm)	0.465 (11.80mm)	-
	C8102 VOIP FLYBACK XFORMER Sumida America Components Inc.	2,609	1.55	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	0.386 L x 0.343 W (9.80mm x 8.70mm)	0.270 (6.85mm)	0.386 L x 0.480 W (9.80mm x 12.20mm)
	C8140 VOIP FLYBACK XFORMER Sumida America Components Inc.	3,219	1.61	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
