Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

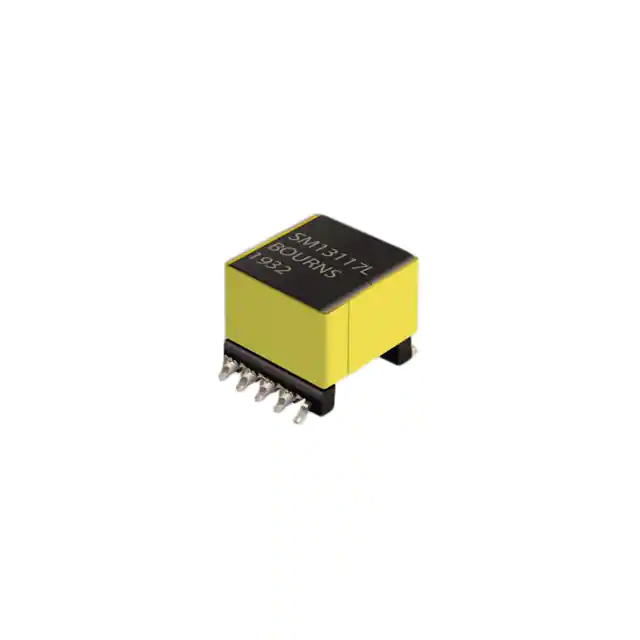

	SM13117EL TRANSFORMER Bourns Inc.	2,736	2.21	RFQ		Tape & Reel (TR),Cut Tape (CT)	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-

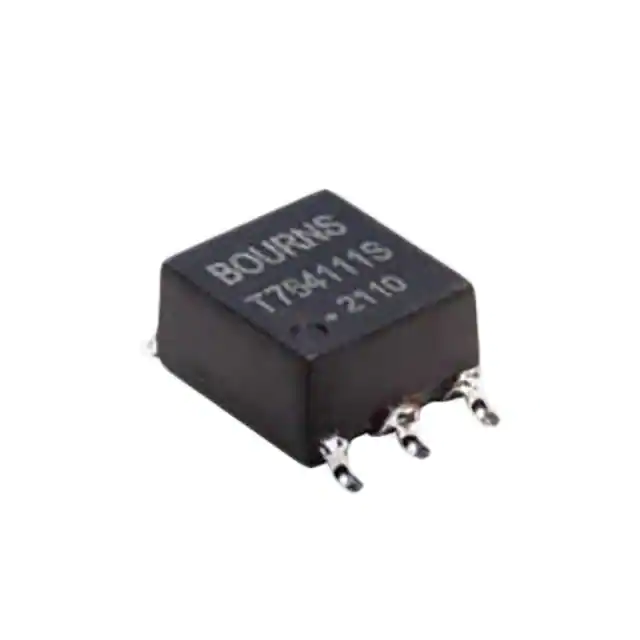

	PAD002-T764113S PUSH-PULL FUNC-INSULTN 5V 1:1.3 Bourns Inc.	2,099	2.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PAD00x-T764	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.280 L x 0.258 W (7.10mm x 6.55mm)	0.157 (3.99mm)	0.388 L x 0.258 W (9.85mm x 6.55mm)

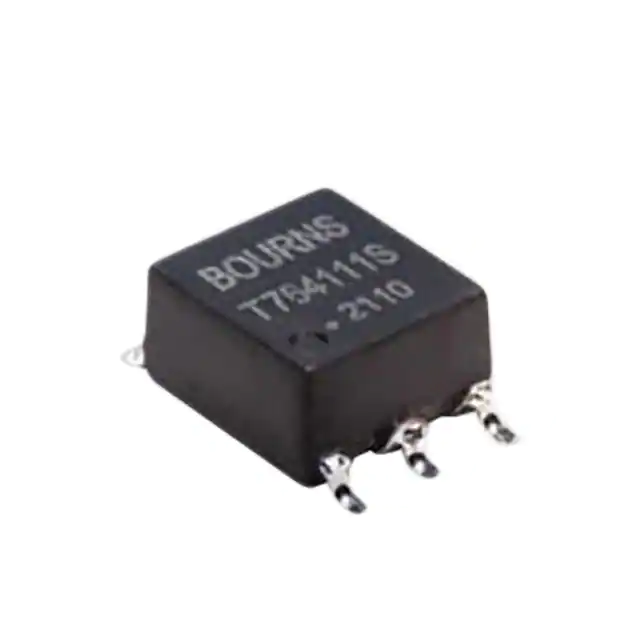

	PAD002-T764111S PUSH-PULL FUNC-INSULTN 5V 1:1.1 Bourns Inc.	791	2.33	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PAD00x-T764	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.280 L x 0.258 W (7.10mm x 6.55mm)	0.157 (3.99mm)	0.388 L x 0.258 W (9.85mm x 6.55mm)

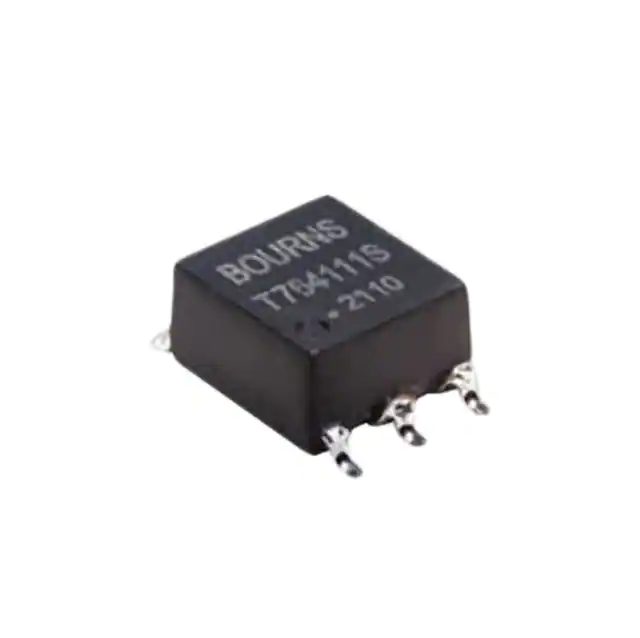

	PAD001-T764117S PUSH-PULL FUNC-INSULTN 3.3V 1:1. Bourns Inc.	791	2.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PAD00x-T764	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.280 L x 0.258 W (7.10mm x 6.55mm)	0.157 (3.99mm)	0.388 L x 0.258 W (9.85mm x 6.55mm)
	PAD001-T764120S PUSH-PULL FUNC-INSULTN 3.3V 1:2 Bourns Inc.	587	2.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PAD00x-T764	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.280 L x 0.258 W (7.10mm x 6.55mm)	0.157 (3.99mm)	0.388 L x 0.258 W (9.85mm x 6.55mm)
	BS64042CS MAGNETIC PRODUCT CUSTOM Bourns Inc.	350	4.06	RFQ		Cut Tape (CT),Bulk	-	Active	-	Flyback Converters	ADP1031	Analog Devices	4.5 ~ 60V	-	2200V	270µH @ 250kHz	100kHz	-40°C ~ 125°C	Surface Mount	0.413 L x 0.386 W (10.50mm x 9.80mm)	0.433 (11.00mm)	0.374 L x 0.138 W (9.50mm x 3.50mm)
