Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

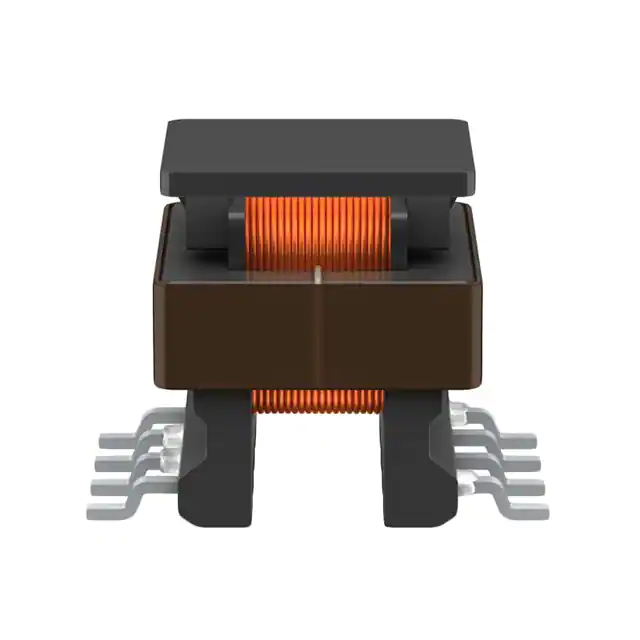

B78307A2276A003 E10 SMD TRANSFORMER EPCOS - TDK Electronics	3,436	8.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, E10 EM	Active	-	-	-	-	-	-	-	100µH @ 50kHz	100 ~ 400kHz	-40°C ~ 150°C	Surface Mount	-	-	-
B82805A943A250 P100626 E6.3 SMT PUSH-PULL TRANS EPCOS - TDK Electronics	3,440	5.90	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82805	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	94µH @ 50kHz	250kHz	-25°C ~ 125°C	Surface Mount	0.315 L x 0.236 W (8.00mm x 6.00mm)	0.224 (5.70mm)	0.315 L x 0.378 W (8.00mm x 9.60mm)
B82805A0773A250 P100625 E6.3 SMT PUSH-PULL TRANS EPCOS - TDK Electronics	3,839	7.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82805	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	77µH @ 50kHz	250kHz	-25°C ~ 125°C	Surface Mount	0.315 L x 0.236 W (8.00mm x 6.00mm)	0.224 (5.70mm)	0.315 L x 0.378 W (8.00mm x 9.60mm)

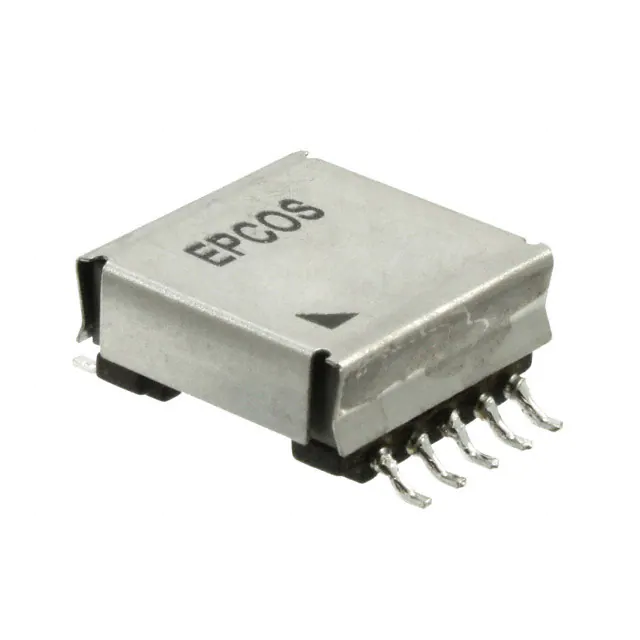

B82802A0012A215 TRANSFORMER FLYBACK 36-60V SMD EPCOS - TDK Electronics	595	4.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82802A	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	100µH @ 100kHz	100kHz	-40°C ~ 125°C	Surface Mount	0.650 L x 0.681 W (16.50mm x 17.30mm)	0.341 (8.65mm)	0.650 L x 0.902 W (16.50mm x 22.90mm)
B82802A0012A315 TRANSFORMER FLYBACK 36-60V SMD EPCOS - TDK Electronics	103	4.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82802A	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	100µH @ 100kHz	100kHz	-40°C ~ 125°C	Surface Mount	0.650 L x 0.681 W (16.50mm x 17.30mm)	0.341 (8.65mm)	0.650 L x 0.902 W (16.50mm x 22.90mm)
B82805A0173A250 P100725 E6.3 SMT PUSH-PULL TRANS EPCOS - TDK Electronics	616	7.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82805	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	17µH @ 50kHz	250kHz	-25°C ~ 125°C	Surface Mount	0.315 L x 0.236 W (8.00mm x 6.00mm)	0.224 (5.70mm)	0.315 L x 0.378 W (8.00mm x 9.60mm)
B82805A0363A250 P100624 E6.3 SMT PUSH-PULL TRANS EPCOS - TDK Electronics	330	7.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82805	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	36µH @ 50kHz	250kHz	-25°C ~ 125°C	Surface Mount	0.315 L x 0.236 W (8.00mm x 6.00mm)	0.224 (5.70mm)	0.315 L x 0.378 W (8.00mm x 9.60mm)

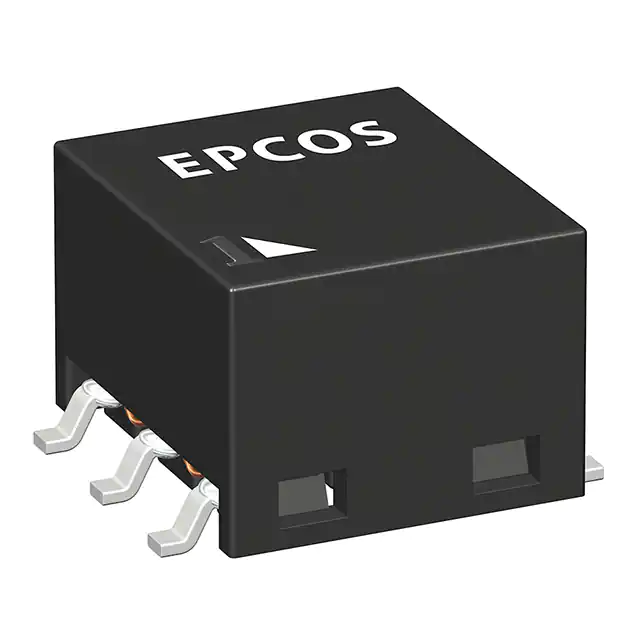

B78304B1032A003 XFMR DC/DC CONV SMD EPCOS - TDK Electronics	864	8.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B78304B	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	10mH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.315 L x 0.276 W (8.00mm x 7.00mm)	0.224 (5.70mm)	0.315 L x 0.374 W (8.00mm x 9.50mm)
B78304B1031A003 XFMR DC/DC CONV SMD EPCOS - TDK Electronics	152	8.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B78304B	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	1mH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.315 L x 0.276 W (8.00mm x 7.00mm)	0.224 (5.70mm)	0.315 L x 0.374 W (8.00mm x 9.50mm)
B78307A2385A003 AUXILIRY TRANSFORMER E10 SMD EPCOS - TDK Electronics	276	8.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, E10 EM	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	-	10µH @ 100kHz	100 ~ 500kHz	-40°C ~ 150°C	Surface Mount	0.461 L x 0.367 W (11.70mm x 9.33mm)	0.447 (11.35mm)	0.518 L x 0.461 W (13.15mm x 11.70mm)
B78307A9741A003 AUXILIRY TRANSFORMER E10 SMD EPCOS - TDK Electronics	271	8.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, E10 EM	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	-	100µH @ 100kHz	100 ~ 500kHz	-40°C ~ 150°C	Surface Mount	0.461 L x 0.367 W (11.70mm x 9.33mm)	0.447 (11.35mm)	0.518 L x 0.461 W (13.15mm x 11.70mm)

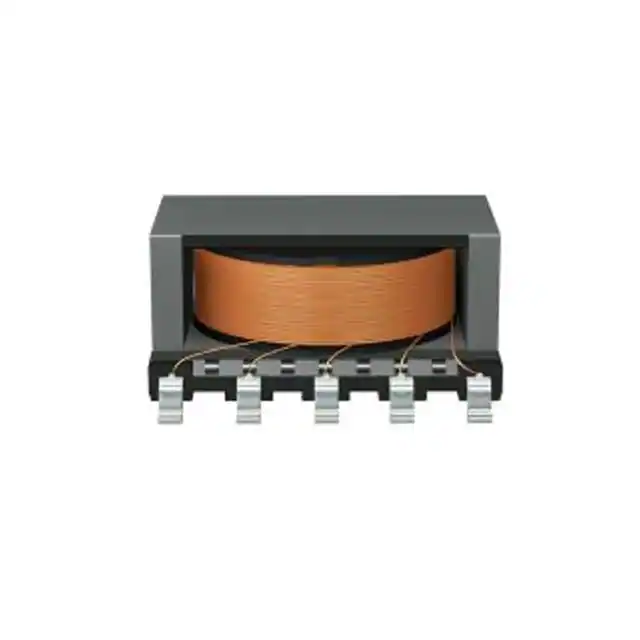

B78334B1033A003 XFRMER DC/DC CONV SMD EPCOS - TDK Electronics	491	9.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	-	-	-	-	-	1000Vrms	100µH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.472 L x 0.535 W (12.00mm x 13.60mm)	0.252 (6.40mm)	0.480 L x 0.535 W (12.20mm x 13.60mm)
B78334B1034A003 XFRMER DC/DC CONV SMD EPCOS - TDK Electronics	236	9.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	-	-	-	-	-	1000Vrms	1.08mH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.472 L x 0.535 W (12.00mm x 13.60mm)	0.252 (6.40mm)	0.480 L x 0.535 W (12.20mm x 13.60mm)

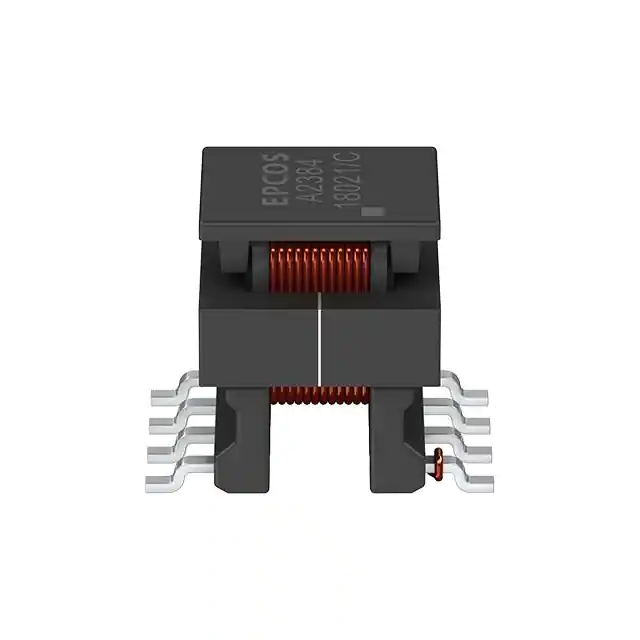

B78307A2338A003 AUXILIRY TRANSFORMER E10 SMD EPCOS - TDK Electronics	2,505	8.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, E10 EM	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	-	2µH @ 100kHz	100 ~ 500kHz	-40°C ~ 150°C	Surface Mount	0.461 L x 0.367 W (11.70mm x 9.33mm)	0.447 (11.35mm)	0.518 L x 0.461 W (13.15mm x 11.70mm)

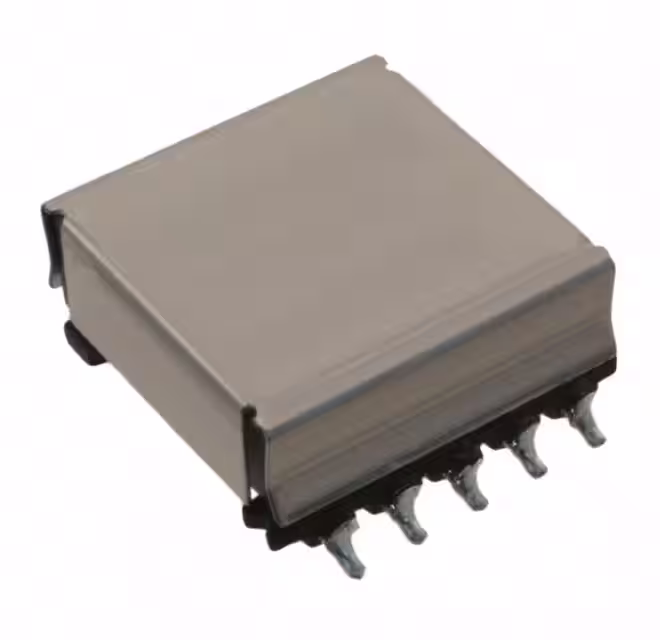

B82802A0030A220 TRANSFORMER FLYBACK 36-60V SMD EPCOS - TDK Electronics	3,807	3.51	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82802A	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	40µH @ 100kHz	100kHz	-40°C ~ 125°C	Surface Mount	0.866 L x 0.878 W (22.00mm x 22.30mm)	0.421 (10.70mm)	0.866 L x 1.035 W (22.00mm x 26.30mm)
B82802A0030A320 TRANSFORMER FLYBACK 36-60V SMD EPCOS - TDK Electronics	3,586	3.51	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82802A	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	40µH @ 100kHz	100kHz	-40°C ~ 125°C	Surface Mount	0.866 L x 0.878 W (22.00mm x 22.30mm)	0.421 (10.70mm)	0.866 L x 1.035 W (22.00mm x 26.30mm)
B82805A0952A250 P100724 E6.3 SMT PUSH-PULL TRANS EPCOS - TDK Electronics	3,480	4.21	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82805	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	9.5µH @ 50kHz	250kHz	-25°C ~ 125°C	Surface Mount	0.315 L x 0.236 W (8.00mm x 6.00mm)	0.224 (5.70mm)	0.315 L x 0.378 W (8.00mm x 9.60mm)

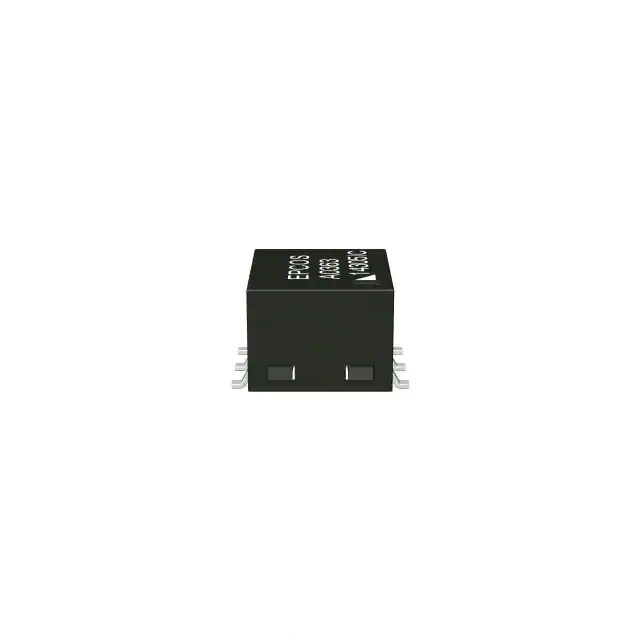

B78304B1016A003 XFMR DC/DC CONV SMD EPCOS - TDK Electronics	3,086	4.70	RFQ	Datasheet	Tape & Reel (TR)	B78304B	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	4.3mH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.315 L x 0.276 W (8.00mm x 7.00mm)	0.224 (5.70mm)	0.315 L x 0.374 W (8.00mm x 9.50mm)
B78304B1030A003 XFMR DC/DC CONV SMD EPCOS - TDK Electronics	2,502	4.70	RFQ	Datasheet	Tape & Reel (TR)	B78304B	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	100µH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.315 L x 0.276 W (8.00mm x 7.00mm)	0.224 (5.70mm)	0.315 L x 0.374 W (8.00mm x 9.50mm)

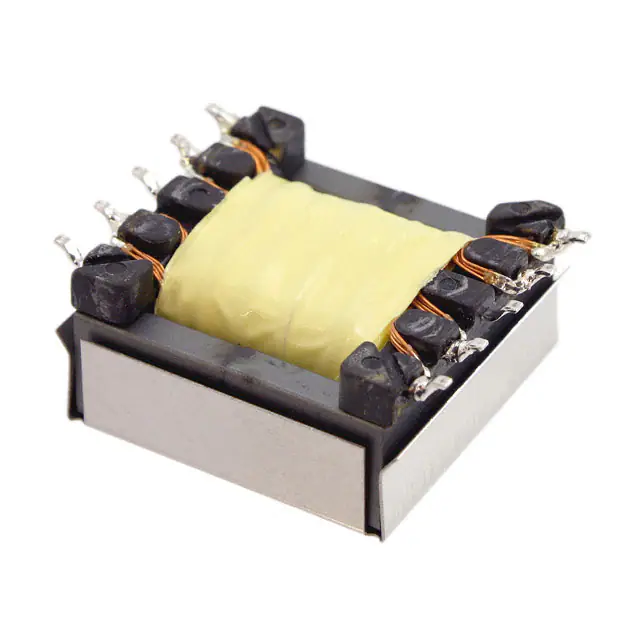

B82802A0055A225 TRANSFORMER FLYBACK 36-60V SMD EPCOS - TDK Electronics	2,486	4.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82802A	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	22µH @ 100kHz	100kHz	-40°C ~ 125°C	Surface Mount	-	0.583 (14.80mm)	1.063 L x 1.283 W (27.00mm x 32.60mm)
