Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

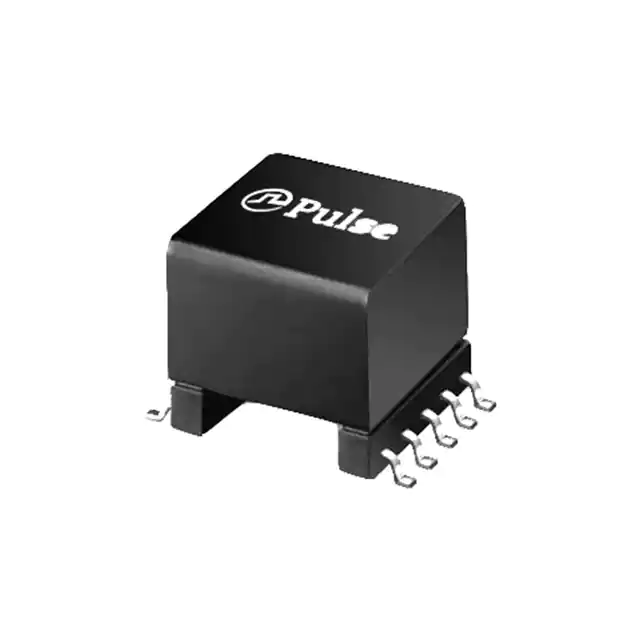

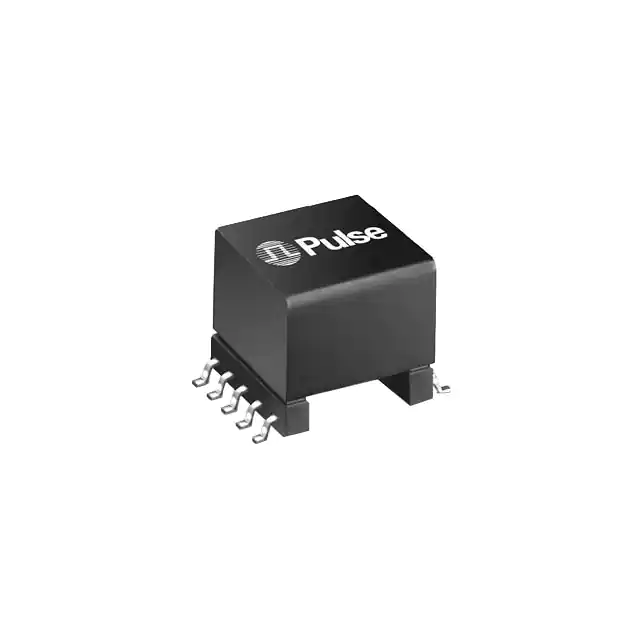

PA3855.006NLT TRANSFORMER FLYBACK 21UH SMD Pulse Electronics Power	2,486	4.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13Plus	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
PA3855.005NLT TRANSFORMER FLYBACK 21UH SMD Pulse Electronics Power	3,710	4.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13Plus	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
PA3855.003NLT TRANSFORMER FLYBACK 41UH SMD Pulse Electronics Power	3,093	4.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13Plus	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)

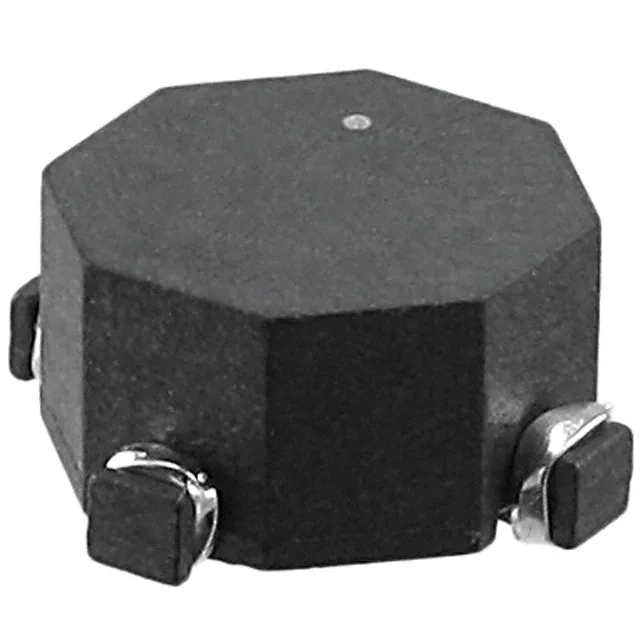

PA0367ANLT TRANSFORMER 18UH 1:12 SMD Pulse Electronics Power	2,335	4.42	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	LT3420	Linear Technology	-	-	500Vrms	-	-	-40°C ~ 130°C	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.215 (5.45mm)	0.460 L x 0.460 W (11.68mm x 11.68mm)

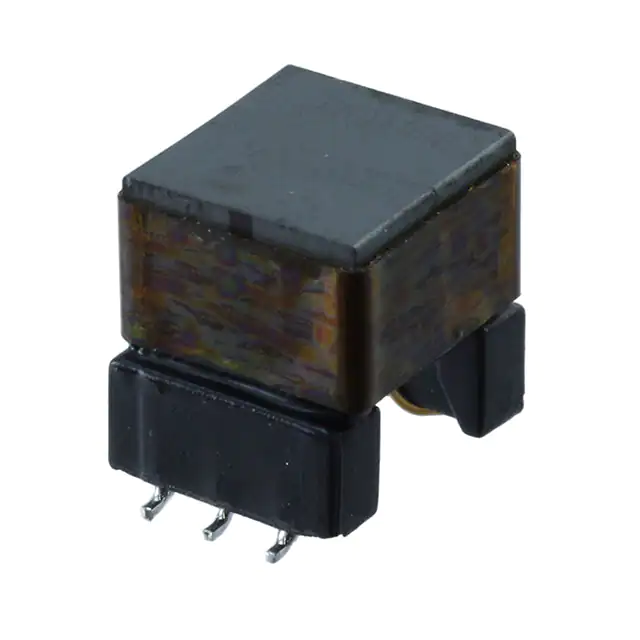

PH0416NLT XFRMER FLYBACK DC/DC CONV SMD Pulse Electronics Power	3,079	4.71	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, ACPL-302J	-	8 ~ 18V	-	5000Vrms	-	75kHz	-40°C ~ 125°C	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.502 (12.75mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)

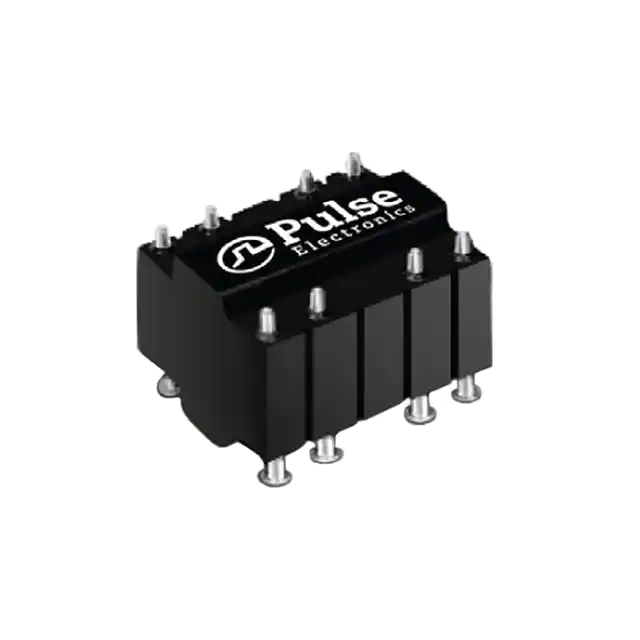

PE-68421NL XFRMR FLYBCK FOR 100KHZ SWITCHER Pulse Electronics Power	3,770	16.47	RFQ	Datasheet	Tray	-	Active	For DC/DC Converters	Flyback Converters	LM2585, LM2586, LM2587, LM2588	National Semiconductor	18 ~ 36V	-	1500Vrms	-	-	-40°C ~ 130°C	Surface Mount	0.970 L x 1.070 W (24.64mm x 27.18mm)	0.680 (17.27mm)	0.970 L x 1.070 W (24.64mm x 27.18mm)
PA5099.006NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	3,262	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
P1597NLT XFRMR FOR LINEAR TECH CHIPSET Pulse Electronics Power	2,042	3.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Isolation	LTC1535	Linear Technology	-	-	2000Vrms	-	-	-40°C ~ 125°C	Surface Mount	0.453 L x 0.339 W (11.50mm x 8.60mm)	0.354 (9.00mm)	0.453 L x 0.512 W (11.50mm x 13.00mm)

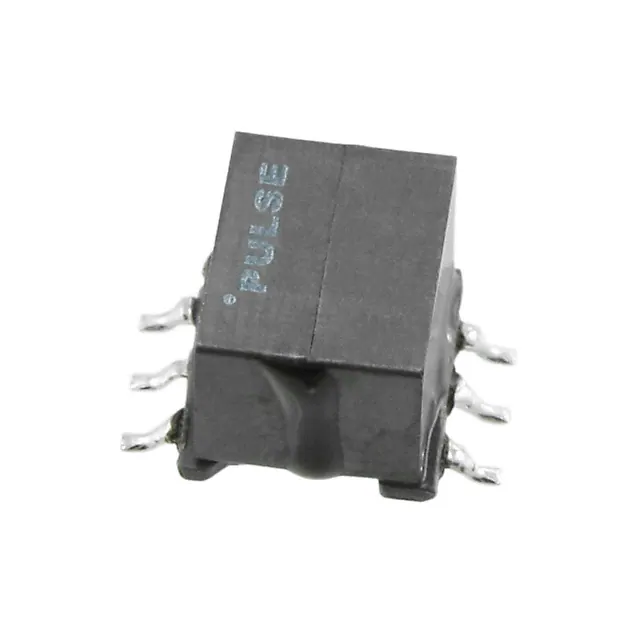

P1597NL XFRMR FOR LINEAR TECH CHIPSET Pulse Electronics Power	2,905	3.31	RFQ	Datasheet	Tray	-	Active	For DC/DC Converters	Isolation	LTC1535	Linear Technology	-	-	2000Vrms	-	-	-40°C ~ 125°C	Surface Mount	0.453 L x 0.339 W (11.50mm x 8.60mm)	0.354 (9.00mm)	0.453 L x 0.512 W (11.50mm x 13.00mm)

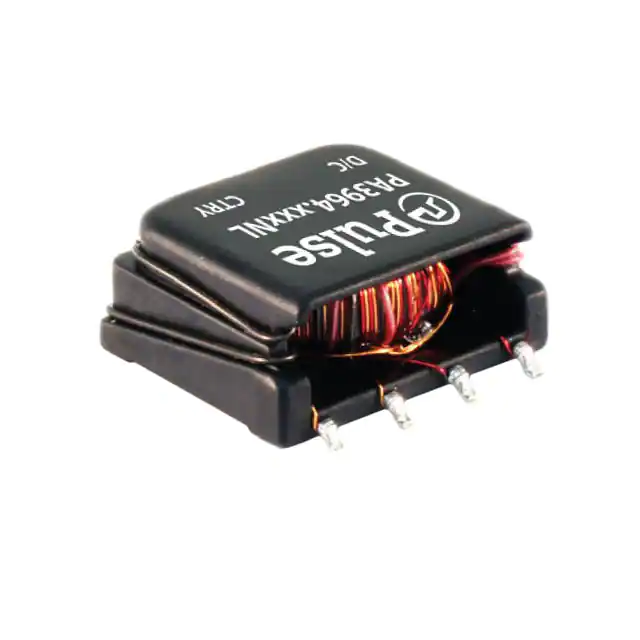

PA3964.002NL XFRMR PUSH PULL 7W Pulse Electronics Power	494	3.40	RFQ	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	0.614 L x 0.591 W (15.60mm x 15.00mm)	0.291 (7.40mm)	0.614 L x 0.650 W (15.60mm x 16.50mm)

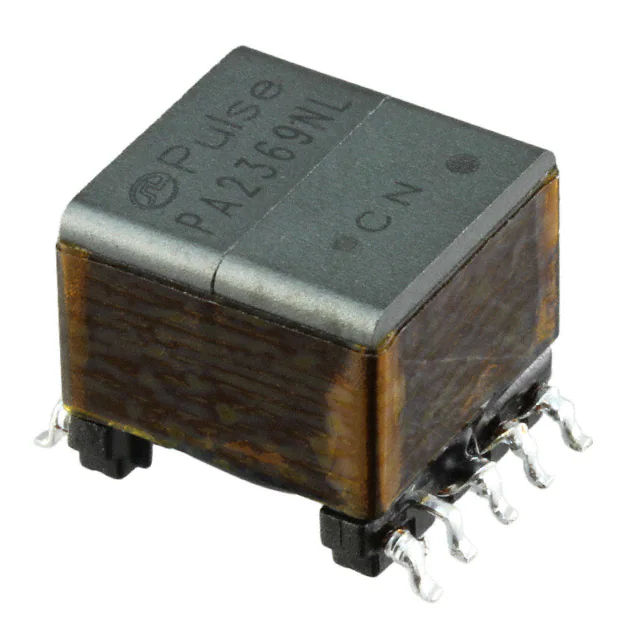

PA2369NL TRANSFORMER SWITCH MODE 5A Pulse Electronics Power	484	4.72	RFQ	Datasheet	Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)	0.551 L x 0.695 W (14.00mm x 17.65mm)

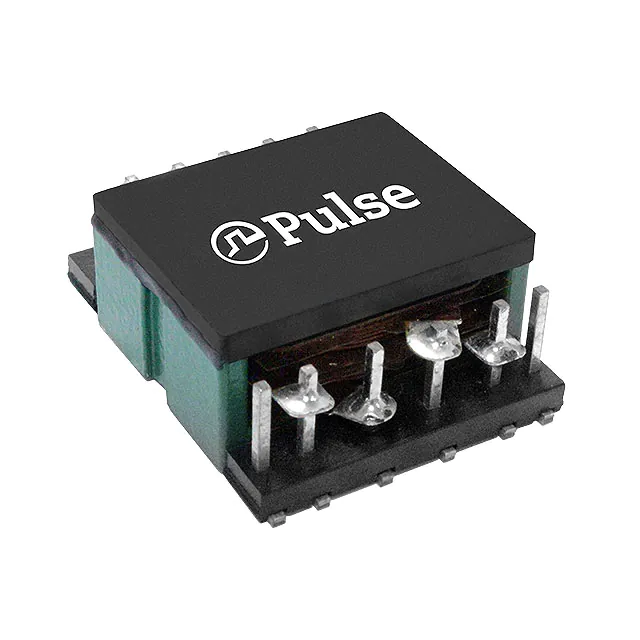

PH0801CNL XFMR DC/DC CONV SMD Pulse Electronics Power	2,568	10.78	RFQ	Datasheet	Tray	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.65mm)	0.368 (9.35mm)	0.850 L x 0.970 W (21.59mm x 24.65mm)

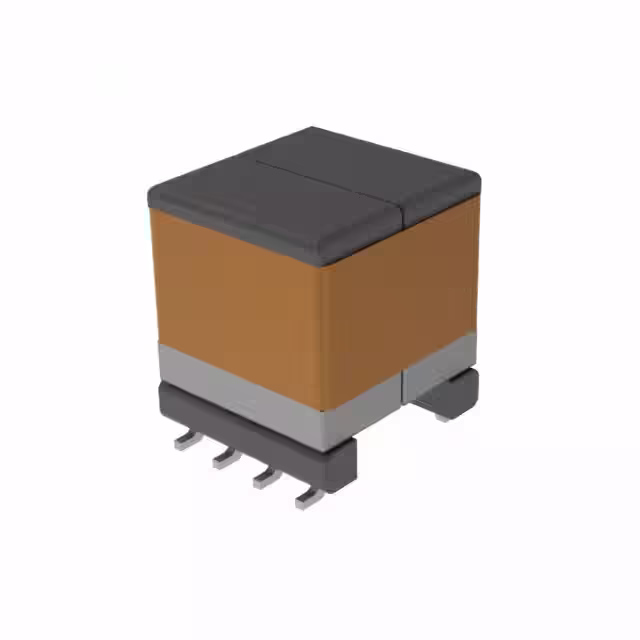

PH9496NLT XFMR ISOLATION EP9 1:2.52 SMT Pulse Electronics Power	972	4.71	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, ACPL-302J	-	8 ~ 18V	-	2500Vrms	-	80kHz	-40°C ~ 125°C	Surface Mount	0.413 L x 0.406 W (10.50mm x 10.30mm)	0.492 (12.50mm)	-
PA3856.005NL XFMR,FORWARD,EEP13,SMT NPB Pulse Electronics Power	2,590	4.42	RFQ	Datasheet	Tray	-	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.695 W (14.50mm x 17.65mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)

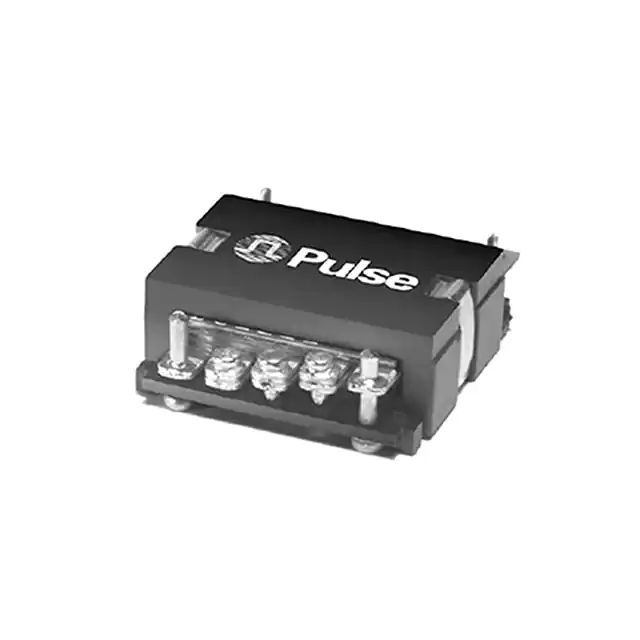

PA0806NL XFMR DC/DC CONV SMD Pulse Electronics Power	688	11.42	RFQ	Datasheet	Tray	PA08XXNL	Active	For DC/DC Converters	-	-	-	18 ~ 76V	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.920 W (21.60mm x 23.37mm)	0.348 (8.85mm)	0.850 L x 0.920 W (21.60mm x 23.37mm)
PA5099.004NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	952	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
PA5099.002NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	787	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
PA5099.001NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	765	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
PA5099.005NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	539	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)

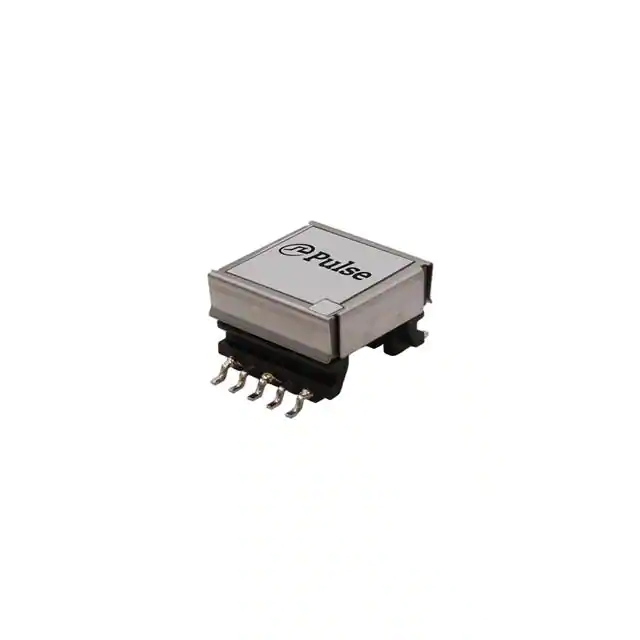

PGT6466NLT TRANSF FLYBACK 6-28V IN TO 5V/15 Pulse Electronics Power	150	3.75	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	6 ~ 28V	-	3000VDC	1.8µH @ 100kHz	500kHz	-40°C ~ 130°C	Surface Mount	0.650 L x 0.642 W (16.50mm x 16.30mm)	0.433 (11.00mm)	0.862 L x 0.650 W (21.90mm x 16.50mm)
