Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

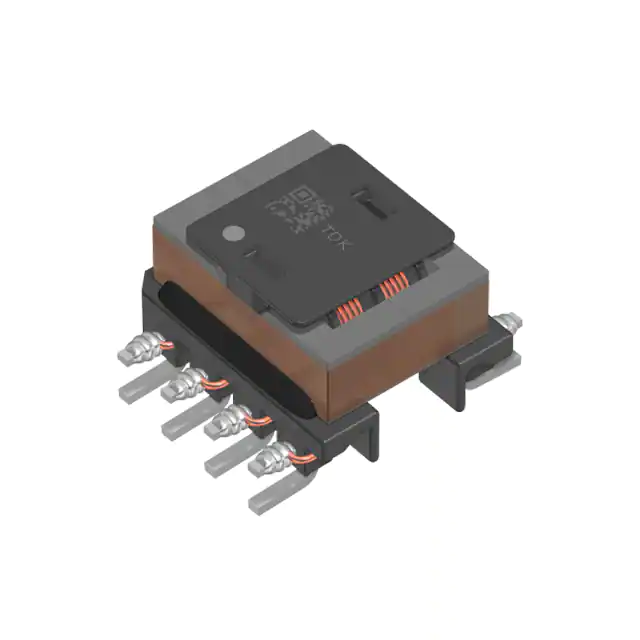

VGT12EEM-200S1A4 TRANSFORMERS FOR IGBT/FET TDK Corporation	658	9.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VGT	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	10µH @ 100kHz	-	-40°C ~ 130°C	Surface Mount	0.535 L x 0.425 W (13.60mm x 10.80mm)	0.394 (10.00mm)	0.583 L x 0.535 W (14.80mm x 13.60mm)

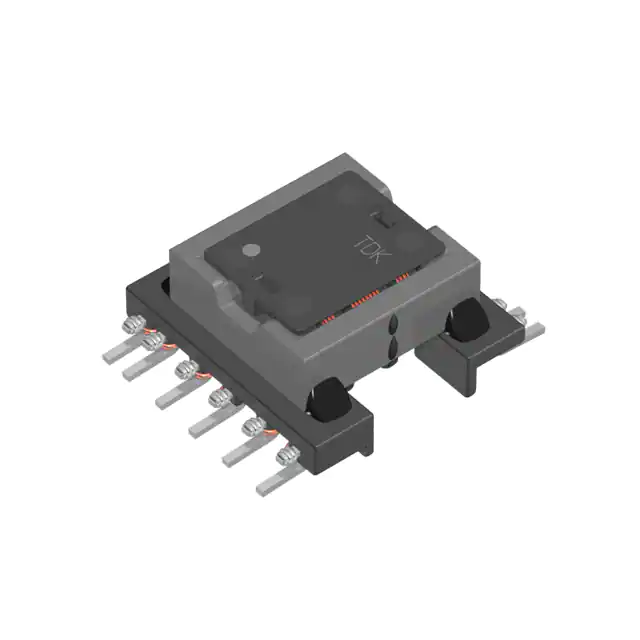

VGT15EFD-200S3A6 TRANSFORMERS FOR IGBT/FET TDK Corporation	544	11.75	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VGT	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	8µH @ 100kHz	-	-40°C ~ 130°C	Surface Mount	0.787 L x 0.709 W (20.00mm x 18.00mm)	0.402 (10.20mm)	0.945 L x 0.787 W (24.00mm x 20.00mm)

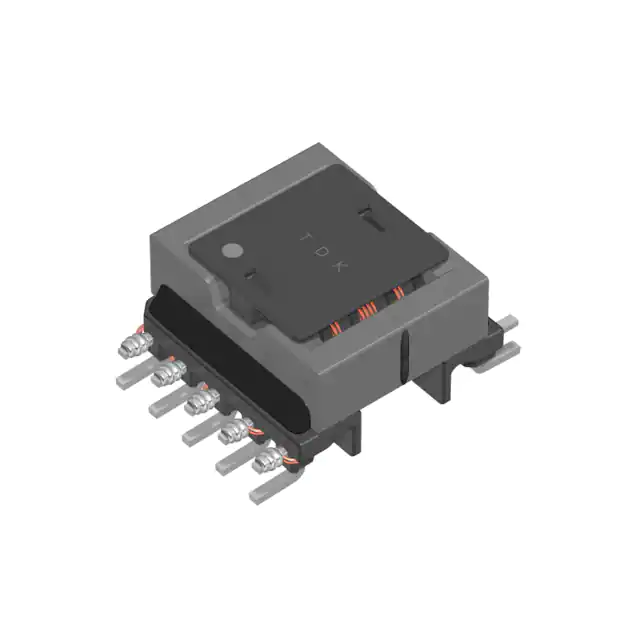

VGT15SEFD-200S1A4 TRANSFORMERS FOR IGBT/FET TDK Corporation	109	11.64	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VGT	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	10µH @ 100kHz	-	-40°C ~ 130°C	Surface Mount	0.614 L x 0.606 W (15.60mm x 15.40mm)	0.394 (10.00mm)	0.764 L x 0.614 W (19.40mm x 15.60mm)

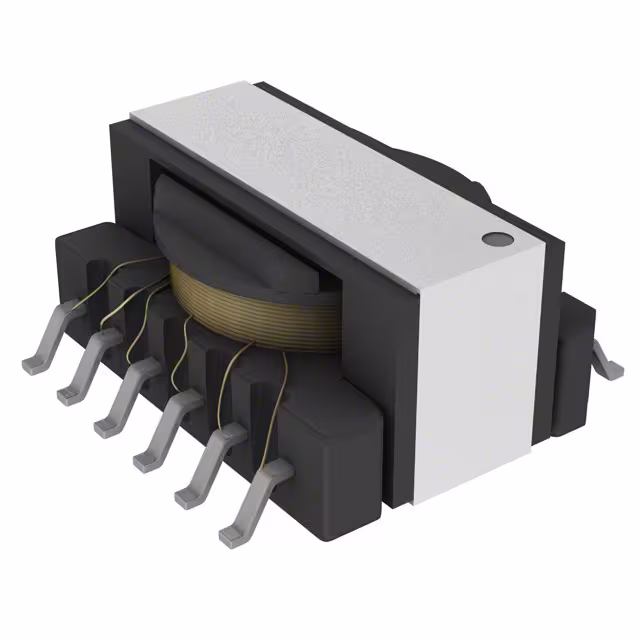

PCA14.5/6ER-U03S002 INDUCTOR/XFRMR 21.6UH MULTIWIND TDK Corporation	111	5.64	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCA14.5/6ER	Obsolete	-	-	-	-	-	-	-	Parallel 21.6µH @ 10kHz, Series 778µH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.642 L x 0.472 W (16.30mm x 12.00mm)	0.307 (7.80mm)	0.642 L x 0.661 W (16.30mm x 16.80mm)

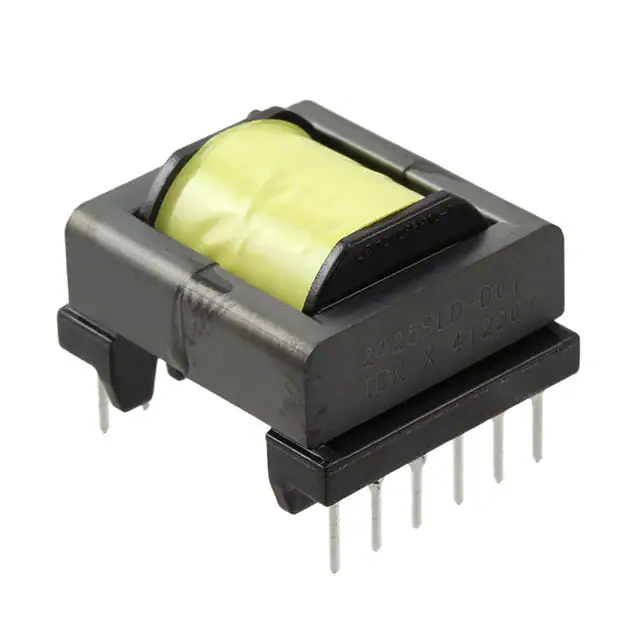

ECO2425SLD-D01H017 INDUCTOR/XFRMR TDK Corporation	3,477	7.02	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	100 ~ 370V	12.7V @ 2.33A	3000Vrms	722µH @ 10kHz	-	-30°C ~ 120°C	Through Hole	1.024 L x 1.181 W (26.00mm x 30.00mm)	0.787 (20.00mm)	1.024 L x 1.181 W (26.00mm x 30.00mm)
ECO2023SEO-D02V015 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	3,249	7.02	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	-	1.181 (30.00mm)	-
ECO2230SEO-D04V016 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	2,843	7.02	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	-	1.417 (36.00mm)	-
ECO2020SEO-D14V014 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	2,336	7.02	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	-	1.063 (27.00mm)	-
ECO2425SEO-D06V014 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	2,835	10.63	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	1.181 L x 1.024 W (30.00mm x 26.00mm)	0.787 (20.00mm)	-
ECO2425SEO-D05V014 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	2,670	10.63	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	1.181 L x 1.024 W (30.00mm x 26.00mm)	0.787 (20.00mm)	-

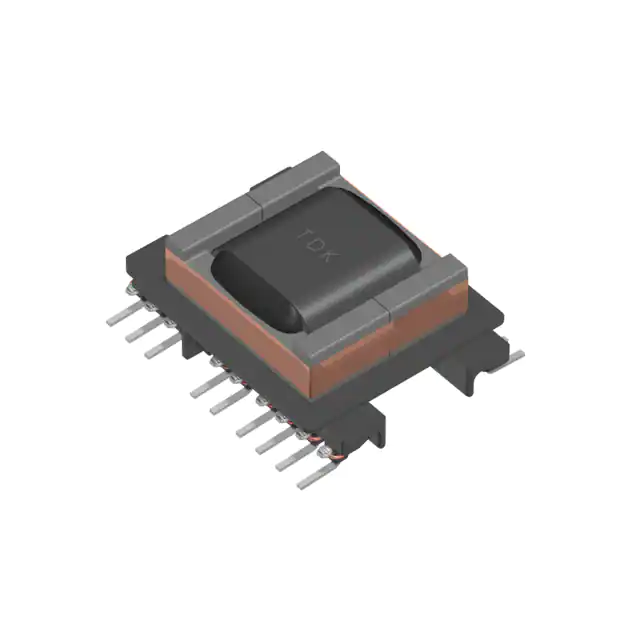

VGT22EPC-200S6A12 TRANSFORMERS FOR IGBT/FET TDK Corporation	3,353	14.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VGT	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	2.5µH @ 100kHz	-	-40°C ~ 130°C	Surface Mount	1.299 L x 0.976 W (33.00mm x 24.80mm)	0.539 (13.70mm)	1.299 L x 1.055 W (33.00mm x 26.80mm)
DECO2230SEO-00004 AC/DC CONVERTER TDK Corporation	3,200	40.00	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DECO2425SEO-00003 AC/DC CONVERTER TDK Corporation	3,783	40.00	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-

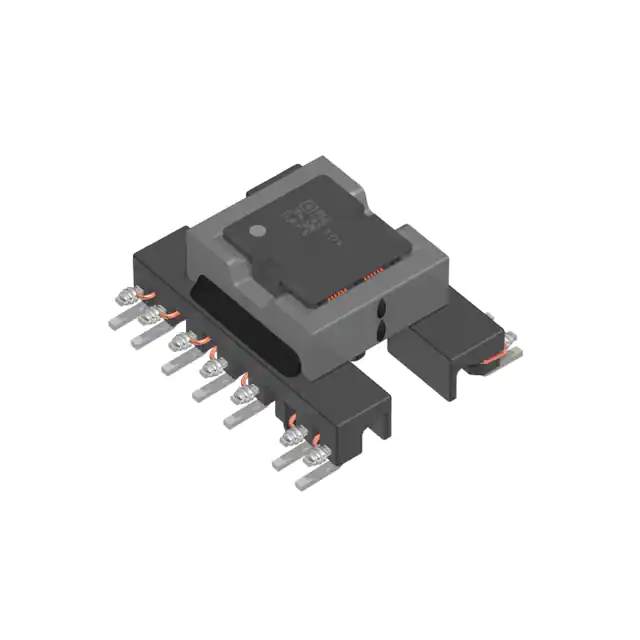

VGT15SEFD-250S4A7 TRANSFORMERS FOR IGBT/FET TDK Corporation	900	12.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VGT	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	2.6µH @ 100kHz	-	-40°C ~ 130°C	Surface Mount	0.906 L x 0.606 W (23.00mm x 15.40mm)	0.472 (12.00mm)	0.906 L x 0.606 W (23.00mm x 15.40mm)

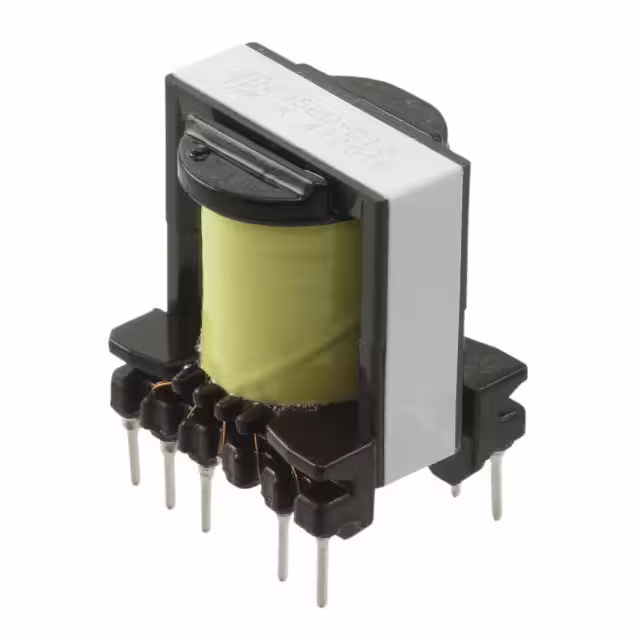

ECO2020SEO-D10V017 INDUCTOR/XFRMR TDK Corporation	2,294	7.02	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	96 ~ 276V	15V @ 150mA, 18V @ 150mA	3000Vrms	770µH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.886 L x 0.768 W (22.50mm x 19.50mm)	1.063 (27.00mm)	0.886 L x 0.768 W (22.50mm x 19.50mm)

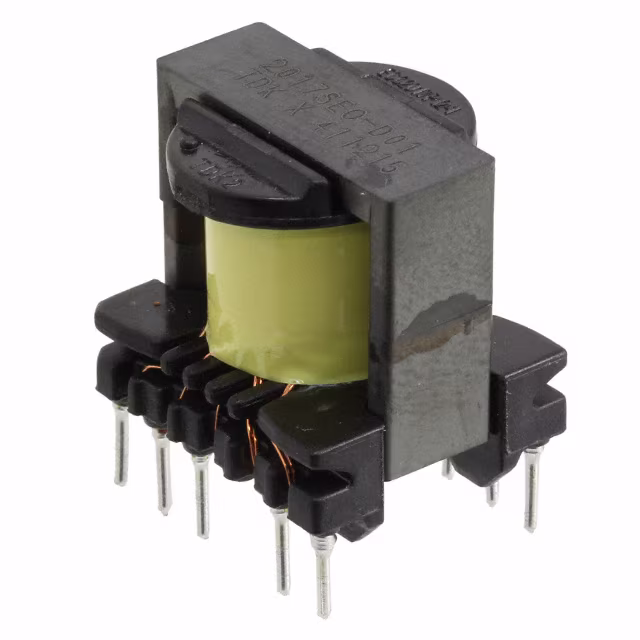

ECO2017SEO-D01V017 INDUCTOR/XFRMR TDK Corporation	2,912	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	75 ~ 326V	5.7V @ 200mA, 12V @ 90mA, 12.8V @ 600mA, 15.2V @ 50mA	1500Vrms	1.49mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)

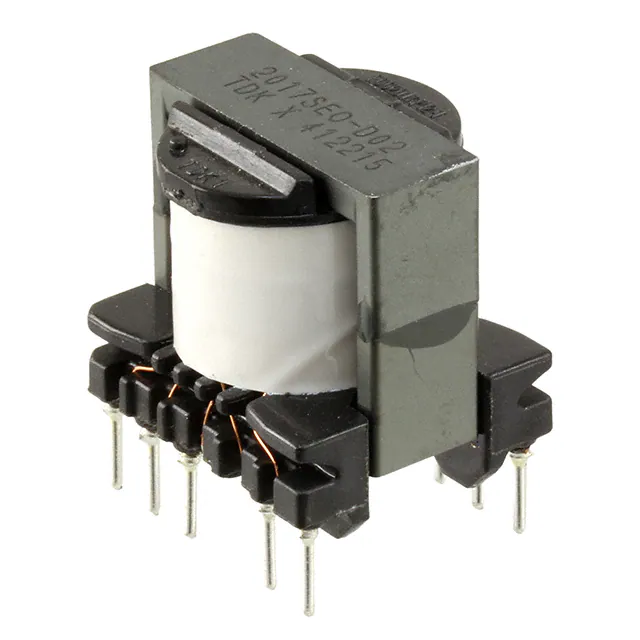

ECO2017SEO-D02V016 INDUCTOR/XFRMR TDK Corporation	2,734	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	80 ~ 144V	12V @ 620mA	3000Vrms	712µH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)

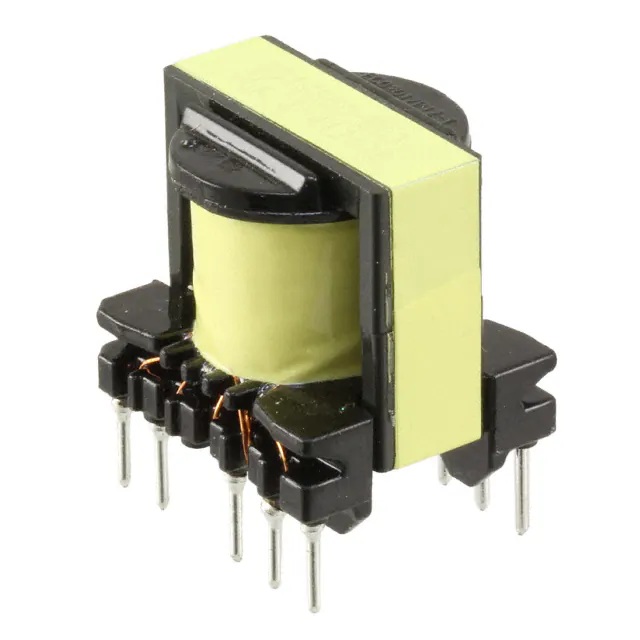

ECO2017SEO-D03V014 INDUCTOR/XFRMR TDK Corporation	2,933	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 264V	12V @ 1A	3000Vrms	555µH @ 100kHz	-	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)

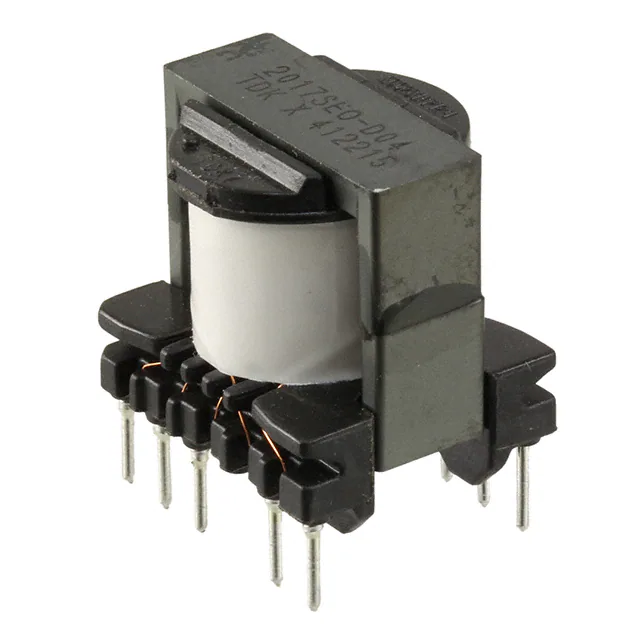

ECO2017SEO-D04V015 INDUCTOR/XFRMR TDK Corporation	2,462	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	160 ~ 288V	12V @ 300mA	3000Vrms	3.18mH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)

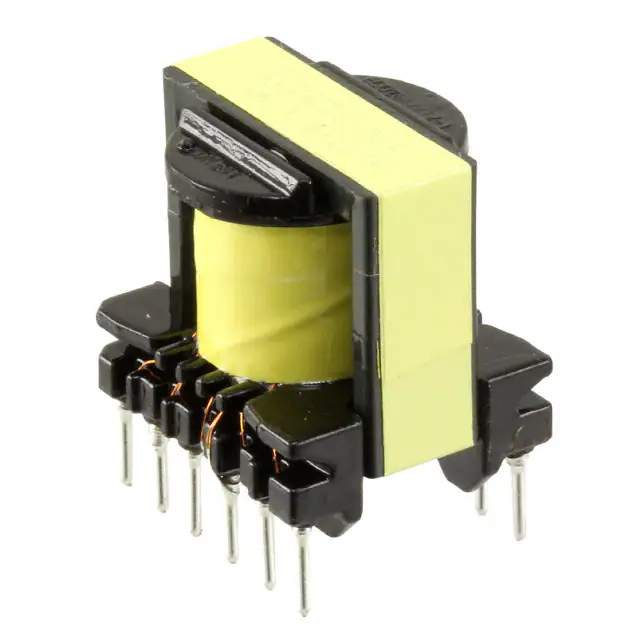

ECO2017SEO-D05V016 INDUCTOR/XFRMR TDK Corporation	3,512	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	169 ~ 312V	5V @ 250mA, 15V @ 200mA	3000Vrms	1.8mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)
