Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Technology	Type	DutyCycle	Voltage-Rated	StrokeLength	Power(Watts)	DCResistance(DCR)	BushingThread	MountingType	TerminationStyle	Size/Dimension	Diameter-Shaft
195202-234 TUBULAR SOLENOID STA PULL 1/2 X Ledex Dormeyer Saia, a Division of Johnson Electric	616	21.72	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Pull), Tubular	-	-	-	-	37.4Ohm	3/8-32 UNEF	Panel Mount	Wire Leads	0.500 Dia x 1.000 L (12.70mm x 25.40mm)	0.185 (4.70mm)
B14HDP-257-B-4 OPEN FRAME SOLENOID B14HDP - 12 Ledex Dormeyer Saia, a Division of Johnson Electric	275	57.57	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Push)	Intermittent	12VDC	0.500 (12.70mm)	20.6 W	7Ohm	-	Chassis Mount	Wire Leads	1.460 L x 0.790 W x 1.020 H (37.08mm x 20.07mm x 25.91mm)	0.390 (9.91mm)

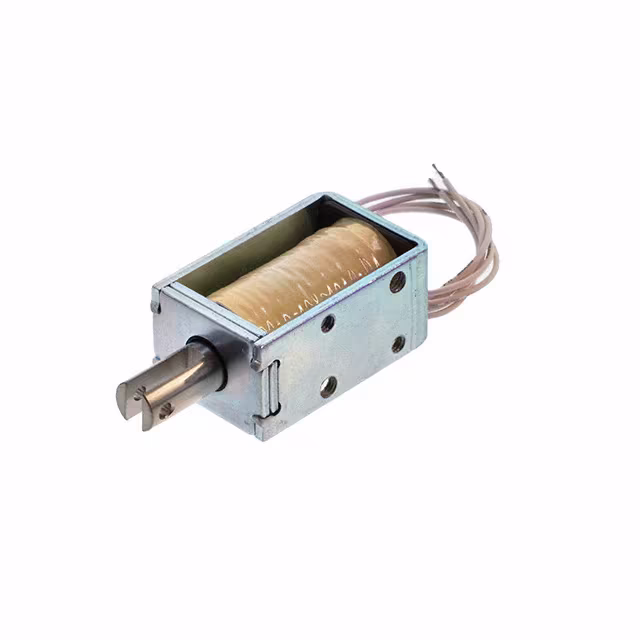

B11HD-254-B-3 OPEN FRAME SOLENOID B11HD - 24 V Ledex Dormeyer Saia, a Division of Johnson Electric	478	20.91	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Pull)	-	-	-	-	16.7Ohm	-	Chassis Mount	Wire Leads	2.000 L x 0.940 W x 1.250 H (50.80mm x 23.88mm x 31.75mm)	0.437 (11.10mm)

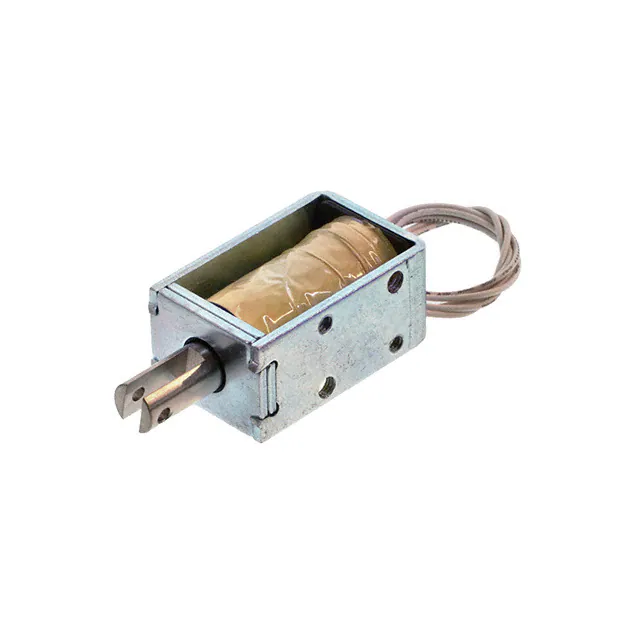

B11HD-255-B-3 OPEN FRAME SOLENOID B11HD - 12 V Ledex Dormeyer Saia, a Division of Johnson Electric	250	20.91	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Pull)	Intermittent	12VDC	0.625 (15.88mm)	34.3 W	4.2Ohm	-	Chassis Mount	Wire Leads	2.000 L x 0.940 W x 1.250 H (50.80mm x 23.88mm x 31.75mm)	0.437 (11.10mm)

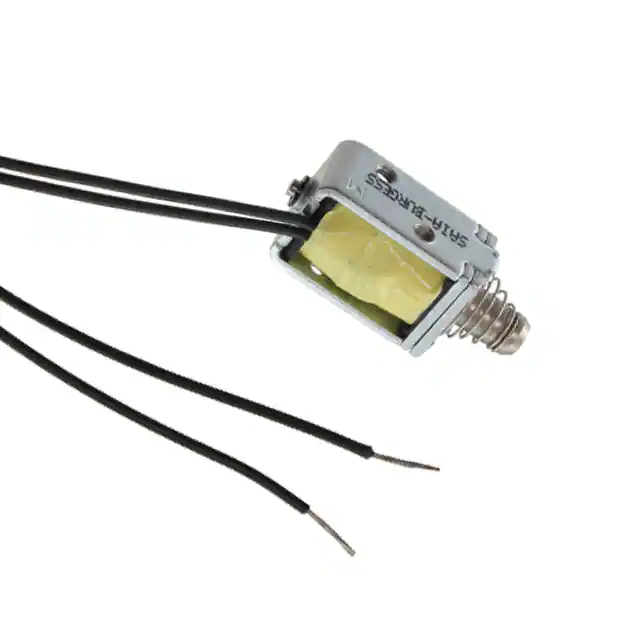

B12P-255-B-3 OPEN FRAME SOLENOID B12P - 12 VD Ledex Dormeyer Saia, a Division of Johnson Electric	444	23.23	RFQ	Datasheet	Tray	-	Active	Electromechanical	Open Frame (Push)	Intermittent	12VDC	0.100 (2.54mm)	5.2 W	27.7Ohm	-	Chassis Mount	Wire Leads	0.630 L x 0.320 W x 0.400 H (16.00mm x 8.13mm x 10.16mm)	0.157 (4.00mm)

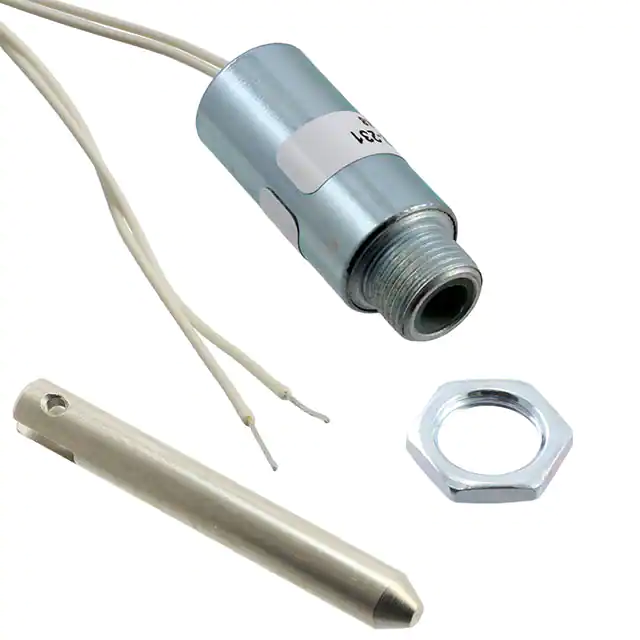

195203-231 TUBULAR SOLENOID STA PUSH 1/2 X Ledex Dormeyer Saia, a Division of Johnson Electric	447	24.95	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Push), Tubular	Intermittent	12VDC	0.400 (10.16mm)	15.1 W	9.6Ohm	3/8-32 UNEF	Panel Mount	Wire Leads	0.500 Dia x 1.000 L (12.70mm x 25.40mm)	0.062 (1.58mm)

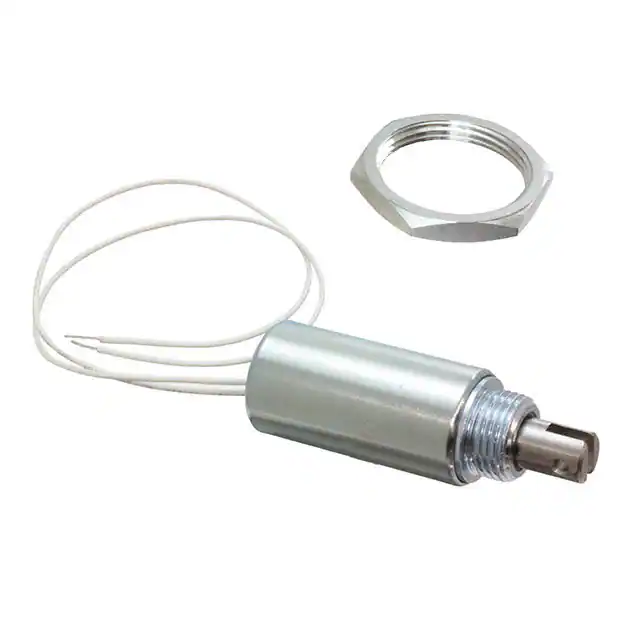

195206-228 TUBULAR SOLENOID STA PULL 1 X 2 Ledex Dormeyer Saia, a Division of Johnson Electric	755	26.76	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Pull), Tubular	-	-	-	-	19.2Ohm	3/4-16 UNF	Panel Mount	Wire Leads	1.000 Dia x 2.000 L (25.40mm x 50.80mm)	0.438 (11.13mm)

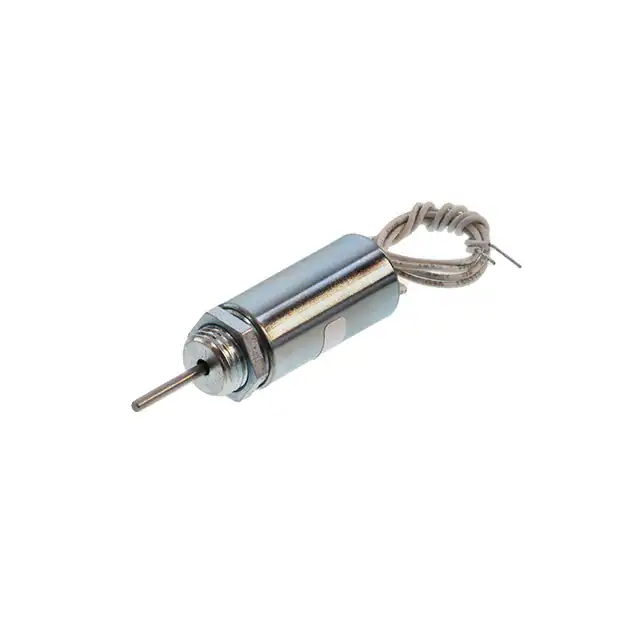

195205-230 TUBULAR SOLENOID STA PUSH 3/4 X Ledex Dormeyer Saia, a Division of Johnson Electric	218	29.09	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Push), Tubular	-	-	-	-	20.7Ohm	5/16-18 UNF	Panel Mount	Wire Leads	0.750 Dia x 1.500 L (19.05mm x 38.10mm)	0.094 (2.39mm)
195205-233 TUBULAR SOLENOID STA PUSH 3/4 X Ledex Dormeyer Saia, a Division of Johnson Electric	106	29.09	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Push), Tubular	Continuous	24VDC	0.500 (12.70mm)	7 W	83.5Ohm	5/16-18 UNF	Panel Mount	Wire Leads	0.750 Dia x 1.500 L (19.05mm x 38.10mm)	0.094 (2.39mm)
195207-228 TUBULAR SOLENOID STA PUSH 1 X 2 Ledex Dormeyer Saia, a Division of Johnson Electric	293	30.20	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Push), Tubular	-	-	-	-	19.2Ohm	3/4-16 UNF	Panel Mount	Wire Leads	1.000 Dia x 2.000 L (25.40mm x 50.80mm)	0.125 (3.18mm)

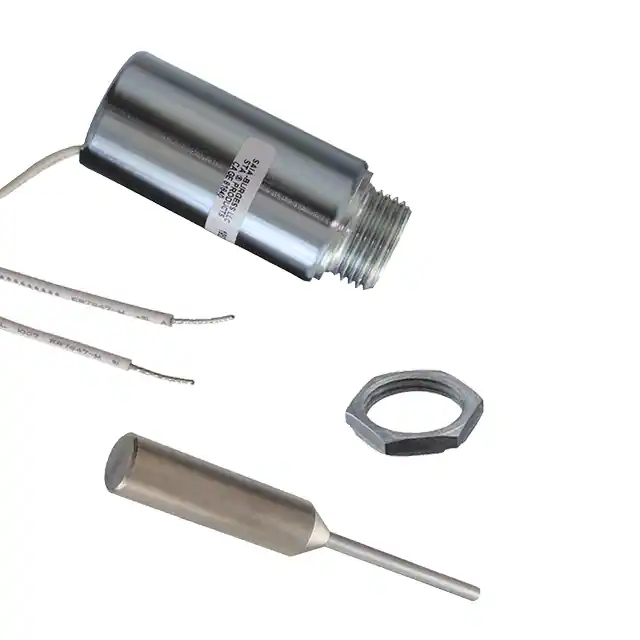

195207-225 TUBULAR SOLENOID STA PUSH 1 X 2 Ledex Dormeyer Saia, a Division of Johnson Electric	229	30.20	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Push), Tubular	Intermittent	12VDC	0.700 (17.78mm)	29.4 W	4.9Ohm	3/4-16 UNF	Panel Mount	Wire Leads	1.000 Dia x 2.000 L (25.40mm x 50.80mm)	0.125 (3.18mm)

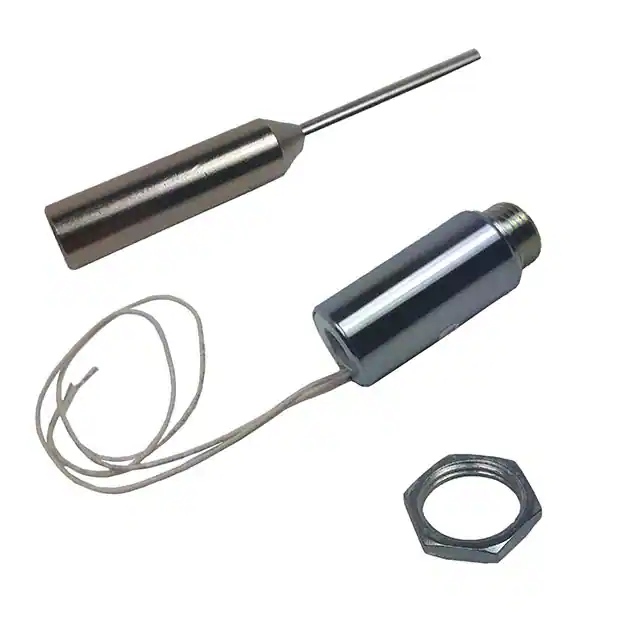

195207-231 TUBULAR SOLENOID STA PUSH 1 X 2 Ledex Dormeyer Saia, a Division of Johnson Electric	202	30.20	RFQ	Datasheet	Bulk	STA	Active	Electromechanical	Closed Frame (Push), Tubular	Continuous	24VDC	1.000 (25.40mm)	7.4 W	77.4Ohm	3/4-16 UNF	Panel Mount	Wire Leads	1.000 Dia x 2.000 L (25.40mm x 50.80mm)	0.125 (3.18mm)

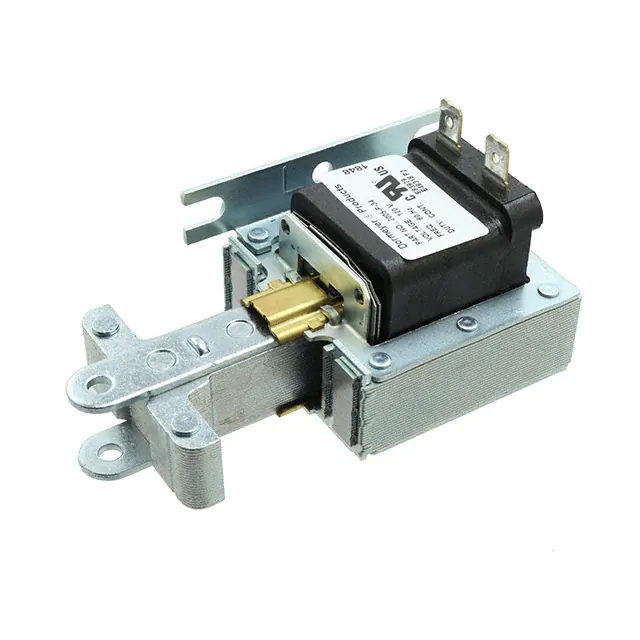

2005-F-34 LAMINATED SOLENOID 2000 - 120 VA Ledex Dormeyer Saia, a Division of Johnson Electric	206	42.42	RFQ	Datasheet	Bulk	2000	Active	Electromechanical	Open Frame (Pull)	Continuous	120VAC	1.000 (25.40mm)	17.9 W	20.5Ohm	-	Chassis Mount	Quick Connect - 0.250 (6.3mm)	2.500 L x 1.812 W x 2.060 H (63.50mm x 46.03mm x 52.32mm)	-

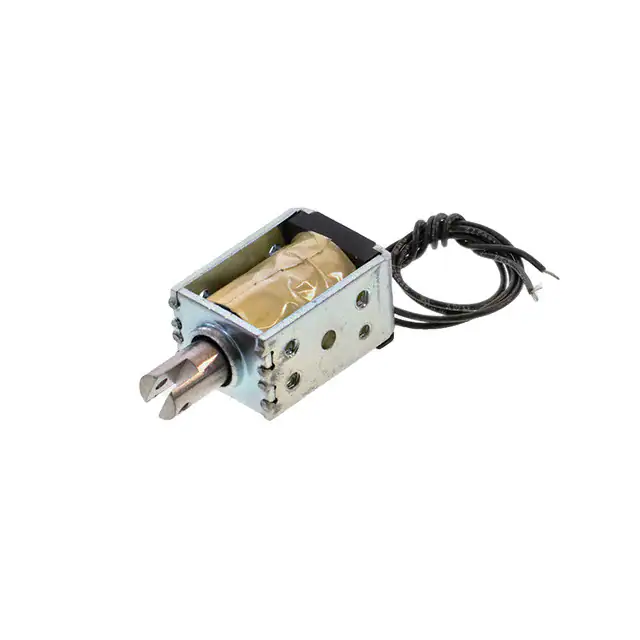

B14HD-257-B-4 OPEN FRAME SOLENOID B14HD - 12 V Ledex Dormeyer Saia, a Division of Johnson Electric	750	55.65	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Pull)	Intermittent	12VDC	0.500 (12.70mm)	20.6 W	7Ohm	-	Chassis Mount	Wire Leads	1.460 L x 0.790 W x 1.020 H (37.08mm x 20.07mm x 25.91mm)	0.390 (9.91mm)

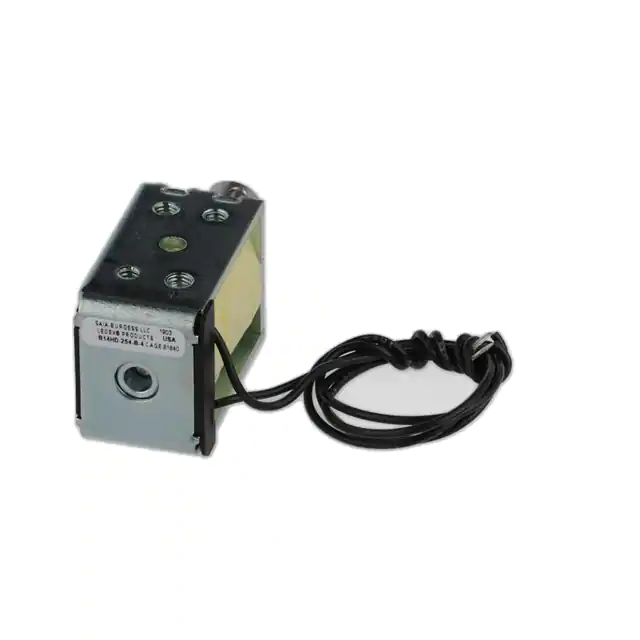

B14HD-254-B-4 OPEN FRAME SOLENOID B14HD - 12 V Ledex Dormeyer Saia, a Division of Johnson Electric	603	55.65	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Pull)	-	-	-	-	27.5Ohm	-	Chassis Mount	Wire Leads	1.460 L x 0.790 W x 1.020 H (37.08mm x 20.07mm x 25.91mm)	0.390 (9.91mm)
B14HD-253-B-4 OPEN FRAME SOLENOID B14HD - 24 V Ledex Dormeyer Saia, a Division of Johnson Electric	577	55.65	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Pull)	Continuous	24VDC	0.500 (12.70mm)	5.5 W	110.2Ohm	-	Chassis Mount	Wire Leads	1.460 L x 0.790 W x 1.020 H (37.08mm x 20.07mm x 25.91mm)	0.390 (9.91mm)

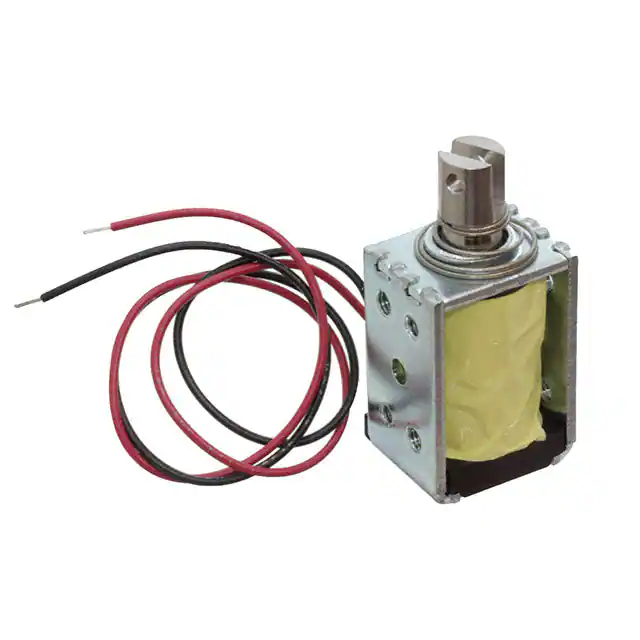

B14HD-L-254-B-4 OPEN FRAME LATCH SOLENOID 24V Ledex Dormeyer Saia, a Division of Johnson Electric	420	57.09	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame Latching (Pull)	Intermittent	24VDC	0.400 (10.16mm)	22 W	27.5Ohm	-	Chassis Mount	Wire Leads	1.460 L x 0.790 W x 1.024 H (37.08mm x 20.07mm x 26.01mm)	0.394 (10.00mm)

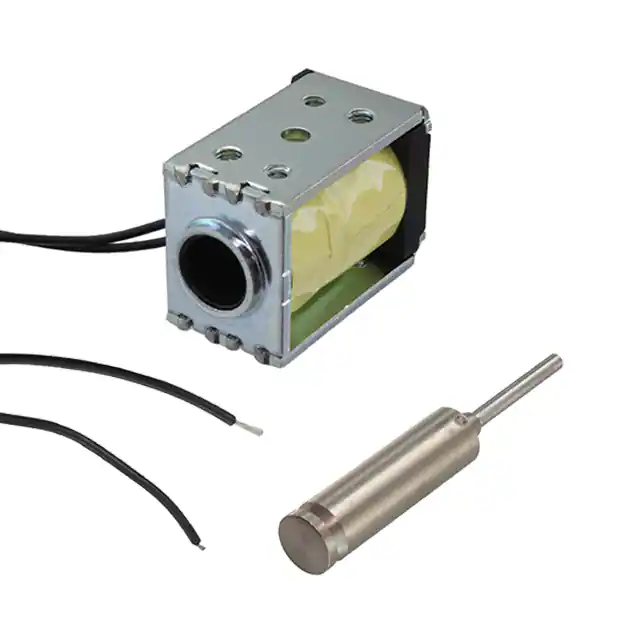

B14HDP-253-B-4 OPEN FRAME SOLENOID B14HDP - 24 Ledex Dormeyer Saia, a Division of Johnson Electric	337	57.57	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Push)	Continuous	24VDC	0.500 (12.70mm)	5.5 W	110.2Ohm	-	Chassis Mount	Wire Leads	1.460 L x 0.790 W x 1.020 H (37.08mm x 20.07mm x 25.91mm)	0.390 (9.91mm)

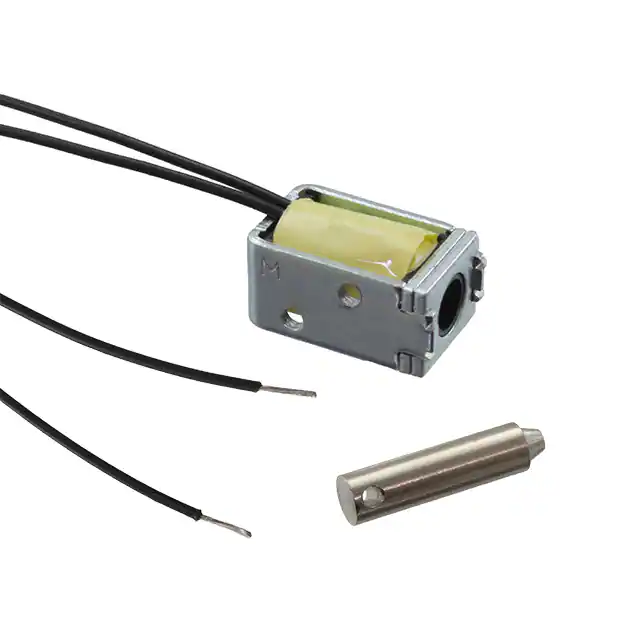

B12-255-B-3 OPEN FRAME SOLENOID B12 - 12 VDC Ledex Dormeyer Saia, a Division of Johnson Electric	373	20.91	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Pull)	Intermittent	12VDC	0.100 (2.54mm)	5.2 W	27.7Ohm	-	Chassis Mount	Wire Leads	0.630 L x 0.320 W x 0.400 H (16.00mm x 8.13mm x 10.16mm)	0.157 (4.00mm)

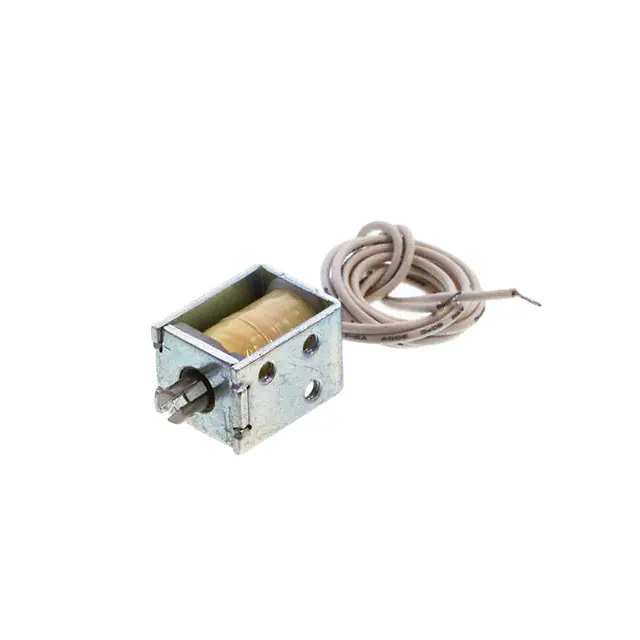

B17-254-A-1 OPEN FRAME SOLENOID B17 - 12 VDC Ledex Dormeyer Saia, a Division of Johnson Electric	866	21.21	RFQ	Datasheet	Bulk	-	Active	Electromechanical	Open Frame (Pull)	-	-	0.100 (2.54mm)	-	89Ohm	-	Chassis Mount	Wire Leads	0.790 L x 0.510 W x 0.590 H (20.07mm x 12.95mm x 14.99mm)	0.190 (4.83mm)
