Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
	ESMIT-4164 XFMR MODEM SMD Sumida America Components Inc.	123	2.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CBM	Active	Data/Voice Coupling	30µH	-	1:1.67	Surface Mount	0.179 L x 0.280 W (4.55mm x 7.10mm)	0.078 (1.98mm)

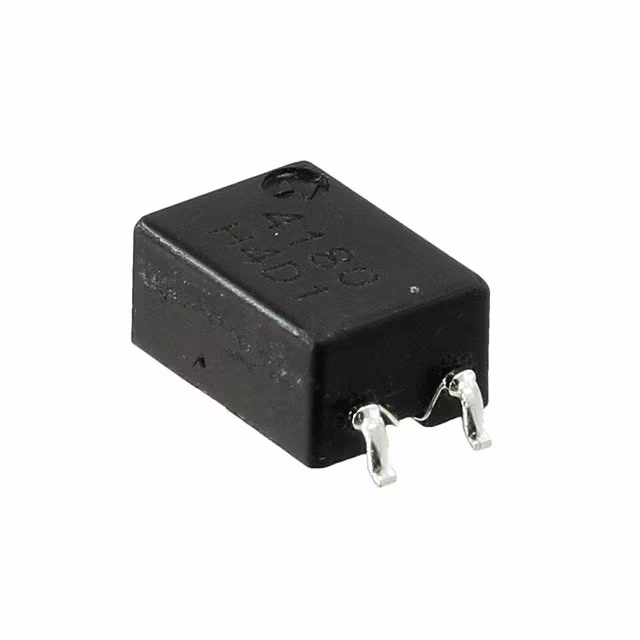

	ESMIT-4180/A XFMR MODEM SMD Sumida America Components Inc.	25,572	2.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CBM	Active	Data/Voice Coupling	120µH	-	1:1	Surface Mount	0.205 L x 0.280 W (5.20mm x 7.10mm)	0.138 (3.50mm)
	MIT4115V XFRMR 600:470 PCB Sumida America Components Inc.	3,300	0.00	RFQ		Bulk	MT	Active	-	-	-	-	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.490 (12.45mm)
	C10114 ADSL CPE XFRMR Sumida America Components Inc.	2,097	0.00	RFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-
	C10120 PULSE XFMR 2:1 1.5MH Sumida America Components Inc.	2,791	0.00	RFQ	Datasheet	Tape & Reel (TR)	CEP	Active	ADSL, HDSL, SHDSL, VDSL	1.5mH	-	2:1	Surface Mount	0.531 L x 0.697 W (13.50mm x 17.70mm)	0.484 (12.30mm)
	C10136 PULSE XFMR 2:1 100UH Sumida America Components Inc.	3,663	0.00	RFQ	Datasheet	Tape & Reel (TR)	CEP	Active	ADSL, HDSL, SHDSL, VDSL	100µH	-	2:1	Surface Mount	0.531 L x 0.697 W (13.50mm x 17.70mm)	0.484 (12.30mm)
	C15108 PULSE XFMR 3.4MH Sumida America Components Inc.	3,941	0.00	RFQ		Tape & Reel (TR)	CEEH	Obsolete	-	3.4mH	-	-	Surface Mount	0.472 L x 0.425 W (12.00mm x 10.80mm)	0.472 (12.00mm)
	J14202 PULSE XFMR 2.5:1 420UH Sumida America Components Inc.	2,718	0.00	RFQ	Datasheet	Tape & Reel (TR)	CEP	Active	VDSL	420µH	-	2.5:1	Surface Mount	0.315 L x 0.319 W (8.00mm x 8.10mm)	0.374 (9.50mm)
	J14207 PULSE XFMR 2.5:1 420UH Sumida America Components Inc.	3,767	0.00	RFQ	Datasheet	Tape & Reel (TR)	CEP	Active	VDSL	420µH	-	2.5:1	Surface Mount	0.315 L x 0.319 W (8.00mm x 8.10mm)	0.374 (9.50mm)
	J14208 PULSE XFMR 2.5:1 100UH Sumida America Components Inc.	2,682	0.00	RFQ	Datasheet	Tape & Reel (TR)	CEP	Active	VDSL	100µH	-	2.5:1	Surface Mount	0.315 L x 0.319 W (8.00mm x 8.10mm)	0.374 (9.50mm)
	J14214 PULSE XFMR 2:1 420UH Sumida America Components Inc.	2,108	0.00	RFQ	Datasheet	Tape & Reel (TR)	CEP	Active	VDSL	420µH	-	2:1	Surface Mount	0.315 L x 0.319 W (8.00mm x 8.10mm)	0.374 (9.50mm)
	J14215 PULSE XFMR 2:1 100UH Sumida America Components Inc.	2,495	0.00	RFQ	Datasheet	Tape & Reel (TR)	CEP	Active	VDSL	100µH	-	2:1	Surface Mount	0.315 L x 0.319 W (8.00mm x 8.10mm)	0.374 (9.50mm)
	J15201 ADSL XFMR SMD Sumida America Components Inc.	2,149	0.00	RFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-
