Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

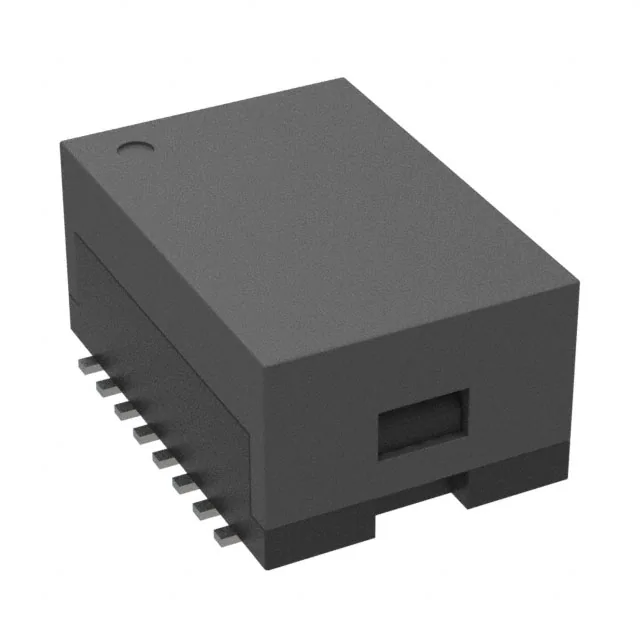

	2337822-1 DISCRETE ETHERNET MAGNETICS SING TE Connectivity AMP Connectors	866	4.61	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.376 W (12.70mm x 9.55mm)	0.244 (6.20mm)
	2337824-4 DISCRETE ETHERNET MAGNETICS DUAL TE Connectivity AMP Connectors	1,400	18.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	-

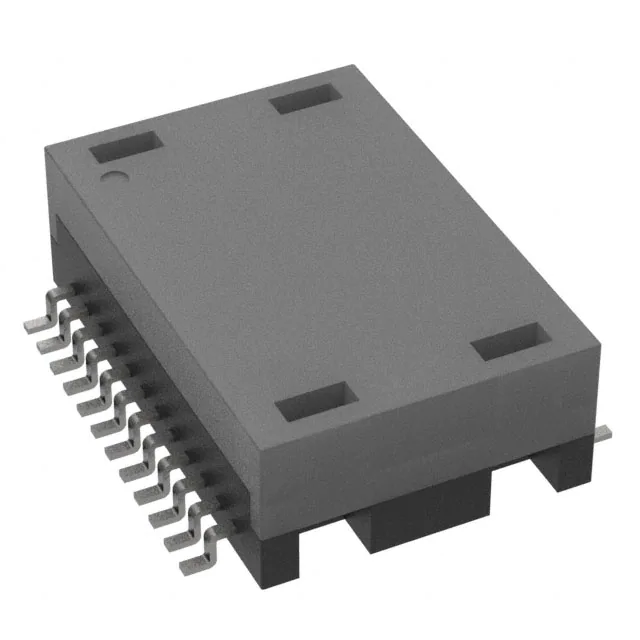

	2337822-2 DISCRETE ETHERNET MAGNETICS SING TE Connectivity AMP Connectors	181	6.26	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	-
	2337822-4 DISCRETE ETHERNET MAGNETICS SING TE Connectivity AMP Connectors	546	8.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	-
	2337822-5 DISCRETE ETHERNET MAGNETICS SING TE Connectivity AMP Connectors	442	11.23	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	-

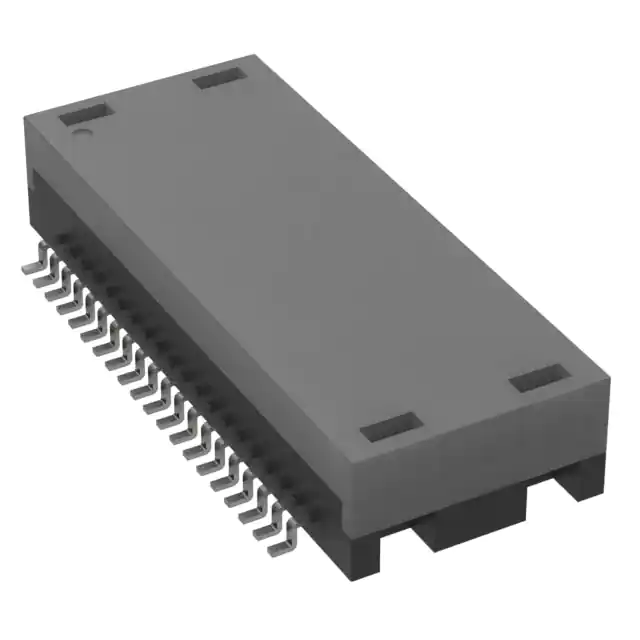

	2337826-1 DISCRETE ETHERNET MAGNETICS QUAD TE Connectivity AMP Connectors	370	13.20	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.220 L x 0.630 W (31.00mm x 16.00mm)	0.285 (7.24mm)

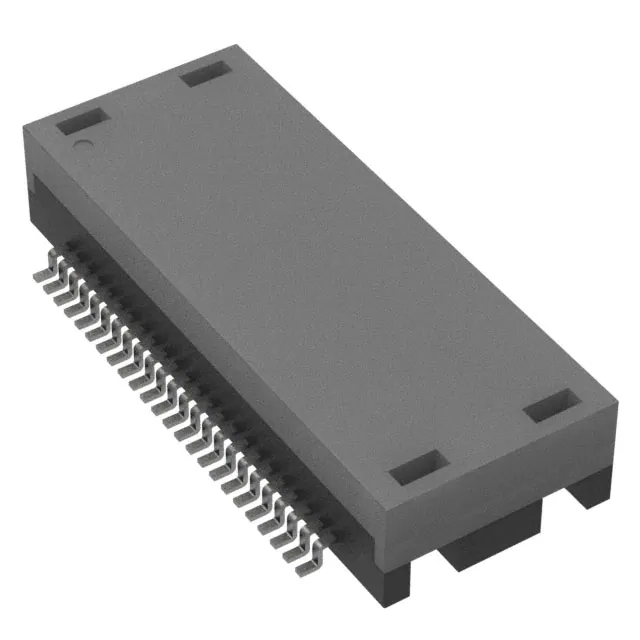

	2337824-2 DISCRETE ETHERNET MAGNETICS DUAL TE Connectivity AMP Connectors	3,261	10.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	-
	MGBBT-00258-P CEP7 SMD 8PIN 1SEC,ROHS MGBBT-00 TE Connectivity AMP Connectors	3,383	1.75	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-
	MGPWT-00407-P EP13 XFRMR SMD JL 10 PIN TE Connectivity AMP Connectors	2,458	1.88	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-
	MGBBT-00259-P XFRMR BABT EP13 SMD GW TE Connectivity AMP Connectors	3,761	2.25	RFQ		Bulk	*	Active	-	-	-	-	-	-	-
	MGBBT-00283-P XFMR RM5 TH, ROHS C3085T TE Connectivity AMP Connectors	3,743	2.68	RFQ		Bulk	*	Active	-	-	-	-	-	-	-
	MGBBT-00296-P XFMR EP13 SMD, ROHS MGBBT-00114 TE Connectivity AMP Connectors	2,697	3.33	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-
	MGBBT-00307-P XFMR CEP7 SMD LL, ROHS C2937L TE Connectivity AMP Connectors	3,319	4.87	RFQ		Bulk	*	Active	-	-	-	-	-	-	-
	MGBBT-00245-P MGBBT-00245, XFMR DEP5 SMD LL TE Connectivity AMP Connectors	3,913	5.36	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-
