Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
IL-10-0001 IL5 PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,688	3.48	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	2.5mH	250VµS	1:1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)

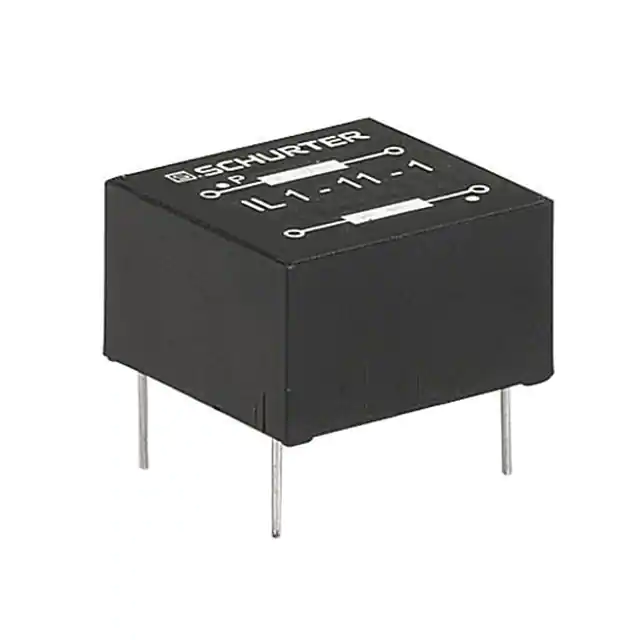

IL-11-0002 IL1 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	2,233	3.34	RFQ	Datasheet	Bulk	IL	Active	Isolation and Data Interface (Encapsulated)	2.5mH	-	1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
ITRA-0249-D104 ITRA PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	3,110	3.81	RFQ	Datasheet	Bulk	ITRA	Active	Isolation and Data Interface (Encapsulated)	3.5mH	-	1:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
ISNB-0249-D101 ISNA PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	2,690	3.87	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	1.6mH	250VµS	2:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
ITRF-0249-D101 ITRF PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	3,811	4.47	RFQ	Datasheet	Bulk	ITRF	Active	Isolation and Data Interface (Encapsulated)	1.2mH	-	1:1:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
ISRB-0249-D101 ISRB PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	3,115	4.47	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	1.4mH	250VµS	2:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
IL-10-0003 IL5 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	2,796	3.48	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	1.5mH	200VµS	1:1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
IL-21-0001 IL1 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	2,177	4.01	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	3mH	300VµS	1:1	Through Hole	1.102 L x 0.906 W (28.00mm x 23.00mm)	0.571 (14.50mm)
ITRB-0249-D101 ITRB PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,745	4.20	RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	1.4mH	250VµS	2:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
ISRA-0249-D104 ISRA PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	3,163	4.34	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	3.5mH	300VµS	1:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
ITNB-0249-D101 ITNB PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,838	3.59	RFQ	Datasheet	Bulk	ITNB	Active	Isolation and Data Interface (Encapsulated)	1.6mH	-	2:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)

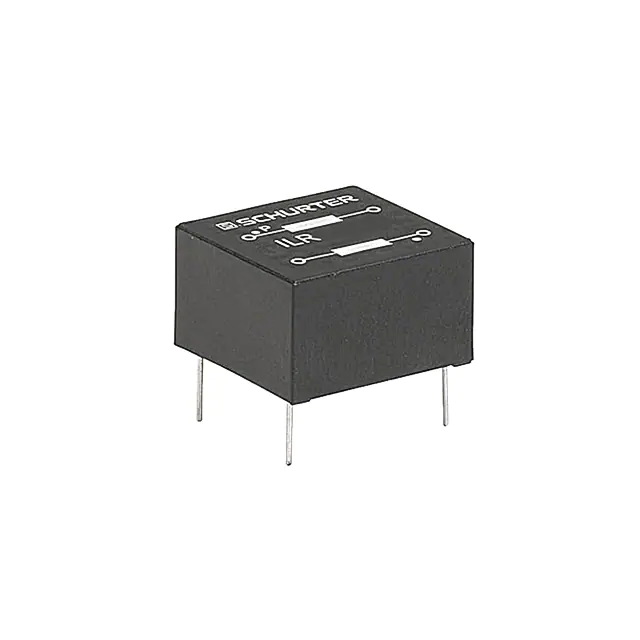

ILR-11-0001 ILR1 PULSE TRANSFORMER THT 1A SCHURTER Inc.	156	4.62	RFQ	Datasheet	Bulk	ILR	Active	SCR and Triac Trigger (Encapsulated)	2.5mH	300VµS	1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
ITNA-0249-D104 ITNA PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,875	3.20	RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	3.5mH	300VµS	1:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
IL-10-0002 IL7 PULSE TRANSFORMER THT SPEZ SCHURTER Inc.	2,822	3.48	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	16.5mH	200VµS	3:1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)

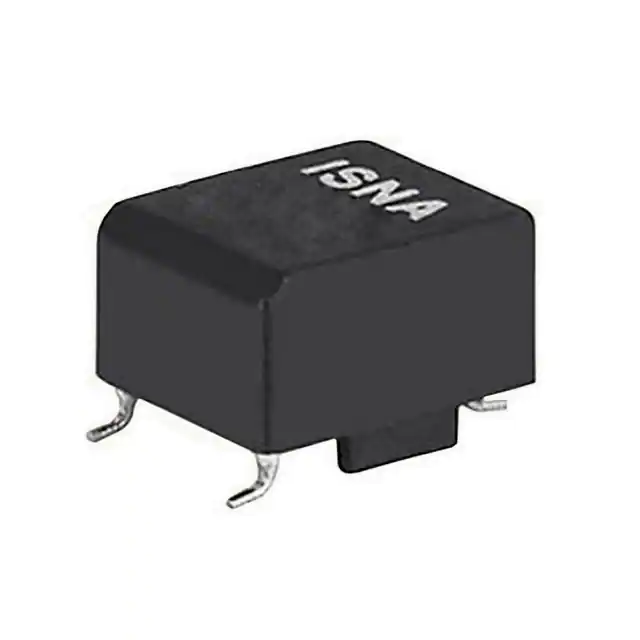

ISNA-0249-D104 ISNA PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	3,998	3.73	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	3.5mH	300VµS	1:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
ISNF-0249-D101 ISNF PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	3,486	4.12	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	1.4mH	250VµS	1:1:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
IL-20-0001 IL5 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	2,636	4.36	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	3mH	300VµS	1:1:1	Through Hole	1.102 L x 0.906 W (28.00mm x 23.00mm)	0.571 (14.50mm)
ILR-10-0001 IL5 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	3,341	4.42	RFQ	Datasheet	Bulk	ILR	Active	SCR and Triac Trigger (Encapsulated)	500µH	150VµS	1:1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
ILR-11-0003 ILR3 IMPULSTRAFO KONVENTIONELL SCHURTER Inc.	2,503	4.62	RFQ	Datasheet	Bulk	ILR	Active	SCR and Triac Trigger (Encapsulated)	5mH	200VµS	3:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
ILR-11-0002 ILR2 PULSE TRANSFORMER THT 1A SCHURTER Inc.	2,983	4.62	RFQ	Datasheet	Bulk	ILR	Active	Isolation and Data Interface (Encapsulated)	2.5mH	-	2:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
