Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
YLTH24P02-1PT PULSE TRANSFORMER LAN 10G Trigon Components	3,639	RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)
YLTH24701T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,788	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH24702T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	2,917	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH24702-1PT PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,222	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH48002-1PT PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,358	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH48002T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,126	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH48004T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,557	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH48003T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	2,405	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH48004-1PT PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,352	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH48001T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,549	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH24707T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,686	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH24706T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,786	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH24706-1PT PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,871	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH96404U PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	2,976	RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)
YLTH96402U PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	2,753	RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)
YLTH96402-1PU PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	2,835	RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)

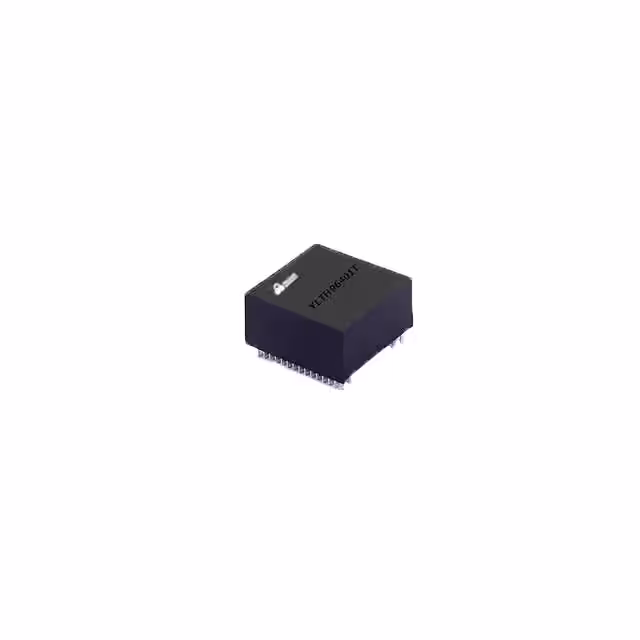

YLTH96401U PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,916	RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)

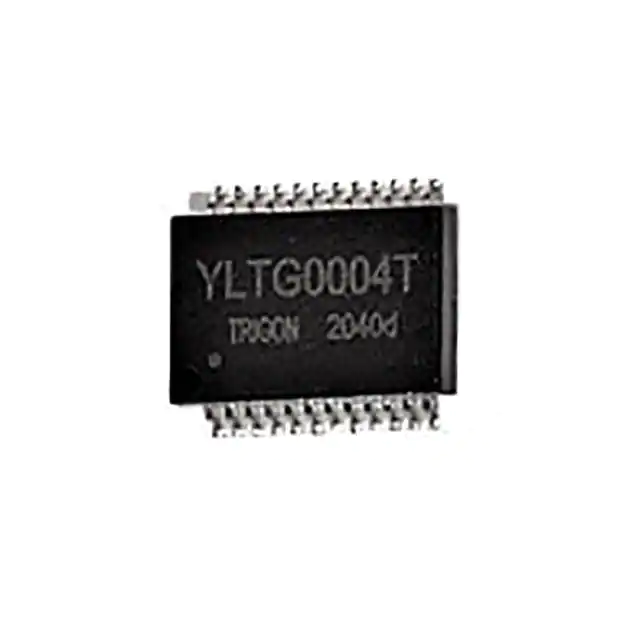

YLTG0004T TRANSFORMER ETHERNET LAN 1000 Trigon Components	3,251	RFQ	Datasheet	Tape & Reel (TR)	YLTG	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.630 W (17.53mm x 16.00mm)	0.217 (5.50mm)

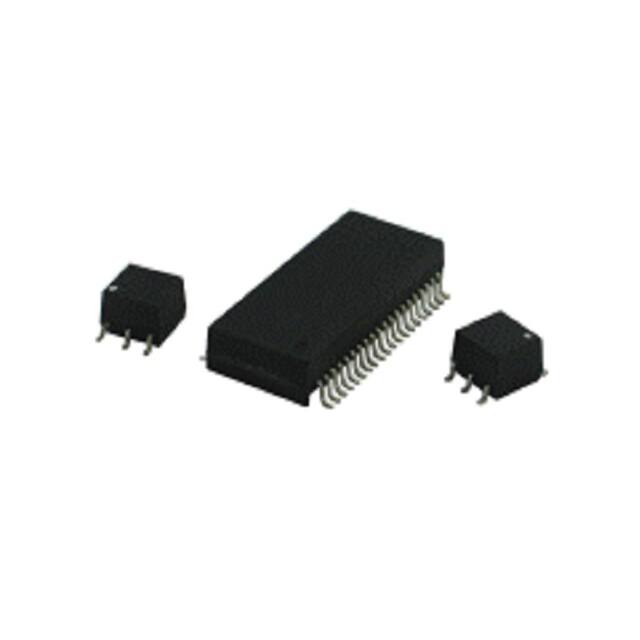

YLTP0016T PULSE TRANSFORMER LAN ETHERNET Trigon Components	2,371	RFQ	Datasheet	Tape & Reel (TR)	YLTP	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	-	-

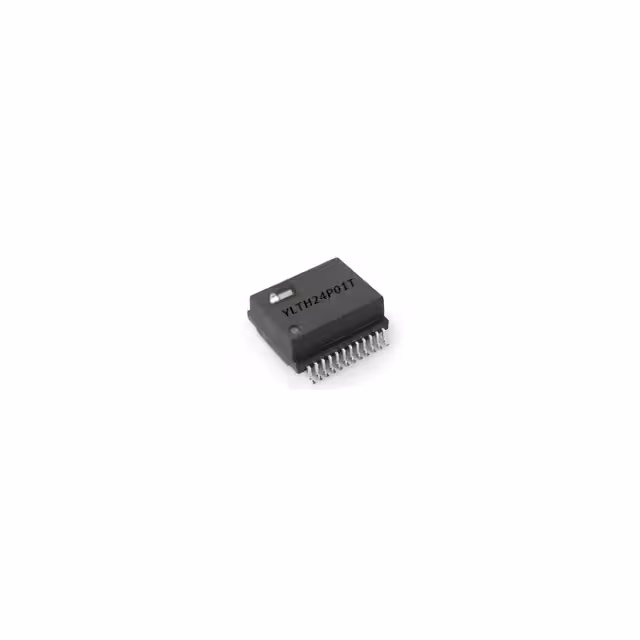

YLTH24P01T PULSE TRANSFORMER LAN 10G Trigon Components	2,123	RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)
