Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

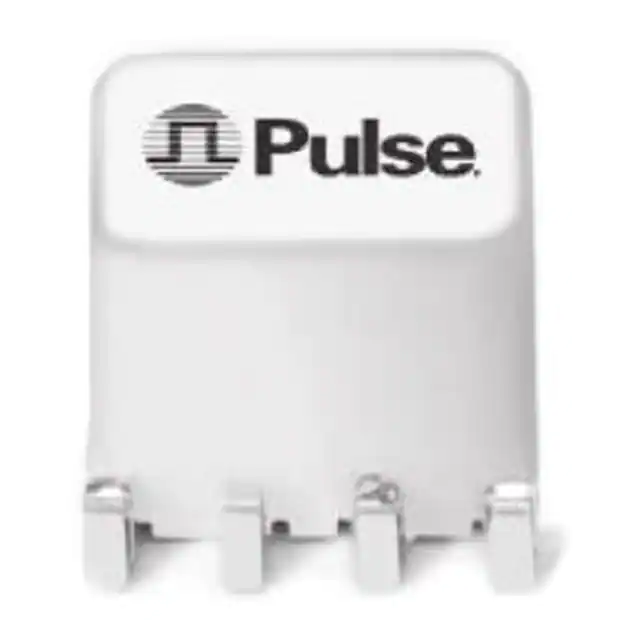

X-1569 XFMR GATE DRIVE 1500VDC ISO iNRCORE, LLC	247	11.15	RFQ	Datasheet	Tube	-	Active	Gate Drive	3.3mH	45.1VµS	1:1:1	Surface Mount	0.355 L x 0.340 W (9.01mm x 8.63mm)	0.300 (7.62mm)
X-1569T XFMR GATE DRIVE 1500VDC ISO iNRCORE, LLC	1,809	11.27	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	3.3mH	45.1VµS	1:1:1	Surface Mount	0.355 L x 0.340 W (9.01mm x 8.63mm)	0.300 (7.62mm)
100B-1003XT XFMR MODULE 100BT SMG COM NPB iNRCORE, LLC	353	15.80	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)

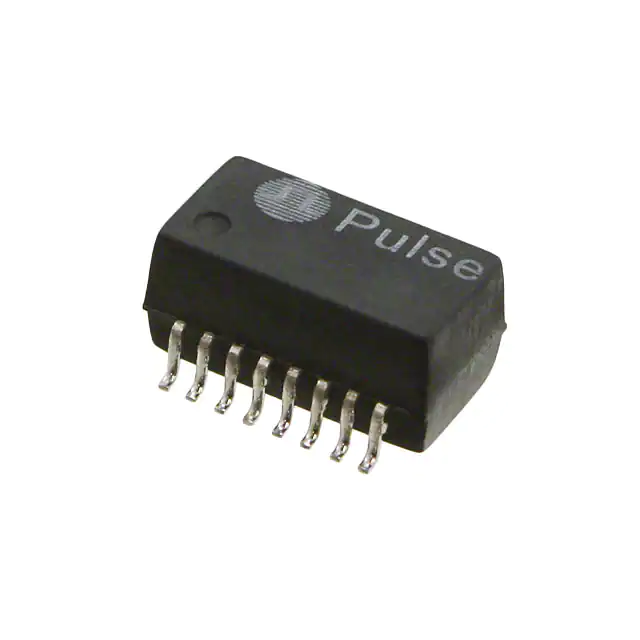

100B-1003X TRANSFORMER 10/100BASE SINGLE iNRCORE, LLC	7,657	15.95	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	-	-	1CT:1CT	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)
100B-1003XNL XFMR MODULE 100BT SMG COM NPB iNRCORE, LLC	8,342	16.48	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)
100B-1001X XFMR MODULE 100BT SMG COM PBC iNRCORE, LLC	383	18.42	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.583 L x 0.470 W (14.81mm x 11.94mm)	0.198 (5.03mm)
1000B-5003FXNLT XFMR MODULE DUAL 1GD SMT PBC iNRCORE, LLC	1,450	33.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
1000B-5001FX XFMR MODULE SNGL 1000BT SMT PBC iNRCORE, LLC	4,624	25.84	RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)

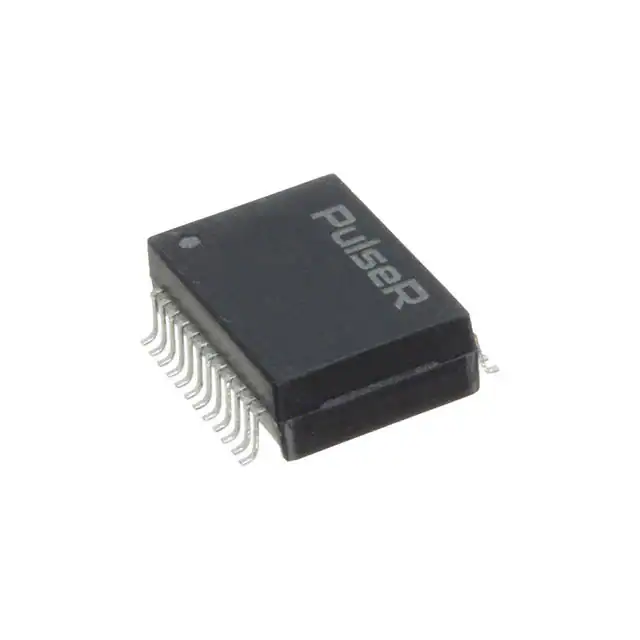

1000B-5001FXNL XFMR TCS SNGL 1000BT SMT RPB iNRCORE, LLC	757	27.47	RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)

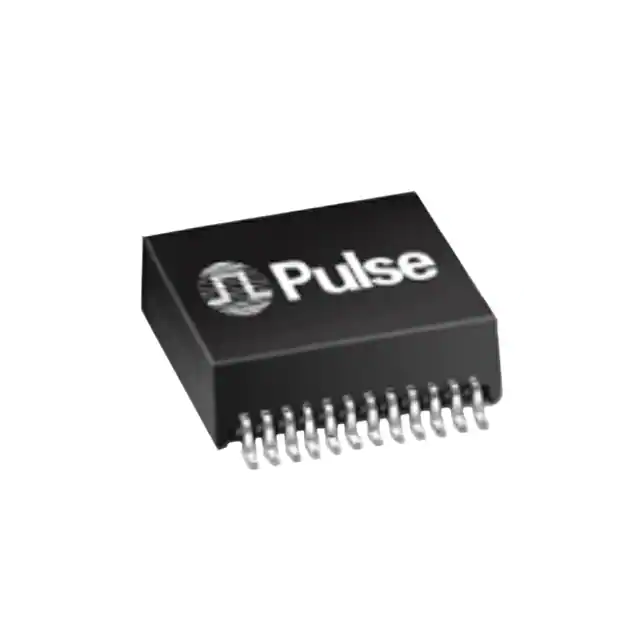

1000B-5003FXNL XFMR MODULE DUAL 1GD SMT PBC iNRCORE, LLC	210	38.46	RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
T-1485SCT XFMR DUAL 1485M BAUD iNRCORE, LLC	1,263	42.80	RFQ	Datasheet	Bulk	Copperhead™	Active	-	-	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.180 (4.57mm)

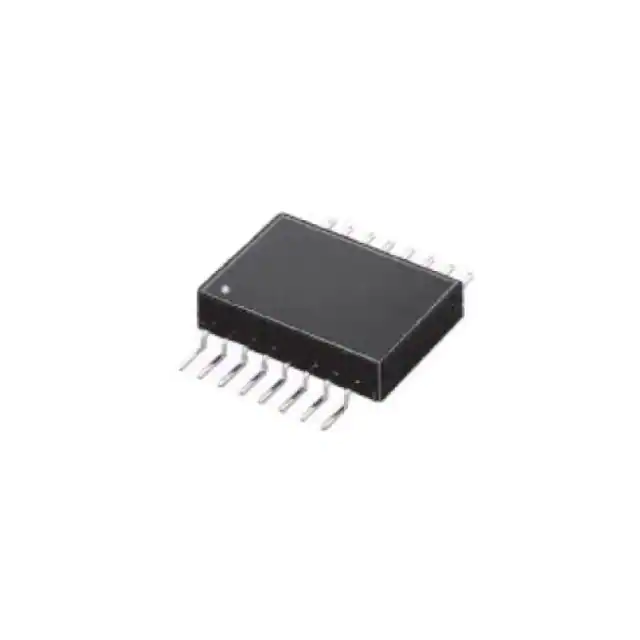

DGL1553-45 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	1,992	86.04	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)

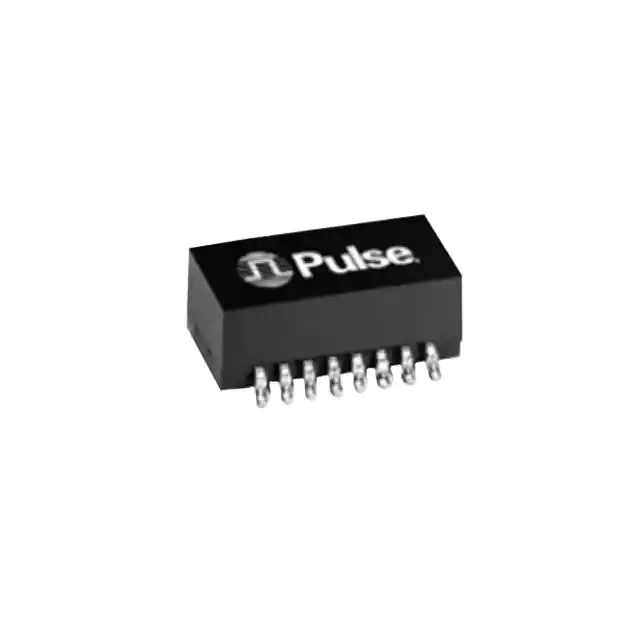

100B-1003FXNL EXTMP XFMR 100BT SMG COM NPB iNRCORE, LLC	710	17.71	RFQ	Datasheet	Bulk	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)

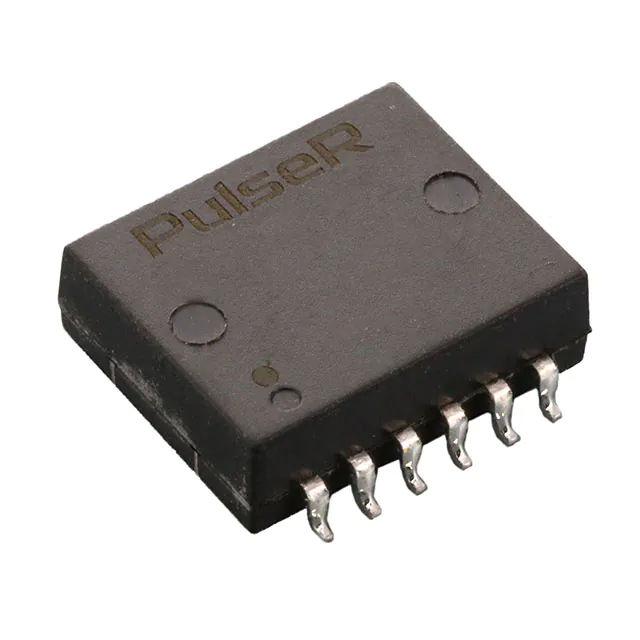

100B-1001XNL EXTMP XFMR 100BT SMG COM RPB iNRCORE, LLC	460	18.39	RFQ	Datasheet	Bulk	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.583 L x 0.470 W (14.81mm x 11.94mm)	0.202 (5.13mm)
1000B-5002FXNL MDL SIN 1GD 1:1 SMT TU NPB iNRCORE, LLC	1,285	28.83	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
T-330SCT XFMR DUAL 265.6M BAUD iNRCORE, LLC	324	36.81	RFQ	Datasheet	Bulk	Copperhead™	Active	-	-	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.180 (4.57mm)
T-1062SCT XFMR DUAL 1062.5M BAUD iNRCORE, LLC	826	38.08	RFQ	Datasheet	Bulk	Copperhead™	Active	-	-	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.180 (4.57mm)

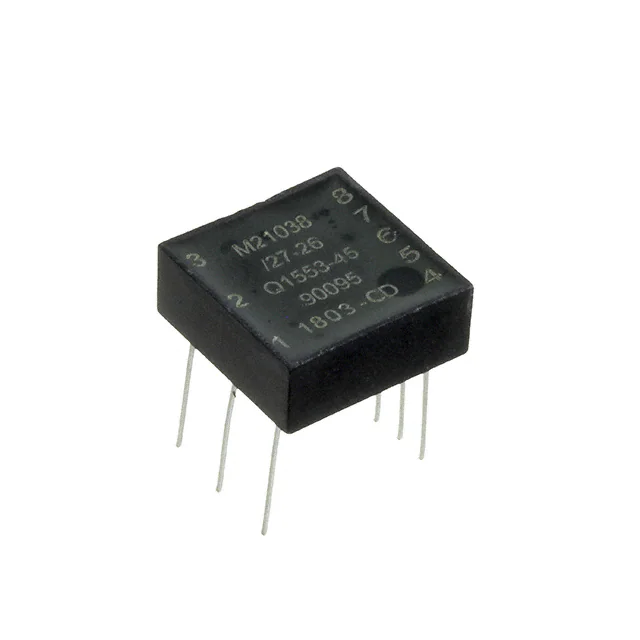

Q1553-45 TRANSFORMER PULSE LVL:M PKG:A iNRCORE, LLC	115	42.19	RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
1000B-5014FT XFMR MODULE DUAL 1GD SMT PBC iNRCORE, LLC	1,100	52.90	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.251 (6.38mm)

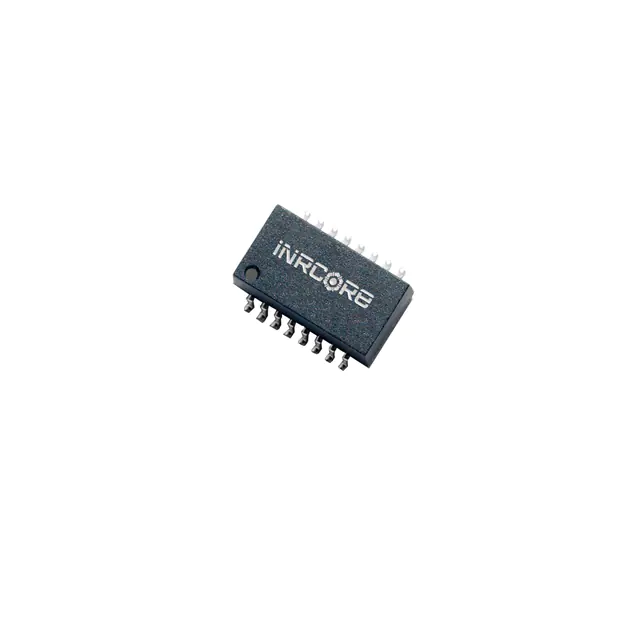

R1003NL XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	173	3.66	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	0.510 L x 0.280 W (12.95mm x 7.11mm)	0.245 (6.22mm)
