Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
XFBMC2103-2S-B XFMR BATT MGMT AEC-Q200 XFMRS	1,700	5.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.390 L x 0.330 W (9.90mm x 8.38mm)	0.266 (6.75mm)

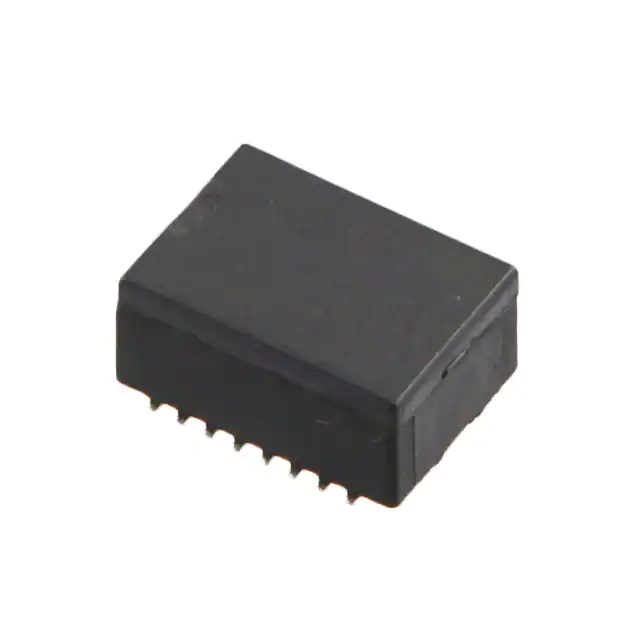

XFVOIP-05 LAN XFMR 10/100 POE+ XFMRS	1,000	2.60	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.385 W (12.70mm x 9.78mm)	0.245 (6.22mm)
XFATM9B LAN XFMR 10/100 XFMRS	926	2.60	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.510 L x 0.385 W (12.95mm x 9.78mm)	0.245 (6.22mm)

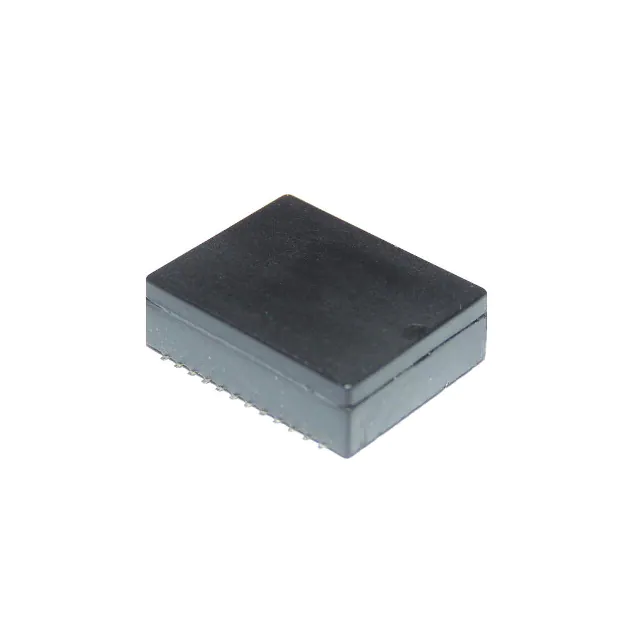

XFGIC100POL LAN XFMR 100/1000 POE+ XFMRS	1,140	3.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.730 L x 0.600 W (18.54mm x 15.24mm)	0.240 (6.09mm)

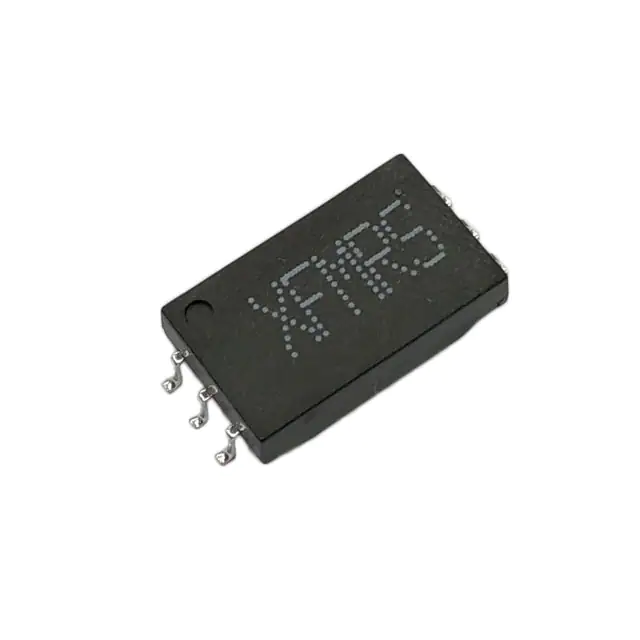

XFBMC29-BA09-E XFMR BATT MGMT AEC-Q200 XFMRS	337	5.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.197 (5.00mm)

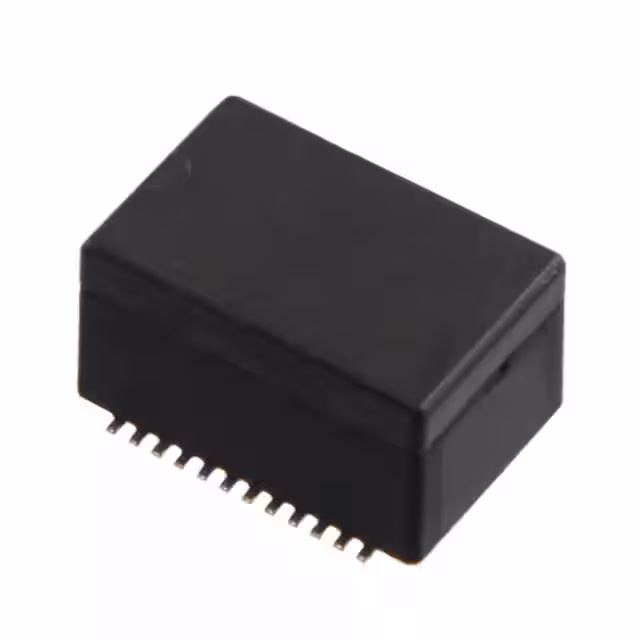

XFGID10018 LAN, 10/100/1000 BASE-T, SMD XFMRS	1,190	40.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	300µH	-	1:1CT	Surface Mount	0.600 L x 0.430 W (15.24mm x 10.92mm)	0.330 (8.38mm)

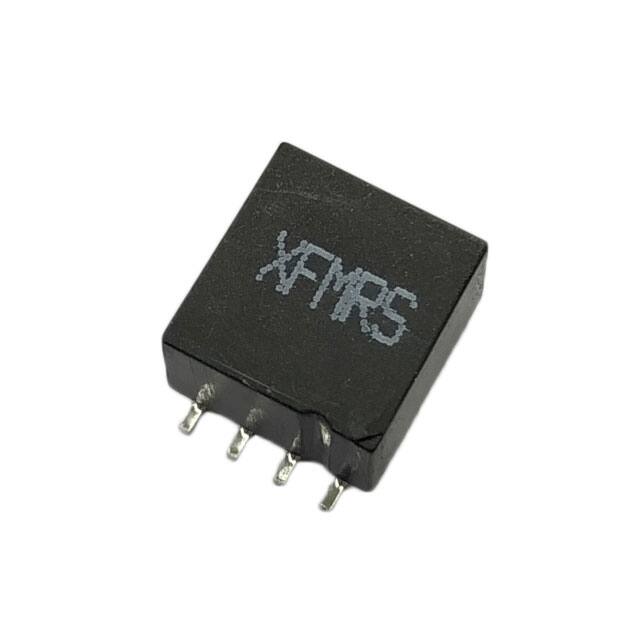

XFBMC25-2SR-A XFMR BATT MGMT AEC-Q200 XFMRS	2,220	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.620 L x 0.475 W (15.70mm x 12.06mm)	0.360 (9.15mm)

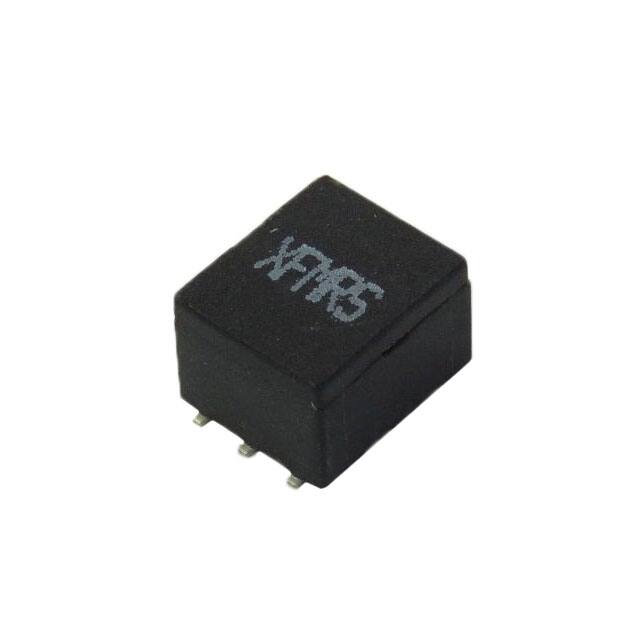

XFBMC2101-2S-B XFMR BATT MGMT AEC-Q200 XFMRS	2,336	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.390 L x 0.330 W (9.90mm x 8.38mm)	0.266 (6.75mm)

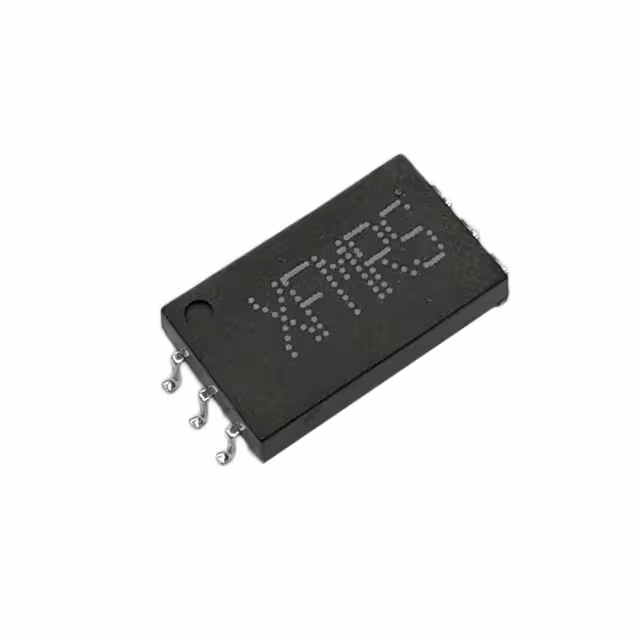

XFBMC29B-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	3,017	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.197 (5.00mm)

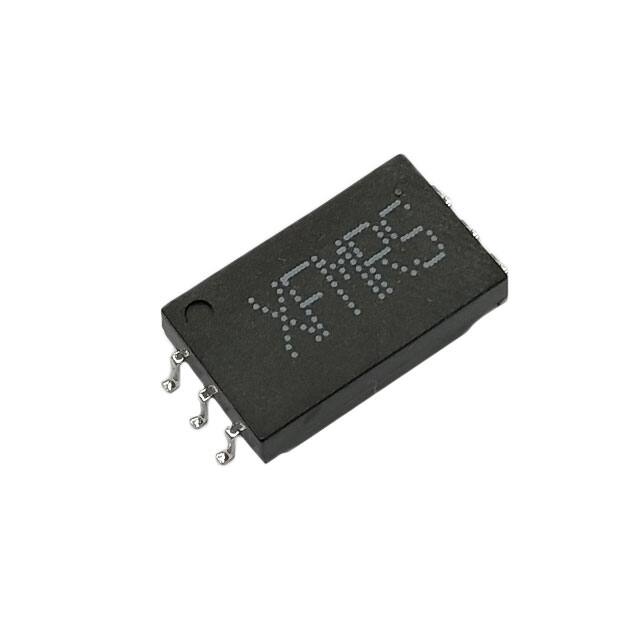

XFBMC29NC-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	2,077	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.197 (5.00mm)
XFBMC29A-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	3,335	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:2CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.197 (5.00mm)

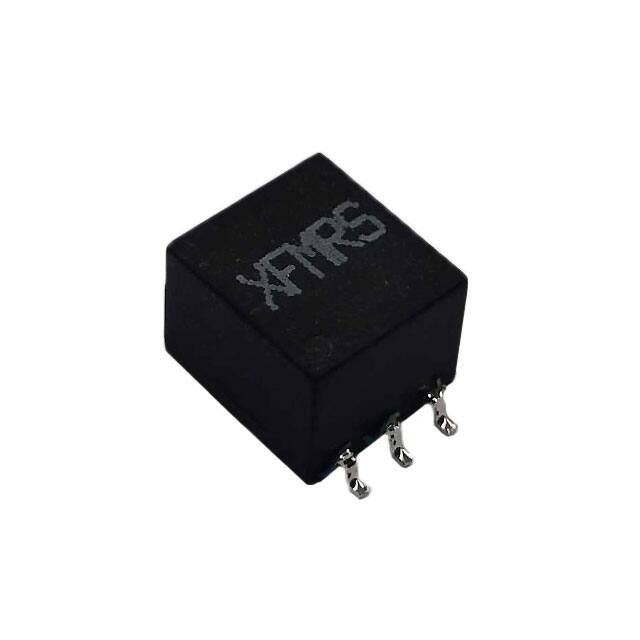

XFBMC25NC-2SR-A XFMR BATT MGMT AEC-Q200 XFMRS	2,446	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.502 L x 0.354 W (12.70mm x 9.00mm)	0.250 (6.35mm)

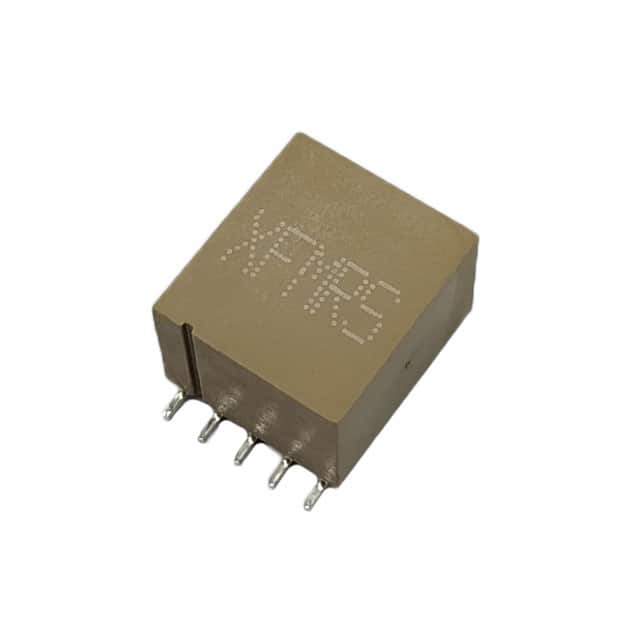

XFBMC29-DIP027-B XFMR BATT MGMT AEC-Q200 XFMRS	2,222	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC45NC-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	3,774	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)

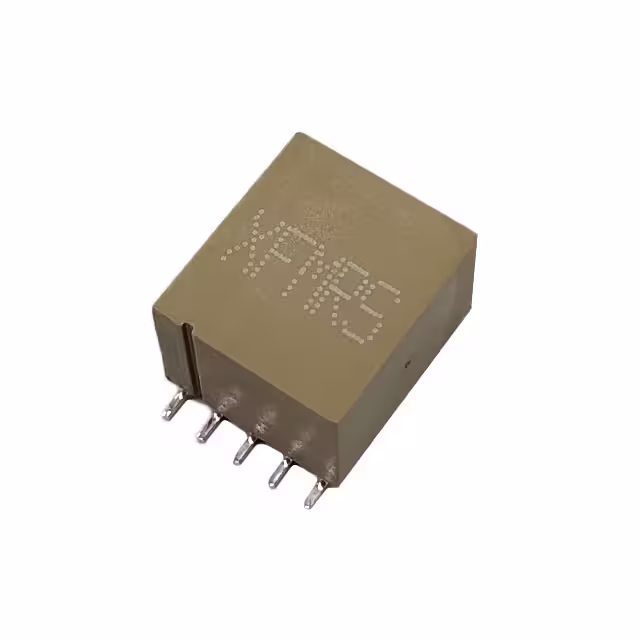

XFBMC45-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	2,202	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC60-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	3,687	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC60NC-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	3,832	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)

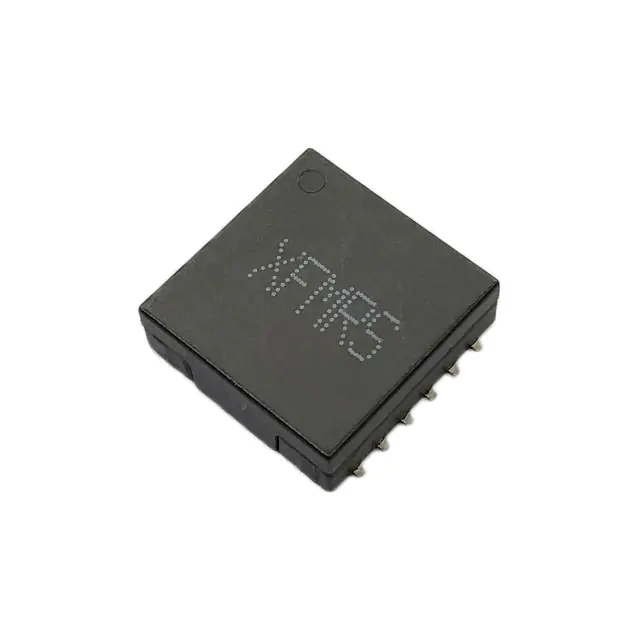

XFBMC29DNC-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	2,097	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.236 (6.00mm)

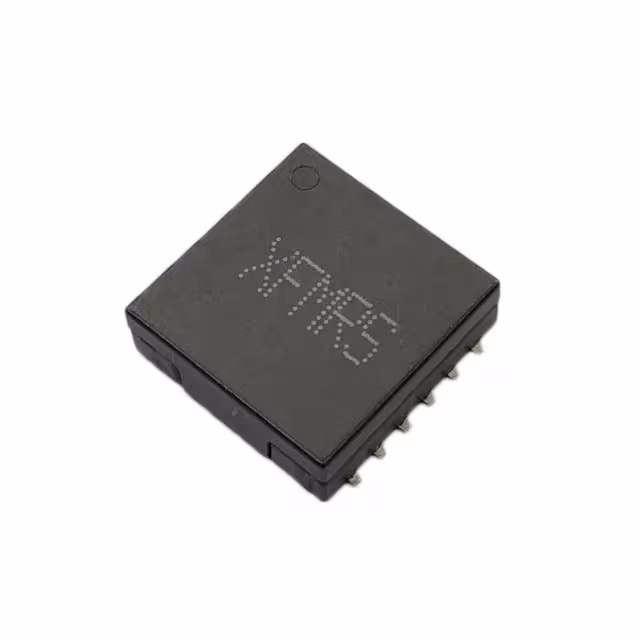

XFBMC29D-BA09-B XFMR BATT MGMT AEC-Q200 XFMRS	2,991	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.236 (6.00mm)

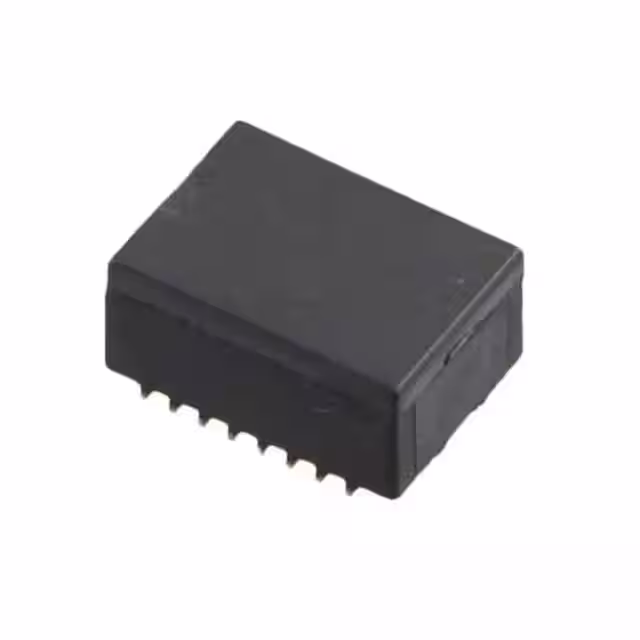

XFATM9B-LMCO-A Transformer, 10/100, Leaded XFMRS	2,951	4.00	RFQ		Tape & Reel (TR)	-	Active	10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.510 L x 0.370 W (12.95mm x 9.40mm)	0.245 (6.23mm)
