Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus TransformerType Inductance ET(Volt-Time) TurnsRatio-Primary:Secondary MountingType Size/Dimension Height-Seated(Max)

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

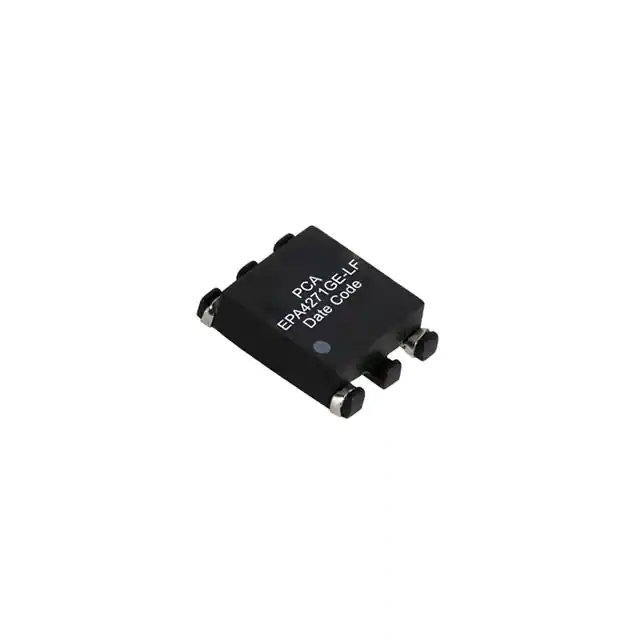

	EPA4271GE-LF ISOLATED GATE DRIVE PCA Electronics, Inc.	2,196	2.29	RFQ	Datasheet	Tape & Reel (TR)	EPA	Active	Gate Drive	785µH	9.7VµS	1:1	Surface Mount	0.265 L x 0.340 W (6.73mm x 8.64mm)	0.098 (2.49mm)

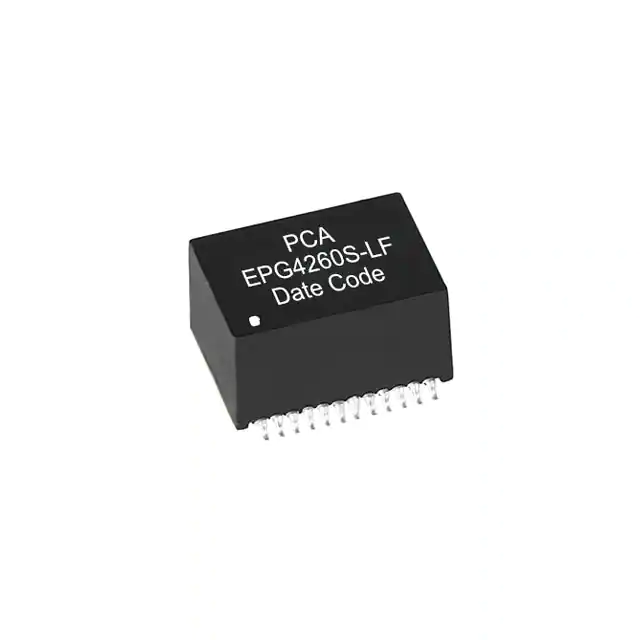

	EPG4260S-LF POE DATA XFM, 1.15A PCA Electronics, Inc.	250	11.97	RFQ	Datasheet	Tube	EPG-SMT24	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.710 L x 0.600 W (18.03mm x 15.24mm)	0.400 (10.16mm)
