Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

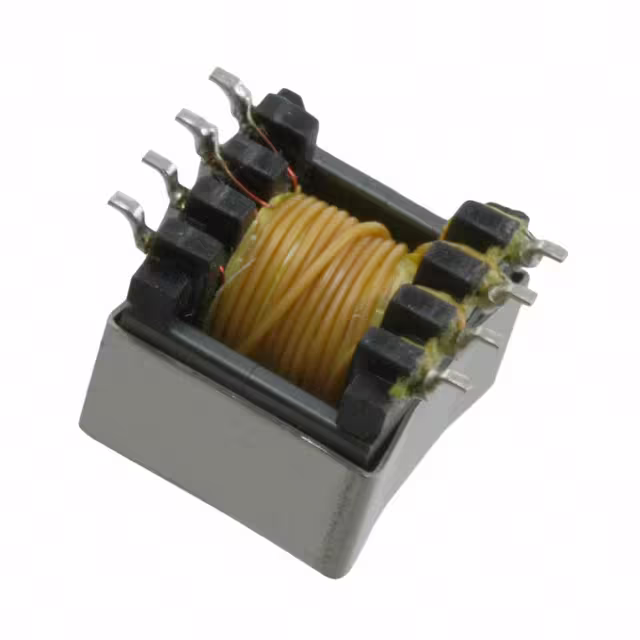

	37513TR TRANSF ADSL F/TI AC5 EP10 SMD Schott Corporation	424	1.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	ADSL	-	-	-	Surface Mount	0.500 L x 0.470 W (12.70mm x 11.94mm)	0.435 (11.05mm)

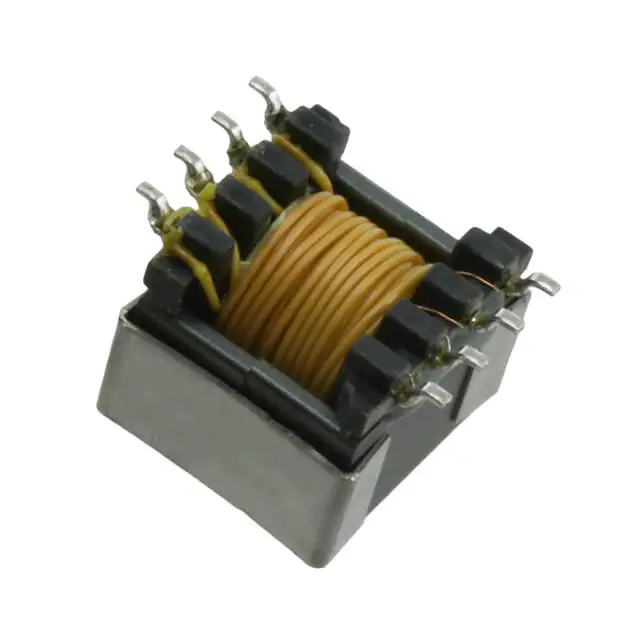

	36313TR TRANSF ADSL F/TI 4000 EP10 SMD Schott Corporation	232	1.50	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	ADSL	-	-	-	Surface Mount	0.500 L x 0.470 W (12.70mm x 11.94mm)	0.435 (11.05mm)

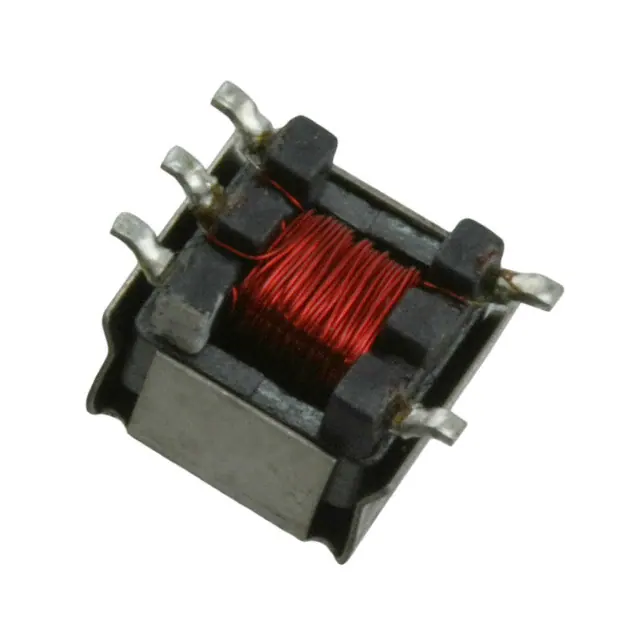

	36606 TRANSF T1/E1 1.14CT:1 EE5 SMD Schott Corporation	1,051	1.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (EE5)	-	-	1.14CT:1	Surface Mount	0.240 L x 0.250 W (6.10mm x 6.35mm)	0.250 (6.35mm)

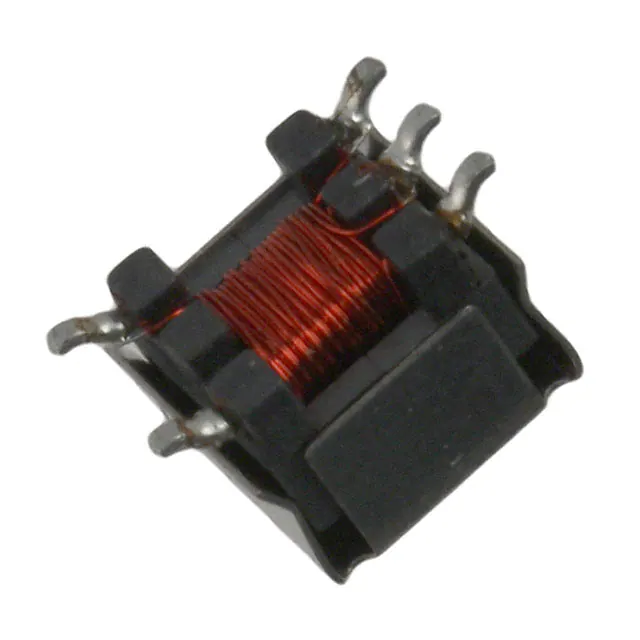

	37051 TRANSF T1/E1 2.42CT:1 EE5 SMD Schott Corporation	931	1.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (EE5)	-	-	2.42CT:1	Surface Mount	0.240 L x 0.250 W (6.10mm x 6.35mm)	0.250 (6.35mm)

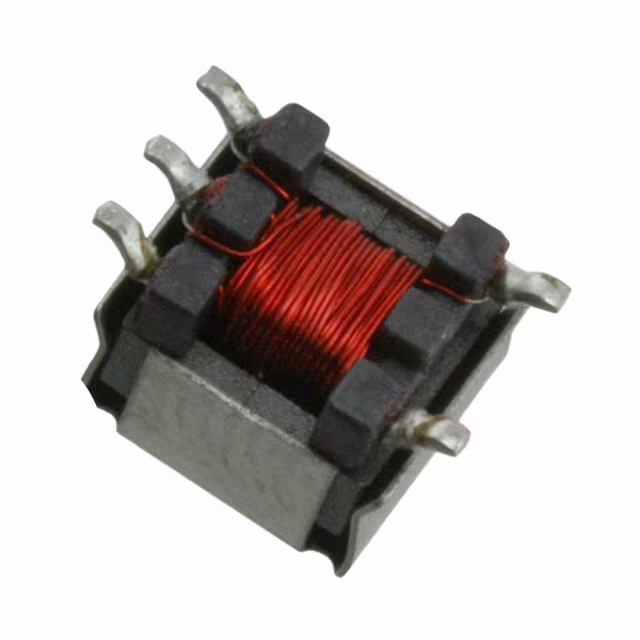

	37048 TRANSF T1/E1 1.66CT:1 EE5 SMD Schott Corporation	764	1.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (EE5)	-	-	1.66CT:1	Surface Mount	0.240 L x 0.250 W (6.10mm x 6.35mm)	0.250 (6.35mm)

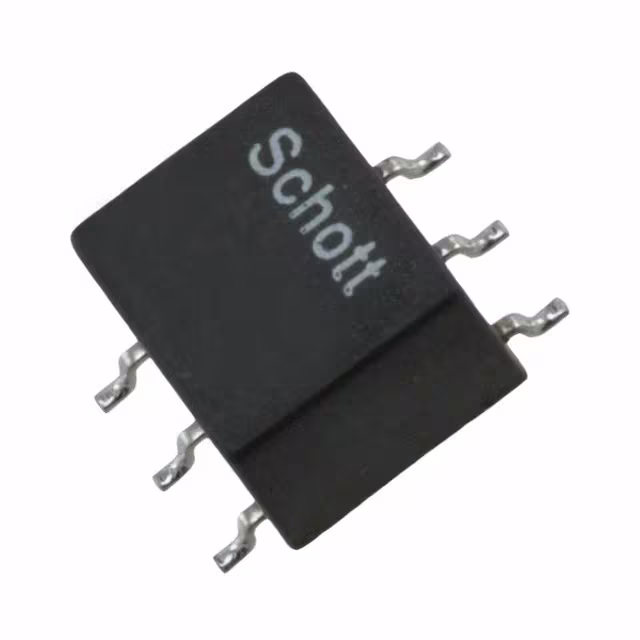

	36976 TRANSF T3/DS3/E3/STS-1 1:1 SMD Schott Corporation	482	1.86	RFQ		Cut Tape (CT)	-	Discontinued at Mosen	-	100µH	-	1:1	Surface Mount	0.300 L x 0.390 W (7.62mm x 9.91mm)	0.250 (6.35mm)

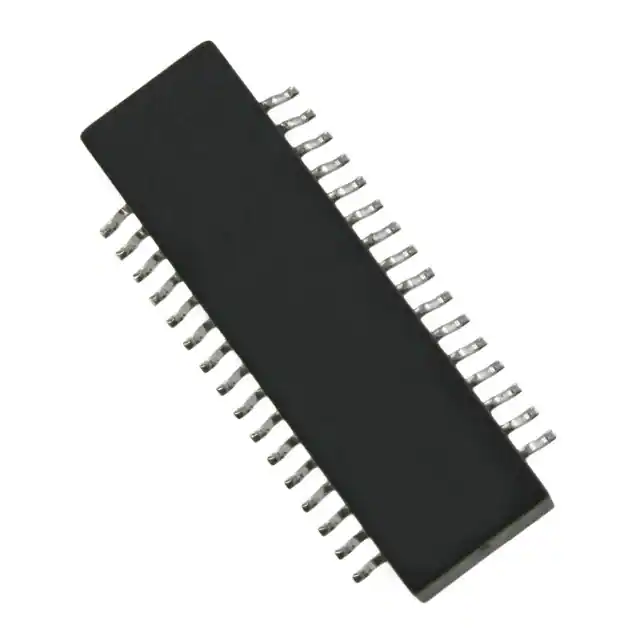

	37531 TRANSFORMER QUAD T1/E1 1:2CT SMD Schott Corporation	952	2.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Quad)	1.2mH	-	1:2CT	Surface Mount	1.000 L x 0.300 W (25.40mm x 7.62mm)	0.290 (7.37mm)

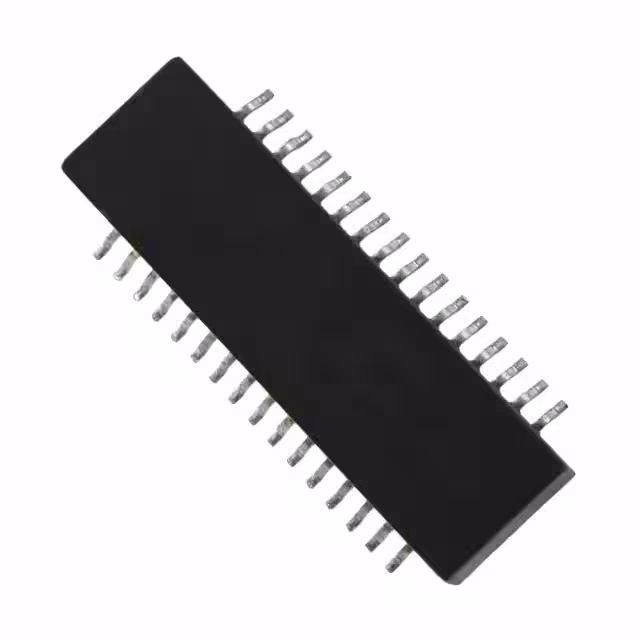

	37532 TRANSF QUAD T1/E1 1:1.36CT SMD Schott Corporation	995	2.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Quad)	1.2mH	-	1:1.36CT	Surface Mount	1.000 L x 0.300 W (25.40mm x 7.62mm)	0.290 (7.37mm)
	37533 TRANSF QUAD T1/E1 1:1.36&1:2 SMD Schott Corporation	977	2.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Quad)	1.2mH	-	1:1.36, 1:2	Surface Mount	1.000 L x 0.300 W (25.40mm x 7.62mm)	0.290 (7.37mm)
	37536 TRANSF QUAD T1/E1 1:1.36/1 SMD Schott Corporation	254	2.70	RFQ	Datasheet	Cut Tape (CT)	-	Discontinued at Mosen	-	-	-	-	-	-	-

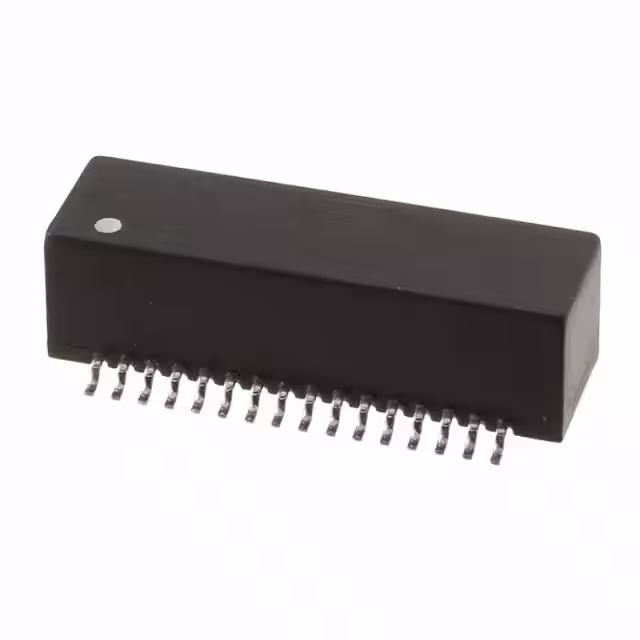

	37534 TRANSF QUAD T1/E1 1:1.15CT SMD Schott Corporation	107	4.85	RFQ	Datasheet	Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Quad)	1.2mH	-	1:1.15CT	Surface Mount	1.000 L x 0.300 W (25.40mm x 7.62mm)	0.290 (7.37mm)
	37543 TRANSF OCTAL T1/E1 1:1/1.26 SMD Schott Corporation	1,026	4.18	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Octal)	1.2mH	-	1:1/1.26 Transmitter, 1:2CT Receiver	Surface Mount	1.123 L x 0.488 W (28.52mm x 12.40mm)	0.230 (5.84mm)
	37544 TRANSF OCTAL T1/E1 1:2CT SMD Schott Corporation	907	4.18	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Octal)	1.2mH	-	1:2CT Transmitter, 1CT:2 Receiver	Surface Mount	1.123 L x 0.488 W (28.52mm x 12.40mm)	0.230 (5.84mm)
	37541 TRANSF OCTAL T1/E1 1:2CT SMD Schott Corporation	441	4.18	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Octal)	1.2mH	-	1:2CT Transmitter, 1:1CT Receiver	Surface Mount	1.123 L x 0.488 W (28.52mm x 12.40mm)	0.230 (5.84mm)

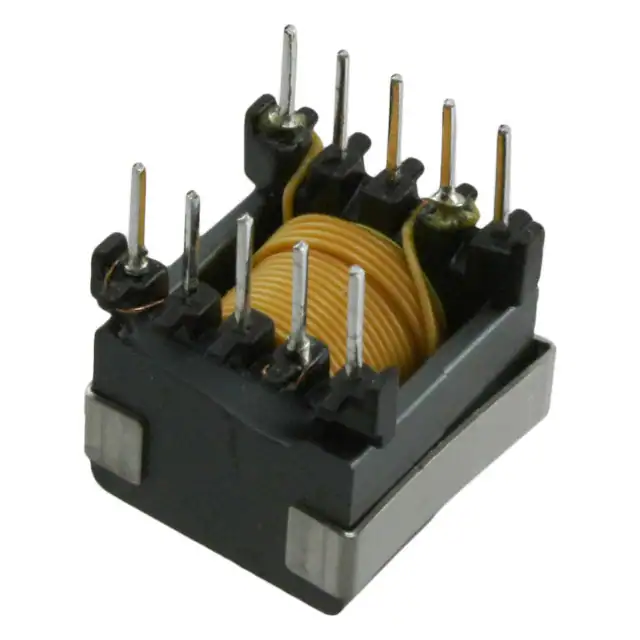

	33818 TRANSF ADSL F/TI 5000 EP13 THD Schott Corporation	2,741	1.85	RFQ		Bulk	-	Discontinued at Mosen	ADSL	-	-	-	Through Hole	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.500 (12.70mm)

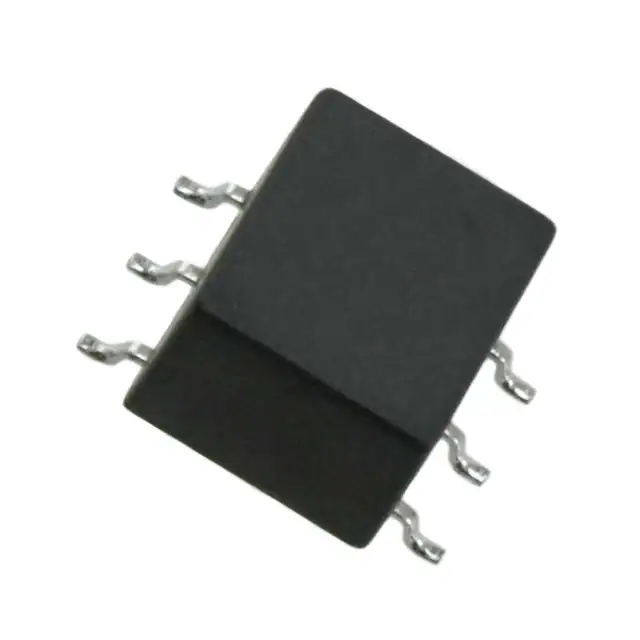

	36977 TRANSF T3/DS3/E3/STS-1 1:2CT SMD Schott Corporation	3,892	1.81	RFQ	Datasheet	Cut Tape (CT)	-	Discontinued at Mosen	-	40µH	-	1:2CT	Surface Mount	0.300 L x 0.390 W (7.62mm x 9.91mm)	0.250 (6.35mm)

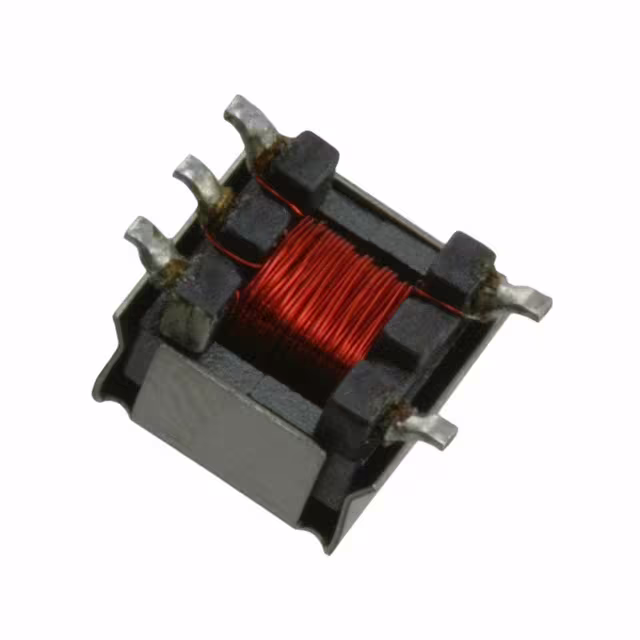

	36540 TRANSF T1/E1 1.26CT:1 EE5 SMD Schott Corporation	3,822	1.93	RFQ	Datasheet	Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (EE5)	-	-	1.26CT:1	Surface Mount	0.240 L x 0.250 W (6.10mm x 6.35mm)	0.250 (6.35mm)
