Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

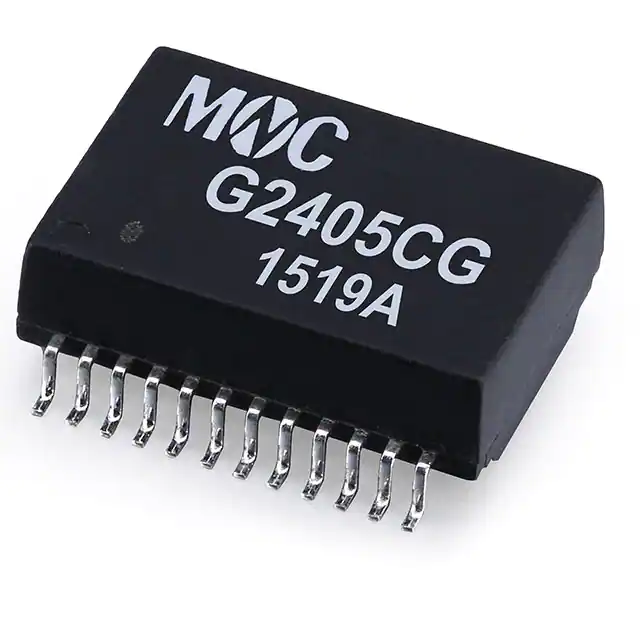

G2405CG SINGLE LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	400	4.44	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.709 L x 0.500 W (18.00mm x 12.70mm)	0.244 (6.20mm)

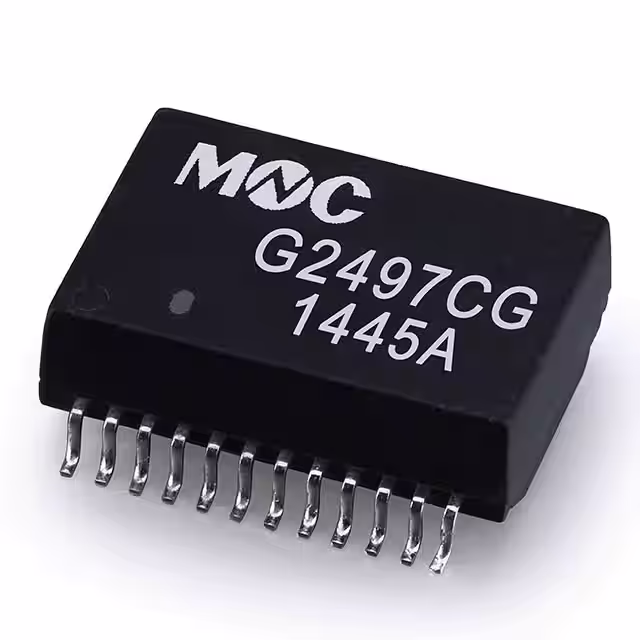

G2497CG SINGLE LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	380	4.56	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.709 L x 0.500 W (18.00mm x 12.70mm)	0.244 (6.20mm)

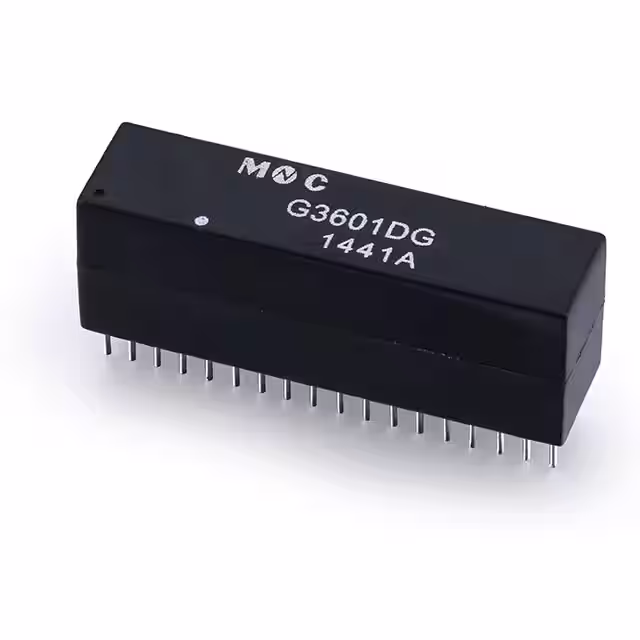

G3601DG QUAD LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	760	4.78	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.307 L x 0.350 W (33.20mm x 8.90mm)	0.472 (12.00mm)

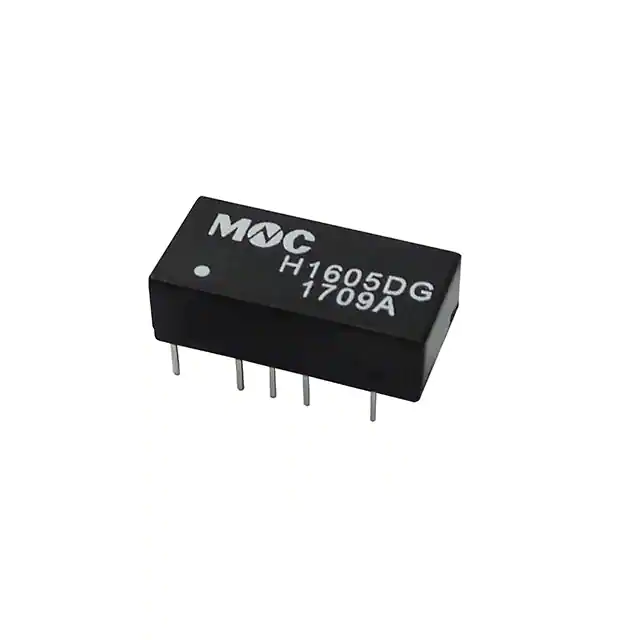

H1605DG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	145	1.72	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Through Hole	0.819 L x 0.402 W (20.80mm x 10.20mm)	0.280 (7.10mm)

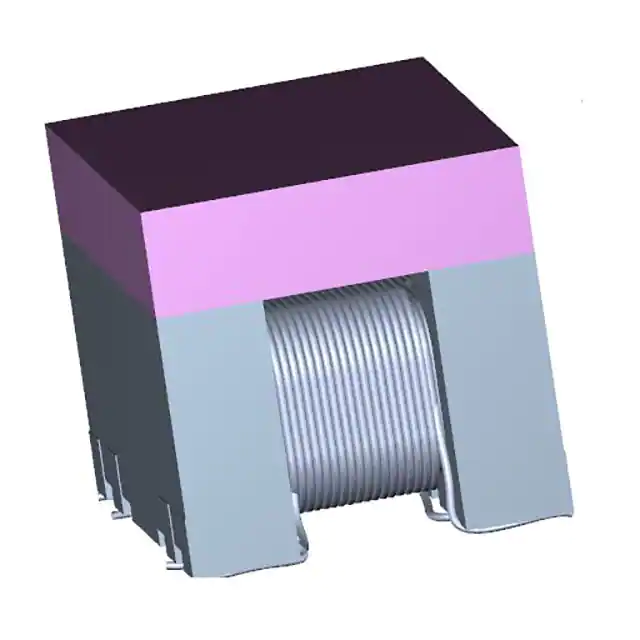

CL4532A-201 CHIP LAN XFMR 10/100/1000 BASE-T Mentech Technology USA Inc.	2,400	2.00	RFQ		Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	200µH	-	1CT:1CT	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.138 (3.50mm)

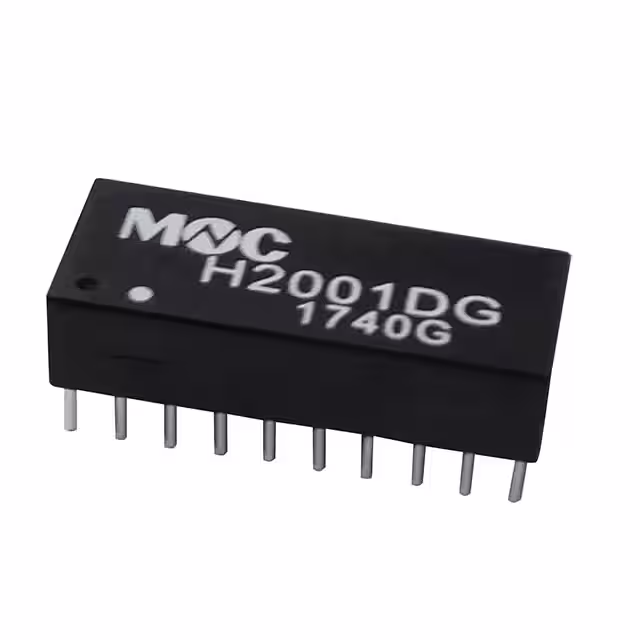

H2001DG DUAL LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	110	2.16	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Through Hole	1.012 L x 0.413 W (25.70mm x 10.50mm)	0.266 (6.75mm)

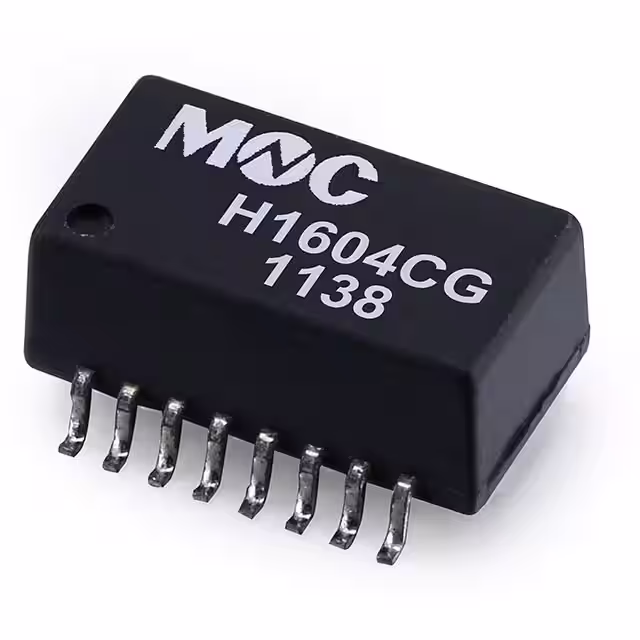

H1604CG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	590	2.46	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.10mm)	0.252 (6.40mm)

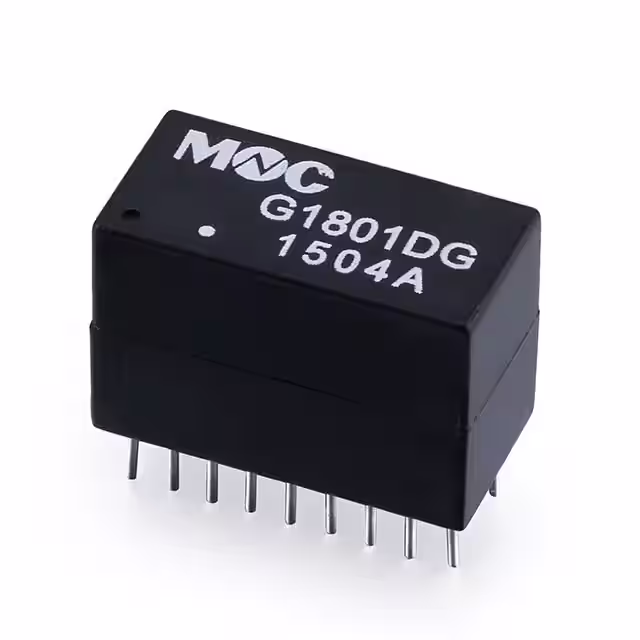

G1801DG SINGLE LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	1,225	2.74	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	0.819 L x 0.402 W (17.30mm x 9.00mm)	0.467 (11.85mm)

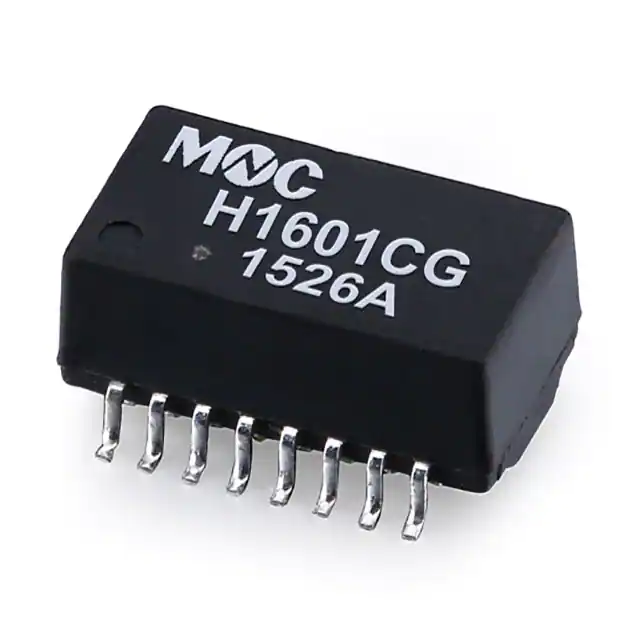

H1601CG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	560	2.80	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.10mm)	0.244 (6.20mm)

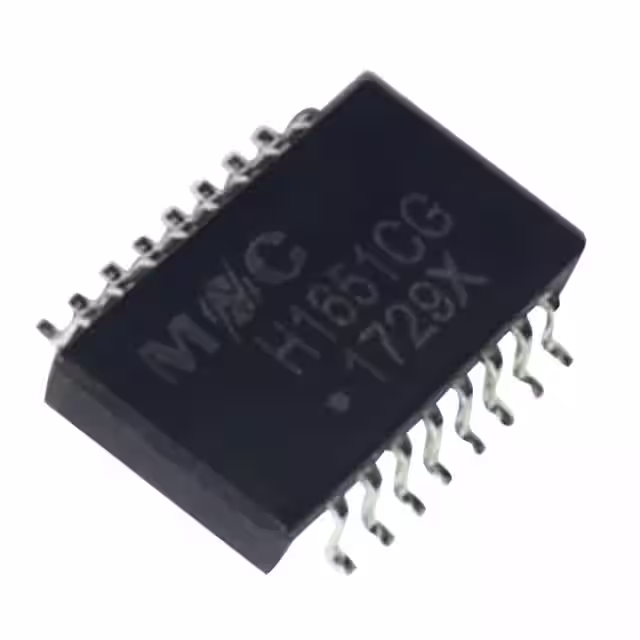

H1651CG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	1,400	3.28	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.520 L x 0.299 W (13.20mm x 7.60mm)	0.098 (2.50mm)

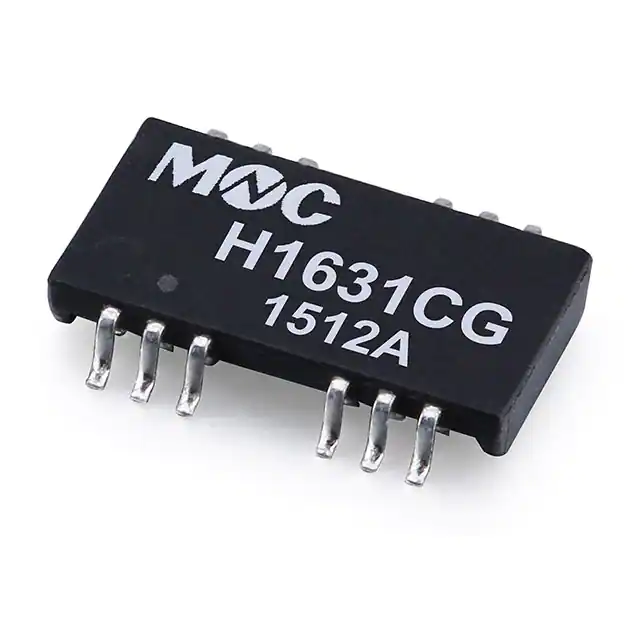

H1631CG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	1,365	3.44	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.520 L x 0.299 W (13.20mm x 7.60mm)	0.098 (2.50mm)

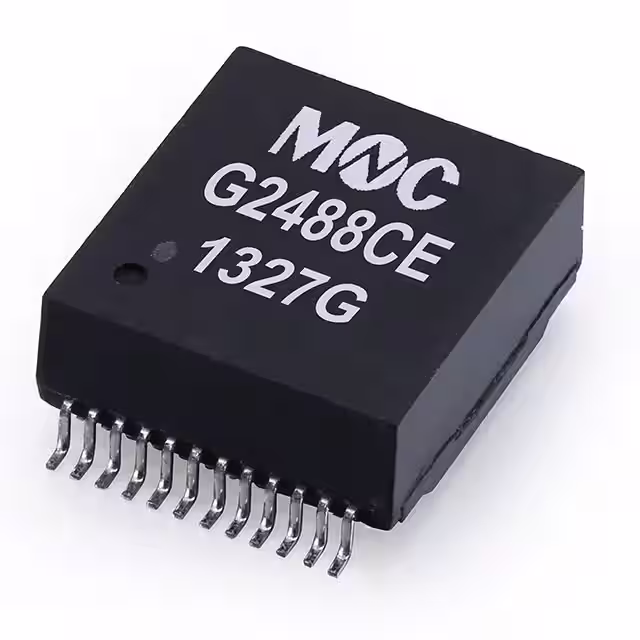

G2488CE SINGLE LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	400	5.04	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.622 L x 0.599 W (15.80mm x 14.20mm)	0.264 (6.70mm)

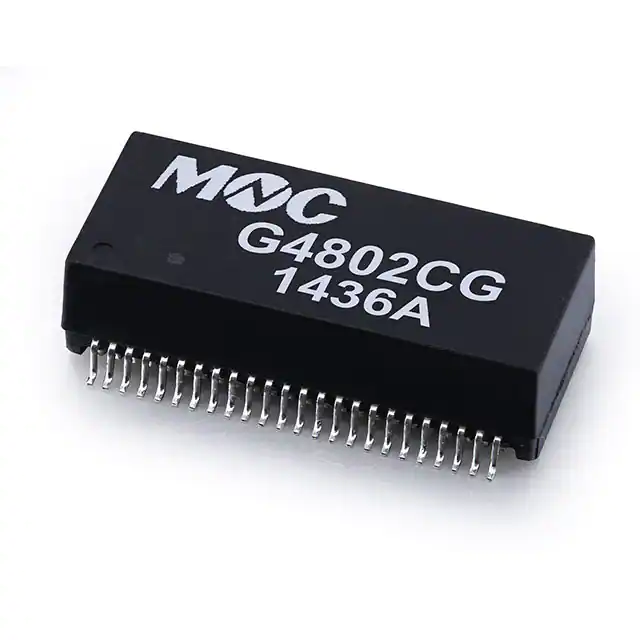

G4802CG DUAL LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	900	6.12	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	1.114 L x 0.500 W (28.30mm x 12.70mm)	0.295 (7.50mm)

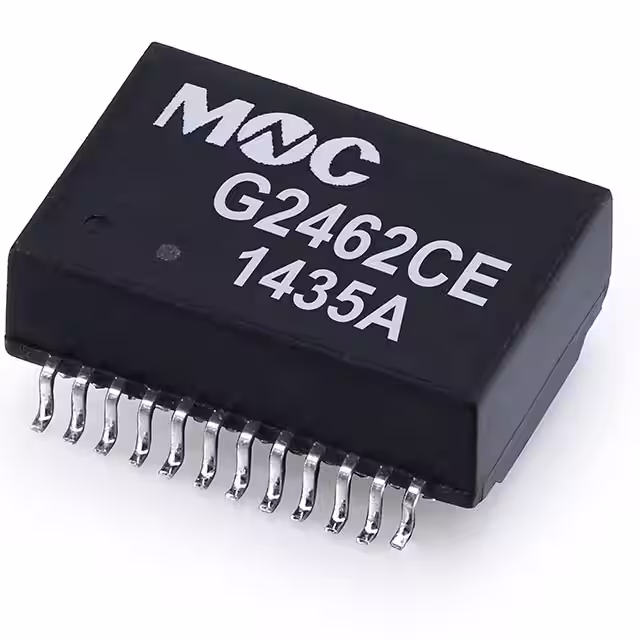

G2462CE SINGLE LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	400	7.06	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.733 L x 0.500 W (18.00mm x 12.70mm)	0.266 (6.80mm)

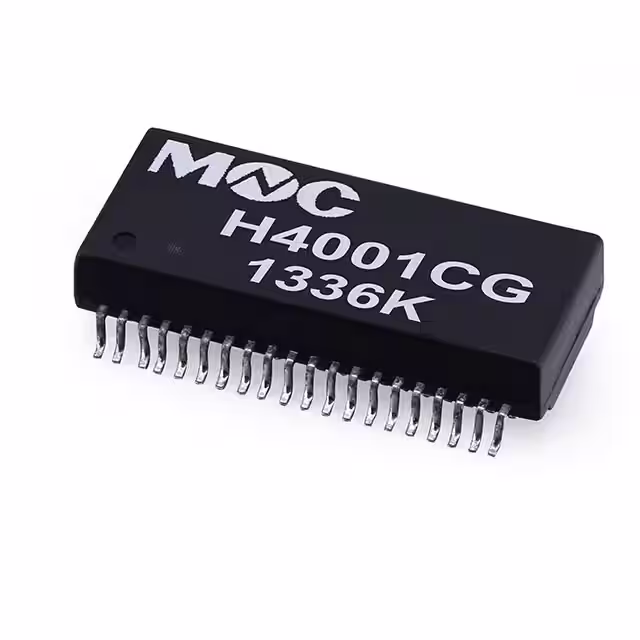

H4001CG QUAD LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	400	7.24	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.126 L x 0.496 W (28.60mm x 12.60mm)	0.252 (6.40mm)

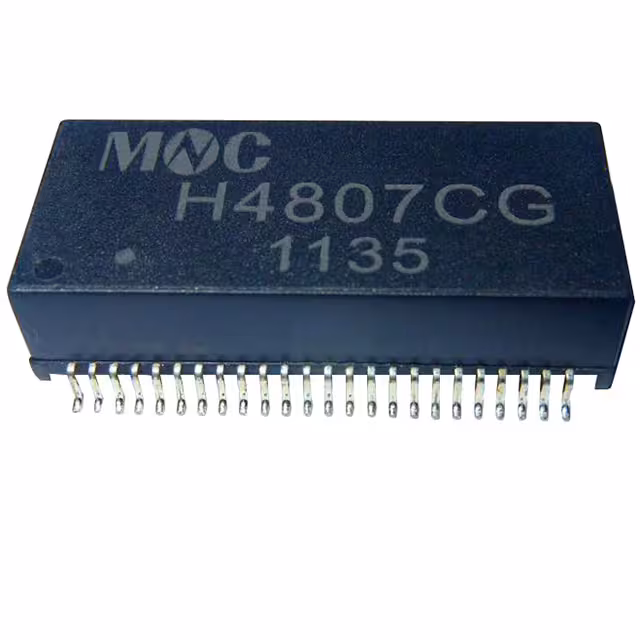

H4807CG QUAD LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	295	11.10	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.114 L x 0.508 W (28.30mm x 12.90mm)	0.295 (7.50mm)
G4818CG DUAL LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	180	12.40	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.201 L x 0.500 W (30.5mm x 12.70mm)	0.413 (10.50mm)

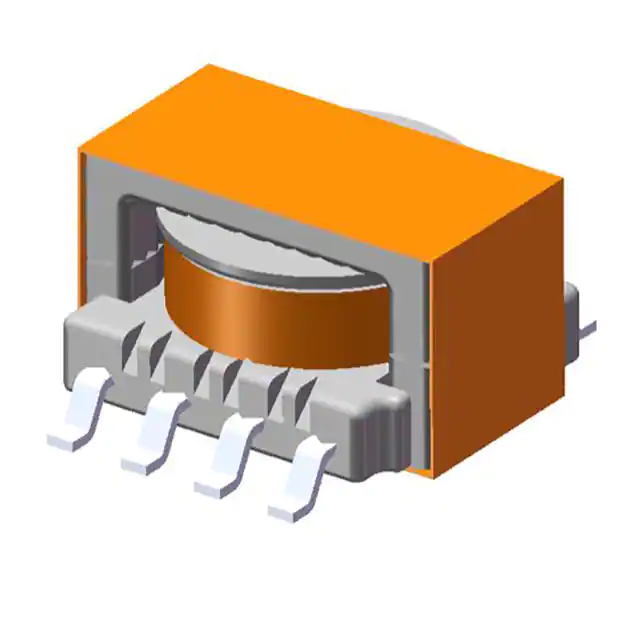

TTER09-1204SG PWR XFMR,17:5:11:3:11:3,20UH Mentech Technology USA Inc.	1,200	9.06	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	20µH	-	17:5:11:3:11:3	Surface Mount	0.670 L x 0.512 W (17.00mm x 13.00mm)	0.433 (11.00mm)

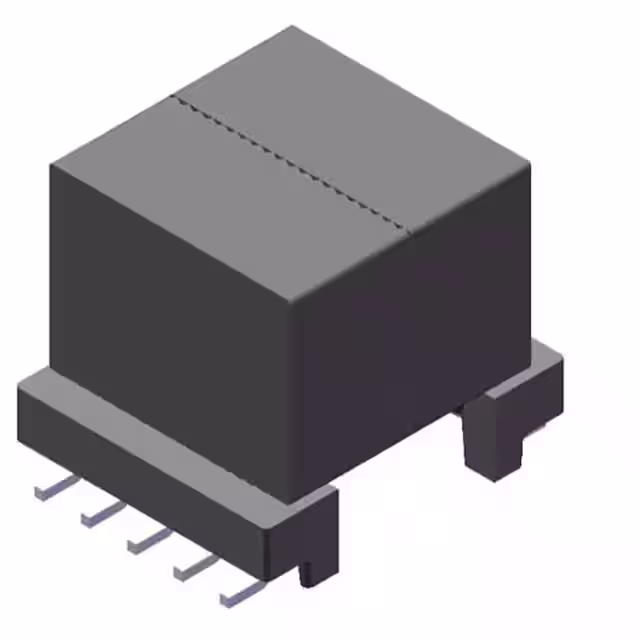

TOEP13-0284SG POE TRANSFORMER Mentech Technology USA Inc.	200	9.31	RFQ		Tape & Reel (TR)	-	Active	Power over Ethernet (PoE)	240µH	-	-	-	0.705 L x 0.551 W (17.91mm x 14.00mm)	0.500 (12.70mm)
TTER09-0586S1 POWER TRANSFORMER Mentech Technology USA Inc.	500	9.52	RFQ		Tape & Reel (TR)	-	Active	-	1.5µH	-	4CT:1CT	Surface Mount	0.672 L x 0.394 W (17.07mm x 10.00mm)	0.244 (6.20mm)
