Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus TransformerType Inductance ET(Volt-Time) TurnsRatio-Primary:Secondary MountingType Size/Dimension Height-Seated(Max)

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

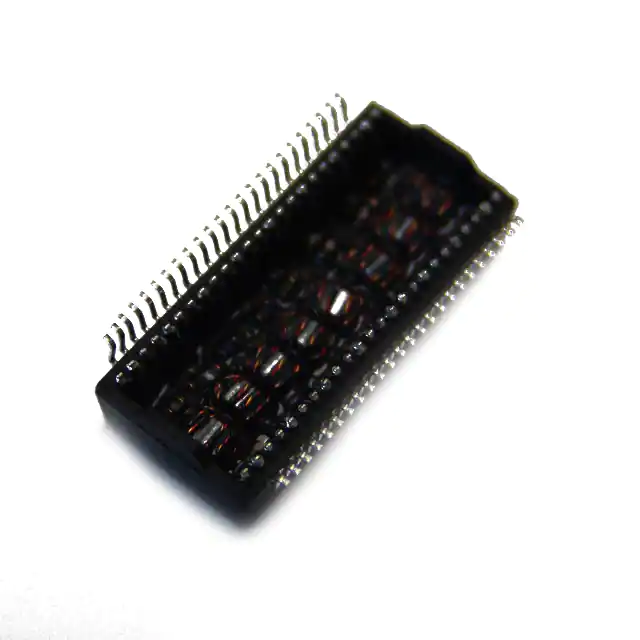

	RT11S16-RU DISCRETE PULSE LAN XFMR 10/100 Mag Layers	1,085	0.68	RFQ	Datasheet	Tape & Reel (TR)	Transformer	Active	10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

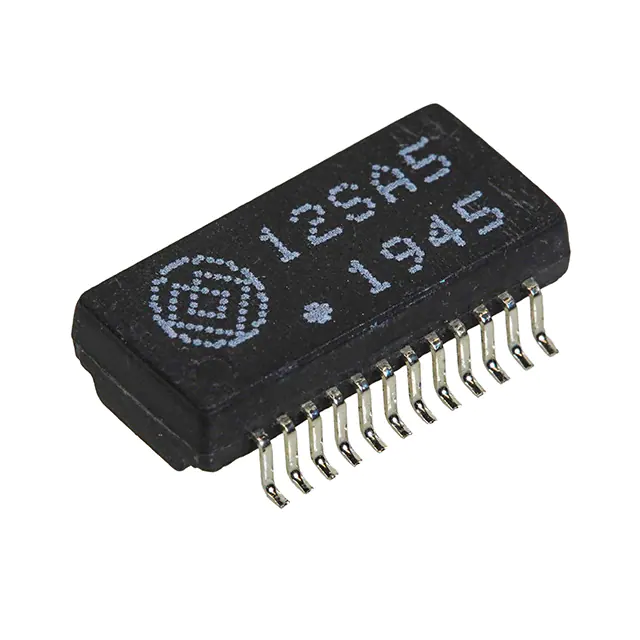

	RT12SA5-RU DISCRETE PULSE LAN XFMR 1G Mag Layers	3,101	0.00	RFQ	Datasheet	Tape & Reel (TR)	Transformer	Active	1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.158 (4.01mm)
