Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

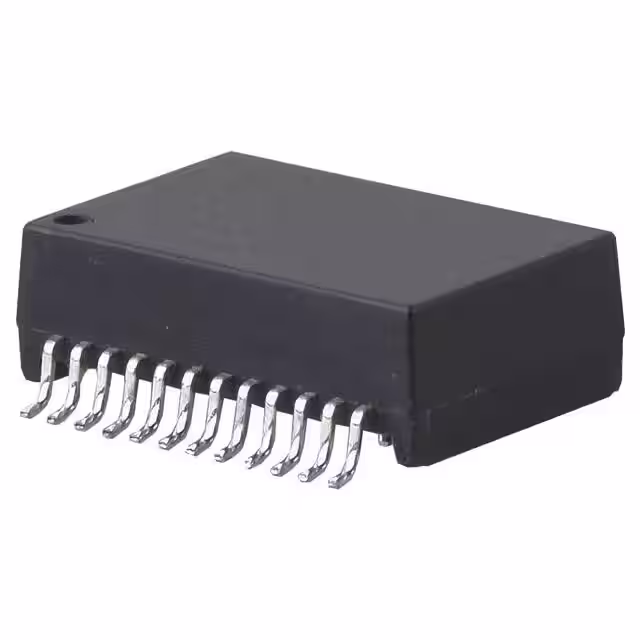

	KTFZ-DGS2401CC7-XXX TRANSFORMER LAN SINGLE 24PIN POE KinnexA	3,877	2.94	RFQ	Datasheet	Bulk	KTFZ	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

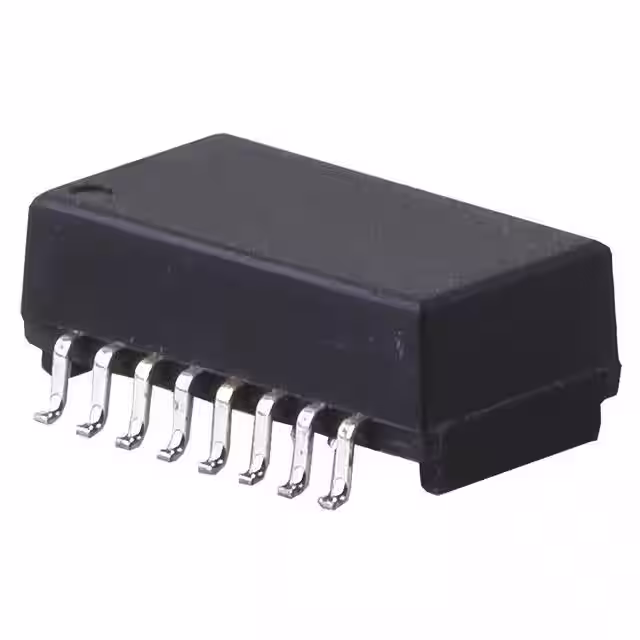

	KTFZ-DHS1605CCF-XXX TRANSFORMER LAN SINGLE 16PIN STD KinnexA	3,718	3.85	RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10/100 Base-T	350µH	-	1:1CT	Surface Mount	0.514 L x 0.272 W (13.05mm x 6.90mm)	0.248 (6.30mm)
	KTFZ-DHS1605HC9-XXX TRANSFORMER LAN SINGLE 16PIN STD KinnexA	2,958	3.85	RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10/100 Base-T	350µH	-	1:1CT	Surface Mount	0.514 L x 0.272 W (13.05mm x 6.90mm)	0.248 (6.30mm)
	KTFZ-DGS2401CAG-XXX TRANSFORMER LAN SINGLE 24PIN STD KinnexA	2,943	4.97	RFQ	Datasheet	Bulk	KTFZ	Active	-	350µH	-	1:1	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)
	KTFZ-DMS2401CA1-HA1 TRANSFORMER LAN SINGLE 24PIN STD KinnexA	3,339	6.73	RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.600 L x 0.539 W (15.24mm x 13.70mm)	0.334 (8.48mm)
	KTFZ-DMS2401CB1-HA1 TRANSFORMER LAN SINGLE 24PIN STD KinnexA	2,668	6.73	RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.600 L x 0.591 W (15.24mm x 15.00mm)	0.334 (8.48mm)

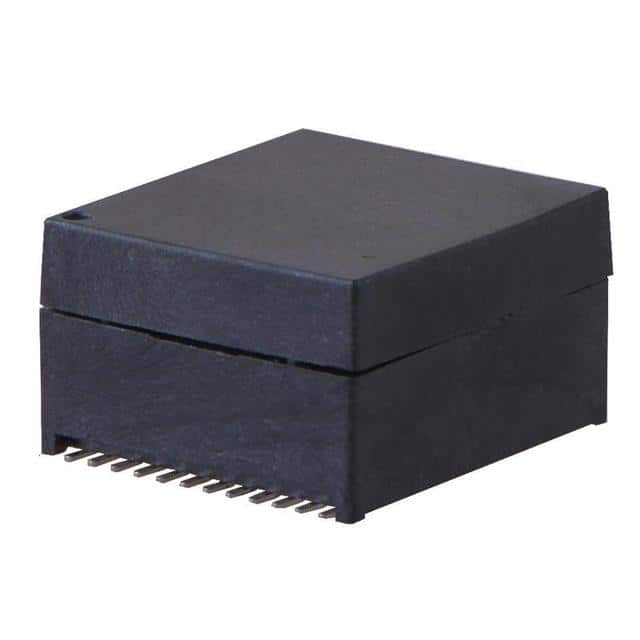

	KTFZ-DMS2402CB1-HA1 TRANSFORMER LAN SINGLE 24PIN STD KinnexA	3,319	7.31	RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.600 L x 0.591 W (15.24mm x 15.00mm)	0.334 (8.48mm)

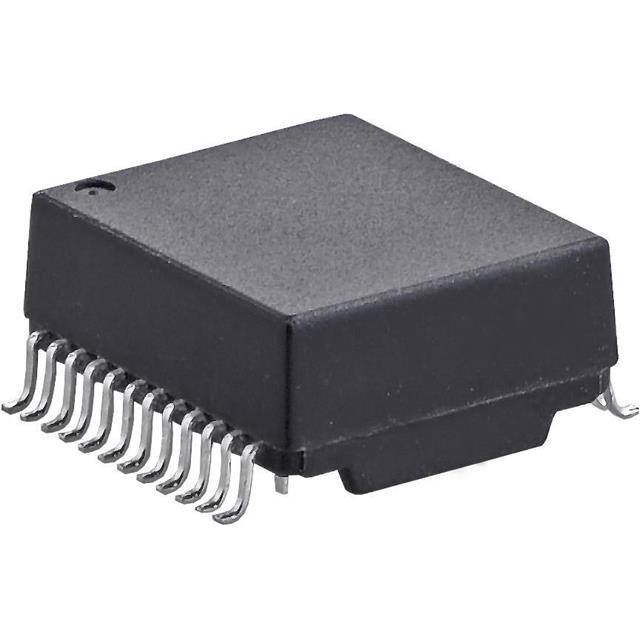

	KTFZ-DMS2402CA2-XXX TRANSFORMER LAN SINGLE 24PIN STD KinnexA	2,594	7.31	RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	160µH	-	1:1	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.236 (6.00mm)
