Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus TransformerType Inductance ET(Volt-Time) TurnsRatio-Primary:Secondary MountingType Size/Dimension Height-Seated(Max)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

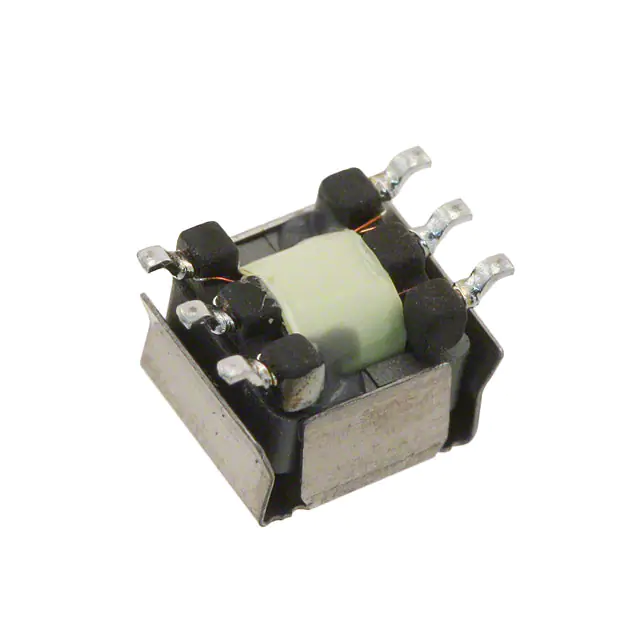

HM42-10002LFTR PULSE XFMR 2:1:1 300UH TT Electronics/BI Magnetics	502	3.58	RFQ	Datasheet	Cut Tape (CT)	HM42	Discontinued at Mosen	Gate Drive	300µH	40.4VµS	2:1:1	Surface Mount	0.260 L x 0.319 W (6.60mm x 8.10mm)	0.217 (5.50mm)

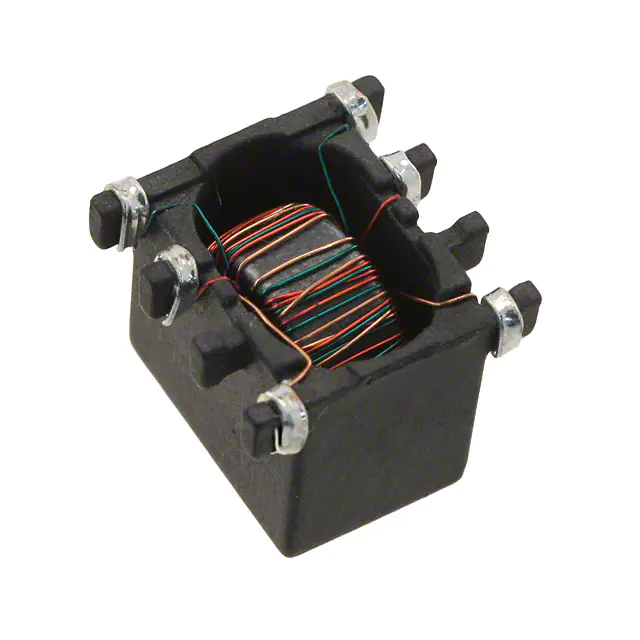

HM42-40004LFTR PULSE XFMR 2:1:1 1.2MH TT Electronics/BI Magnetics	3,117	4.89	RFQ	Datasheet	Cut Tape (CT)	HM42	Discontinued at Mosen	Gate Drive	1.2mH	45.4VµS	2:1:1	Surface Mount	0.362 L x 0.346 W (9.20mm x 8.80mm)	0.307 (7.80mm)

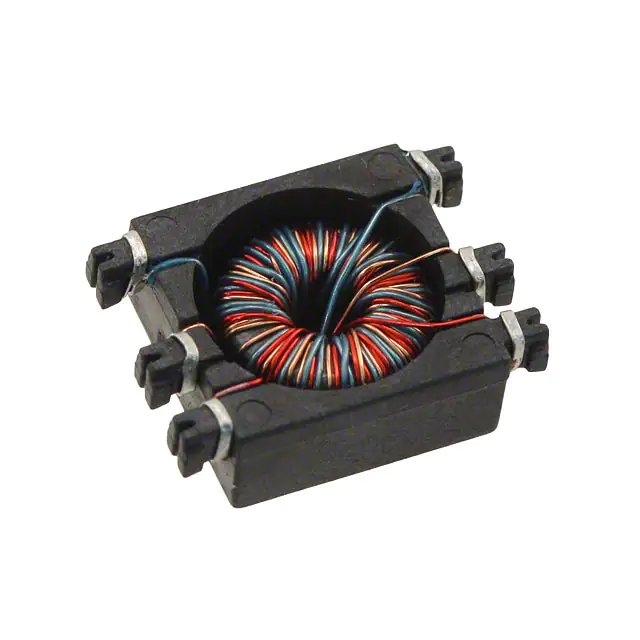

HM42-30001LFTR PULSE XFMR 1:1:1 980UH TT Electronics/BI Magnetics	163	7.71	RFQ	Datasheet	Cut Tape (CT)	HM42	Discontinued at Mosen	Gate Drive	980µH	30.2VµS	1:1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.161 (4.10mm)
