Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

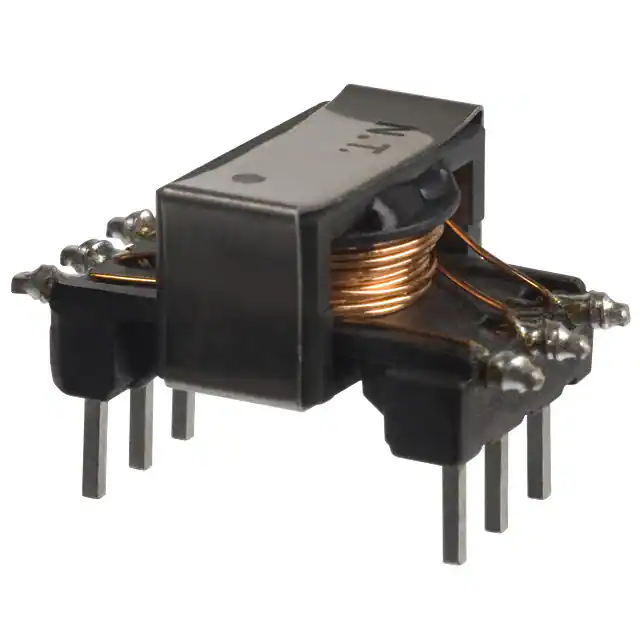

	S22133 TRANSFORMER FOR CS 8401,2:8411 Newava Technology Inc.	4,842	5.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	225µH	-	1:1	Through Hole	0.385 L x 0.650 W (9.78mm x 16.51mm)	0.250 (6.35mm)

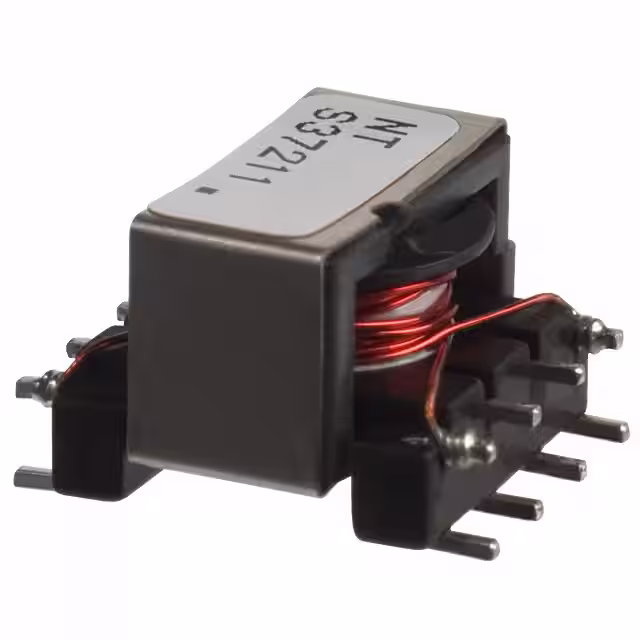

	S37211 PULSE XFMR 1:1 225UH Newava Technology Inc.	10,806	5.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	225µH	-	1:1	Surface Mount	0.400 L x 0.440 W (10.16mm x 11.18mm)	0.305 (7.75mm)

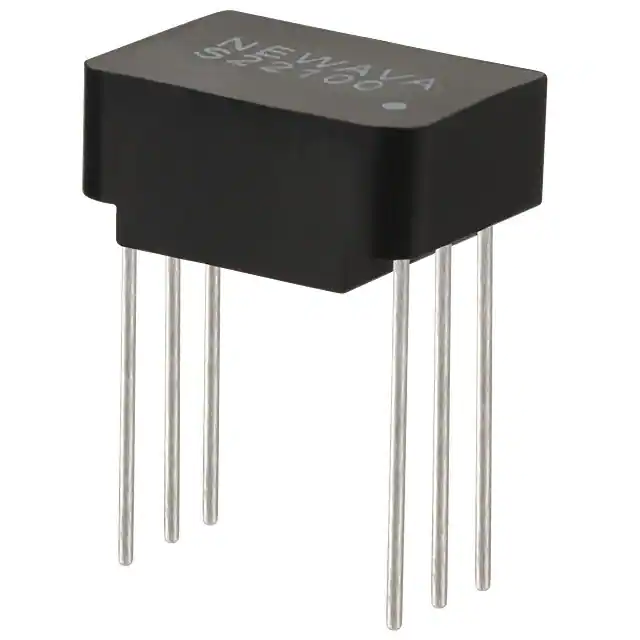

	S22100 TRANSFORMER FOR MAX 250/251 2MH Newava Technology Inc.	1,114	5.81	RFQ	Datasheet	Tube	-	Active	-	2mH	-	1:1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

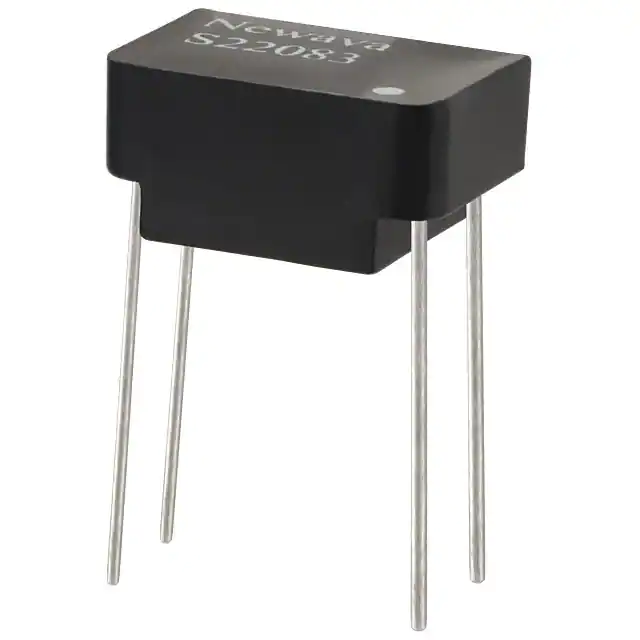

	S22083 TRANSFORMER ISOLATION DIG/AUDIO Newava Technology Inc.	670	5.81	RFQ	Datasheet	Bulk	-	Active	-	225µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
	S22523 TRANSFORMER FOR CS 8401,2:8411 Newava Technology Inc.	2,220	5.43	RFQ	Datasheet	Bulk	-	Active	-	225µH	-	-	Through Hole	0.385 L x 0.650 W (9.78mm x 16.51mm)	0.250 (6.35mm)

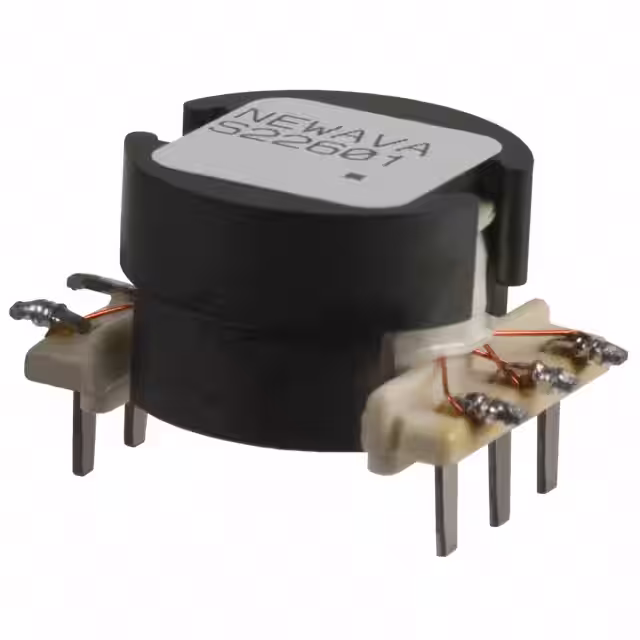

	S22601 TRANSFORMER 1CT:1TR 2.5MH Newava Technology Inc.	2,345	4.40	RFQ	Datasheet	Bulk	-	Active	-	2.5mH	-	1:1	Through Hole	0.550 L x 0.800 W (13.97mm x 20.32mm)	0.360 (9.14mm)
	S10951 PULSE XFMR 1CT:1CT 3.78MH 8.44MH Newava Technology Inc.	2,553	5.10	RFQ	Datasheet	Bulk	-	Active	-	3.78mH, 8.44mH	-	1CT:1CT	Through Hole	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.580 (14.73mm)
