Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

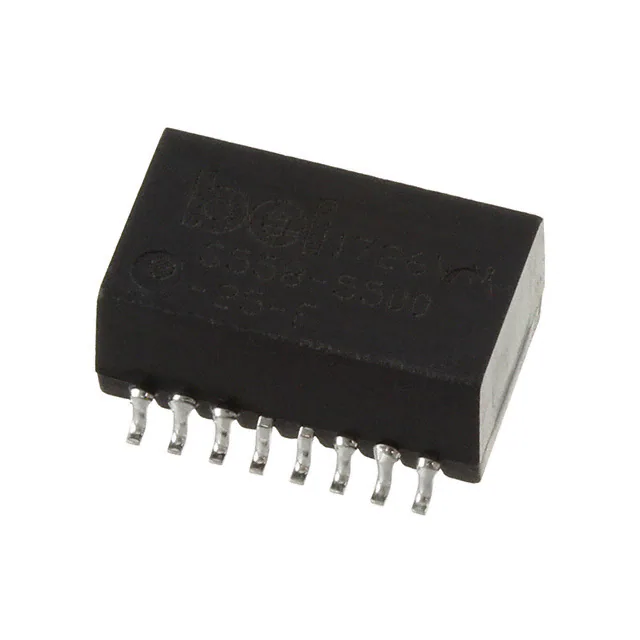

S558-5500-25-F MODULE XFRMR LAN 10/100 POE SMD Bel Fuse Inc.	39,037	2.27	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)
S558-5999-T7-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	28,854	2.73	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)
S558-5999-J1-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	5,710	2.73	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)
S558-5999-M8-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	9,642	3.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)

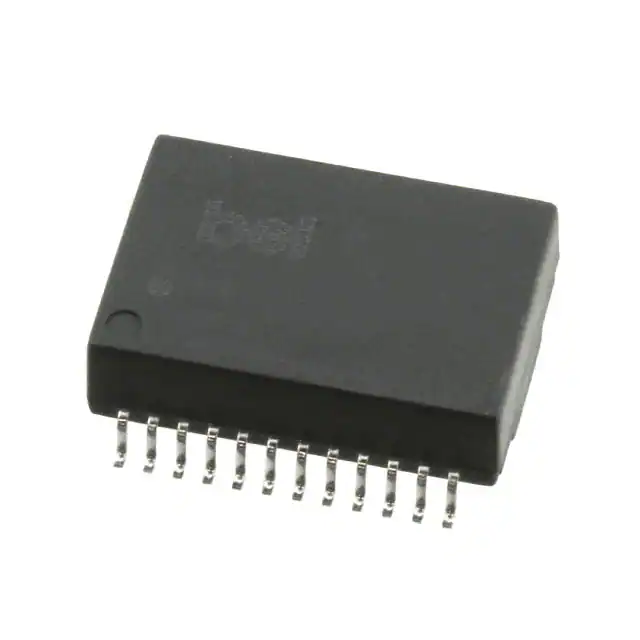

S558-5500-68 XFRMR MODULE LAN 10/100BT SMD Bel Fuse Inc.	21,230	4.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)

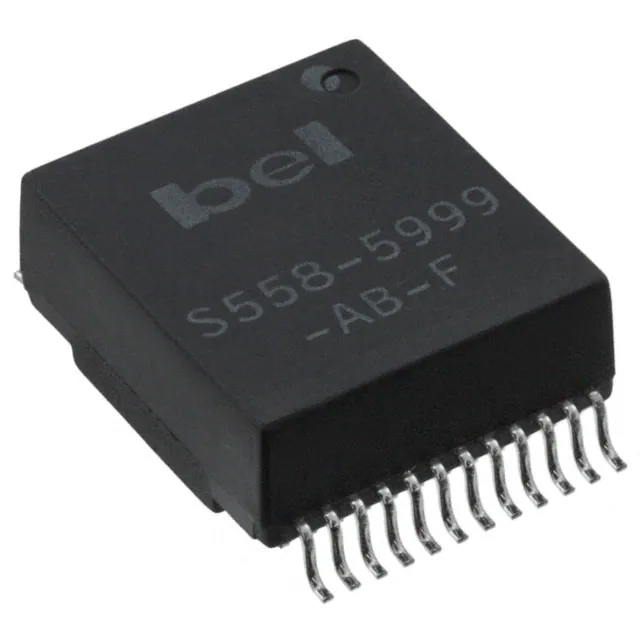

S558-5999-AB-F XFRMR MOD LAN GIGABIT EXTEMP 24P Bel Fuse Inc.	6,845	4.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.522 L x 0.600 W (13.26mm x 15.24mm)	0.250 (6.35mm)
S558-5999-AT-F XFRMR MOD LAN GIGABIT EXTEMP 24P Bel Fuse Inc.	15,079	5.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)
S558-5999-AC-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	1,674	6.06	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.522 L x 0.600 W (13.26mm x 15.24mm)	0.250 (6.35mm)

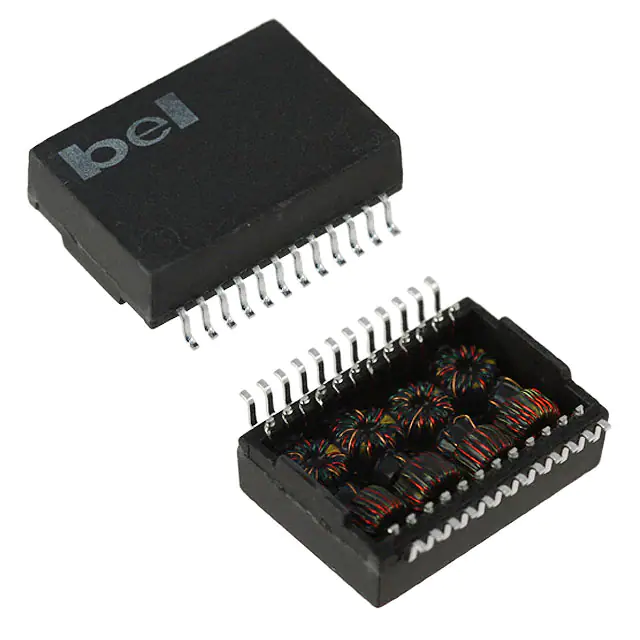

S558-5999-P3-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	14,943	6.31	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)

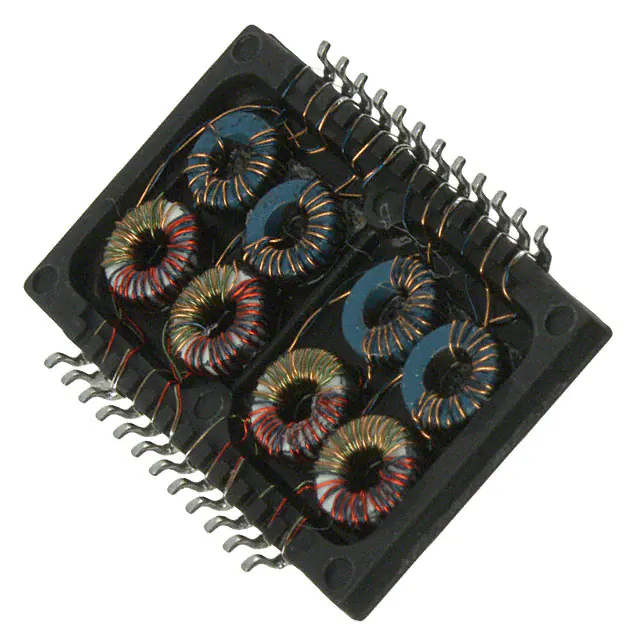

S558-5999-AZ-F MODULE XFRMR GIGABIT MINIPCI SMD Bel Fuse Inc.	2,474	7.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880 L x 0.540 W (22.35mm x 13.72mm)	0.084 (2.13mm)
S558-5999-Q2-F MODULE XFRMR LAN GIGABIT 48P SMD Bel Fuse Inc.	8,948	7.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)

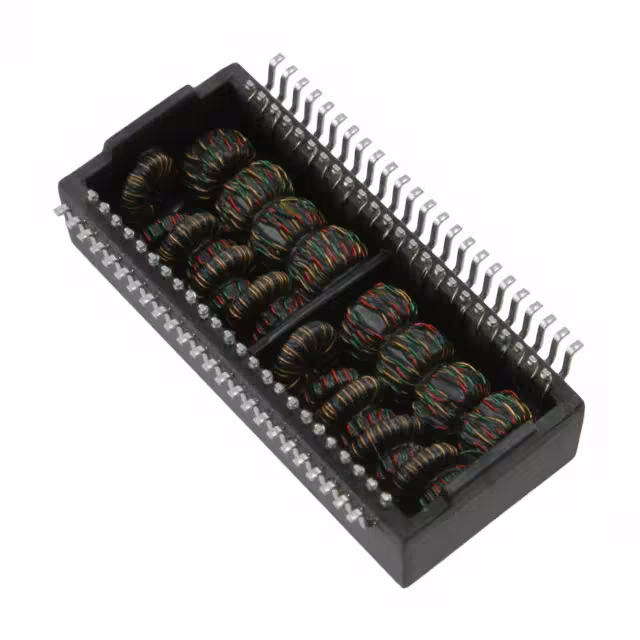

S558-5999-Q3-F MODULE XFRMR LAN GIGABIT 48P SMD Bel Fuse Inc.	2,788	9.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)
S558-5999-W2-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	2,836	2.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)
S558-5999-T3-F XFRMR MODULE LAN GIGABIT 24P SMD Bel Fuse Inc.	810	5.56	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.522 L x 0.600 W (13.26mm x 15.24mm)	0.250 (6.35mm)

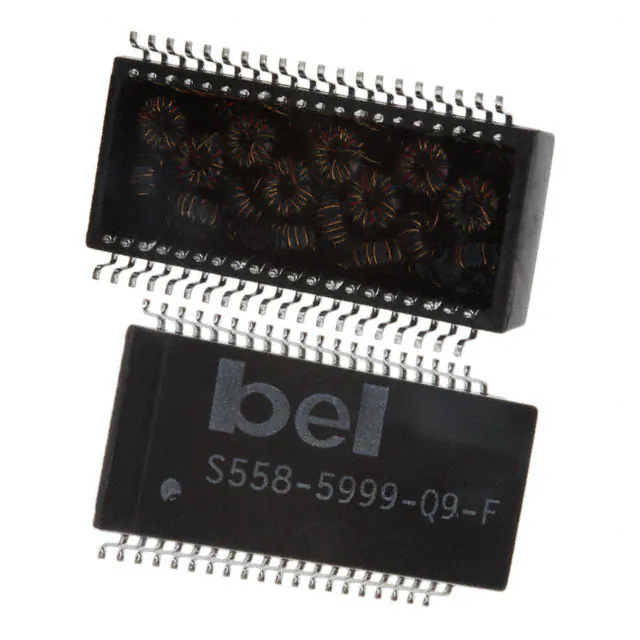

S558-5999-Q9-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	2,877	7.21	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.476 W (27.94mm x 12.09mm)	0.236 (5.99mm)
S558-5999-AM-F XFRMR MODULE LAN GIGABT MINIPCI Bel Fuse Inc.	1,750	7.07	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880 L x 0.540 W (22.35mm x 13.72mm)	0.084 (2.13mm)

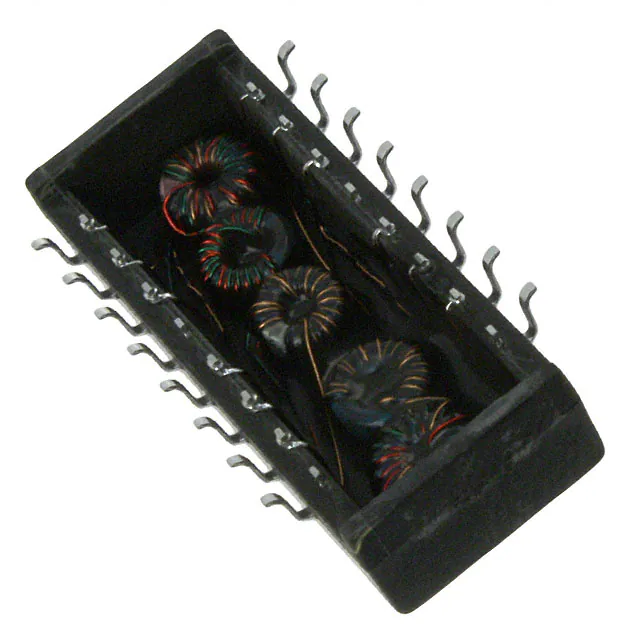

S558-5999-46-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	1,119	4.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	420µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.235 (5.97mm)
S558-5999-AN-F MODULE XFRMR GIGABIT MINIPCI SMD Bel Fuse Inc.	1,652	9.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880 L x 0.540 W (22.35mm x 13.72mm)	0.084 (2.13mm)

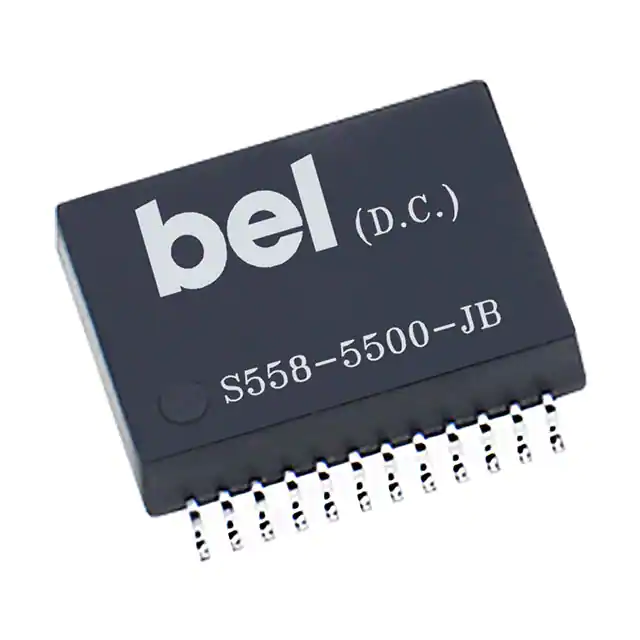

S558-5500-JB MODULE XFRMR LAN 1G 2.5G POE SMD Bel Fuse Inc.	819	4.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 1/2.5 GBase-T, Power over Ethernet (PoE)	120µH	-	1CT:1CT	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.225 (5.71mm)

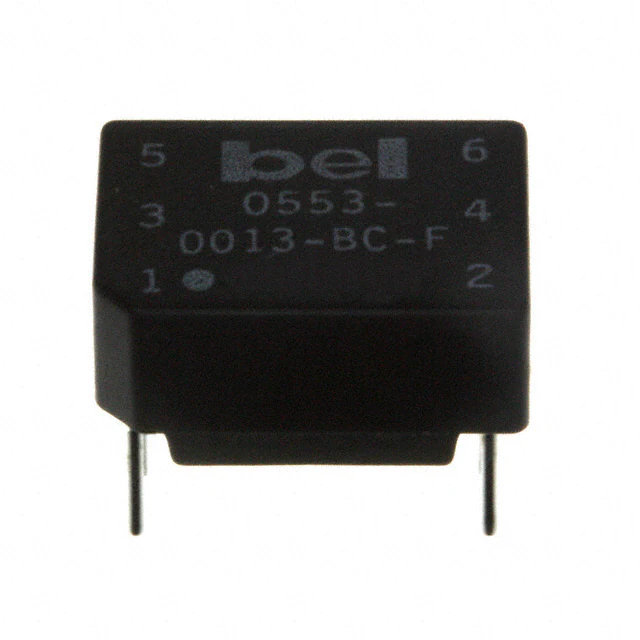

0553-0013-BC-F MODULE XFRMR LAN T1/E1 PCB Bel Fuse Inc.	2,094	3.05	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
