Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

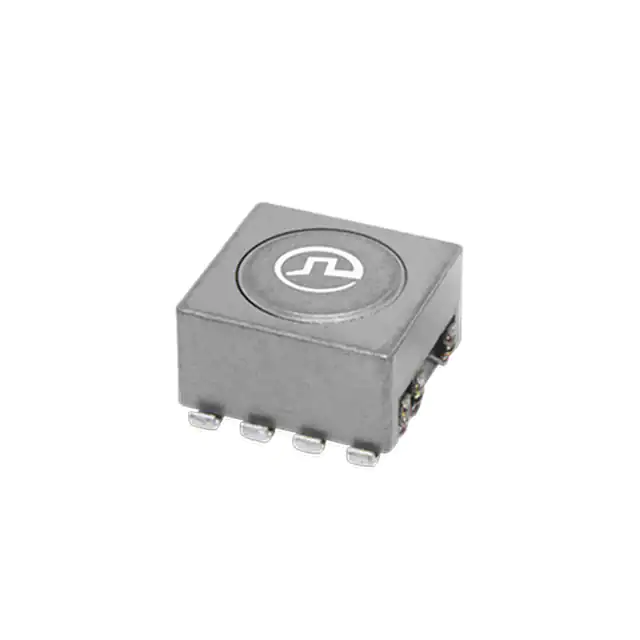

PH9585.002NLT XFMR FLYBACK DRUM CORE 6V 0.40A Pulse Electronics Power	4,760	2.55	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
PH9585.001NLT XFMR FLYBACK DRUM CORE 12V 0.25A Pulse Electronics Power	4,790	2.55	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
PH9585.004NLT XFMR FLYBACK DRUM CORE 24V .125A Pulse Electronics Power	4,780	2.55	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
PH9585.003NLT XFMR FLYBACK DRUM CORE 12V 0.25A Pulse Electronics Power	4,790	2.55	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
DPC-28-160B50 DPC-28-160B50 Pulse Electronics Power	983	10.14	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
PC-24-180B18 PC-24-180B18 Pulse Electronics Power	3,448	13.55	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-

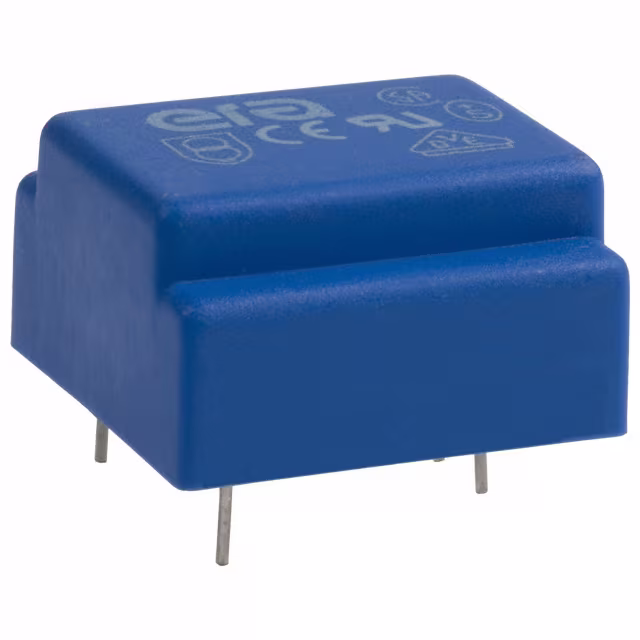

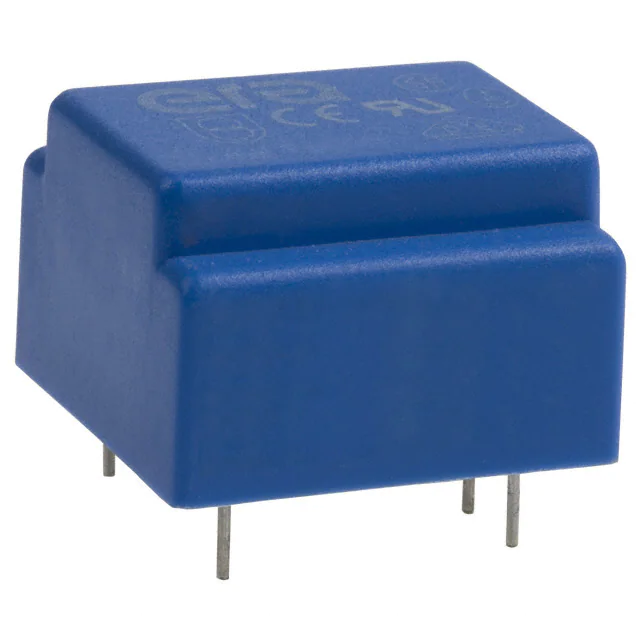

BV030-6458.0 PWR XFMR LAMINATED 2VA TH Pulse Electronics Power	3,289	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 166mA, Series 83mA	Dual	Dual	No	2VA	Through Hole	PC Pin	32.50mm L x 27.50mm W	27.00mm	-
BV030-6461.0 PWR XFMR LAMINATED 2VA TH Pulse Electronics Power	2,870	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 132mA, Series 66mA	Dual	Dual	No	2VA	Through Hole	PC Pin	32.50mm L x 27.50mm W	27.00mm	-
BV030-6800.0 PWR XFMR LAMINATED 2.3VA TH Pulse Electronics Power	2,483	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	9V	256mA	Dual	Single	No	2.3VA	Through Hole	PC Pin	32.50mm L x 27.50mm W	29.00mm	-
BV030-6806.0 PWR XFMR LAMINATED 2.3VA TH Pulse Electronics Power	3,805	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	15V	154mA	Dual	Single	No	2.3VA	Through Hole	PC Pin	32.50mm L x 27.50mm W	29.00mm	-
BV030-6815.0 PWR XFMR LAMINATED 2.3VA TH Pulse Electronics Power	3,576	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	24V	96mA	Dual	Single	No	2.3VA	Through Hole	PC Pin	32.50mm L x 27.50mm W	29.00mm	-
BV020-5470.0 PWR XFMR LAMINATED 0.08VA CHAS Pulse Electronics Power	2,138	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	6V	13.3mA	Single	Single	No	0.08VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	12.00mm	-
BV020-5480.0 PWR XFMR LAMINATED 0.08VA CHAS Pulse Electronics Power	2,934	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	6V	13.3mA	Single	Single	No	0.08VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	12.00mm	-
BV020-5482.0 PWR XFMR LAMINATED 0.08VA CHAS Pulse Electronics Power	2,255	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	12V	6.67mA	Single	Single	No	0.08VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	12.00mm	-
BV020-5411.0 PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics Power	2,476	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	6V	58mA	Single	Single	No	0.35VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	15.00mm	-
BV020-5413.0 PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics Power	3,613	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	12V	29mA	Single	Single	No	0.35VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	15.00mm	-
BV020-5416.0 PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics Power	2,636	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	24V	14mA	Single	Single	No	0.35VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	15.00mm	-
BV020-5423.0 PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics Power	2,342	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	6V	58mA	Single	Single	No	0.35VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	15.00mm	-
BV020-5425.0 PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics Power	3,801	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	12V	29mA	Single	Single	No	0.35VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	15.00mm	-
BV020-5428.0 PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics Power	3,981	0.00	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	24V	14mA	Single	Single	No	0.35VA	Chassis Mount	PC Pin	22.00mm L x 23.00mm W	15.00mm	-
