Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
ST-3-28 PWR XFMR LAMINATED 2.4VA TH Signal Transformer	4,348	10.65	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 170mA, Series 85mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms
ST-3-24 PWR XFMR LAMINATED 2.4VA TH Signal Transformer	12,110	10.65	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms

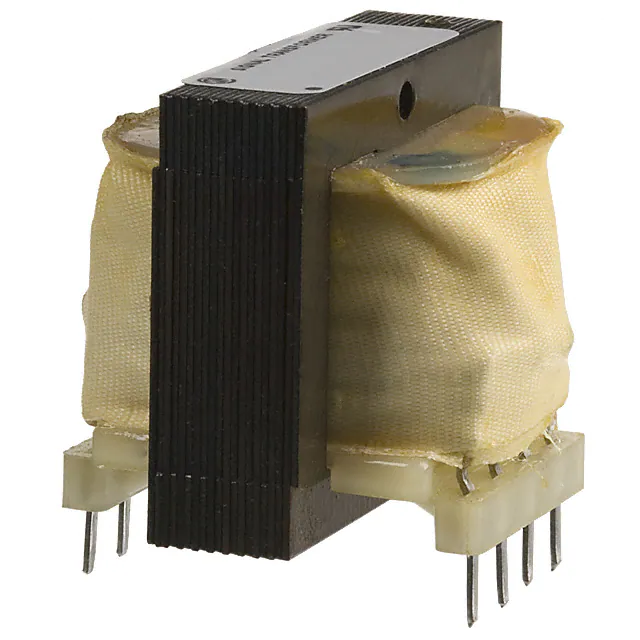

DPC-12-100 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	1,777	11.50	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 200mA, Series 100mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
ST-4-24 PWR XFMR LAMINATED 6VA TH Signal Transformer	4,395	11.64	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms

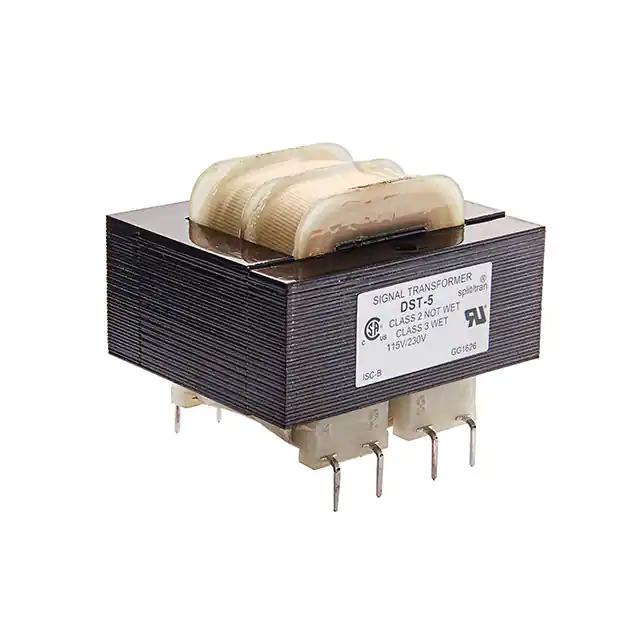

DST-4-16 PWR XFMR LAMINATED 6VA TH Signal Transformer	6,210	13.32	RFQ	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 800mA, Series 400mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms
DST-4-24 PWR XFMR LAMINATED 6VA TH Signal Transformer	1,140	13.32	RFQ	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms
DST-4-36 PWR XFMR LAMINATED 6VA TH Signal Transformer	1,250	13.32	RFQ	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms

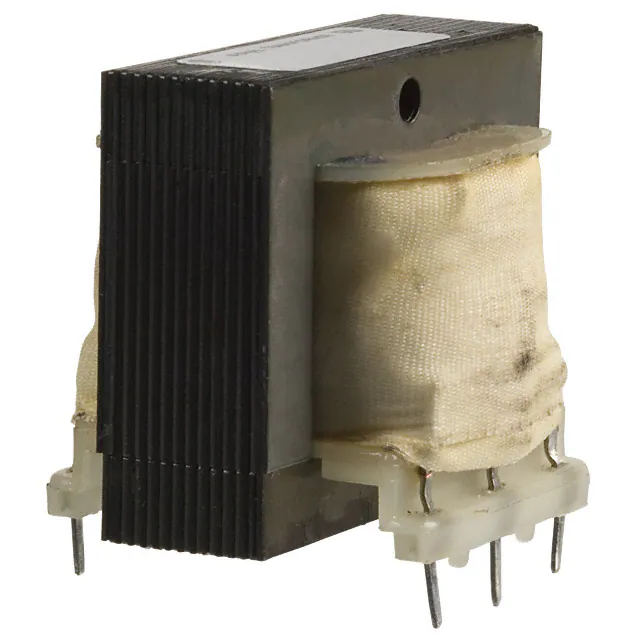

PC-16-260 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	2,100	14.02	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 520mA, Series 260mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms

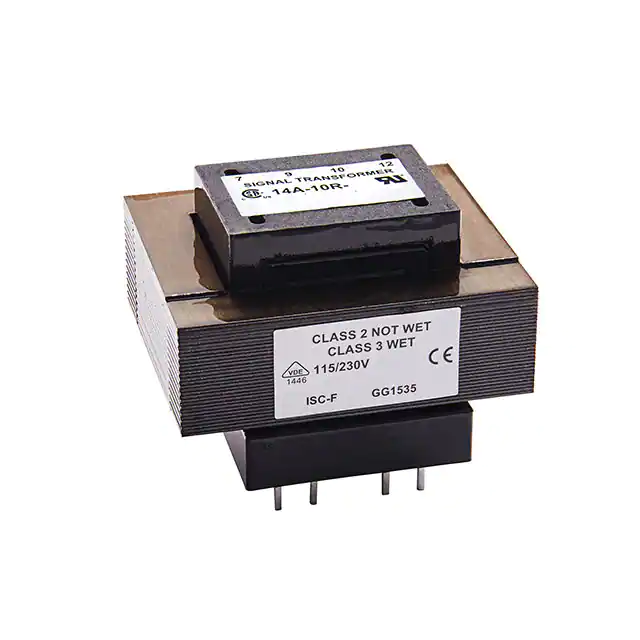

14A-10R-12 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,842	14.05	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1.6A, Series 800mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	34.90mm	4000Vrms
14A-10R-20 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,204	14.05	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1A, Series 500mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	34.90mm	4000Vrms
14A-10R-36 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,846	14.05	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 560mA, Series 280mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	34.90mm	4000Vrms
14A-10R-28 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,805	14.05	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 720mA, Series 360mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	34.90mm	4000Vrms
DPC-10-90 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,154	14.69	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 180mA, Series 90mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
DST-5-24 PWR XFMR LAMINATED 12VA TH Signal Transformer	1,727	15.42	RFQ	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 1A, Series 500mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.80mm L x 39.60mm W	36.90mm	2500Vrms

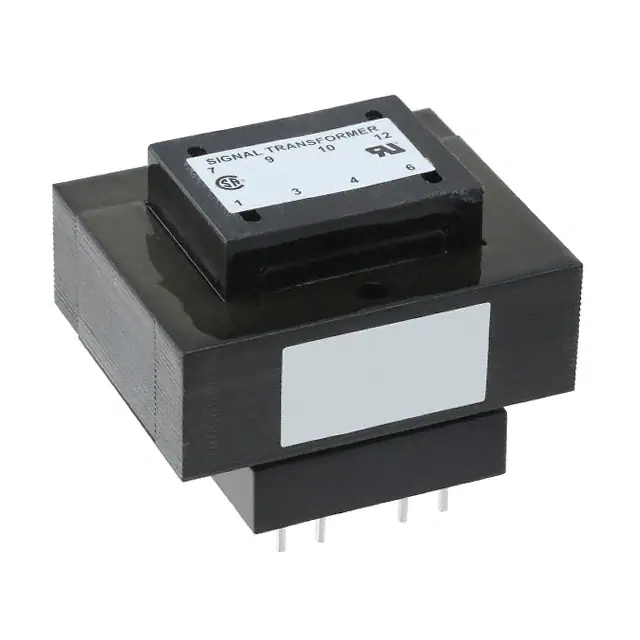

CL2-10R-24 PWR XFMR LAMINATED 10VA TH Signal Transformer	4,263	15.59	RFQ	Datasheet	Box	CL2	Active	Laminated Core	115V, 230V	24V	420mA	Dual	Single	No	10VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	34.90mm	4000Vrms

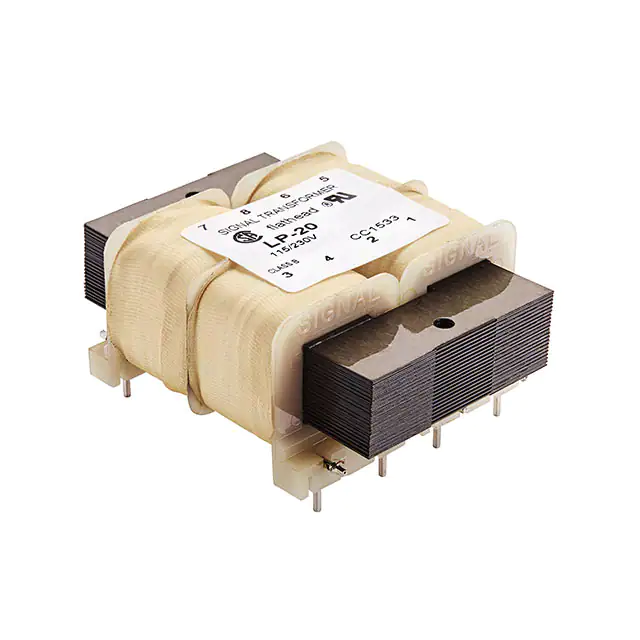

LP-34-170 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	403	16.06	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 340mA, Series 170mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms

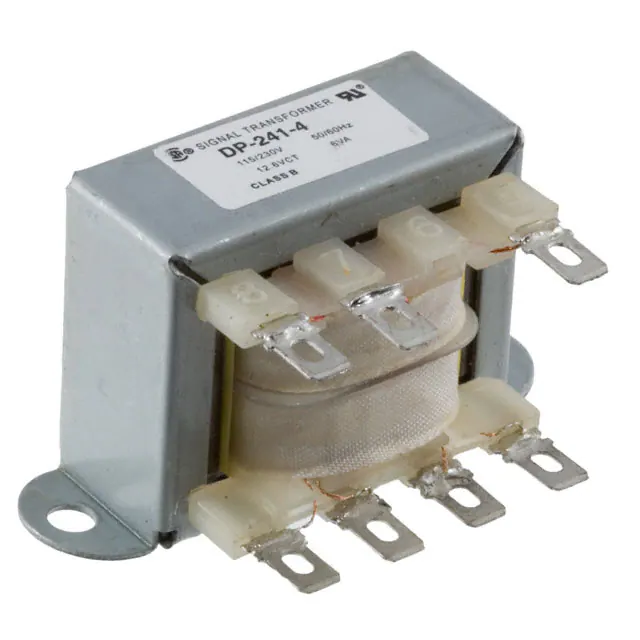

DP-241-5-24 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,272	16.09	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	24V	500mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms
14A-20-28 PWR XFMR LAMINATED 20VA TH Signal Transformer	1,407	16.65	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.44A, Series 720mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms
14A-20-36 PWR XFMR LAMINATED 20VA TH Signal Transformer	1,254	16.65	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.12A, Series 560mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms
LP-34-340 PWR XFMR SEMI-TORO 12VA TH Signal Transformer	3,341	17.52	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 680mA, Series 340mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms
