Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType

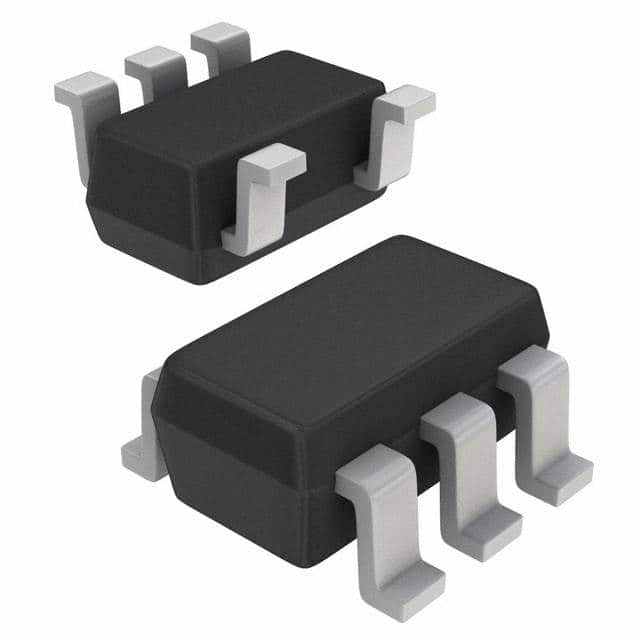

FAN3111ESX IC GATE DRVR LOW-SIDE SOT23-5 onsemi	2,330	0.96	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	4.5V ~ 18V	-	1.4A, 1.4A	Non-Inverting	-	9ns, 8ns	-40°C ~ 150°C (TJ)	Surface Mount
NCP5106BDR2G IC GATE DRVR HALF-BRIDGE 8SOIC onsemi	2,511	1.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.3V	250mA, 500mA	Non-Inverting	600 V	85ns, 35ns	-40°C ~ 125°C (TJ)	Surface Mount
FAN3180TSX IC GATE DRVR LOW-SIDE SOT23-5 onsemi	3,705	1.48	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	5V ~ 18V	0.8V, 2V	2.5A, 2.8A	Non-Inverting	-	19ns, 13ns	-40°C ~ 125°C (TJ)	Surface Mount
NCP81074BDR2G IC GATE DRVR LOW-SIDE 8SOIC onsemi	3,290	1.62	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	4.5V ~ 20V	-	10A, 10A	Inverting, Non-Inverting	-	4ns, 4ns	-40°C ~ 150°C (TJ)	Surface Mount
MC33152DR2G IC GATE DRVR LOW-SIDE 8SOIC onsemi	2,733	1.75	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel MOSFET	6.1V ~ 18V	0.8V, 2.6V	1.5A, 1.5A	Non-Inverting	-	36ns, 32ns	-40°C ~ 150°C (TJ)	Surface Mount

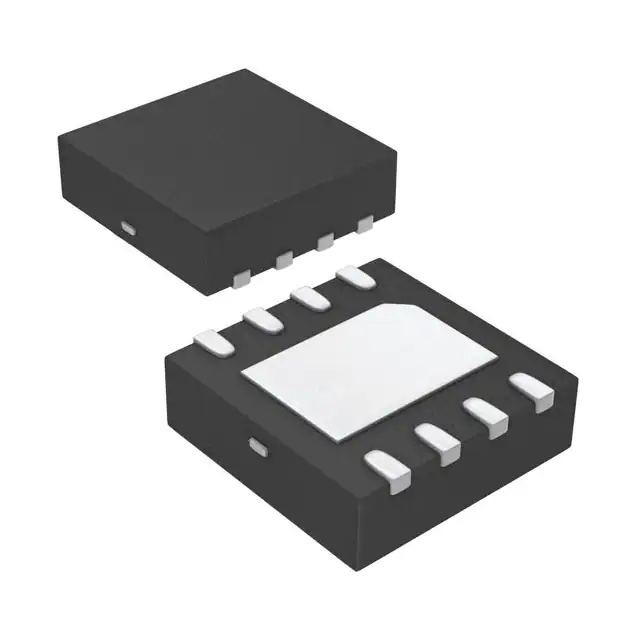

FAN3224TMPX IC GATE DRVR LOW-SIDE 8MLP onsemi	2,690	2.30	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	5A, 5A	Non-Inverting	-	12ns, 9ns	-40°C ~ 125°C (TA)	Surface Mount
MC33153DR2G IC GATE DRVR LOW-SIDE 8SOIC onsemi	2,859	2.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	11V ~ 20V	1.2V, 3.2V	1A, 2A	Inverting	-	17ns, 17ns	-40°C ~ 150°C (TJ)	Surface Mount
FAN7888MX IC GATE DRVR HALF-BRIDGE 20SOIC onsemi	3,492	2.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	3-Phase	6	IGBT, N-Channel MOSFET	10V ~ 20V	1V, 2.5V	350mA, 650mA	Non-Inverting	200 V	50ns, 30ns	-40°C ~ 150°C (TJ)	Surface Mount
FAN7388MX IC GATE DRVR HALF-BRIDGE 20SOIC onsemi	3,575	2.99	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	3-Phase	6	IGBT, N-Channel MOSFET	10V ~ 20V	1V, 2.5V	350mA, 650mA	Non-Inverting	600 V	50ns, 30ns	-40°C ~ 150°C (TJ)	Surface Mount

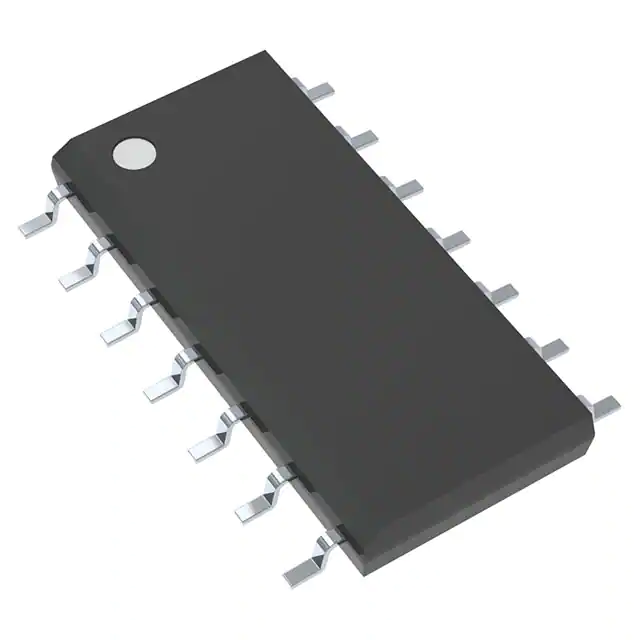

FAN7393AMX IC GATE DRVR HALF-BRIDGE 14SOP onsemi	2,478	3.21	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	2.5A, 2.5A	Non-Inverting	600 V	25ns, 15ns	-40°C ~ 150°C (TJ)	Surface Mount

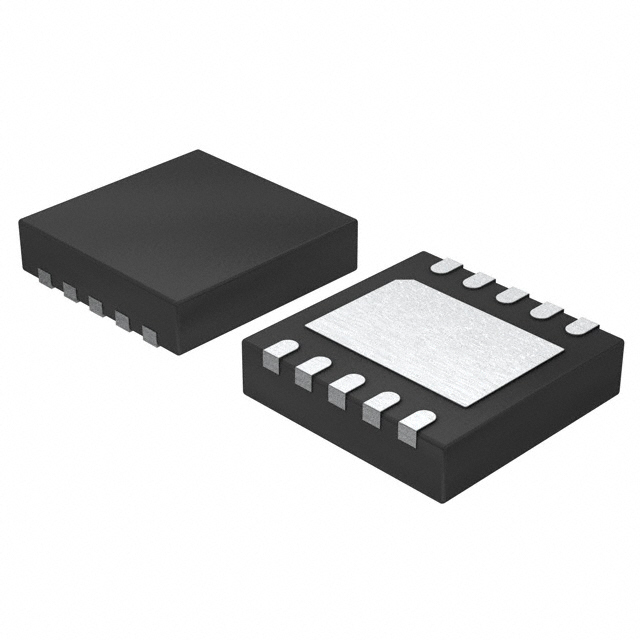

FAN8811TMPX IC GATE DRVR HALF-BRIDGE 10MLP onsemi	3,423	3.23	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 16V	1.3V, 2.5V	3A, 6A	Non-Inverting	118 V	6ns, 4ns	-40°C ~ 125°C (TJ)	Surface Mount

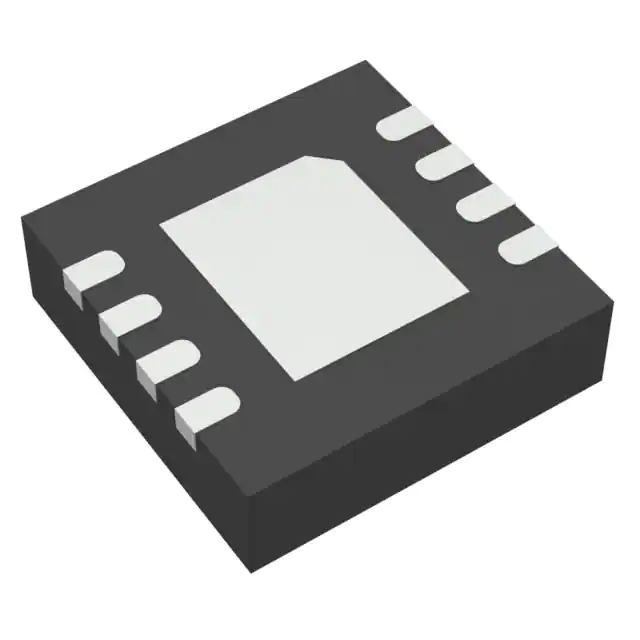

ADP3110AKCPZ-RL IC GATE DRVR HALF-BRIDGE 8DFN onsemi	2,526	0.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	4.6V ~ 13.2V	0.8V, 2V	-	Inverting, Non-Inverting	35 V	20ns, 11ns	0°C ~ 150°C (TJ)	Surface Mount
NCP5109ADR2G IC GATE DRVR HALF-BRIDGE 8SOIC onsemi	2,714	1.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.3V	250mA, 500mA	Non-Inverting	200 V	85ns, 35ns	-40°C ~ 125°C (TJ)	Surface Mount
FAN3224TMX IC GATE DRVR LOW-SIDE 8SOIC onsemi	3,606	1.33	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	5A, 5A	Non-Inverting	-	12ns, 9ns	-40°C ~ 125°C (TA)	Surface Mount
FAN3225TMX IC GATE DRVR LOW-SIDE 8SOIC onsemi	3,375	1.69	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	5A, 5A	Inverting, Non-Inverting	-	12ns, 9ns	-40°C ~ 125°C (TA)	Surface Mount
MC33151DR2G IC GATE DRVR LOW-SIDE 8SOIC onsemi	2,774	2.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel MOSFET	6.5V ~ 18V	0.8V, 2.6V	1.5A, 1.5A	Inverting	-	31ns, 32ns	-40°C ~ 150°C (TJ)	Surface Mount
FAN3122CMPX IC GATE DRVR LOW-SIDE 8MLP onsemi	3,951	2.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	4.5V ~ 18V	-	10.6A, 11.4A	Non-Inverting	-	23ns, 19ns	-55°C ~ 150°C (TJ)	Surface Mount
MC34152DG IC GATE DRVR LOW-SIDE 8SOIC onsemi	775	1.46	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	6.1V ~ 18V	0.8V, 2.6V	1.5A, 1.5A	Non-Inverting	-	36ns, 32ns	0°C ~ 150°C (TJ)	Surface Mount
MC33152DG IC GATE DRVR LOW-SIDE 8SOIC onsemi	2,903	1.72	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	6.1V ~ 18V	0.8V, 2.6V	1.5A, 1.5A	Non-Inverting	-	36ns, 32ns	-40°C ~ 150°C (TJ)	Surface Mount
FAN73912MX IC GATE DRVR HALF-BRIDGE 16SOIC onsemi	3,307	4.15	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	IGBT, N-Channel, P-Channel MOSFET	12V ~ 20V	6V, 9.5V	2A, 3A	-	1200 V	25ns, 15ns	-40°C ~ 150°C (TJ)	Surface Mount
