Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType

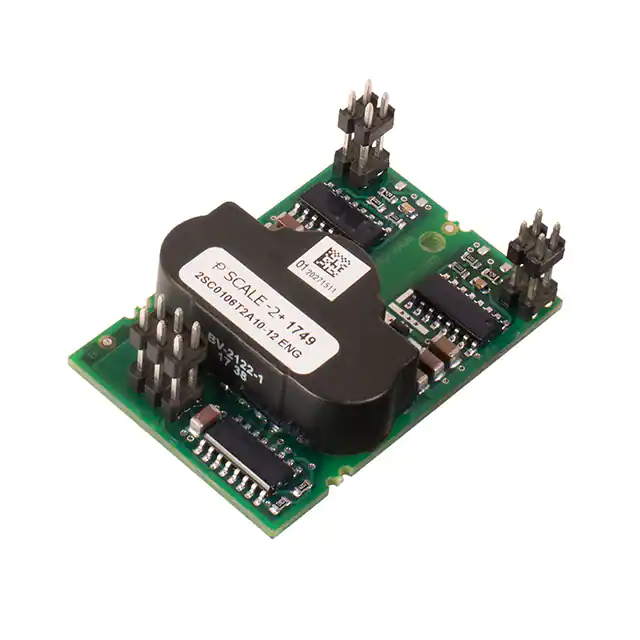

2SC0106T2A1-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	324	30.41	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	6A, 6A	-	1200 V	20ns, 13ns	-40°C ~ 105°C (TA)	Surface Mount

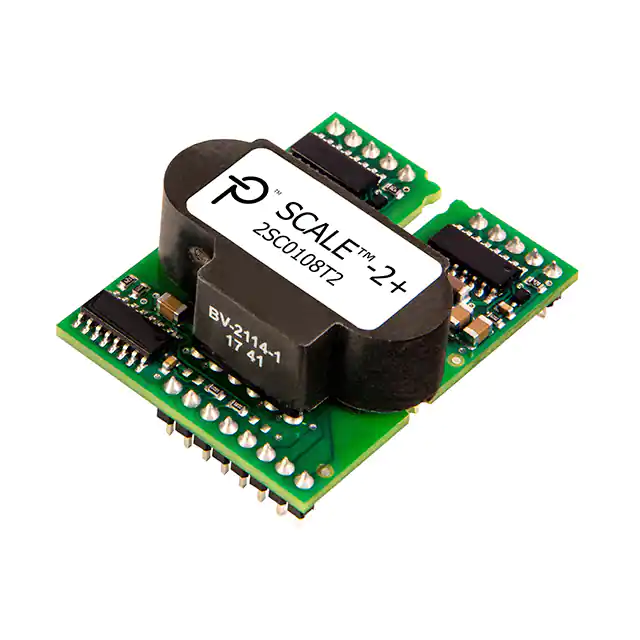

2SC0108T2G0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	243	56.37	RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 8A	-	1700 V	17ns, 15ns	-40°C ~ 85°C (TA)	Surface Mount
2SC0108T2D0-12 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	432	68.23	RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 8A	-	1200 V	17ns, 15ns	-40°C ~ 85°C (TA)	Surface Mount

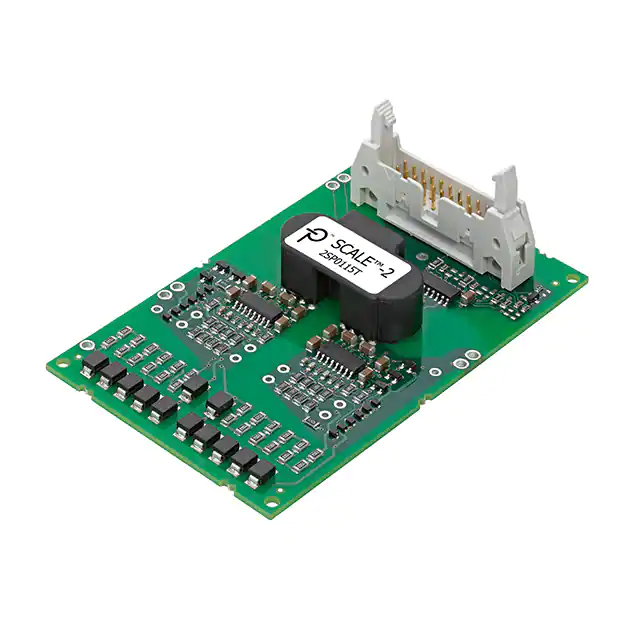

2SP0115T2B0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	138	105.00	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 15A	-	1200 V	5ns, 10ns	-20°C ~ 85°C (TA)	Surface Mount

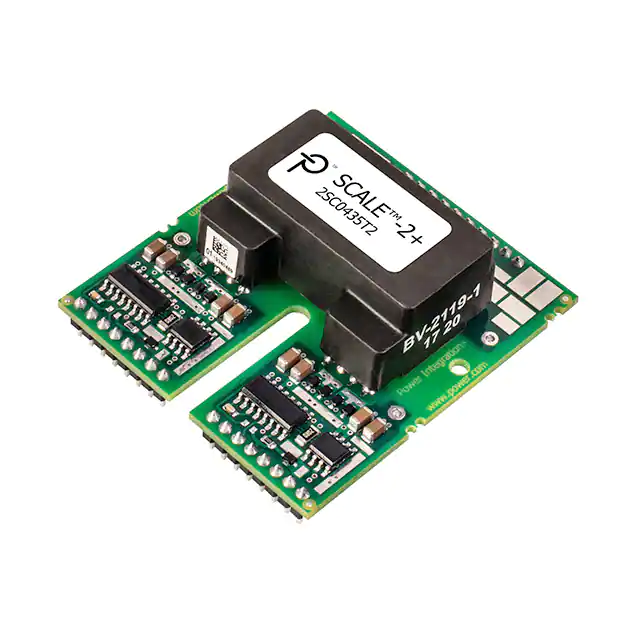

2SC0435T2H0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	612	105.69	RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT, N-Channel, P-Channel MOSFET	14.5V ~ 15.5V	-	35A, 35A	-	1700 V	20ns, 20ns	-40°C ~ 85°C (TA)	Surface Mount
2SC0435T2F1-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	509	105.69	RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	1700 V	20ns, 20ns	-40°C ~ 85°C (TA)	Surface Mount

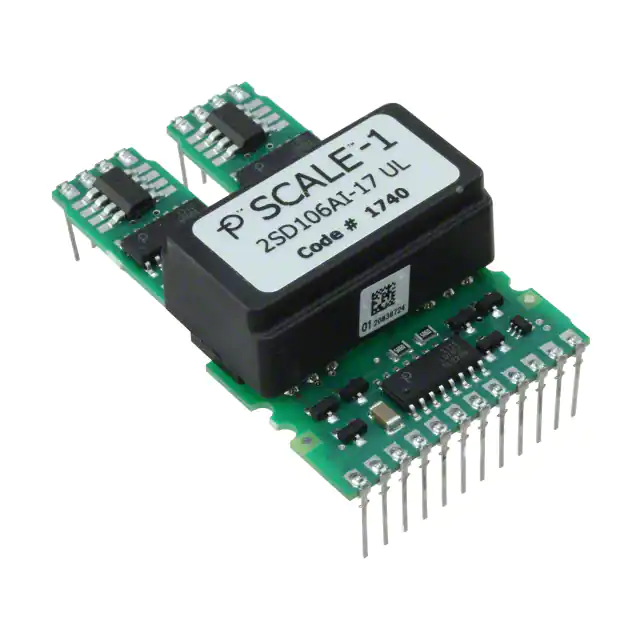

2SD106AI-17 UL IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	177	108.48	RFQ	Datasheet	Tray	SCALE™-1	Not For New Designs	Half-Bridge	-	2	IGBT, N-Channel, P-Channel MOSFET	15V	-	6A, 6A	-	-	100ns, 80ns	-40°C ~ 85°C (TA)	Surface Mount

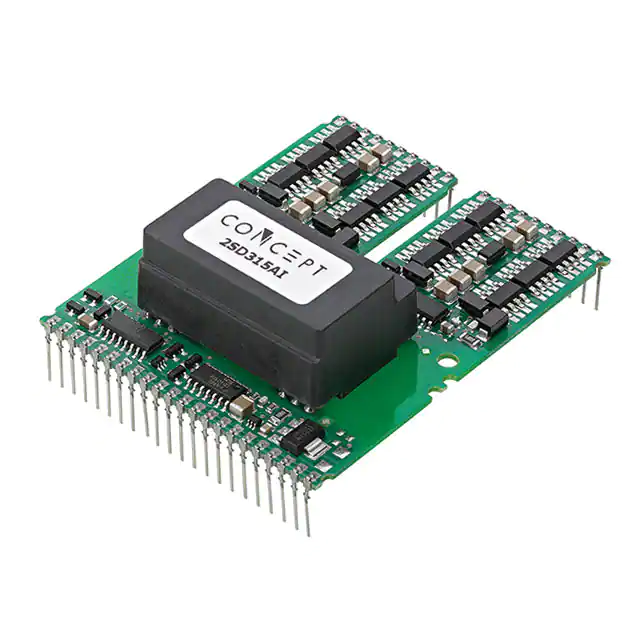

2SD315AI IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	356	118.75	RFQ	Datasheet	Tray	SCALE™-1	Active	Half-Bridge	-	2	IGBT, N-Channel, P-Channel MOSFET	-	-	18A, 18A	-	-	160ns, 130ns	-40°C ~ 85°C	Through Hole

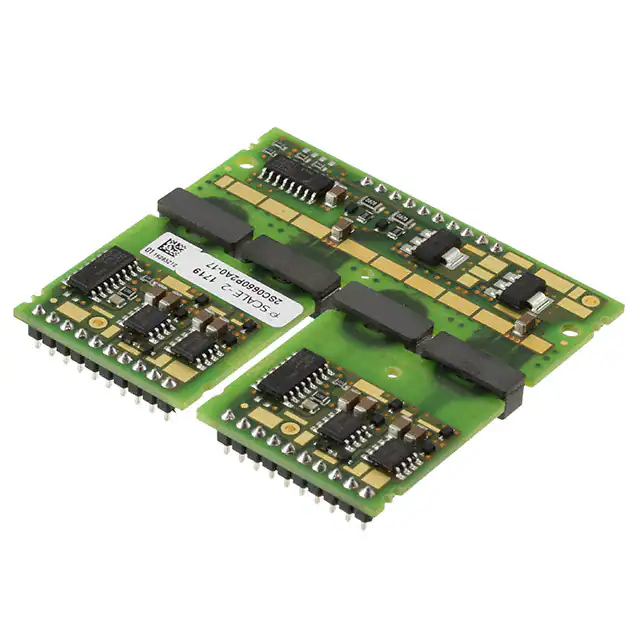

2SC0650P2A0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	3,311	178.26	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	50A, 50A	-	1700 V	25ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount

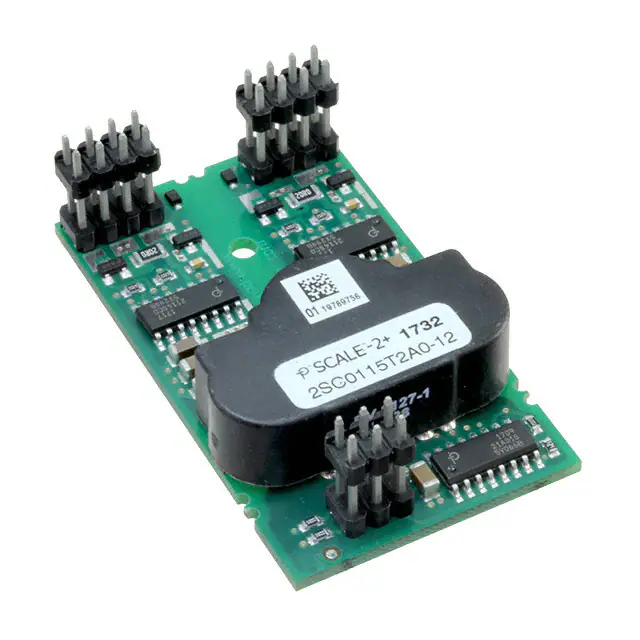

2SC0115T2A0-12 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	2,928	38.01	RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	15A, 15A	-	1200 V	6ns, 12ns	-40°C ~ 105°C (TA)	Surface Mount
2SP0115T2A0-17 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	139	95.45	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 15A	-	1700 V	5ns, 10ns	-20°C ~ 85°C (TA)	Surface Mount
2SP0115T2B0-17 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	2,587	105.00	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 15A	-	1700 V	5ns, 10ns	-20°C ~ 85°C (TA)	Surface Mount

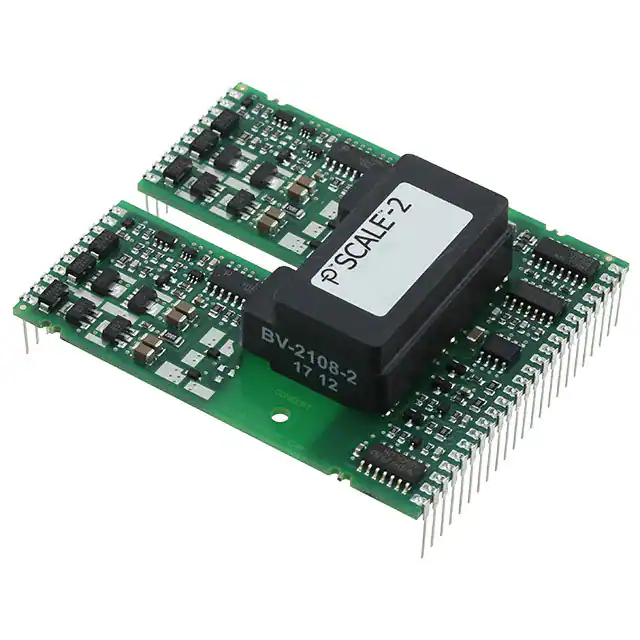

2SD300C17A4 IC GATE DRVR HALF-BRIDGE 1700V Power Integrations	3,174	133.87	RFQ		Tray	SCALE™-2	Active	Half-Bridge	-	2	IGBT	14V ~ 16V	-	30A, 30A	-	-	-	-40°C ~ 85°C (TA)	Through Hole

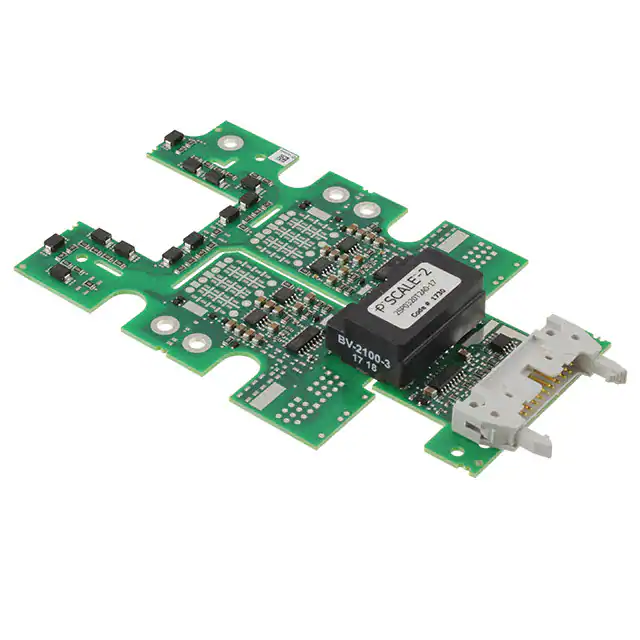

2SP0320T2A0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	3,512	193.16	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1200 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0320V2A0-17 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	3,029	201.40	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1700 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount

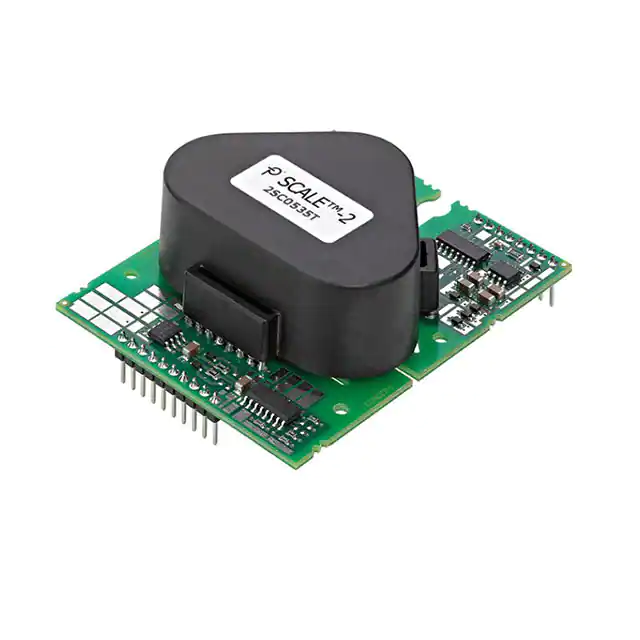

2SC0535T2G0-33 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	126	202.93	RFQ	Datasheet	Box	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	3300 V	20ns, 25ns	-55°C ~ 85°C (TA)	Surface Mount
2SD300C17A1 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	3,924	133.87	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	-	2	IGBT	14V ~ 16V	-	30A, 30A	-	-	-	-40°C ~ 85°C (TA)	Through Hole

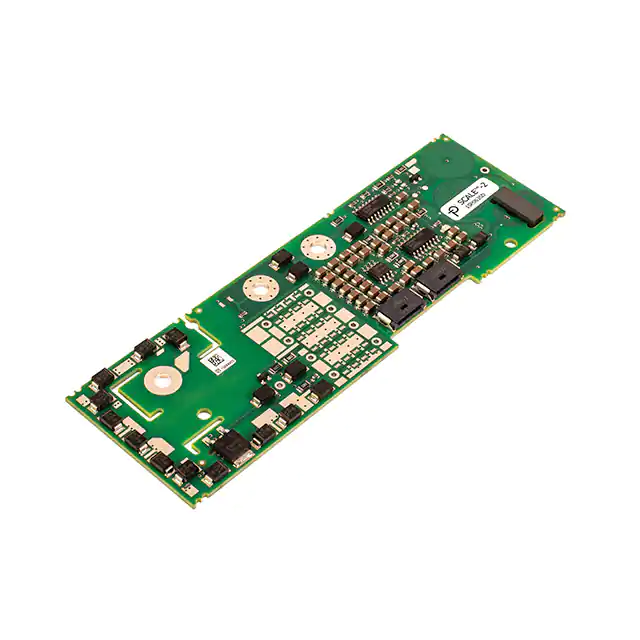

1SP0635D2S1-33 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	3,488	150.41	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	3300 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0320T2C0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	2,034	193.16	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1200 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0320V2A0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	2,625	201.40	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1200 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
