Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
MC33GD3100A3EK IGBT GATE DRIVE IC NXP USA Inc.	962	11.36	RFQ	Datasheet	Tube	-	Active	Half-Bridge	Single	1	IGBT, N-Channel MOSFET	3.3V	-	15A, 15A	-	-	-	-40°C ~ 125°C (TA)	Surface Mount
MC33GD3100EK IGBT GATE DRIVE IC NXP USA Inc.	2,107	12.00	RFQ	Datasheet	Tube	-	Active	Half-Bridge	Single	1	IGBT, N-Channel MOSFET	5V	-	15A, 15A	-	-	-	-40°C ~ 125°C (TA)	Surface Mount
PCA9440HEZ HALF BRIDGE WITH DRIVER OPTION NXP USA Inc.	2,740	1.91	RFQ		Tape & Reel (TR)	-	Last Time Buy	-	-	-	-	-	-	-	-	-	-	-	Surface Mount
PCA9440HE-Q100Z HALF BRIDGE W/ OPT DRIVER ACE-Q1 NXP USA Inc.	2,248	2.39	RFQ		Tape & Reel (TR)	Automotive, AEC-Q100	Last Time Buy	-	-	-	-	-	-	-	-	-	-	-	Surface Mount
MC33GD3100EKR2 IGBT GATE DRIVE IC NXP USA Inc.	2,069	8.37	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Half-Bridge	Single	1	IGBT, N-Channel MOSFET	5V	-	15A, 15A	-	-	-	-40°C ~ 125°C (TA)	Surface Mount
MC33GD3100A3EKR2 IGBT GATE DRIVE IC NXP USA Inc.	3,766	8.55	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Half-Bridge	Single	1	IGBT, N-Channel MOSFET	3.3V	-	15A, 15A	-	-	-	-40°C ~ 125°C (TA)	Surface Mount
UBA2033TS/N2,118 IC GATE DRVR HALF-BRIDGE 28SSOP NXP USA Inc.	3,826	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Half-Bridge	Synchronous	4	N-Channel MOSFET	10.5V ~ 13.5V	2V, 4V; 3V, 6V	180mA, 200mA	RC Input Circuit	550 V	-	-40°C ~ 150°C (TJ)	Surface Mount

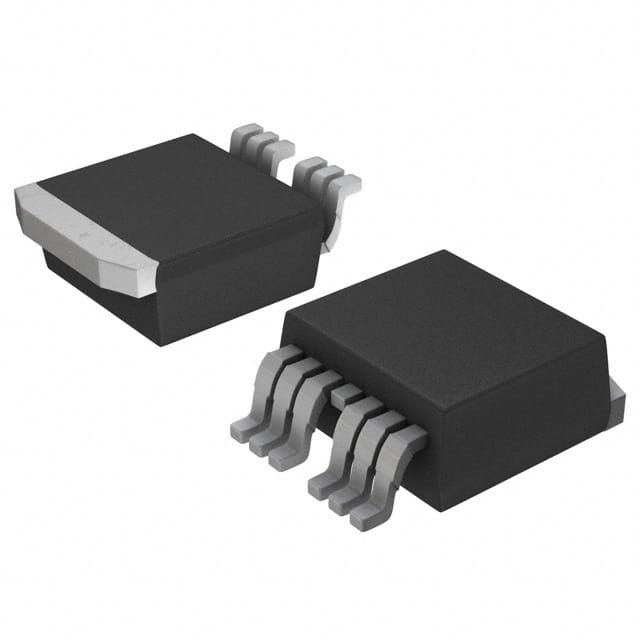

BUK218-50DC,118 IC GATE DRVR HIGH-SIDE D2PAK-7 NXP USA Inc.	3,064	1.00	RFQ	Datasheet	Tape & Reel (TR),Bulk	-	Obsolete	High-Side	Independent	2	N-Channel MOSFET	5.5V ~ 35V	1.2V, 3V	8A, 8A	-	-	-	-40°C ~ 150°C (TJ)	Surface Mount
UBA2032TS/N3,118 IC GATE DRVR HALF-BRIDGE 28SSOP NXP USA Inc.	3,123	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Half-Bridge	Synchronous	4	N-Channel MOSFET	10.5V ~ 13.5V	2V, 4V; 3V, 6V	180mA, 200mA	RC Input Circuit	550 V	-	-40°C ~ 150°C (TJ)	Surface Mount
MC33883DWR2 IC GATE DRVR HALF-BRIDGE 20SOIC NXP USA Inc.	3,189	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Half-Bridge	Independent	4	N-Channel MOSFET	5.5V ~ 28V	0.8V, 2V	1A, 1A	Non-Inverting	55 V	80ns, 80ns	-40°C ~ 150°C (TJ)	Surface Mount
MC33883HEGR2 IC GATE DRVR HALF-BRIDGE 20SOIC NXP USA Inc.	3,416	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Half-Bridge	Independent	4	N-Channel MOSFET	5.5V ~ 28V	0.8V, 2V	1A, 1A	Non-Inverting	55 V	80ns, 80ns	-40°C ~ 150°C (TJ)	Surface Mount
MC33285D IC GATE DRVR HIGH-SIDE 8SOIC NXP USA Inc.	3,905	0.00	RFQ	Datasheet	Tube	-	Obsolete	High-Side	Synchronous	2	N-Channel MOSFET	7V ~ 40V	0.7V, 1.7V	-	Non-Inverting	-	-	-40°C ~ 125°C (TA)	Surface Mount
MC33883DW IC GATE DRVR HALF-BRIDGE 20SOIC NXP USA Inc.	2,951	0.00	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Independent	4	N-Channel MOSFET	5.5V ~ 28V	0.8V, 2V	1A, 1A	Non-Inverting	55 V	80ns, 80ns	-40°C ~ 150°C (TJ)	Surface Mount

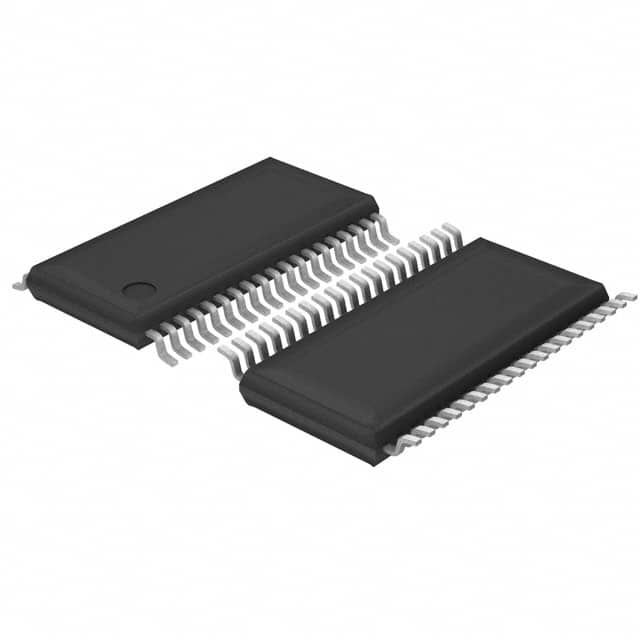

PHD33NQ20T,118 IC GATE DRVR HDMI 38TSSOP NXP USA Inc.	3,038	0.00	RFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	Surface Mount
PHD45NQ15T,118 IC GATE DRVR HDMI 38TSSOP NXP USA Inc.	2,338	0.00	RFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	Surface Mount
UBA2032T/N2,118 IC GATE DRVR HALF-BRIDGE 24SO NXP USA Inc.	2,574	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	4	N-Channel MOSFET	10.5V ~ 13.5V	2V, 4V; 3V, 6V	180mA, 200mA	RC Input Circuit	550 V	-	-40°C ~ 150°C (TJ)	Surface Mount
UBA2032TS/N2,118 IC GATE DRVR HALF-BRIDGE 28SSOP NXP USA Inc.	3,859	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	4	N-Channel MOSFET	10.5V ~ 13.5V	2V, 4V; 3V, 6V	180mA, 200mA	RC Input Circuit	550 V	-	-40°C ~ 150°C (TJ)	Surface Mount
BUK218-50DY,118 IC GATE DRVR HIGH-SIDE D2PAK-7 NXP USA Inc.	3,572	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	High-Side	Independent	2	N-Channel MOSFET	5.5V ~ 35V	1.2V, 3V	8A, 8A	-	-	-	-40°C ~ 150°C (TJ)	Surface Mount

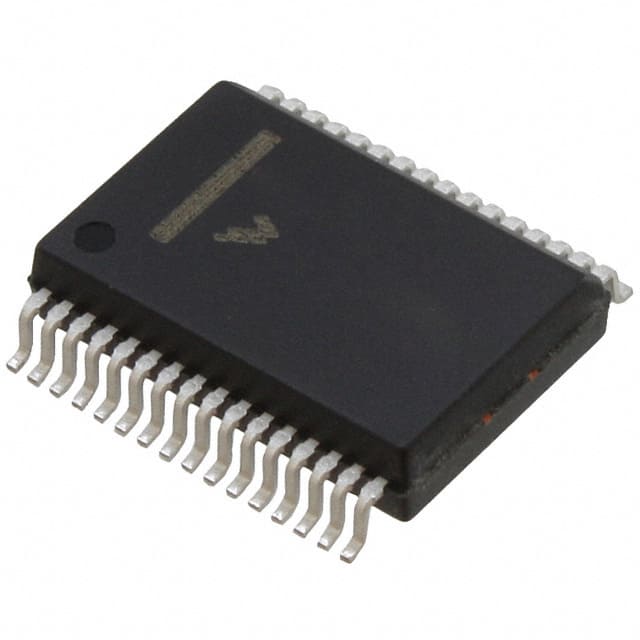

MC33395EW IC GATE DRVR HALF-BRIDGE 32SOIC NXP USA Inc.	2,282	0.00	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	3-Phase	6	N-Channel MOSFET	5.5V ~ 24V	-	-	Non-Inverting	-	350ns, 250ns	-40°C ~ 150°C (TJ)	Surface Mount
MC33395EWR2 IC GATE DRVR HALF-BRIDGE 32SOIC NXP USA Inc.	2,695	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	3-Phase	6	N-Channel MOSFET	5.5V ~ 24V	-	-	Non-Inverting	-	350ns, 250ns	-40°C ~ 150°C (TJ)	Surface Mount
