Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType

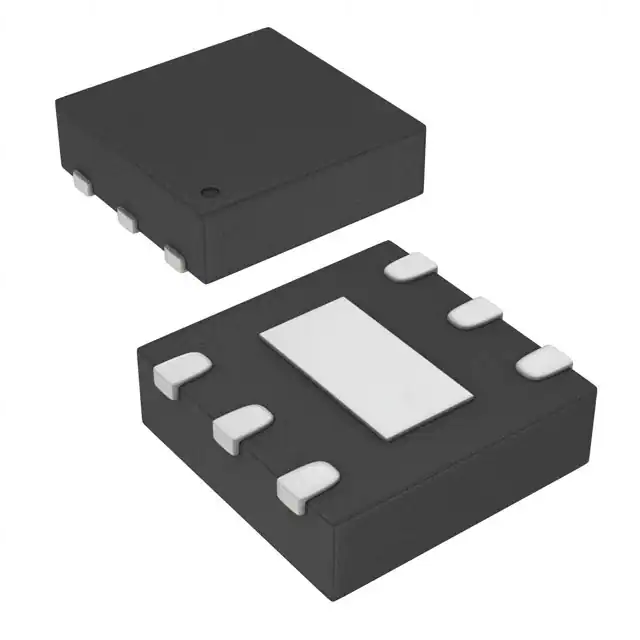

UCC27516DRSR IC GATE DRVR LOW-SIDE 6SON Texas Instruments	2,635	1.05	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	4.5V ~ 18V	1V, 2.4V	4A, 4A	Inverting, Non-Inverting	-	8ns, 7ns	-40°C ~ 140°C (TJ)	Surface Mount
UCC27517DBVR IC GATE DRVR LOW-SIDE SOT23-5 Texas Instruments	3,002	1.05	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	4.5V ~ 18V	1V, 2.4V	4A, 4A	Inverting, Non-Inverting	-	8ns, 7ns	-40°C ~ 140°C (TJ)	Surface Mount
UCC27517AQDBVRQ1 IC GATE DRVR LOW-SIDE SOT23-5 Texas Instruments	2,687	1.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	4.5V ~ 18V	1V, 2.4V	4A, 4A	Inverting, Non-Inverting	-	8ns, 7ns	-40°C ~ 150°C (TJ)	Surface Mount

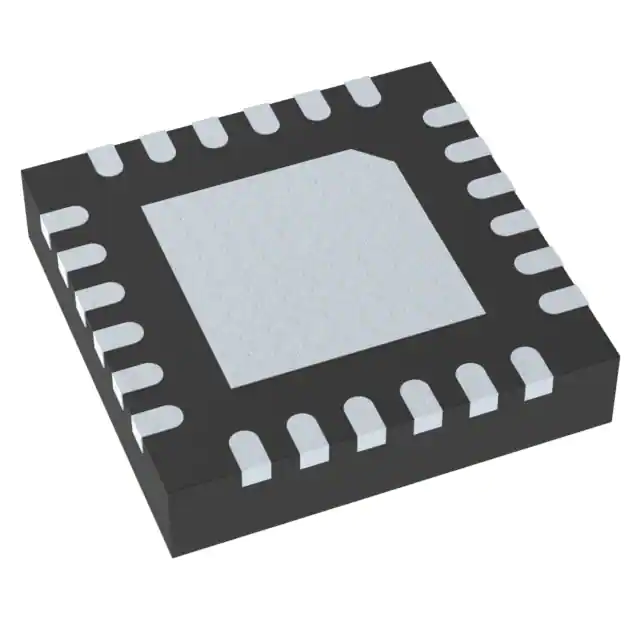

DRV8300NRGER 100-V MAX SIMPLE 3-PHASE GATE DR Texas Instruments	3,793	1.61	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	High-Side and Low-Side	3-Phase	3	N-Channel MOSFET	5V ~ 20V	0.8V, 2V	750mA, 1.5A	Non-Inverting	105 V	12ns, 12ns	-40°C ~ 125°C (TA)	Surface Mount
DRV8300DRGER 100-V MAX SIMPLE 3-PHASE GATE DR Texas Instruments	2,765	1.61	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	High-Side and Low-Side	3-Phase	3	N-Channel MOSFET	5V ~ 20V	0.8V, 2V	750mA, 1.5A	Non-Inverting	105 V	12ns, 12ns	-40°C ~ 125°C (TA)	Surface Mount
TPS2818DBVR IC GATE DRVR LOW-SIDE SOT23-5 Texas Instruments	2,353	1.92	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	4V ~ 14V	1V, 4V	2A, 2A	Inverting	-	14ns, 14ns	-40°C ~ 125°C (TA)	Surface Mount
LM5107MAX/NOPB IC GATE DRVR HALF-BRIDGE 8SOIC Texas Instruments	2,124	2.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	0.8V, 2.2V	1.3A, 1.4A	Non-Inverting	118 V	15ns, 15ns	-40°C ~ 125°C (TJ)	Surface Mount
LM5111-1MY/NOPB IC GATE DRVR LOW-SIDE 8MSOP Texas Instruments	2,150	3.08	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel MOSFET	3.5V ~ 14V	0.8V, 2.2V	3A, 5A	Non-Inverting	-	14ns, 12ns	-40°C ~ 125°C (TJ)	Surface Mount

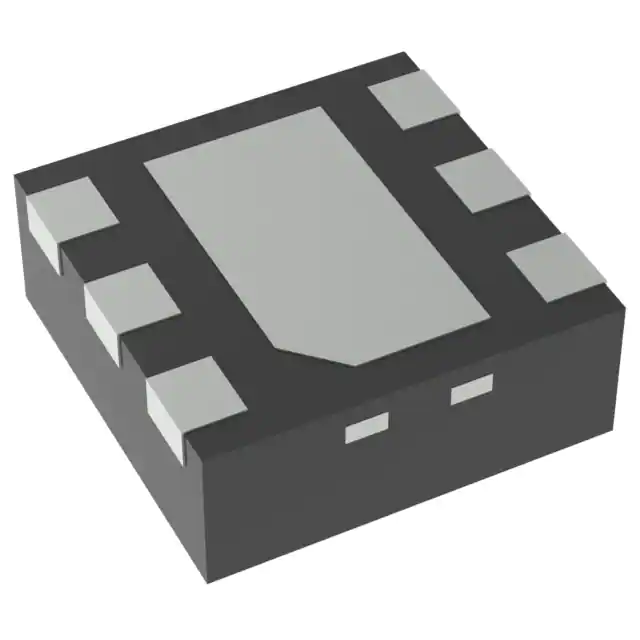

UCC27611DRVT IC GATE DRVR LOW-SIDE 6WSON Texas Instruments	3,264	2.61	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	4V ~ 18V	1.3V, 1.85V	4A, 6A	Inverting, Non-Inverting	-	5ns, 5ns	-40°C ~ 140°C (TJ)	Surface Mount

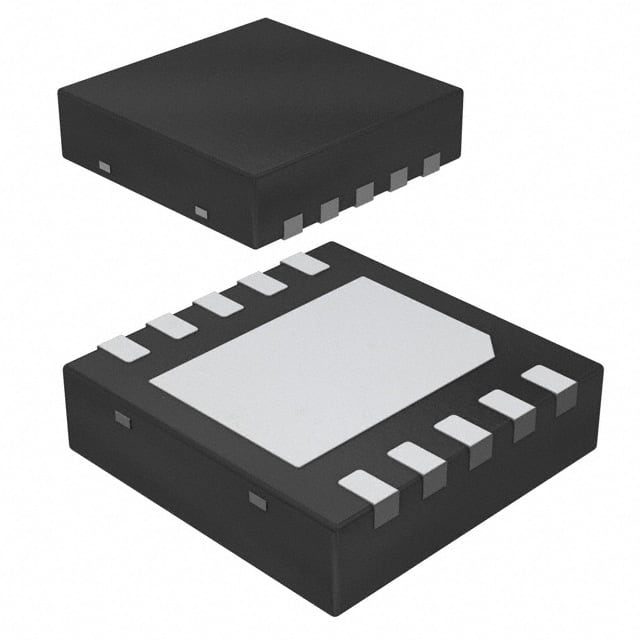

LM5101BSDX/NOPB IC GATE DRVR HALF-BRIDGE 10WSON Texas Instruments	3,000	3.71	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	9V ~ 14V	2.3V, -	2A, 2A	Non-Inverting	118 V	570ns, 430ns	-40°C ~ 125°C (TJ)	Surface Mount
UCC27423D IC GATE DRVR LOW-SIDE 8SOIC Texas Instruments	2,376	2.25	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4V ~ 15V	1V, 2V	4A, 4A	Inverting	-	20ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount
UCC27424D IC GATE DRVR LOW-SIDE 8SOIC Texas Instruments	2,941	2.25	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4V ~ 15V	1V, 2V	4A, 4A	Non-Inverting	-	20ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount

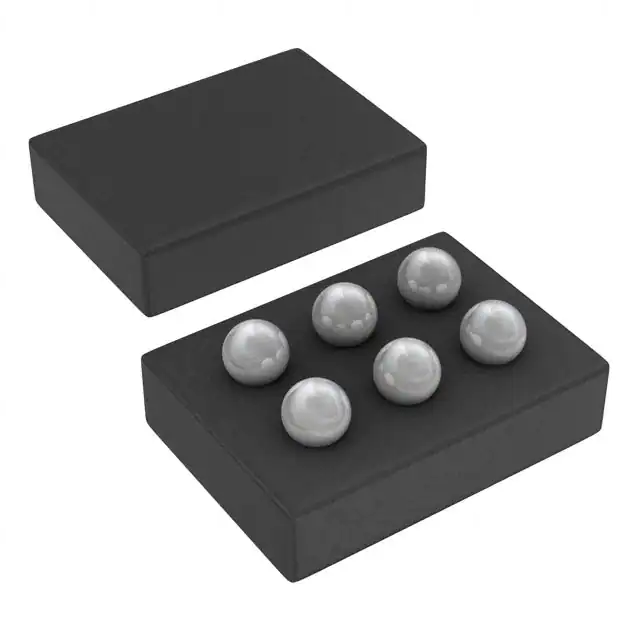

LMG1020YFFR IC GATE DRVR LOW-SIDE 6DSBGA Texas Instruments	2,979	5.09	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel, P-Channel MOSFET	4.75V ~ 5.25V	1.8V, 1.7V	7A, 5A	Inverting, Non-Inverting	-	375ps, 350ps	-40°C ~ 125°C (TJ)	Surface Mount
UCC27512MDRSTEP IC GATE DRVR LOW-SIDE 6SON Texas Instruments	999	4.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	4.5V ~ 18V	1V, 2.4V	4A, 8A	Inverting, Non-Inverting	-	8ns, 7ns	-55°C ~ 125°C (TJ)	Surface Mount

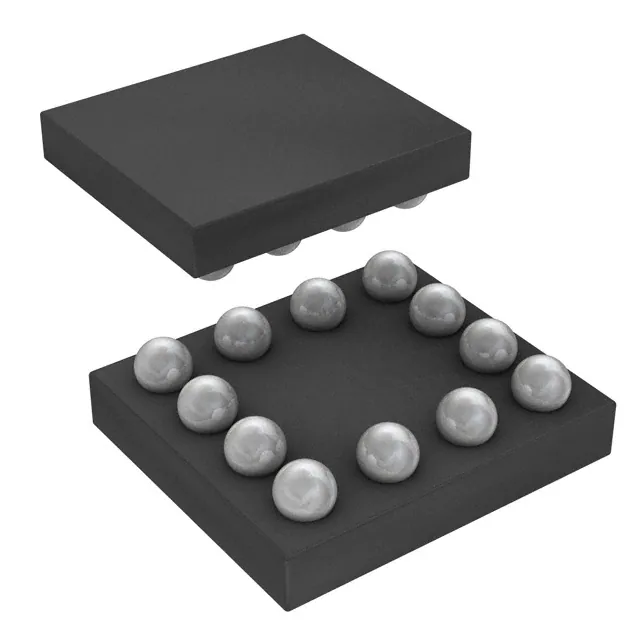

LM5113TME/NOPB IC GATE DRVR HALF-BRIDGE 12DSBGA Texas Instruments	3,945	5.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	Half-Bridge	Independent	2	N-Channel MOSFET	4.5V ~ 5.5V	1.76V, 1.89V	1.2A, 5A	Non-Inverting	107 V	7ns, 1.5ns	-40°C ~ 125°C (TJ)	Surface Mount

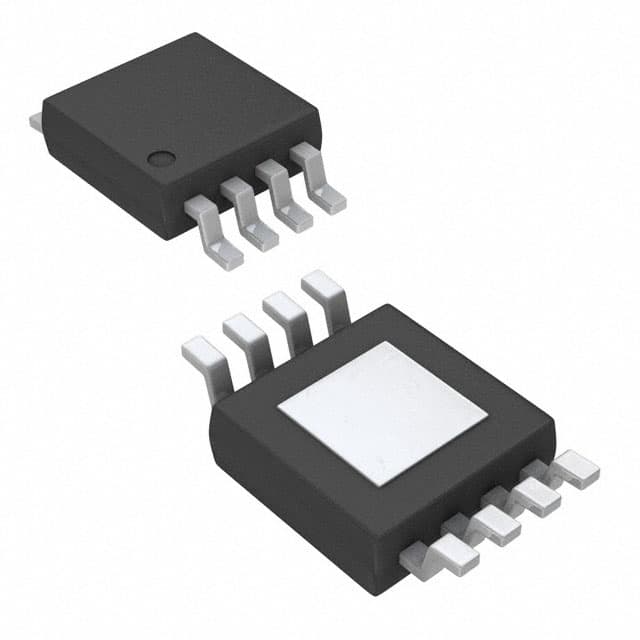

UCC27424MDGNREP IC GATE DRVR LOW-SIDE 8MSOP Texas Instruments	2,527	6.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4V ~ 15V	1V, 2V	4A, 4A	Non-Inverting	-	20ns, 15ns	-55°C ~ 125°C (TA)	Surface Mount
LM5101AM/NOPB IC GATE DRVR HALF-BRIDGE 8SOIC Texas Instruments	829	4.45	RFQ	Datasheet	Tube	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	9V ~ 14V	2.3V, -	3A, 3A	Non-Inverting	118 V	430ns, 260ns	-40°C ~ 125°C (TJ)	Surface Mount
UC3707N IC GATE DRVR LOW-SIDE 16DIP Texas Instruments	989	10.88	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	5V ~ 40V	0.8V, 2.2V	1.5A, 1.5A	Inverting, Non-Inverting	-	40ns, 40ns	0°C ~ 70°C (TA)	Through Hole
UC3708N IC GATE DRVR LOW-SIDE 8DIP Texas Instruments	2,025	12.47	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	5V ~ 35V	0.8V, 2V	3A, 3A	Non-Inverting	-	25ns, 25ns	0°C ~ 70°C (TA)	Through Hole

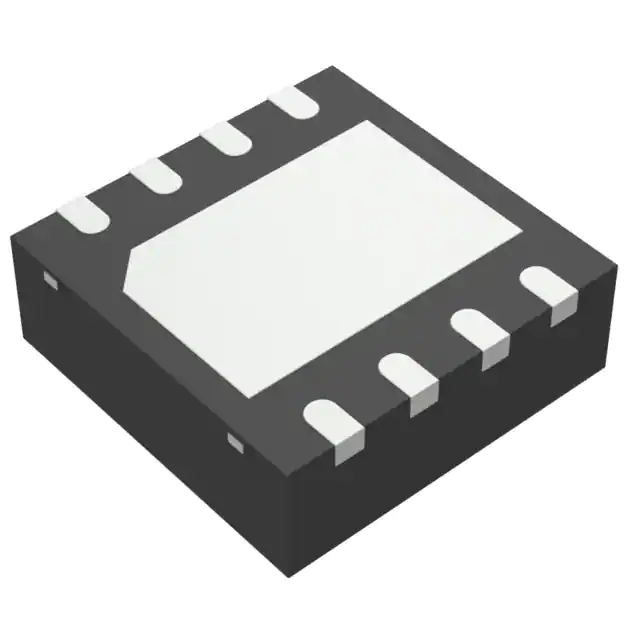

TPS51601ADRBR IC GATE DRVR HALF-BRIDGE 8SON Texas Instruments	3,249	1.68	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	4.5V ~ 5.5V	0.7V, 4V	-	Non-Inverting	-	15ns, 10ns	-40°C ~ 105°C (TJ)	Surface Mount
