Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	Direction	FrequencyRange	Sensitivity	S/NRatio	Impedance	Voltage-Rated	VoltageRange	Current-Supply	PortLocation	Ratings	Termination	Size/Dimension	Height(Max)

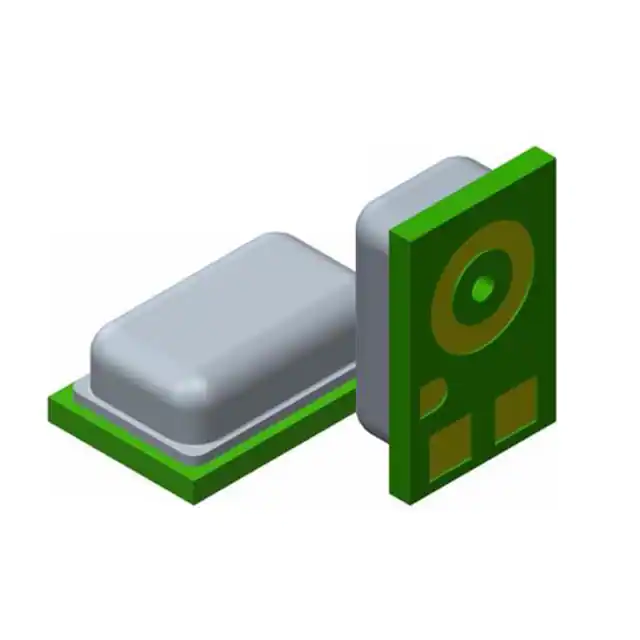

	WM7331IMSE/RV MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	3,997	0.55	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	MEMS (Silicon)	Analog	Omnidirectional	70 Hz ~ 15 kHz	-38dB ±1dB @ 94dB SPL	63dB	-	1.8 V	1.6 V ~ 3.6 V	60 µA	Bottom	-	Solder Pads	0.098 L x 0.063 W (2.50mm x 1.60mm)	0.039 (0.98mm)

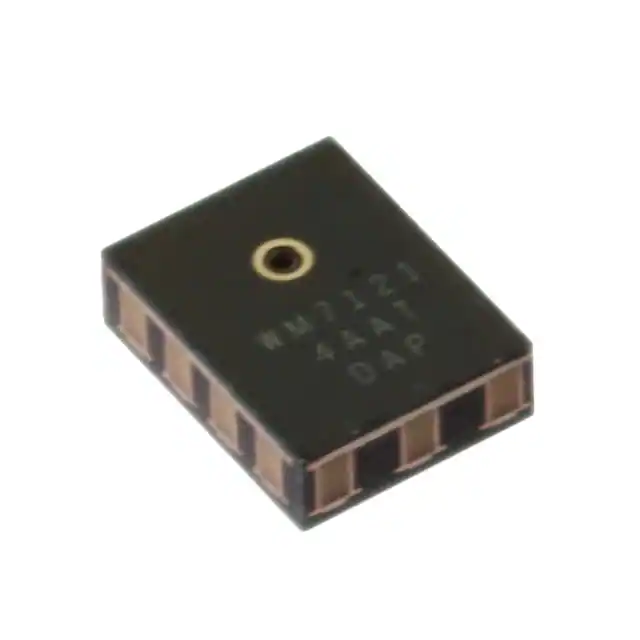

	WM7121PIMSE/RV MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	2,495	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7121PE	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	62 Hz ~ 13 kHz	-38dB ±1dB @ 94dB SPL	65dB	55 Ohms	-	1.5 V ~ 3.7 V	240 µA	Top	-	Solder Pads	0.148 L x 0.116 W (3.76mm x 2.95mm)	0.047 (1.20mm)

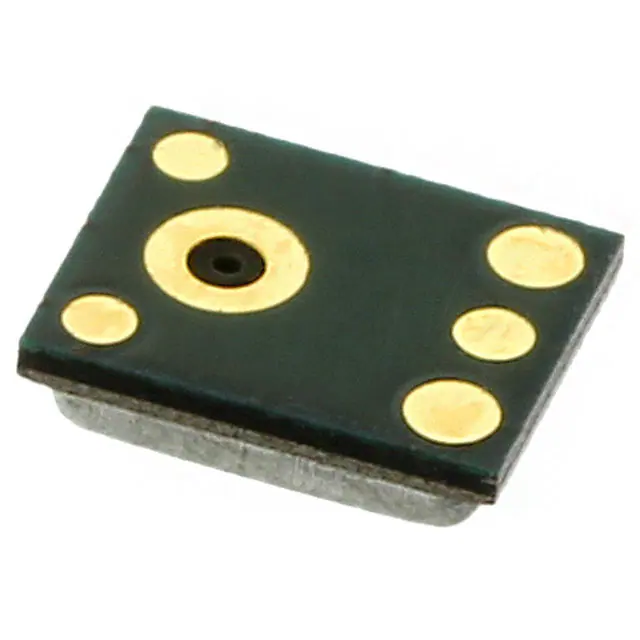

	WM7132PIMSE/RV MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	3,942	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7132PE	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	62 Hz ~ 12.5 kHz	-38dB ±1dB @ 94dB SPL	65dB	55 Ohms	2.1 V	1.5 V ~ 3.7 V	240 µA	Bottom	-	Solder Pads	0.148 L x 0.116 W (3.76mm x 2.95mm)	0.047 (1.20mm)
	WM7133LIMS/RV MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	2,224	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7133L	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	85 Hz ~ 10.6 kHz	-38dB ±3dB @ 94dB SPL	64.5dB	55 Ohms	1.8 V	1.5 V ~ 3.7 V	240 µA	Bottom	-	Solder Pads	0.132 L x 0.098 W (3.35mm x 2.50mm)	0.043 (1.10mm)
	WM7137IMSE/RV MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	3,293	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	85 Hz ~ 10.6 kHz	-38dB ±1dB @ 94dB SPL	62dB	55 Ohms	-	1.5 V ~ 3.7 V	240 µA	Bottom	-	Solder Pads	0.148 L x 0.118 W (3.76mm x 3.00mm)	0.047 (1.20mm)
	WM7138IMSE/RV IC MIC CMOS/MEMS ANALOGUE LGA Cirrus Logic Inc.	3,794	0.00	RFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

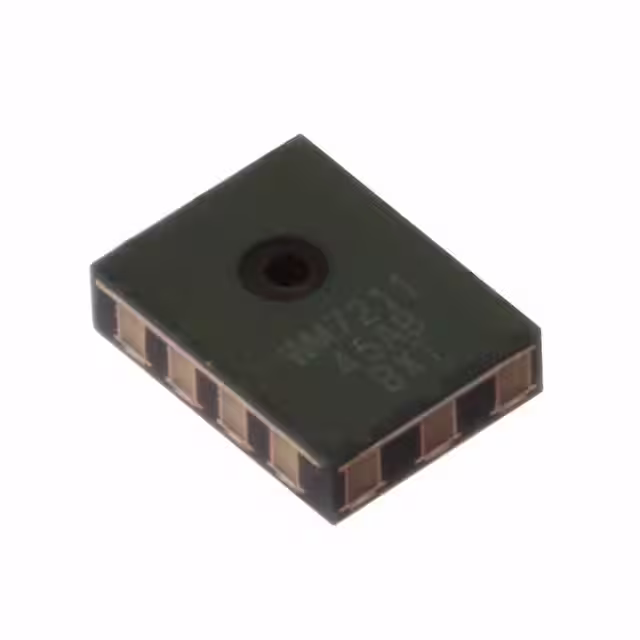

	WM7211IMSE/RV MICROPHONE MEMS DIGITAL PDM OMNI Cirrus Logic Inc.	3,090	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7211E	Obsolete	MEMS (Silicon)	Digital, PDM	Omnidirectional	20 Hz ~ 20 kHz	-26 ±1dB @ 94dB SPL	61dB	-	-	1.64 V ~ 3.7 V	735 µA	Top	-	Solder Pads	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.043 (1.10mm)

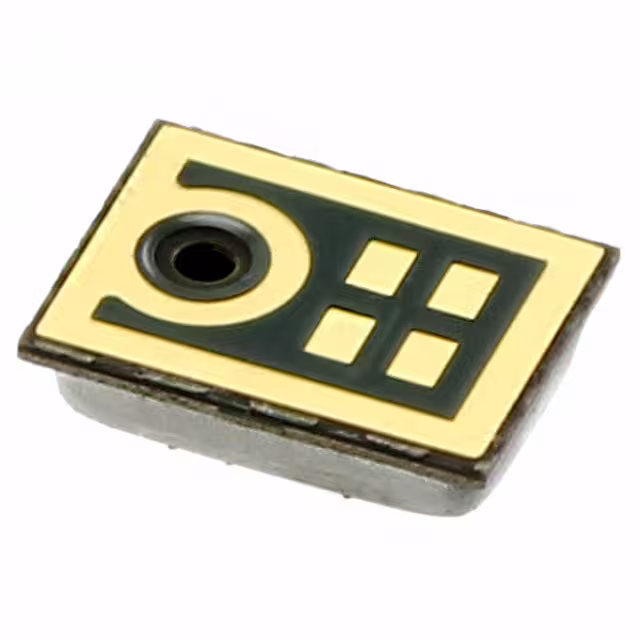

	WM7230IMSE/RV MICROPHONE MEMS DIGITAL PDM OMNI Cirrus Logic Inc.	2,068	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7230E	Obsolete	MEMS (Silicon)	Digital, PDM	Omnidirectional	20 Hz ~ 20 kHz	-26 ±1dB @ 94dB SPL	61dB	-	-	1.64 V ~ 3.7 V	735 µA	Bottom	-	Solder Pads	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.043 (1.10mm)

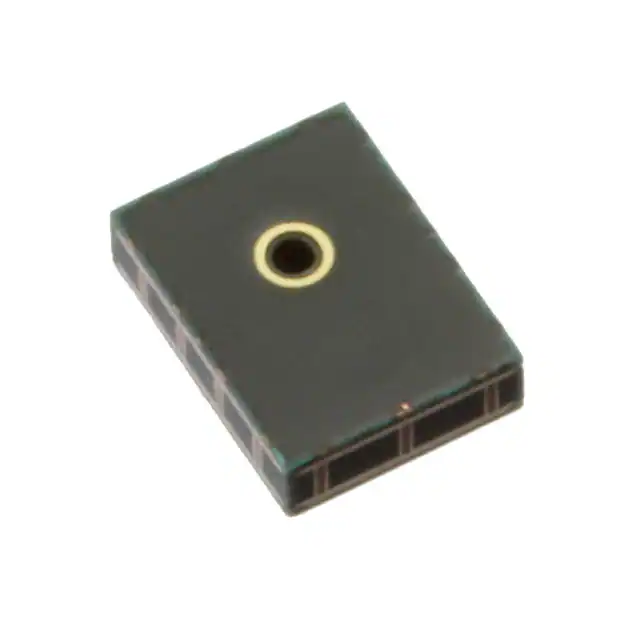

	WM7216IMSE/RV MICROPHONE MEMS DIGITAL PDM OMNI Cirrus Logic Inc.	3,065	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7216E	Obsolete	MEMS (Silicon)	Digital, PDM	Omnidirectional	62 Hz ~ 12 kHz	-26dB ±1dB @ 94dB SPL	63dB	-	1.8 V	1.62 V ~ 2 V	980 µA	Top	-	Solder Pads	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.043 (1.10mm)

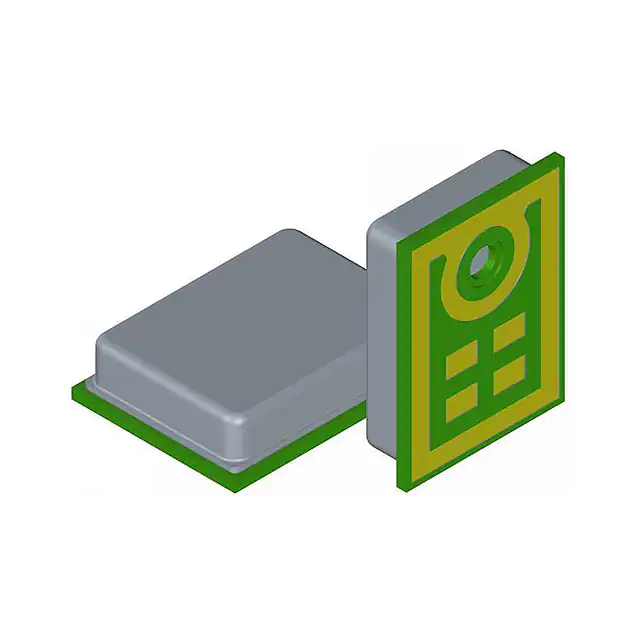

	WM7236IMSE/RV MICROPHONE MEMS DIGITAL PDM OMNI Cirrus Logic Inc.	3,269	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7236E	Obsolete	MEMS (Silicon)	Digital, PDM	Omnidirectional	55 Hz ~ 12 kHz	-26dB ±1dB @ 94dB SPL	63dB	-	1.8 V	1.62 V ~ 2 V	1.3 mA	Bottom	-	Solder Pads	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.043 (1.10mm)
	WM7121DIMS/RV MIC MEMS ANALOG OMNI -42DB Cirrus Logic Inc.	3,161	0.00	RFQ		Tape & Reel (TR)	-	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	62 Hz ~ 15 kHz	-42dB ±3dB	62dB	250 Ohms	-	1.5 V ~ 3.7 V	200 µA	Top	-	-	-	-
	CS7331P-CAZR MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	3,011	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CS7331P	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	85 Hz ~ 15 kHz	-38dB ±1dB @ 94dB SPL	63dB	200 Ohms	1.8 V	1.6 V ~ 3.6 V	60 µA	Bottom	-	Solder Pads	0.098 L x 0.063 W (2.50mm x 1.60mm)	0.039 (0.98mm)
	CS7250B-CAZR MICROPHONE MEMS DIGITAL PDM OMNI Cirrus Logic Inc.	2,605	0.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CS7250B	Obsolete	MEMS (Silicon)	Digital, PDM	Omnidirectional	35 Hz ~ 13 kHz	-36dB ±1dB @ 94dB SPL	66dB	-	1.8 V	1.62 V ~ 1.98 V	650 µA	Bottom	-	Surface Mount	0.138 L x 0.104 W (3.50mm x 2.65mm)	0.039 (0.98mm)
	CS7154B-CAZR COMPACT ANALOG MIC Cirrus Logic Inc.	3,490	0.00	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
