Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

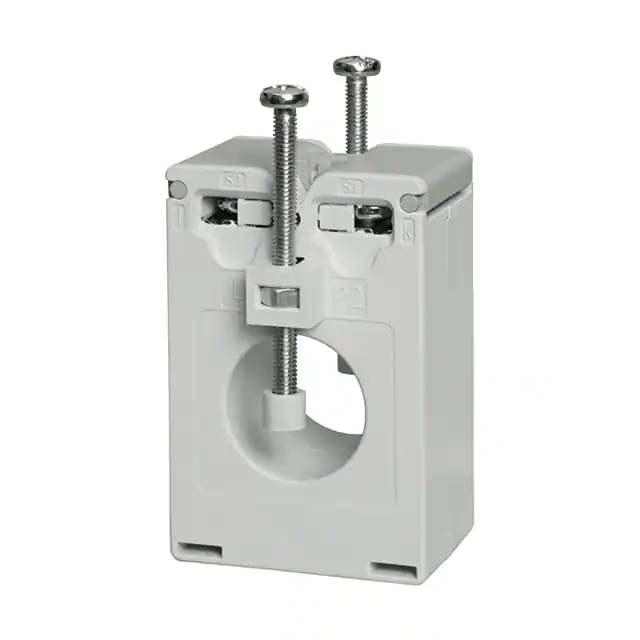

CTD1X1005AXXX CURRENT TRANSFORMER 100A Carlo Gavazzi Inc.	2,320	72.00	RFQ	Datasheet	Box	-	Active	48Hz ~ 62Hz	Non-Invasive (Split Core)	300 A	-	-	-	-	-	-	DIN Rail, Panel	1.811 L x 1.732 W (46.00mm x 44.00mm)	2.567 (65.20mm)

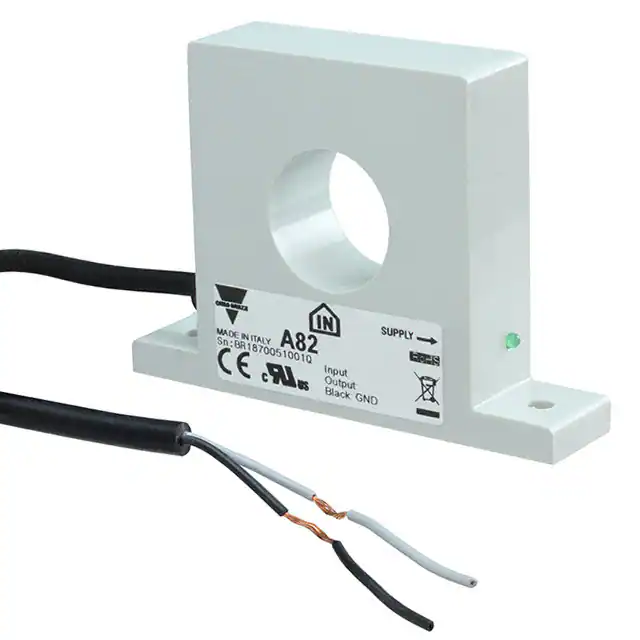

A82-20500 CURR TRANSFORMER 500A 4-20MA DC Carlo Gavazzi Inc.	2,367	453.00	RFQ	Datasheet	Bag	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	500 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-2050 CURR TRANSFORMER 50A 4-20MA DC Carlo Gavazzi Inc.	2,976	453.00	RFQ	Datasheet	Bag	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	250 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-20250 CURR TRANSFORMER 250A 4-20MA DC Carlo Gavazzi Inc.	2,609	453.00	RFQ	Datasheet	Bag	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	250 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)

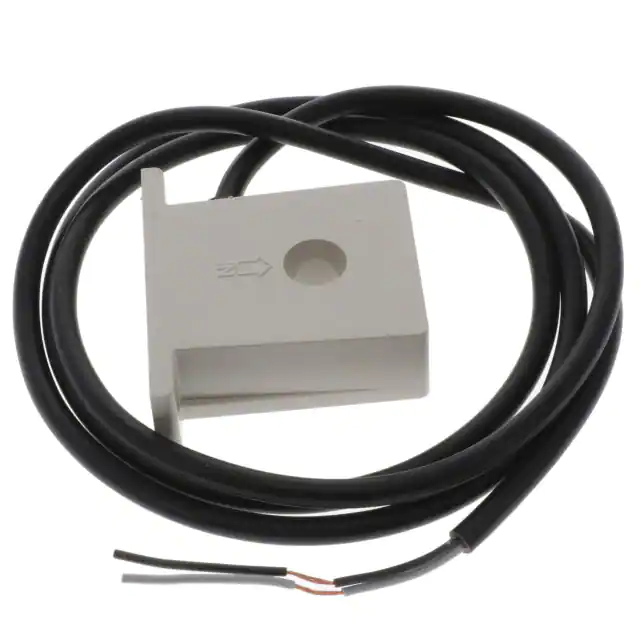

MI5 AC CURRENT SENSOR 5A Carlo Gavazzi Inc.	2,713	118.00	RFQ	Datasheet	Bag	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	5 A	-	-	-	-	-	-	Chassis Mount	2.047 L x 0.630 W (52.00mm x 16.00mm)	1.772 (45.00mm)

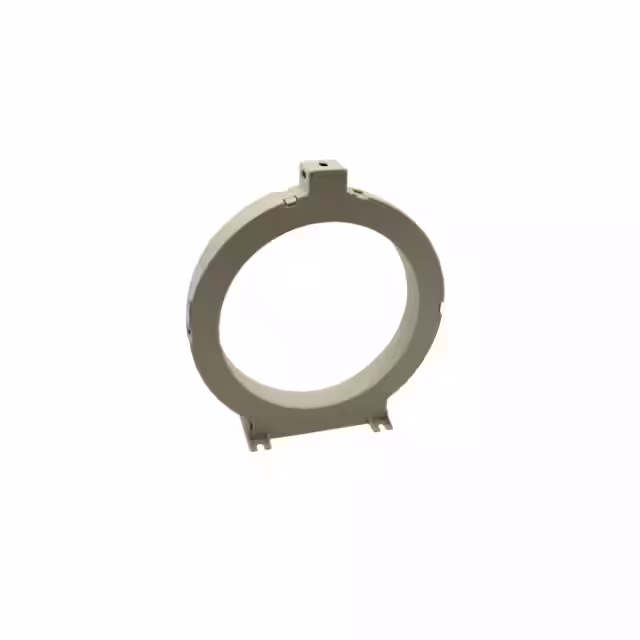

CTG120 CORE BALANCE TRANSFORM 0120MM Carlo Gavazzi Inc.	2,135	137.00	RFQ	Datasheet	Box	CTG	Active	-	-	-	-	-	-	-	-	-	Surface Mount	-	6.654 (169.00mm)

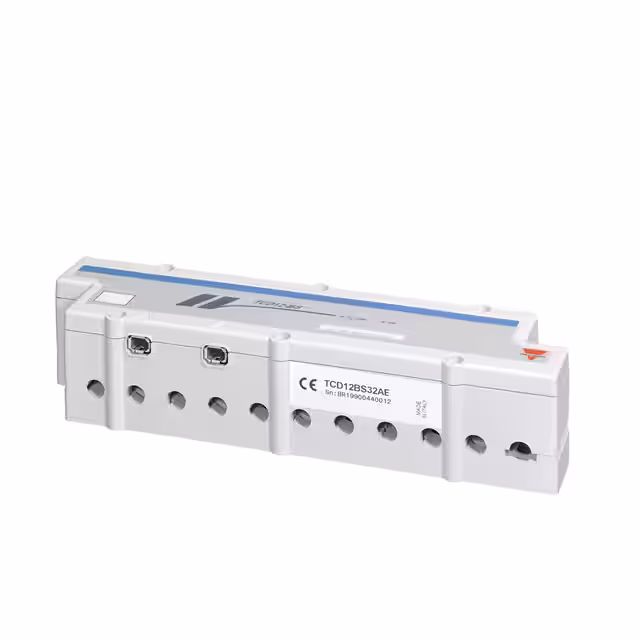

TCD12BS32AE 12CH. SPLIT-CORE CURRENT TRANSFO Carlo Gavazzi Inc.	2,354	701.00	RFQ		Box	-	Active	-	Non-Invasive (Split Core)	21 A	-	-	-	-	-	-	DIN Rail	2.283 L x 8.701 W (58.00mm x 221.00mm)	1.929 (49.00mm)

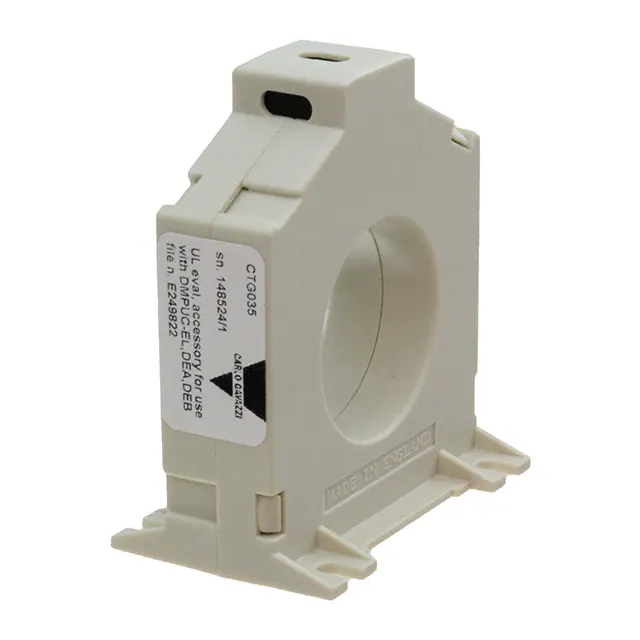

CTG035 CORE BALANCE TRANSFORM 035MM Carlo Gavazzi Inc.	2,467	63.00	RFQ	Datasheet	Box	CTG	Active	-	-	-	-	-	-	-	-	-	Surface Mount	-	2.913 (74.00mm)

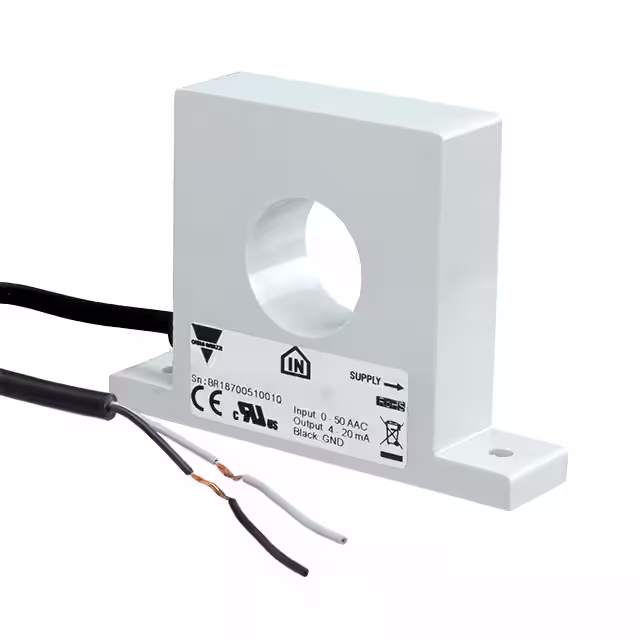

MI100 AC CURRENT SENSOR 100A Carlo Gavazzi Inc.	2,599	156.00	RFQ	Datasheet	Bag	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)

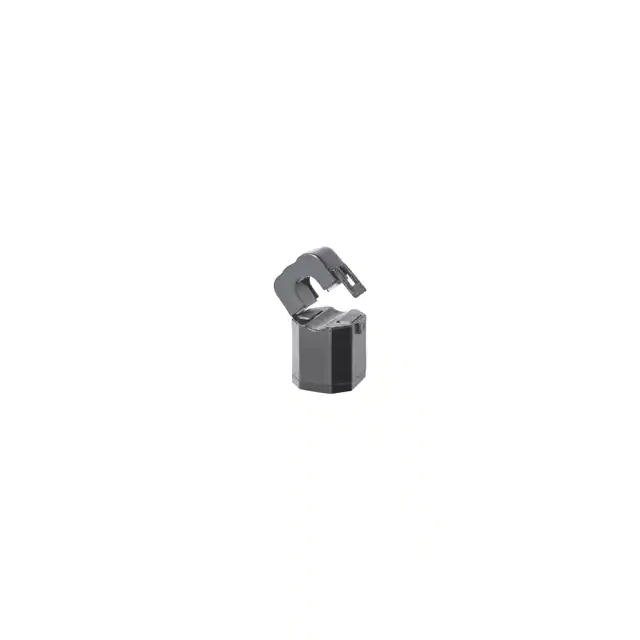

CTV1X60A333MV SPLIT -CORE CURRENT SENSOR REV.0 Carlo Gavazzi Inc.	2,851	56.00	RFQ	Datasheet	Box	-	Active	-	Non-Invasive (Split Core)	60 A	-	-	-	-	-	-	Free Hanging (In-Line)	1.220 L x 1.102 W (31.00mm x 28.00mm)	1.575 (40.00mm)

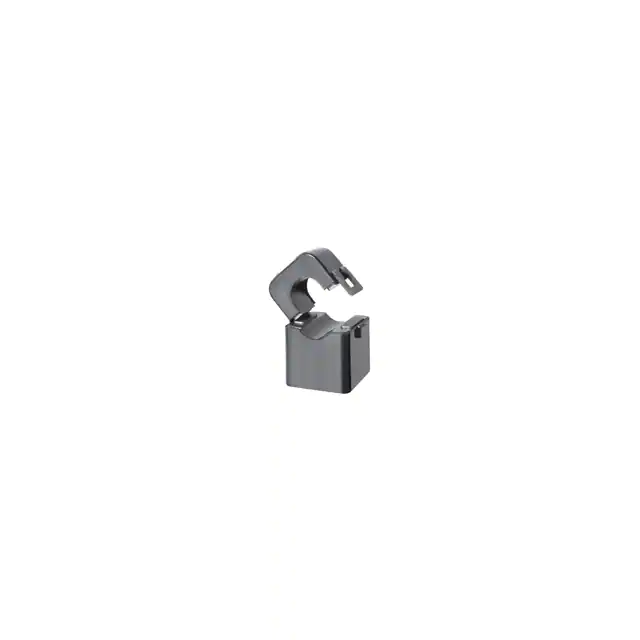

CTV2X100A333MV SPLIT -CORE CURRENT SENSOR REV.0 Carlo Gavazzi Inc.	2,971	64.00	RFQ	Datasheet	Box	-	Active	-	Non-Invasive (Split Core)	100 A	-	-	-	-	-	-	Free Hanging (In-Line)	1.260 L x 1.220 W (32.00mm x 31.00mm)	1.772 (45.00mm)
A82-10100 1PH CURR XFMR 0-20MA OUTPUT Carlo Gavazzi Inc.	2,974	453.00	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-20100 1PH CURR XFMR 4-20MA OUTPUT Carlo Gavazzi Inc.	2,204	453.00	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-2025 1PH CURR XFMR 4-20MA OUTPUT Carlo Gavazzi Inc.	2,656	453.00	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	25 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-1050 1PH CURR XFMR 0-20MA OUTPUT Carlo Gavazzi Inc.	2,069	453.00	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
A82-10500 1PH CURR XFMR 0-20MA OUTPUT Carlo Gavazzi Inc.	2,377	453.00	RFQ	Datasheet	Box	-	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	500 A	-	-	-	-	-	-	Chassis Mount	3.740 L x 0.787 W (95.00mm x 20.00mm)	2.657 (67.50mm)
CTG050 CORE BALANCE TRANSFORM 050MM Carlo Gavazzi Inc.	3,676	83.00	RFQ	Datasheet	Box	CTG	Active	-	-	-	-	-	-	-	-	-	Surface Mount	-	-
CTG070 CORE BALANCE TRANSFORM 070MM Carlo Gavazzi Inc.	3,250	85.00	RFQ	Datasheet	Box	CTG	Active	-	-	-	-	-	-	-	-	-	Surface Mount	-	-
CTG160 CORE BALANCE TRANSFORM 0160MM Carlo Gavazzi Inc.	3,224	370.00	RFQ		Box	CTG	Active	-	-	-	-	-	-	-	-	-	Surface Mount	-	-
CTG210 CORE BALANCE TRANSFORM 210MM Carlo Gavazzi Inc.	2,368	584.00	RFQ	Datasheet	Box	CTG	Active	-	-	-	-	-	-	-	-	-	Surface Mount	-	-
